Subplate Isolation Filters
Metric Filters

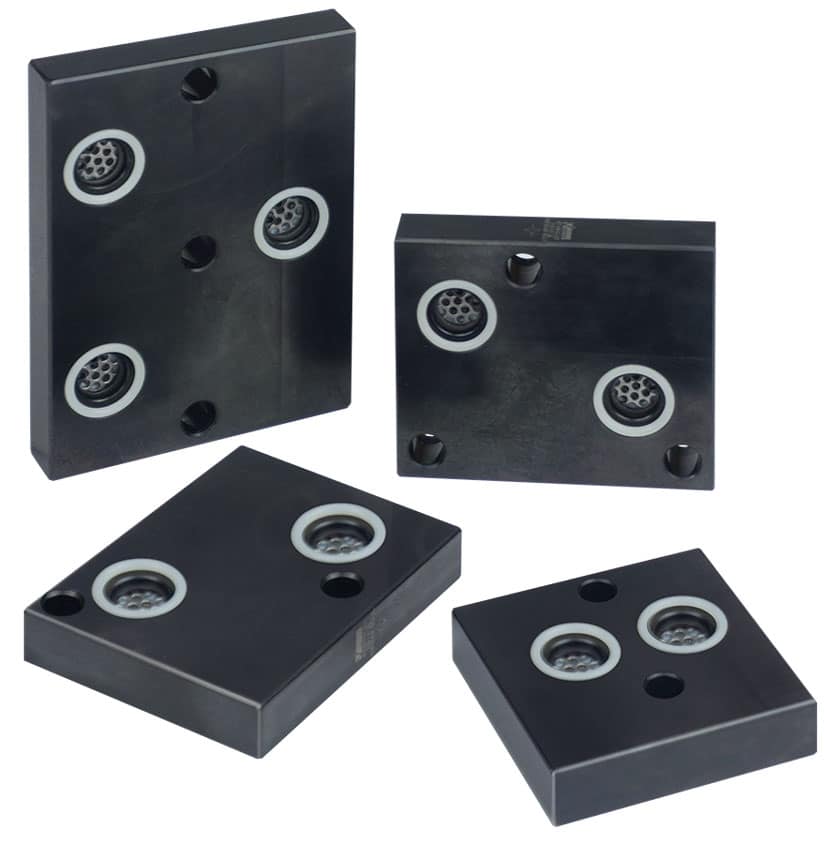

Subplate isolation filters to protect your valves from debris and contamination

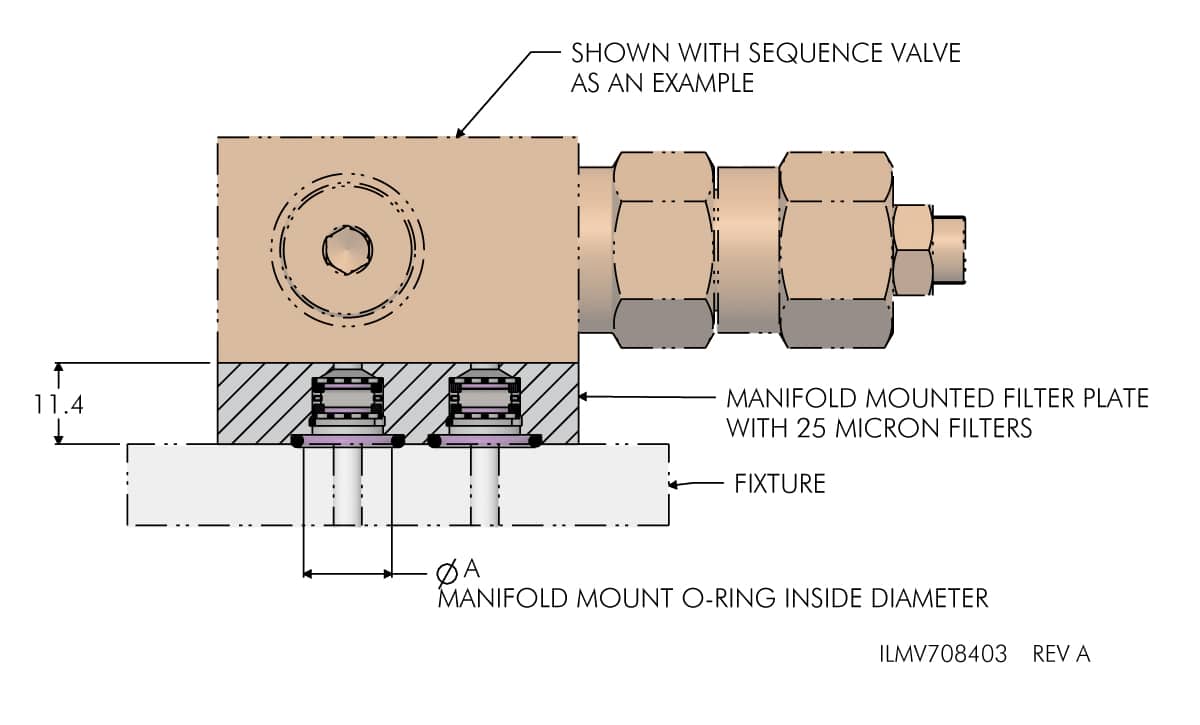

- Compact sandwich subplate design adds only 11.4 mm to the device height.
- Filter Plate dimensions match the mating product footprint.
- 25 micron filters are easily replaceable.
- Service kits available for easy and simple maintenance.
| Model No. | Valve Type | Used With Model No. | A |
|---|---|---|---|
| 47-0842-01 | Combination Sequence / PRV Block | 47-0940-00 47-0940-01 47-0940-02 47-0940-03 | 12 |
| 47-0842-02 | Pressure Reducing Valve | 47-0540-01 47-0540-03 | 12 |
| 47-0842-03 | Sequence Valve | 47-0440-02 47-0440-03 | 12 |
| 47-0842-04 | Sequence Valve Manifold Mount Only | 47-0440-10 47-0440-11 | 12 |
| 47-0842-05 | Pallet Decoupler Bottom Mount | 45-6007-03 45-6007-20 45-6007-21 45-6007-22 45-6007-23 45-6007-24 45-6007-25 45-6007-26 45-6007-27 45-6007-28 45-6007-29 45-6007-30 45-6007-31 45-6007-32 45-6007-33 45-6007-34 45-6007-35 | 18 |
| 47-0842-06 | Pallet Decoupler Rear Mount | 45-6007-03 45-6007-20 45-6007-21 45-6007-22 45-6007-23 45-6007-24 45-6007-25 45-6007-26 45-6007-27 45-6007-28 45-6007-29 45-6007-30 45-6007-31 45-6007-32 45-6007-33 45-6007-34 45-6007-35 | 18 |
