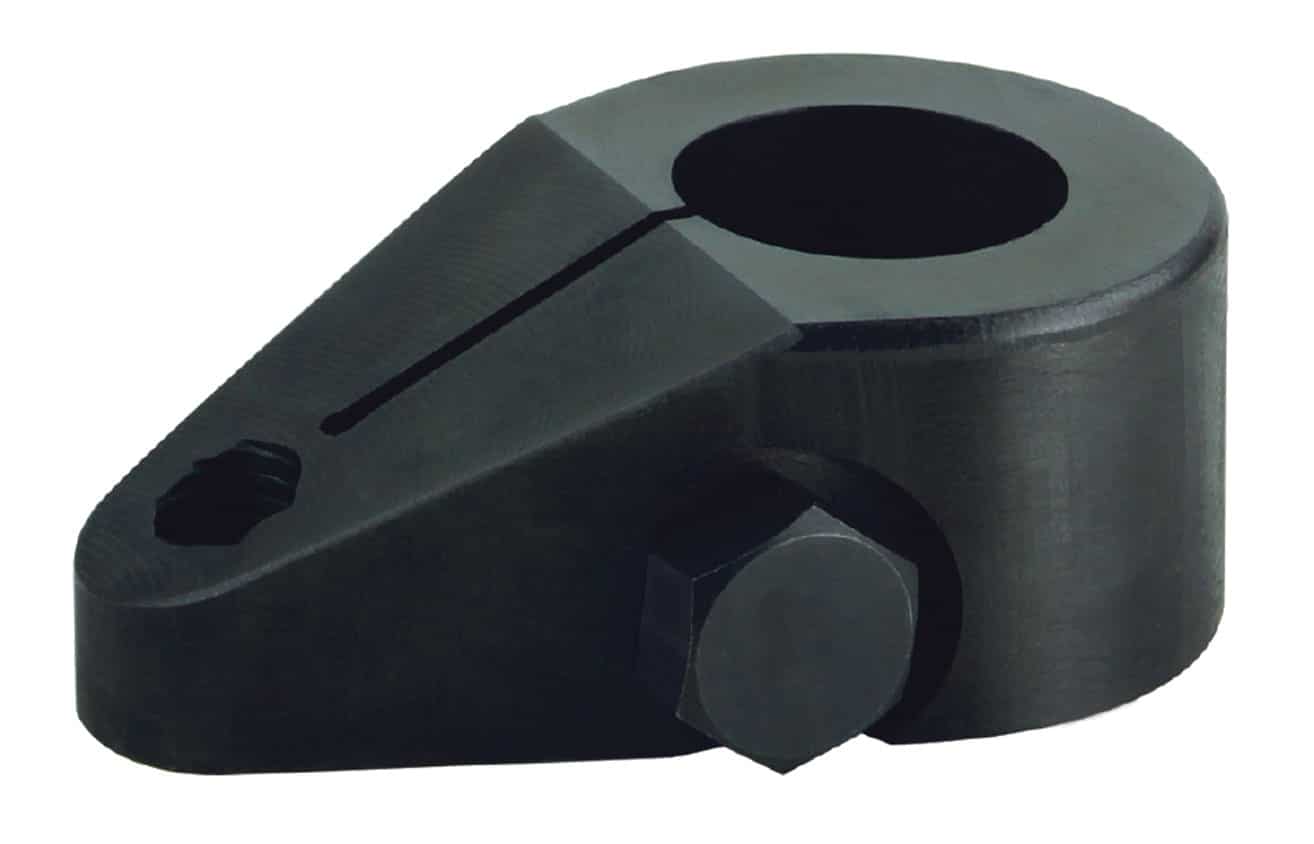

Low Profile Standard Arms
Metric Swing Clamp Arms
- TuffCam™ Low Profile Clocking.
- 44-1031-00 For use with Low Profile Swing Clamp Models 41-4622-XX, 41-4222-XX.
- For an arm without a tapped hole order 91-5218-11.
- 44-1032-00 For use with Low Profile Swing Clamp Models 41-4633-XX, 41-4233-XX.
- For an arm without a tapped hole order 91-5221-06.
NOTE:
Replacement Cap Screw for 44-1031-00 and 91-5218-11 is Model No. 21-5000-24 Replacement Cap Screw for 44-1032-00 and 91-5221-06 is Model No. 21-5000-28. For arm limits, see the Swing Clamp Arms Learn More Page.
| Model No. | Clamp Capacity (kN) | A | B | C | D | G | H | J | K | L | N | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-1031-00 | 22 | 63.5 | 25.5 | 14.5 | 15.4 | 12.5 | 31.75 - 31.80 | M16 X 1.5 | M12 X 1.75 | 25 | 0.5 | 22.5 | 43.8 |
| 44-1032-00 | 33 | 68 | 35 | 14.2 | 16.4 | 14.2 | 38.11 - 38.16 | M16 X 1.5 | M16 X 2 | 25 | N/A | 25.6 | 44.5 |
