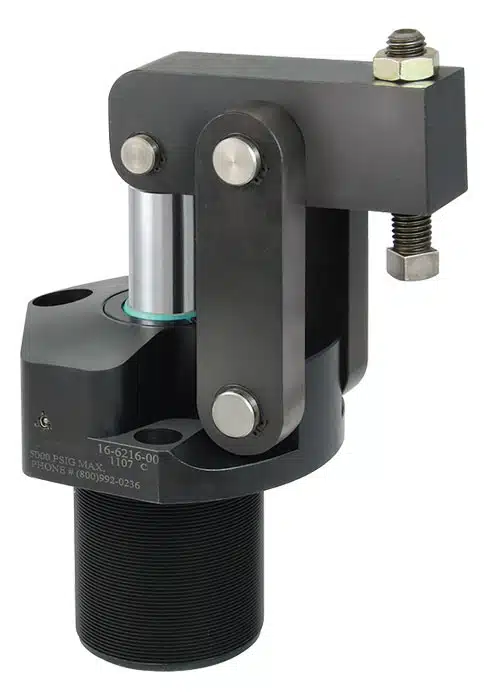

High Pressure Link Clamps

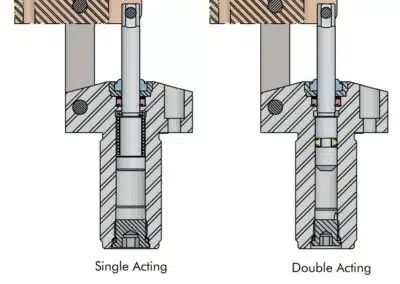

Single and Double Acting

Available in sizes from 350 lbs to 6,800 lbs. capacities at 5,000 psi pressure.
Excellent alternative to swing clamps when swing space is limited.
Single piece body/pivot design for accuracy and longevity.
Link clamps clear large obstructions better than other types of clamps.
Top Flange or threaded body mount from same body.
Fluorocarbon seals available.
Flexible plumbing options accommodate either plumb or manifold mounting using SAE fittings (face seal 39-0510-25 included).
Levers sold separately.
Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
Optional In-Port Sequence Valve is a sequencing device with reverse free flow check valve.

** Clamp capacities are listed at 5,000 psi maximum operating pressure with a standard length link clamp lever installed. Minimum operating pressure is 750 psi for single acting and 500 psi for double acting devices. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the clamp capacity shown above by 5,000 and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to mechanical inefficiencies and friction.)
*** Equal to +/- 3° with standard lever.
**** To insure maximum service life and trouble-free operation, restrict fluid flow to the above flow ratings when clamping. If you are unable to measure flow rates, these devices should be positioned in no less than 1/2 second. These recommendations apply when using the standard lever. When using the optional extended lever or your custom lever, please restrict the flow rates to position the lever in no less than 1 second.
***** In-Port Valves require the use of manifold mount ports.

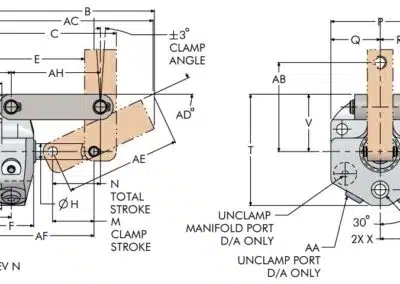

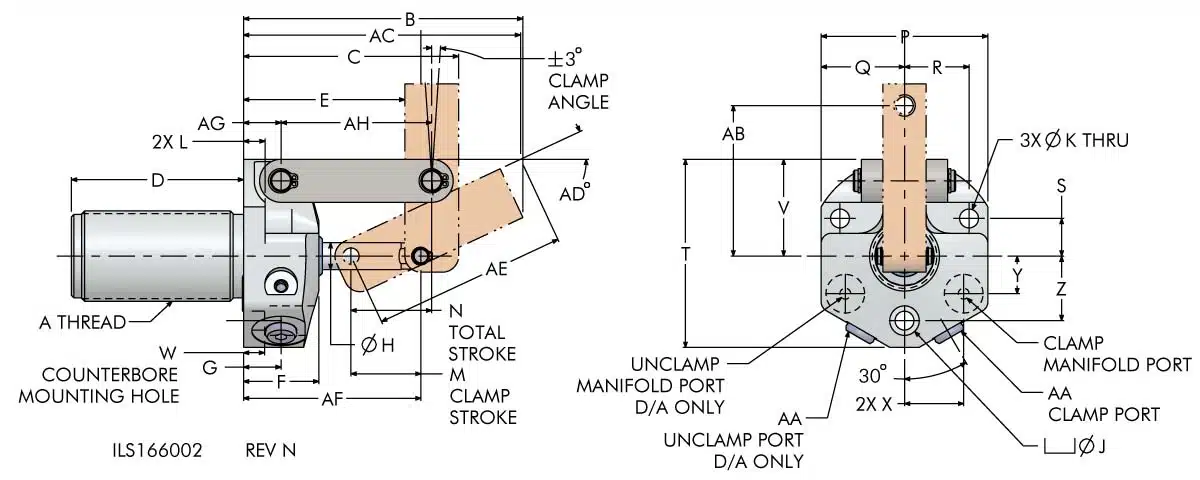

Top Flange Double Acting Position Sensing Work Supports - Dimensions

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin R_a surface finish.

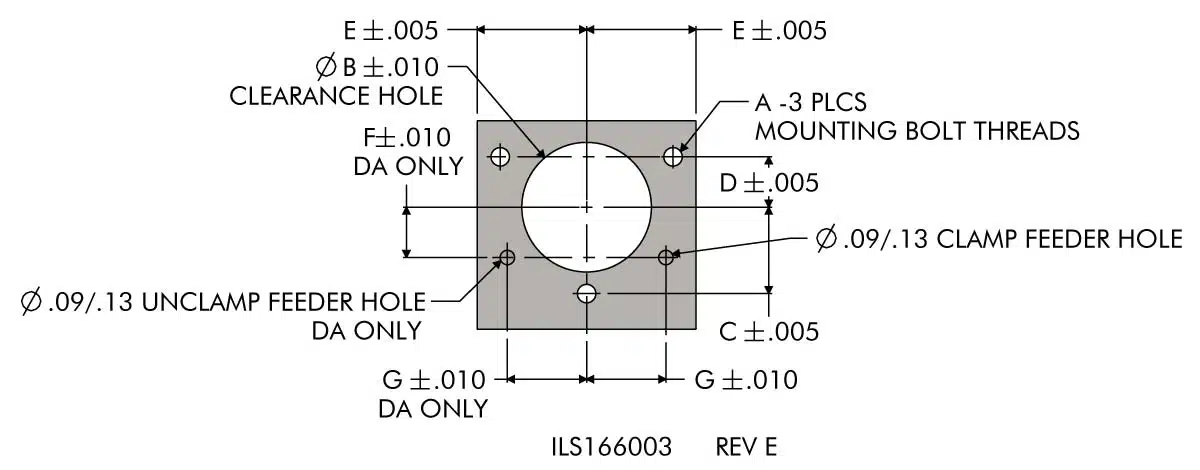

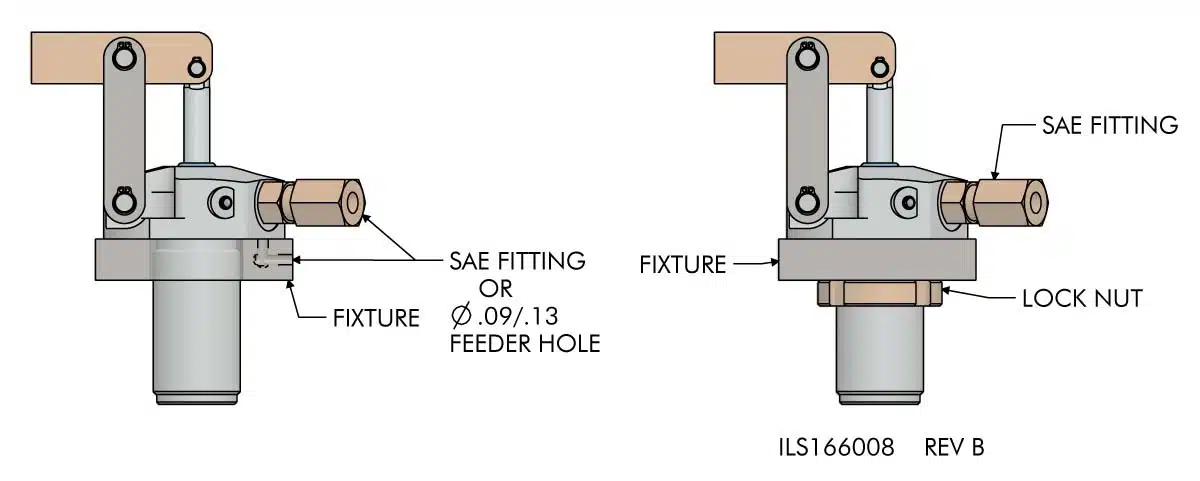

Top Flange Position Sensing Double Acting Mounting

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin R_a surface finish.

Model No.	Clamp Capacity (lb.)	Vertical Clamp Stroke (in.)	Body Thread	Standard Lever Length	Piston Area (sq. in.) Extend	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)	Maximum Oil Flow Rate (cu. in./min)	Port X For Optional In-Port Valves
16-6104-00	350	0.09	1-1/16 - 16 UN	0.88	0.076	0.103	N/A	12	SAE 2 X 0.48
16-6106-00	700	0.12	1-1/2 - 16 UN	1.13	0.150	0.287	N/A	34	SAE 4 X 0.58
16-6109-00	1300	0.14	1-7/8 - 16 UN	1.38	0.307	0.821	N/A	98	SAE 4 X 0.58
16-6114-00	3000	0.18	2-1/2 - 16 UN	1.75	0.785	2.148	N/A	258	SAE 4 X 0.58
16-6116-00	5000	0.22	3-1/8 - 16 UN	2.13	1.227	3.755	N/A	450	SAE 4 X 0.75

Model No.	Clamp Capacity (lb.)	Vertical Clamp Stroke (in.)	Body Thread	Standard Lever Length	Piston Area (sq. in.) Extend	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)	Maximum Oil Flow Rate (cu. in./min)	Port X For Optional In-Port Valves
16-6204-00	450	0.09	1-1/16 - 16 UN	0.88	0.110	0.103	0.032	12	SAE 2 X 0.48
16-6206-00	1100	0.12	1-1/2 - 16 UN	1.13	0.248	0.287	0.113	34	SAE 4 X 0.58
16-6209-00	2600	0.14	1-7/8 - 16 UN	1.38	0.601	0.821	0.405	98	SAE 4 X 0.58
16-6214-00	5000	0.18	2-1/2 - 16 UN	1.75	1.227	2.148	0.773	258	SAE 4 X 0.58
16-6216-00	6800	0.22	3-1/8 - 16 UN	2.13	1.767	3.755	1.147	450	SAE 4 X 0.75

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	W	X	Y	Z	AA	AB	AC	AD	AE	AF	AG	AH
16-6104-00	1-1/16 -16 UN	3.22	2.51	2.00	1.88	0.87	0.44	0.31	0.34	0.22	0.25	0.84	0.94	1.94	0.97	0.750	0.437	2.19	1.13	0.25	0.688	0.437	0.750	SAE 2	1.75	3.28	24	2.34	2.06	0.44	1.75
16-6106-00	1-1/2 -16 UN	4.21	3.38	2.25	2.50	1.31	0.62	0.44	0.41	0.28	0.50	1.03	1.13	2.50	1.25	1.000	0.500	2.81	1.50	0.50	0.969	0.375	1.000	SAE 4	2.25	3.89	29	2.62	2.75	0.75	2.13
16-6109-00	1-7/8 -16 UN	5.35	4.31	2.50	3.06	1.62	0.87	0.63	0.66	0.41	0.50	1.25	1.34	3.25	1.63	1.312	0.625	3.50	1.88	0.50	1.250	0.437	1.250	SAE 4	2.75	4.82	29	3.21	3.44	0.88	2.75
16-6114-00	2-1/2 -16 UN	6.75	5.50	3.00	3.75	1.87	0.87	1.00	0.78	0.53	0.75	1.63	1.75	4.13	2.06	1.687	0.750	4.50	2.38	0.75	1.625	0.625	1.625	SAE 4	3.50	6.11	27.5	4.19	4.25	1.13	3.38
16-6116-00	3-1/8 -16 UN	8.10	6.50	3.50	4.50	2.25	1.00	1.25	1.00	0.66	0.88	2.00	2.13	5.13	2.56	2.000	1.000	5.44	2.88	0.87	2.000	0.750	2.000	SAE 4	4.25	7.39	27	5.10	5.13	1.31	4.06

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V	W	X	Y	Z	AA	AB	AC	AD	AE	AF	AG	AH
16-6204-00	1-1/16 -16 UN	3.22	2.51	2.00	1.88	0.87	0.44	0.31	0.34	0.22	0.25	0.84	0.94	1.94	0.97	0.750	0.437	2.19	1.13	0.25	0.688	0.437	0.750	SAE 2	1.75	3.28	24	2.34	2.06	0.44	1.75
16-6206-00	1-1/2 -16 UN	4.21	3.38	2.25	2.50	1.31	0.62	0.44	0.41	0.28	0.50	1.03	1.13	2.50	1.25	1.000	0.500	2.81	1.50	0.50	0.969	0.375	1.000	SAE 4	2.25	3.89	29	2.62	2.75	0.75	2.13
16-6209-00	1-7/8 -16 UN	5.35	4.31	2.50	3.06	1.62	0.87	0.63	0.66	0.41	0.50	1.25	1.34	3.25	1.63	1.312	0.625	3.50	1.88	0.50	1.250	0.437	1.250	SAE 4	2.75	4.82	29	3.21	3.44	0.88	2.75
16-6214-00	2-1/2 -16 UN	6.75	5.50	3.00	3.75	1.87	0.87	1.00	0.78	0.53	0.75	1.63	1.75	4.13	2.06	1.687	0.750	4.50	2.38	0.75	1.625	0.625	1.625	SAE 4	3.50	6.11	27.5	4.19	4.25	1.13	3.38
16-6216-00	3-1/8 -16 UN	8.10	6.50	3.50	4.50	2.25	1.00	1.25	1.00	0.66	0.88	2.00	2.13	5.13	2.56	2.000	1.000	5.44	2.88	0.87	2.000	0.750	2.000	SAE 4	4.25	7.39	27	5.10	5.13	1.31	4.06

Model No.	A	B	C	D	E	F	G
16-6104-00	10-32 UNF	1.125	0.750	0.437	0.750	0.437	0.688
16-6106-00	1/4-20 UNC	1.562	1.000	0.500	1.000	0.375	0.969
16-6109-00	3/8-16 UNC	1.937	1.250	0.625	1.312	0.437	1.250
16-6114-00	1/2-13 UNC	2.562	1.625	0.750	1.687	0.625	1.625
16-6116-00	5/8-11 UNC	3.187	2.000	1.000	2.000	0.750	2.000

Model No.	A	B	C	D	E	F	G
16-6204-00	10-32 UNF	1.125	0.750	0.437	0.750	0.437	0.688
16-6206-00	1/4-20 UNC	1.562	1.000	0.500	1.000	0.375	0.969
16-6209-00	3/8-16 UNC	1.937	1.250	0.625	1.312	0.437	1.250
16-6214-00	1/2-13 UNC	2.562	1.625	0.750	1.687	0.625	1.625
16-6216-00	5/8-11 UNC	3.187	2.000	1.000	2.000	0.750	2.000
