Press Fit Rest Buttons
Tooling Components

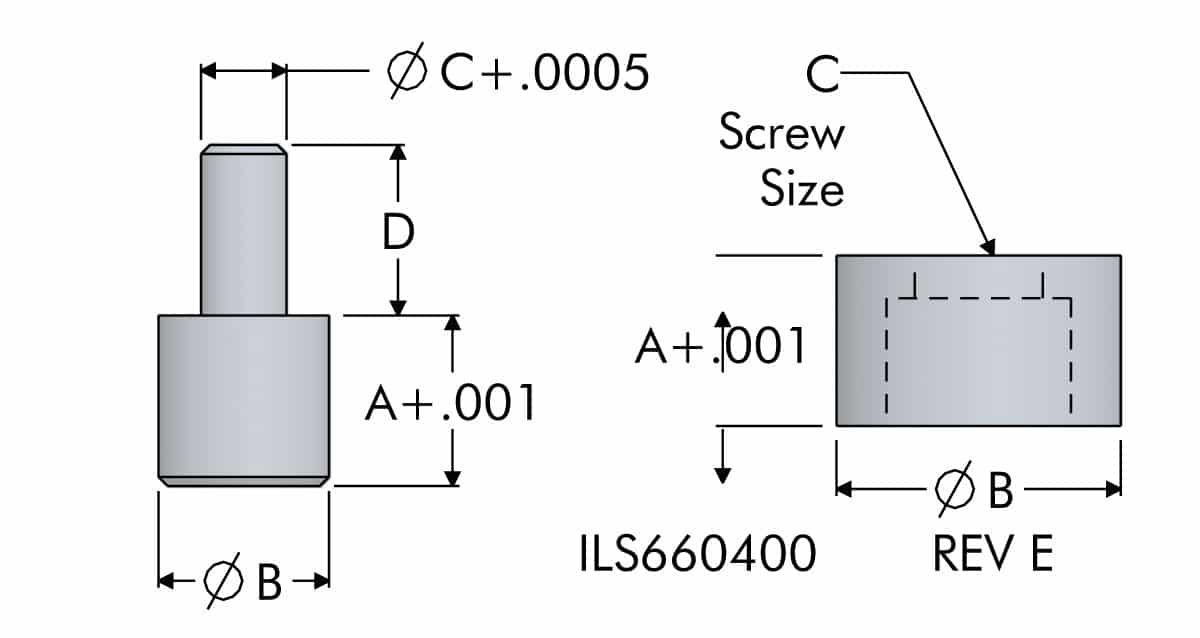

Press Fit Reset Buttons and Screw On Buttons
Buttons are hardened and ground.
| Model No. | A | B | C | D |
|---|---|---|---|---|
| 66-0438-01 | 0.375 | 0.38 | 0.1880 | 0.38 |
| 66-0462-02 | 0.500 | 0.62 | 0.3755 | 0.62 |
| Model No. | A | B | C | D |
|---|---|---|---|---|
| 66-0562-01 | 0.375 | 0.62 | 1/4 S.H.C.S. | N/A |
| 66-0562-02 | 0.500 | 0.62 | 1/4 S.H.C.S. | N/A |
| 66-0562-04 | 0.750 | 0.62 | 1/4 S.H.C.S. | N/A |
| 66-0562-05 | 1.000 | 0.62 | 1/4 S.H.C.S. | N/A |
