In-Line Filter
Metric Confirmation and Feedback
- Available in 2 filter ratings; 10 and 25 Micron.
- Filters at 350 bar (35 MPa) in either flow direction.
- Compact in-line design for maximum flexibility.
- Serviceable for cleaning or filter replacement.
- Maximum flow of 11.3 l/minute.
- Maximum ambient temperature of 93° C.

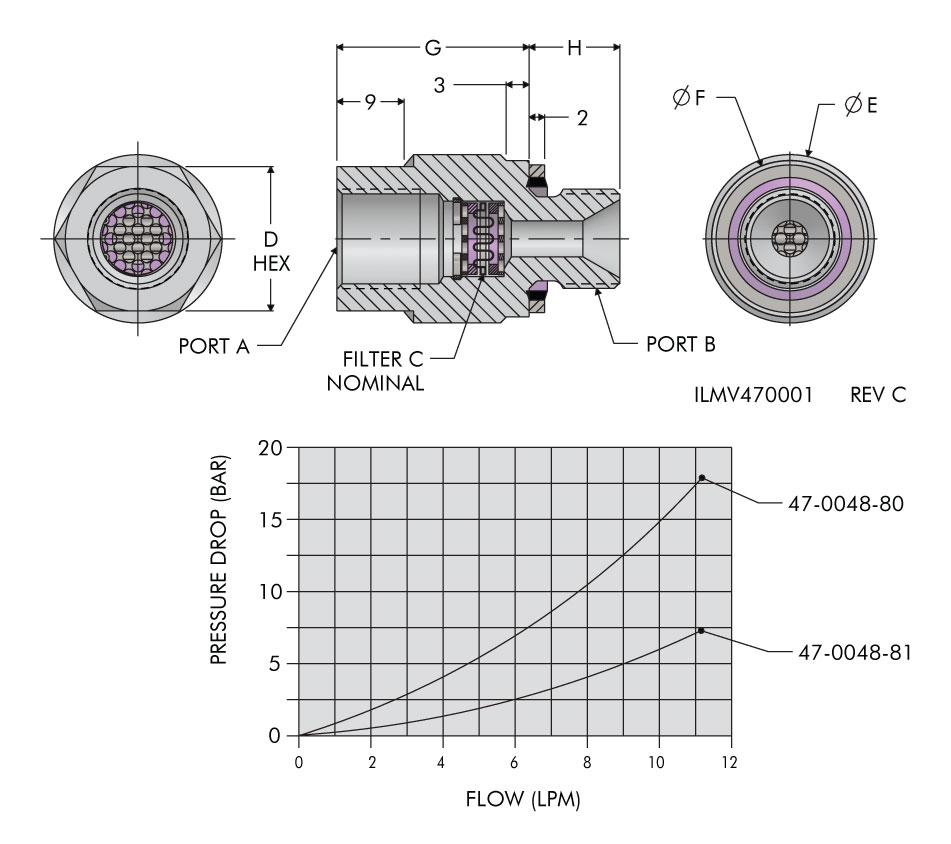

| Model No. | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| 47-0048-80 | G 1/4 | G 1/4 | 10 Micron | 19 | 22.2 | 18.8 | 25.4 | 11.9 |
| 47-0048-81 | G 1/4 | G 1/4 | 25 Micron | 19 | 22.2 | 18.8 | 25.4 | 11.9 |
