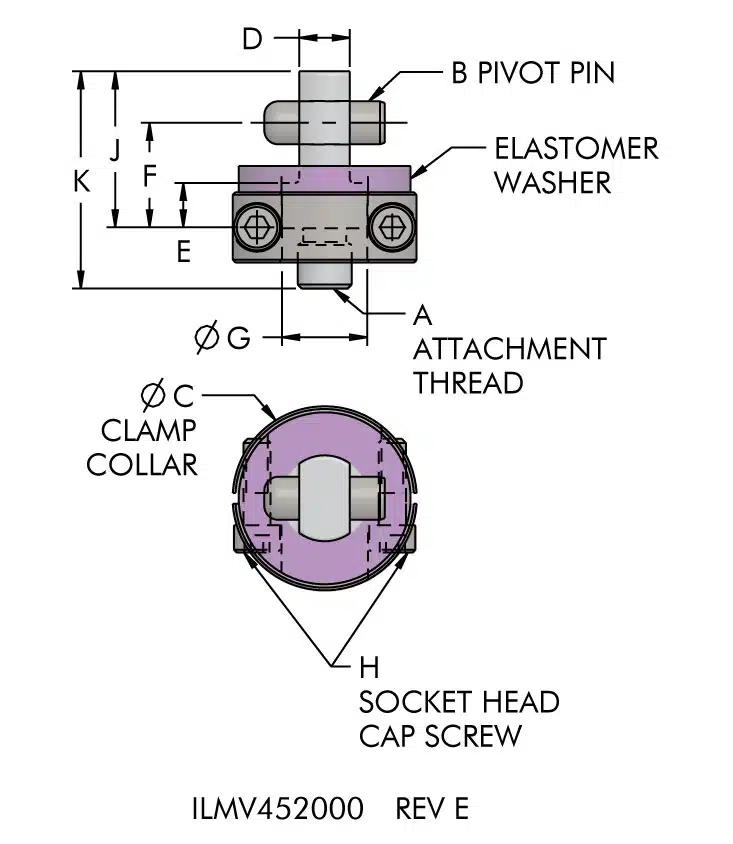

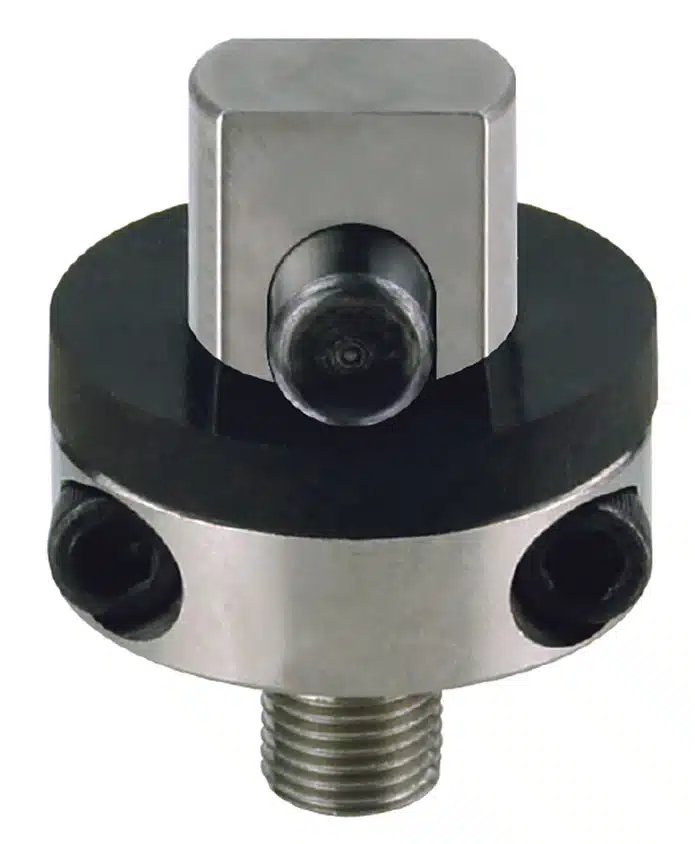

Rocker Arm Attachment Assembly
Metric Swing Clamp Arms
For arm limits, see the Swing Clamp Arms Learn More Page.
| Model No. | Clamp Capacity (kN) | A | B | C | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-5205-09 | 2 | M6 X 1.0 | Ø 6.4 X 15.9 | 24 | 6.2 | 6.6 | 14.7 | 11.2 | M4 X 12 | 20.6 | 27.0 |
| 44-5209-09 | 4.9 | M10 X 1.5 | Ø 7.9 X 22.2 | 33.5 | 9.4 | 8.4 | 19.3 | 15.9 | M5 X 16 | 29 | 41.1 |
| 44-5213-09 | 11.6 | M12 X 1.75 | Ø 11.1 X 31.8 | 41.5 | 13.3 | 7.6 | 26.7 | 22.2 | M6 X 16 | 40.4 | 53.1 |
