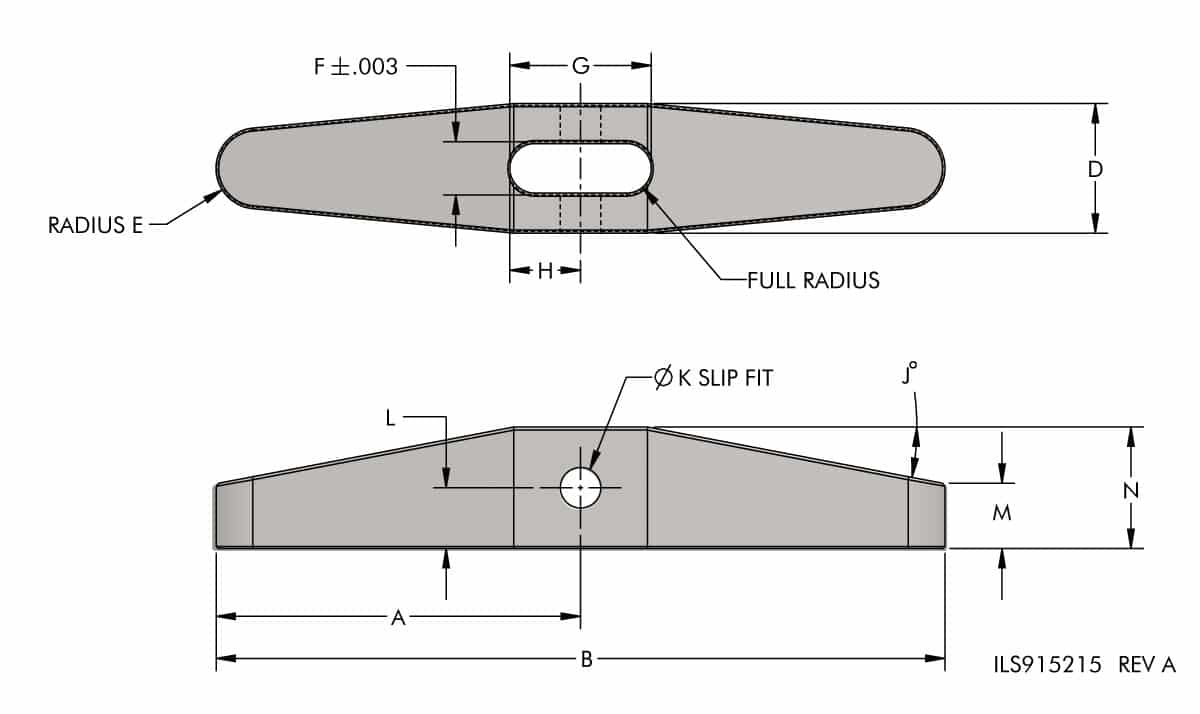

Clevis Arm for Self Produced Arms
Swing Clamp Arms
| Model No. | Clamp Capacity (lb.) | A | B | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91-5209-20 | 1,400 | 2.36 | 4.72 | 0.79 | 0.24 | 0.323 | 0.89 | 0.44 | 9.3 | 0.2362 | 0.35 | 0.39 | 0.71 |
| 91-5213-20 | 3,100 | 3.54 | 7.09 | 1.26 | 0.39 | 0.480 | 1.38 | 0.65 | 10.8 | 0.3938 | 0.59 | 0.63 | 1.18 |
| 91-5218-20 | 5,600 | 4.13 | 8.27 | 1.50 | 0.47 | 0.598 | 1.75 | 0.83 | 11.4 | 0.4724 | 0.71 | 0.75 | 1.42 |
| 91-5221-20 | 8,800 | 4.72 | 9.45 | 1.97 | 0.63 | 0.795 | 2.30 | 1.06 | 13.9 | 0.6299 | 0.95 | 0.98 | 1.89 |
