Link Clamp Levers High Pressure

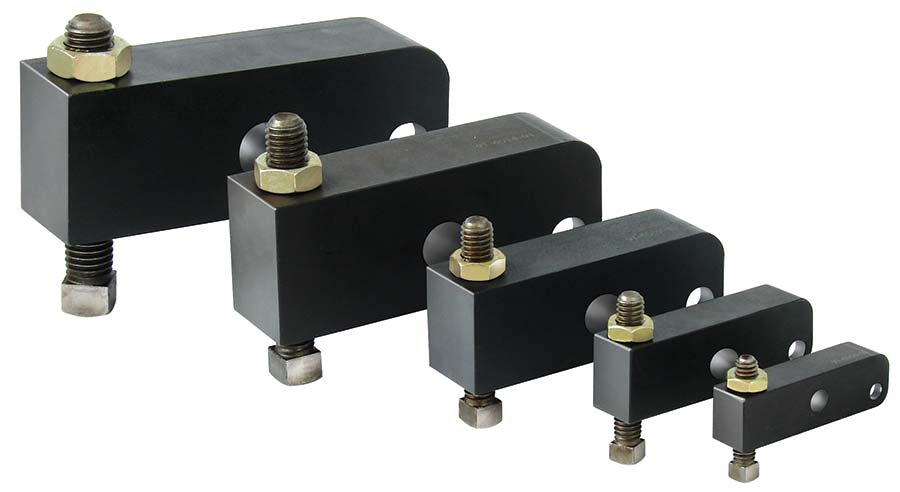

Link Clamp Levers

Catalog Section

Access the Link Clamp Lever Output Curves for more information.

Top Flange Double Acting Position Sensing Work Supports - Dimensions

Top Flange Double Acting Position Sensing Work Supports - Dimensions

Model No.	Clamp Capacity (lb.)	A	B	C	D	E	F	G	H	J	K	L	M	N	Q	R	S	T
91-6004-01	350 / 450	1.75	2.00	0.63	0.500	0.188	0.19	0.1885	0.88	0.13	0.2505	0.44	0.260	0.44	1.25	1/4 - 20 UNC	0.19	0.433
91-6006-01	700 / 1100	2.25	2.50	0.88	0.625	0.250	0.25	0.2515	1.13	0.13	0.3755	0.56	0.322	0.56	1.75	5/16 - 18 UNC	0.24	0.495
91-6009-01	1300 / 2600	2.75	3.13	1.25	1.000	0.375	0.38	0.3765	1.38	0.19	0.5005	0.81	0.510	0.81	2.25	3/8 - 16 UNC	0.28	0.577
91-6014-01	3000 / 5000	3.50	4.00	1.75	1.250	0.500	0.50	0.5015	1.75	0.25	0.6255	1.19	0.635	1.19	3.00	1/2 - 13 UNC	0.38	0.743
91-6016-01	5000 / 6800	4.25	4.88	2.00	1.500	0.625	0.63	0.6265	2.13	0.25	0.7505	1.50	0.760	1.50	3.50	5/8 - 11 UNC	0.47	0.930

Model No.	Clamp Capacity (lb.)	A	B	C	D	E	F	G	H	J	K	L	M	N	Q	R	S	T
91-6004-02	350 / 450	N/A	2.88	0.63	0.500	0.188	0.19	0.1885	0.88	0.13	0.2505	0.44	0.260	0.44	N/A	N/A	N/A	N/A
91-6006-02	700 / 1100	N/A	3.63	0.88	0.625	0.250	0.25	0.2515	1.13	0.13	0.3755	0.56	0.322	0.56	N/A	N/A	N/A	N/A
91-6009-02	1300 / 2600	N/A	4.50	1.25	1.000	0.375	0.38	0.3765	1.38	0.19	0.5005	0.81	0.510	0.81	N/A	N/A	N/A	N/A
91-6014-02	3000 / 5000	N/A	5.75	1.75	1.250	0.500	0.50	0.5015	1.75	0.25	0.6255	1.19	0.635	1.19	N/A	N/A	N/A	N/A
91-6016-02	5000 / 6800	N/A	7.00	2.00	1.500	0.625	0.63	0.6265	2.13	0.25	0.7505	1.50	0.760	1.50	N/A	N/A	N/A	N/A
