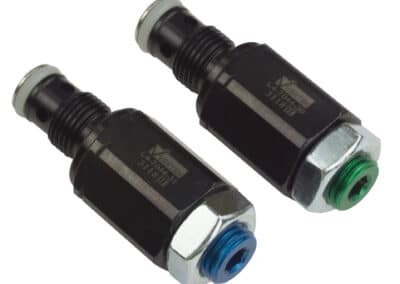

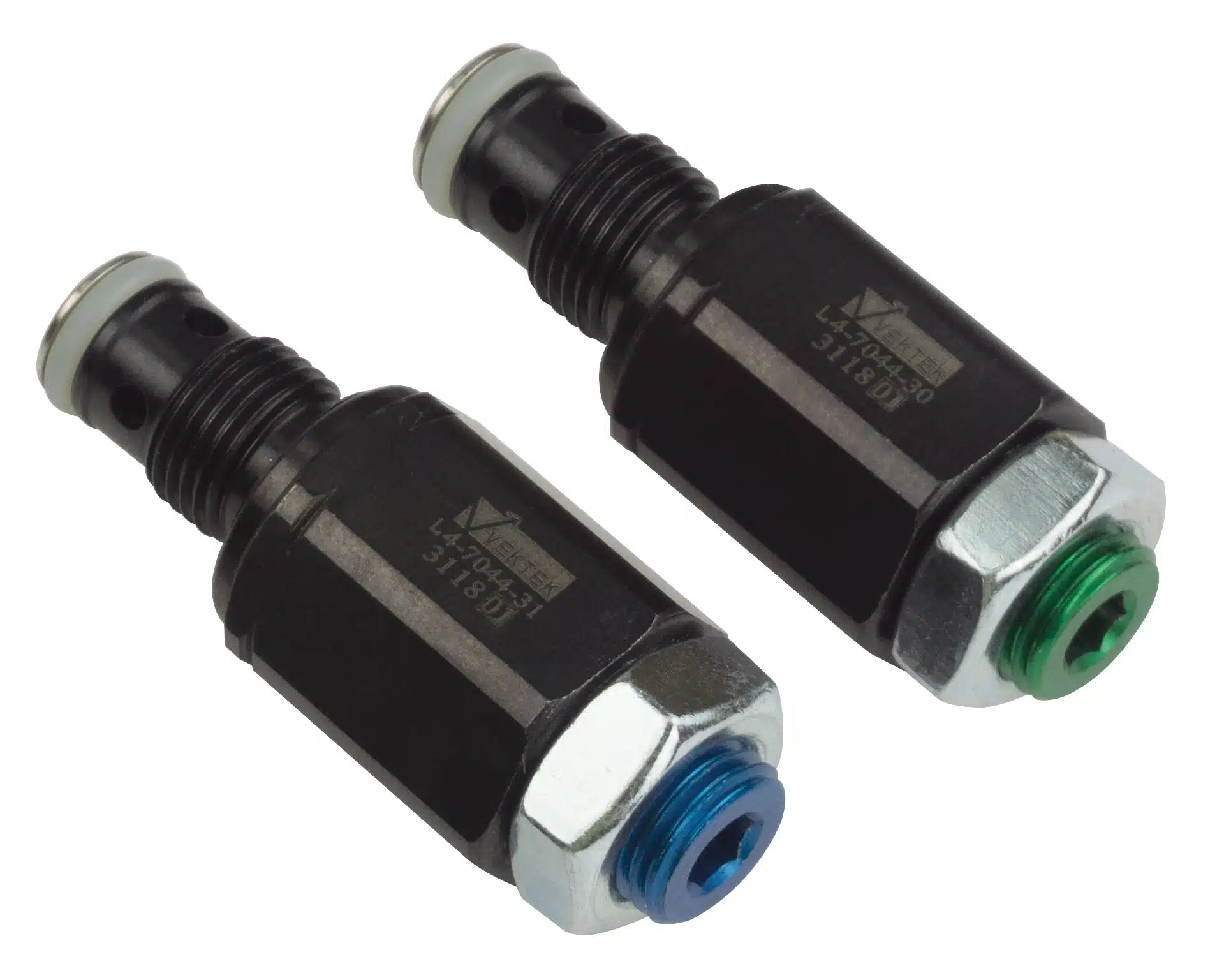

In The Port Sequence Valve
In The Port Sequence Valves
Handle Docking Station with optional feedback sensor
- Installs directly into device port, requires oil feed through manifold mount ports.
- Works with Top Flange, Bottom Flange Swing Clamps, Link Clamps and High Capacity Work Supports.
- Controls timing of individual devices on your fixture.
- Each valve can be individually adjusted from the factory preset.
- True sequencing design allows full system pressure downstream of valve after opening.
- Maintains pressure upstream while device actuates.
- Two pressure ranges available with adjustability within each range.*
- Can be added after the fixture is built to assure proper sequencing (Requires the use of flange manifold feed ports).
- Use with single or double acting clamps; in clamp port, unclamp port, or both.
- Internal reverse free flow check valve allows for faster return.
- Accessories available; Pressure pre-set block and in-line adapter block.
* Number of sequences within each range depends on number of devices, pump flow & operating pressure.
NOTE: Max flow not to exceed the individual device rating or 3.81/min whichever is lower. Maximum inlet pressure for In The Port sequence valve is 35 MPa, excess voids warranty. Consult the double acting work support, the swing clamp, or link clamp specifications page for the valve that is appropriate for your application.

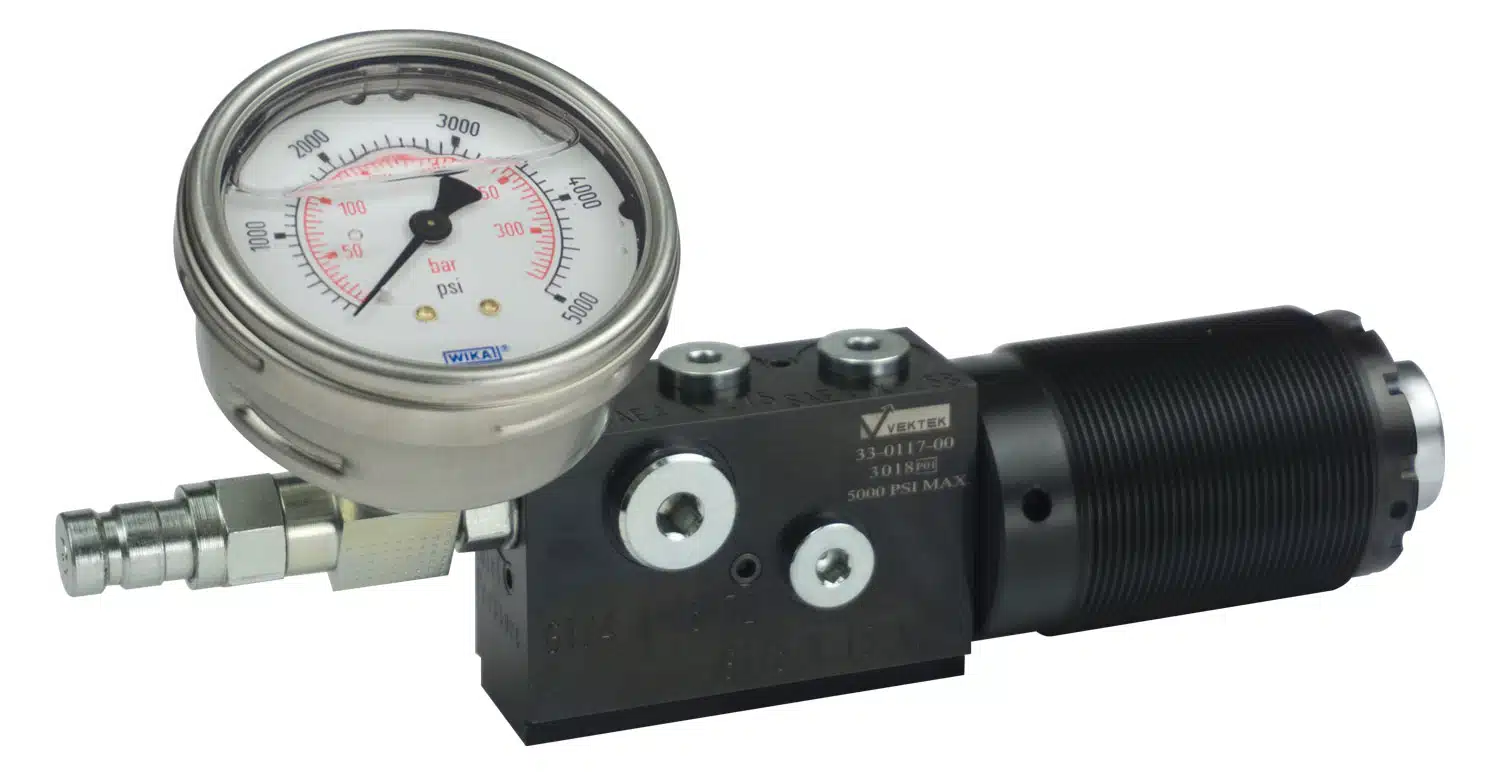

Presets all G 1/4, G 1/8 and SAE 4 sequence and flow control valves.
| Model No. | Factory Preset Pressure (MPa) | Pressure Range (MPa) | Port Type |
|---|---|---|---|
| L4-7044-30 | 4 | 2 - 6 | G 1/8 x 15.16 |
| L4-7044-31 | 7 | 4 - 10 | G 1/8 x 15.16 |
| L4-7044-50 | 4 | 2 - 5.5 | G 1/4 x 18.72 |
| L4-7044-51 | 7 | 4 - 10 | G 1/4 x 18.72 |

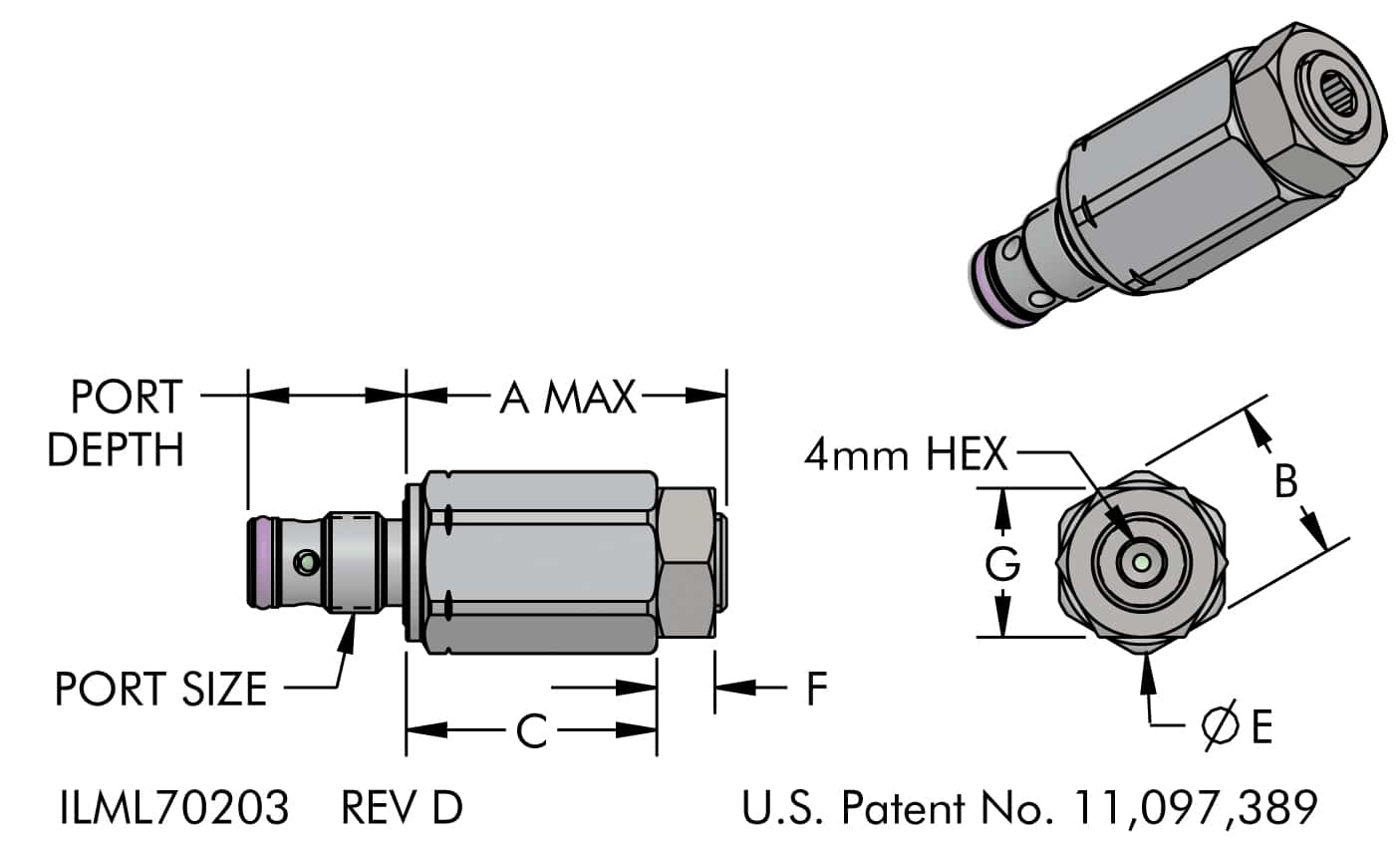

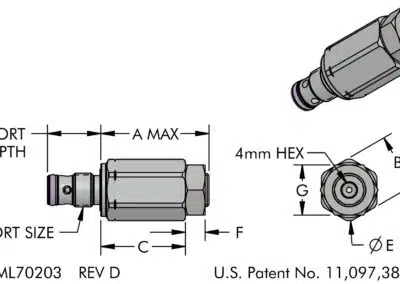

| Model No. | A | B | C | E | F | G |
|---|---|---|---|---|---|---|
| L4-7044-30 | 28 | 16 | 20.3 | 17.5 | 5.6 | 14 |
| L4-7044-31 | 28 | 16 | 20.3 | 17.5 | 5.6 | 14 |
| L4-7044-50 | 34.5 | 19 | 27.4 | 21.0 | 5.0 | 17 |
| L4-7044-51 | 34.5 | 19 | 27.4 | 21.0 | 5.0 | 17 |

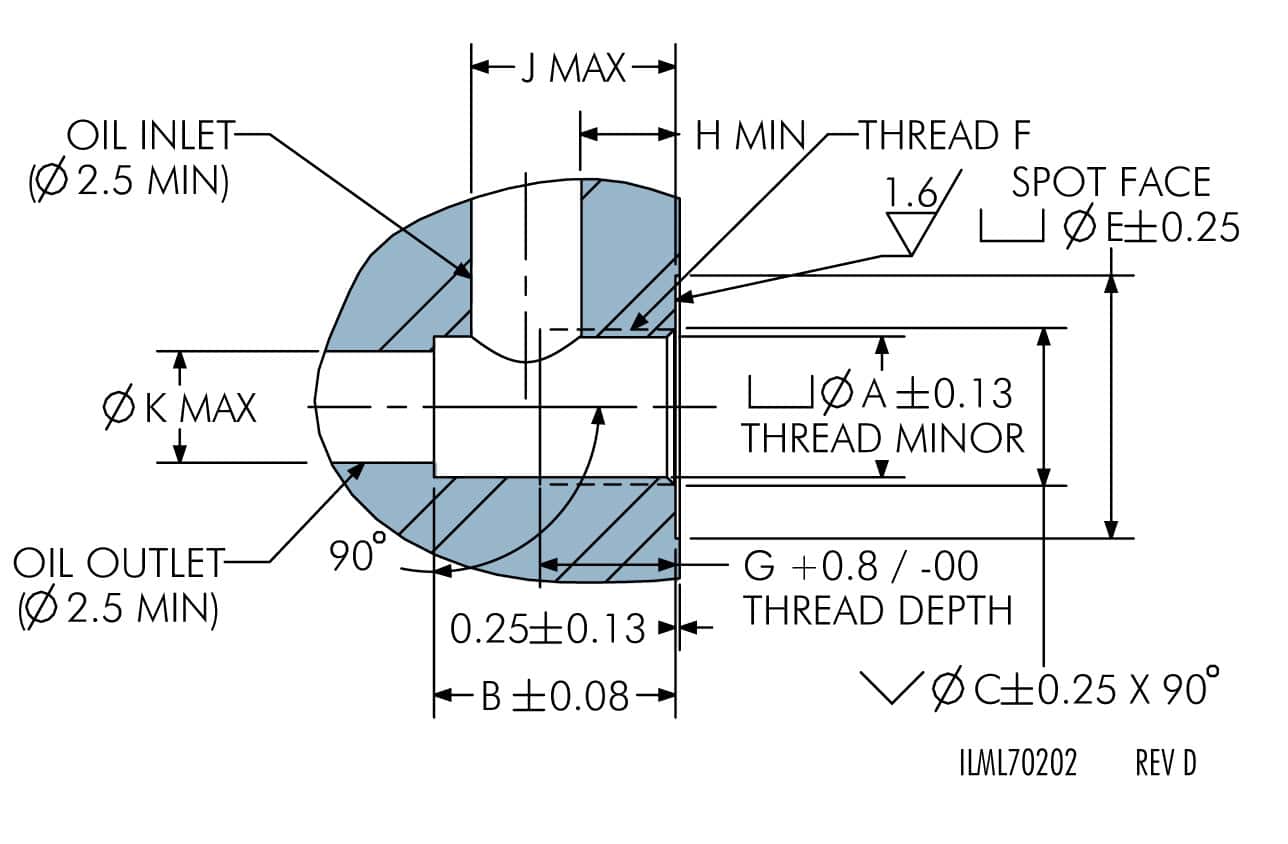

| Model No. | Port Type | A | B | C | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|---|
| L4-7044-30 | G 1/8 x 15.16 | 8.84 | 15.16 | 9.9 | 16.5 | 1/8 - 28 BSPP | 8.5 | 6 | 12.83 | 7 |
| L4-7044-31 | G 1/8 x 15.16 | 8.84 | 15.16 | 9.9 | 16.5 | 1/8 - 28 BSPP | 8.5 | 6 | 12.83 | 7 |
| L4-7044-50 | G 1/4 x 18.72 | 11.89 | 18.72 | 13.3 | 21.5 | 1/4 - 19 BSPP | 12.5 | 10 | 16.39 | 10 |
| L4-7044-51 | G 1/4 x 18.72 | 11.89 | 18.72 | 13.3 | 21.5 | 1/4 - 19 BSPP | 12.5 | 10 | 16.39 | 10 |
| Model No. |
|---|
| L3-3011-70 |

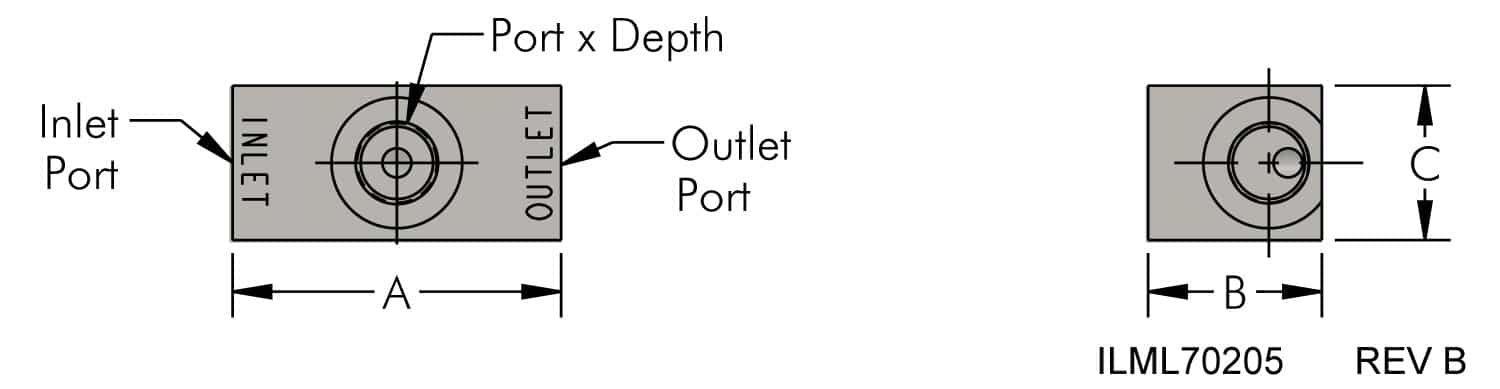

| Model No. | Port Type | Inlet/Outlet | A | B | C |
|---|---|---|---|---|---|
| L3-1941-00 | G 1/8 X 15.16 | G 1/8 | 41.3 | 22.2 | 22.2 |
| L3-1961-00 | G 1/4 X 18.72 | G 1/4 | 54.0 | 28.6 | 25.4 |
