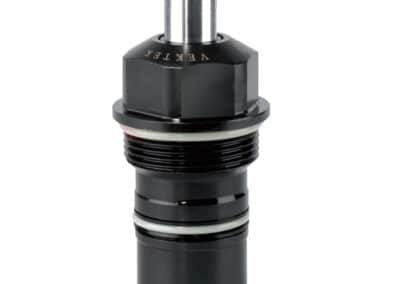

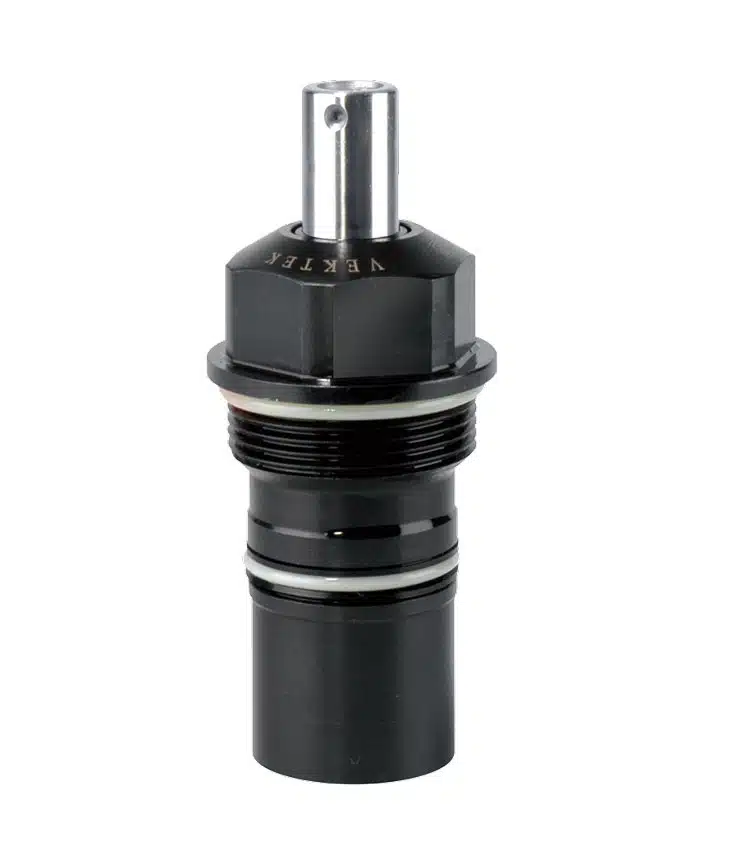

Cartridge Mount Push Pull Cylinder

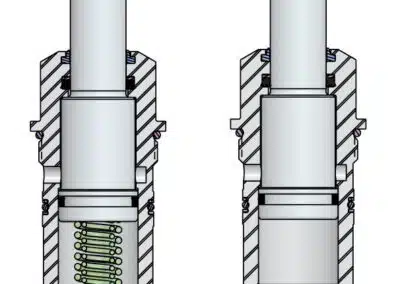

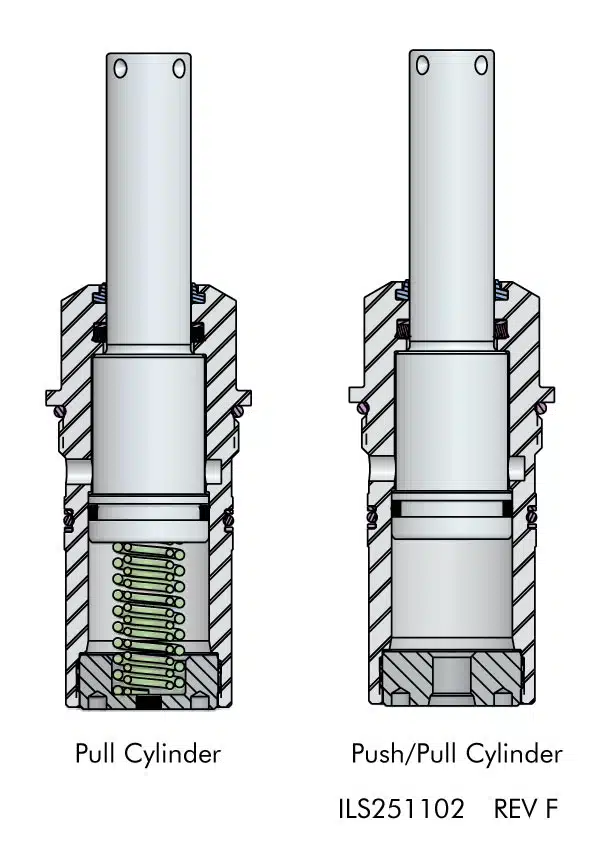

Single and Double Acting
- Cylinders are used when rotational swing arms are not beneficial.
- Single acting are available in three retract capacities from 470 to 3,100 lbs force.
- Double acting have an extend capacity of 1,200 to 6,100 lbs, with their retract capacities the same as the single acting at the same operating pressure.
- Threaded plunger ends allow the attachment of arms or other mechanisms.
- Also available in a straight line guided model, order as a swing clamp.
Provides a long stroke in a compact body design. Can be mounted into fixture to reduce height. Hardened chrome alloy steel plungers run longer with less wear and drag than other brands. Vent port with bronze filter gives the cylinder a place to breathe and helps keep chips from drawing past wipers (unclamp port on double acting models). Push/Pull cylinders are not shipped with cap screws.
* Cylinder Forces are calculated at 5000 psi, the maximum operating pressure. Cylinder force is adjusted by varying the hydraulic system pressure. To calculate the approximate output force for an application, multiply the Effective Piston Area by the predetermined operating pressure. The actual output force will vary slightly due to frictional losses within the assembly and/or return spring forces.
* Single Acting models must be vented, do not install in blind holes.

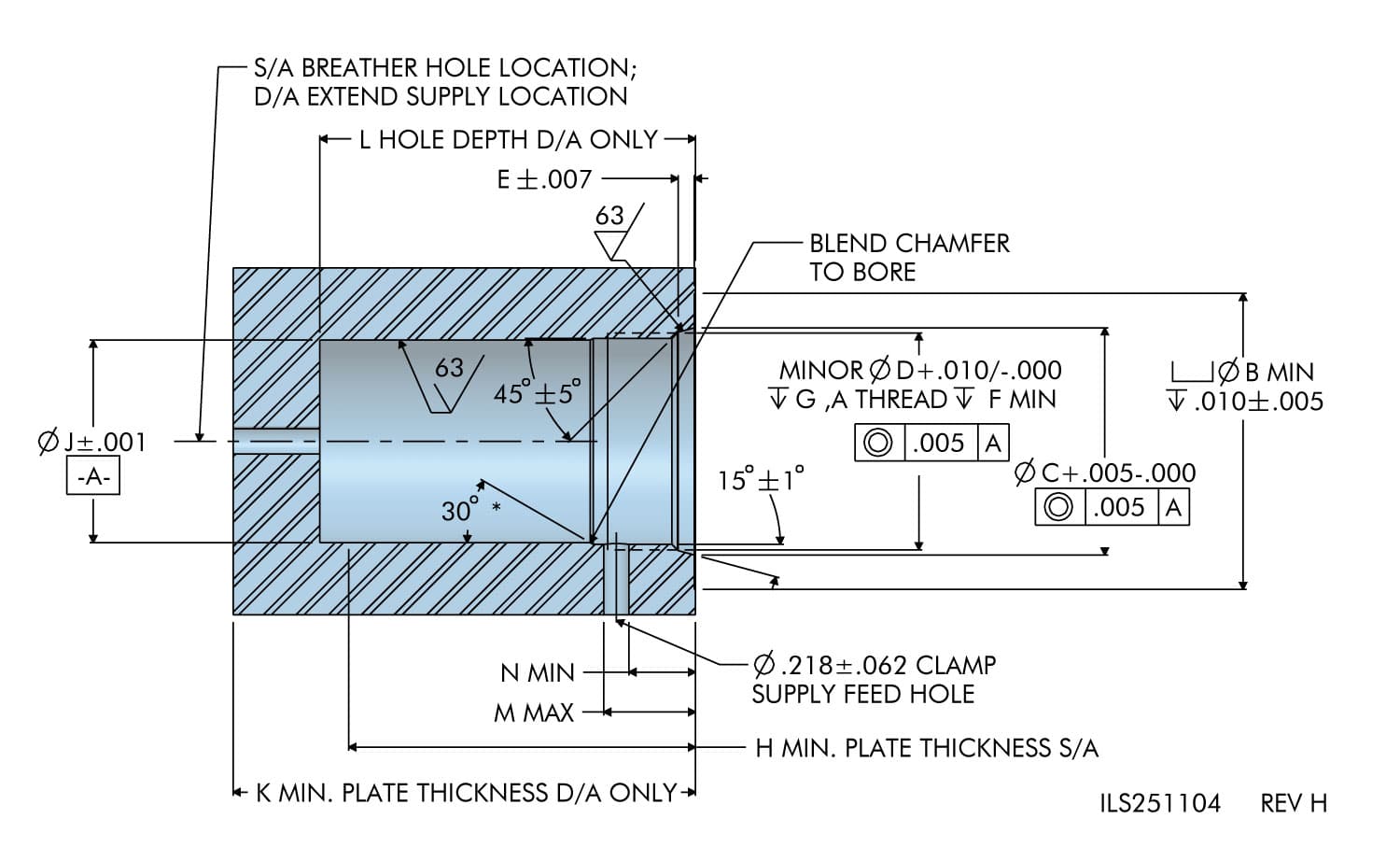

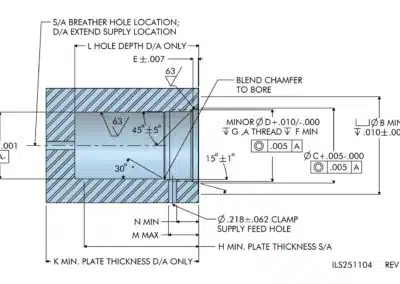

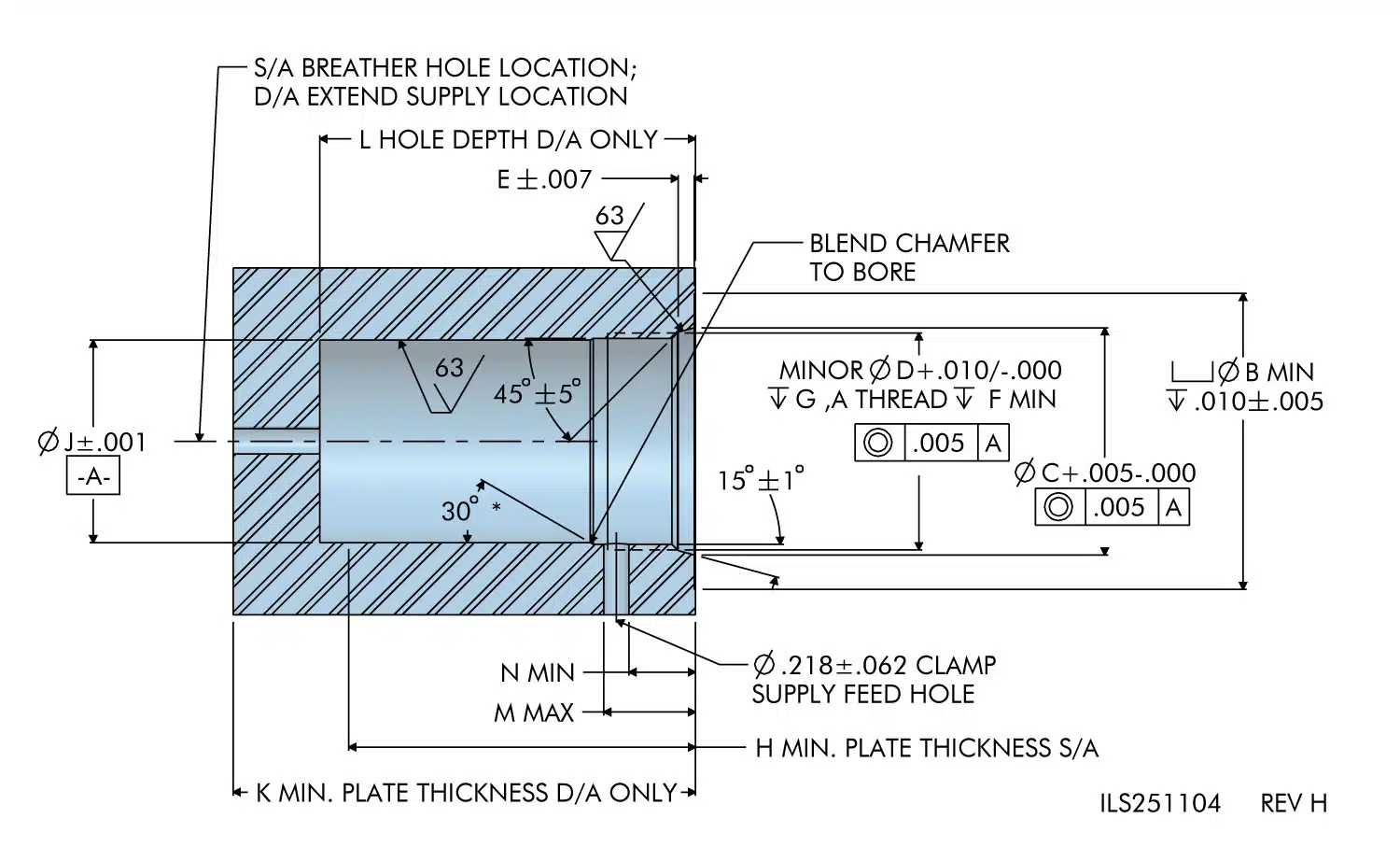

Basic cavity can be formed using a standard (SAE J1926/1 Port Detail) O-Ring Port Cutter.
NOTE: Flexible honing of cavity is strongly recommended. Flex-Hone® is a registered trademark of Brush Research Manufacturing Co. Los Angeles, CA, 323-261-2193. Please contact Brush Research for additional information.
* The 30° lead in angle is to ensure trouble free seal installation, see drawing.
| Model No. | Clamp Capacity (lb.) Extend | Clamp Capacity (lb.) Retract | Stroke (in.) | Body Thread | Piston Area (sq. in.) Extend | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) |
|---|---|---|---|---|---|---|---|---|
| 25-1105-02 | N/A | 470 | 0.57 | 1 1/16 - 12 | N/A | 0.098 | N/A | 0.056 |
| 25-1109-10 | N/A | 1400 | 0.79 | 1 5/8-12 | N/A | 0.295 | N/A | 0.233 |
| 25-1113-13 | N/A | 3100 | 1.16 | 1 7/8-12 | N/A | 0.626 | N/A | 0.726 |
| Model No. | Clamp Capacity (lb.) Extend | Clamp Capacity (lb.) Retract | Stroke (in.) | Body Thread | Piston Area (sq. in.) Extend | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) |
|---|---|---|---|---|---|---|---|---|
| 25-1205-02 | 1200 | 470 | 0.57 | 1 1/16 - 12 | 0.249 | 0.098 | 0.142 | 0.056 |
| 25-1209-10 | 3000 | 1400 | 0.79 | 1 5/8-12 | 0.601 | 0.295 | 0.475 | 0.233 |
| 25-1213-13 | 6100 | 3100 | 1.16 | 1 7/8-12 | 1.227 | 0.626 | 1.423 | 0.726 |

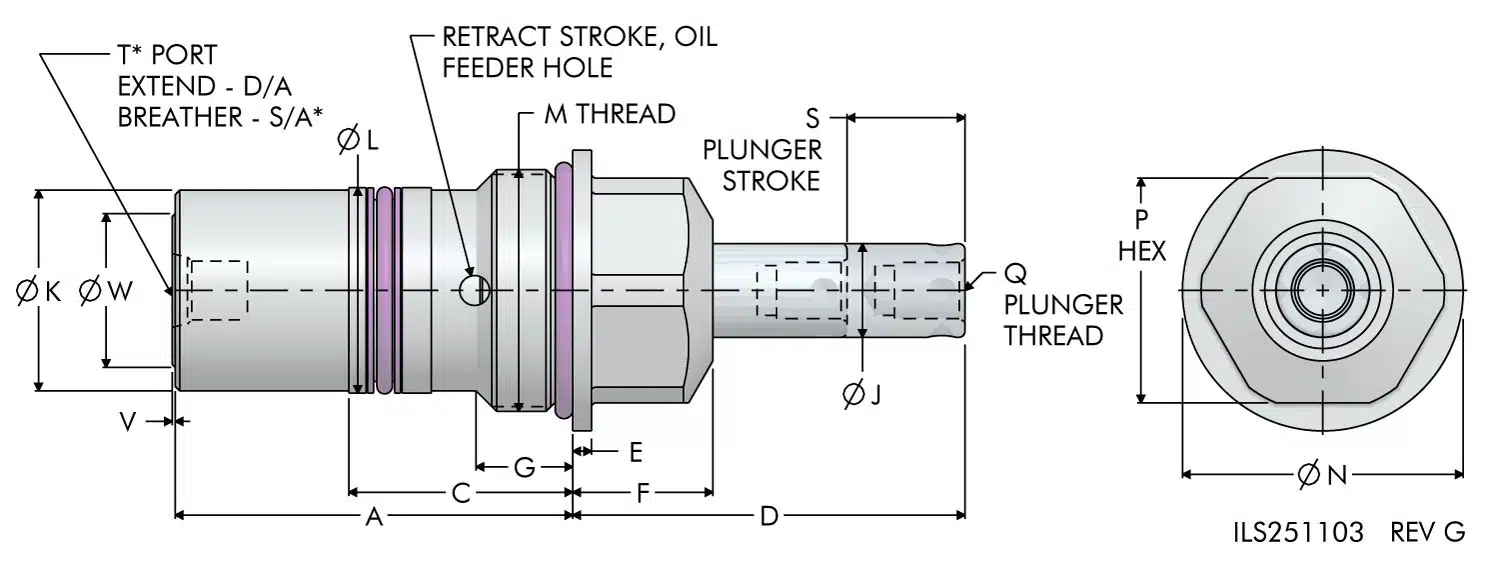

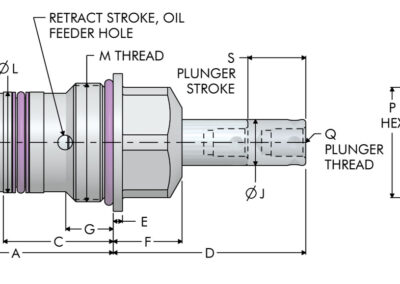

| Model No. | A | C | D | E | F | G | J | K | L | M | N | P | Q | R | S | T | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-1105-02 | 2.12 | 1.32 | 1.88 | 0.13 | 0.63 | 0.49 | 0.438 | 0.92 | 0.935 | 1 1/16 - 12 | 1.25 | 1.00 | 1/4 - 28 X 0.28 | 0.22 | 0.57 | Breather | N/A | N/A |
| 25-1109-10 | 2.66 | 1.50 | 2.63 | 0.13 | 0.94 | 0.65 | 0.625 | 1.34 | 1.372 | 1 5/8-12 | 1.88 | 1.50 | 3/8-24 X 0.47 | 0.31 | 0.79 | Breather | 0.02 | 1.03 |
| 25-1113-13 | 3.13 | 1.50 | 3.65 | 0.16 | 1.25 | 0.55 | 0.875 | 1.72 | 1.747 | 1 7/8-12 | 2.13 | 1.63 | 1/2-20 X 0.52 | 0.50 | 1.16 | Breather | 0.02 | 1.40 |
| Model No. | A | C | D | E | F | G | J | K | L | M | N | P | Q | R | S | T | V | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-1205-02 | 2.12 | 1.32 | 1.88 | 0.13 | 0.63 | 0.49 | 0.438 | 0.92 | 0.935 | 1 1/16 - 12 | 1.25 | 1.00 | 1/4 - 28 X 0.28 | 0.22 | 0.57 | SAE 2 | N/A | N/A |
| 25-1209-10 | 2.66 | 1.50 | 2.63 | 0.13 | 0.94 | 0.65 | 0.625 | 1.34 | 1.372 | 1 5/8-12 | 1.88 | 1.50 | 3/8-24 X 0.47 | 0.31 | 0.79 | SAE 4 | 0.02 | 1.03 |
| 25-1213-13 | 3.13 | 1.50 | 3.65 | 0.16 | 1.25 | 0.55 | 0.875 | 1.72 | 1.747 | 1 7/8-12 | 2.13 | 1.63 | 1/2-20 X 0.52 | 0.50 | 1.16 | SAE 4 | 0.02 | 1.40 |
| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-1105-02 | 1 1/16 - 12 | 1.38 | 1.148 | 0.979 | 0.137 | 0.50 | 0.750 Min / 0.906 Max | 1.25 | 0.938 | N/A | N/A | 0.750 | 0.417 |
| 25-1109-10 | 1 5/8-12 | 2.00 | 1.713 | 1.541 | 0.139 | 0.68 | 0.815 Min / 0.906 Max | 1.50 | 1.376 | N/A | N/A | 0.815 | 0.525 |
| 25-1113-13 | 1 7/8-12 | 2.25 | 1.962 | 1.792 | 0.139 | 0.62 | 0.875 Min / 0.906 Max | 1.50 | 1.751 | N/A | N/A | 0.875 | 0.403 |
| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-1205-02 | 1 1/16 - 12 | 1.38 | 1.148 | 0.979 | 0.137 | 0.50 | 0.750 Min / 0.906 Max | N/A | 0.938 | 2.75 | 2.25 | 0.750 | 0.417 |
| 25-1209-10 | 1 5/8-12 | 2.00 | 1.713 | 1.541 | 0.139 | 0.68 | 0.815 Min / 0.906 Max | N/A | 1.376 | 3.25 | 2.75 | 0.815 | 0.525 |
| 25-1213-13 | 1 7/8-12 | 2.25 | 1.962 | 1.792 | 0.139 | 0.62 | 0.875 Min / 0.906 Max | N/A | 1.751 | 3.75 | 3.25 | 0.875 | 0.403 |
