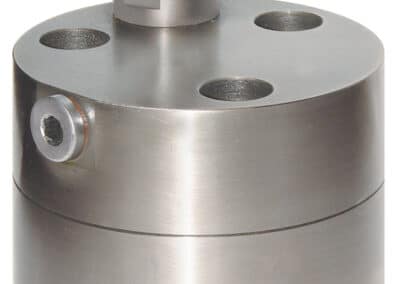

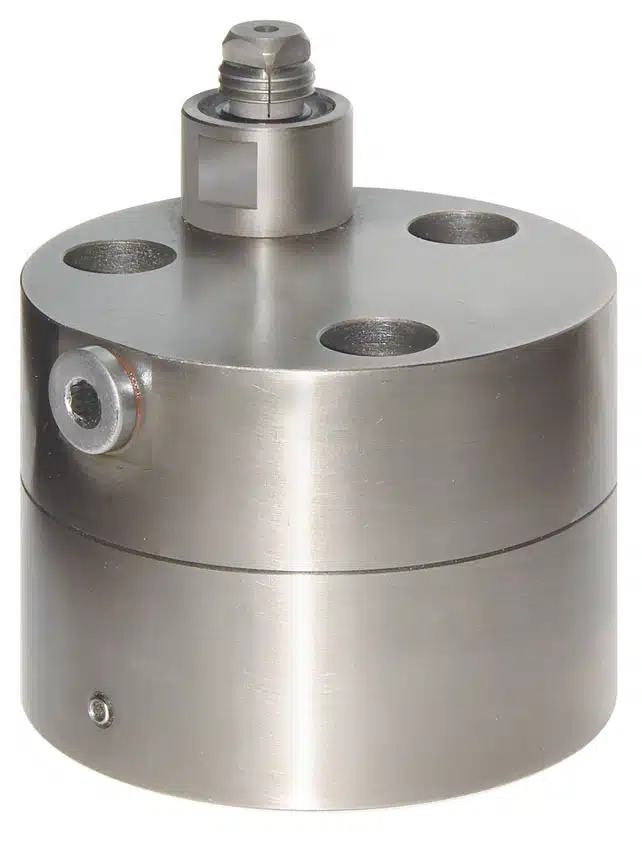

Pull-Down Clamp, Eccentric
Single and Double Acting
- 5-sided machining can be carried out safely without clamp interference.
- Workpiece can be loaded and unloaded by handling equipment.
- Optional oil supply through G1/8 port or manifold connection.
- Disk spring for staged pull-down effect.
- Body, sleeves and draw bar are made of nitride-hardened alloy steel for longer trouble-free life.
- Clamping sleeves are segmented and serrated to form and grip the clamping hole.
- These Pull-Down Clamps also serve as a support surface and “Z” locator for the workpiece.
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
Maximum operating pressure 150 bar (15 MPa)
Minimum operating pressure 30 bar (3 MPa)
| Model No. | Clamp Capacity (kN) Vertical | Permissable Horizontal Force (kN) | Radial Force of Sleeve Segments (kN) | Piston Dia. (mm) | Work Piece Hole Dia. (mm) | Work Piece Hole Depth (mm) | Lateral Comp/Clamp (mm) | Clamp Rim Height Min. (mm) | Sleeve Expansion (mm) | Oil Capacity (cm³) | Side Load (unclamp) (N) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-5721-07 | 3.5 | 1 | 10 | 18 | 6.8 - 7.7 | 10 | ±0.25 | 6 | 1.4 | 1.0 | 50 | 2600 g |
| 41-5721-08 | 3.5 | 1 | 10 | 18 | 7.8 - 8.7 | 10 | ±0.25 | 6 | 1.4 | 1.0 | 50 | 2600 g |
| 41-5721-09 | 5.3 | 1.5 | 15 | 22 | 8.8 - 9.7 | 10 | ±0.25 | 7 | 1.4 | 1.5 | 80 | 2600 g |
| 41-5721-10 | 5.3 | 1.5 | 15 | 22 | 9.8 - 10.7 | 10 | ±0.25 | 7 | 1.4 | 1.5 | 80 | 2800 g |
| 41-5721-11 | 8.5 | 2.5 | 25 | 28 | 10.8 - 11.7 | 13 | ±0.25 | 8 | 1.4 | 2.5 | 120 | 2800 g |
| 41-5721-12 | 8.5 | 2.5 | 25 | 28 | 11.8 - 12.7 | 13 | ±0.25 | 8 | 1.4 | 2.5 | 120 | 2800 g |
| 41-5721-13 | 11.5 | 3.5 | 35 | 32 | 12.8 - 13.7 | 13 | ±0.25 | 9 | 1.4 | 3.2 | 150 | 2900 g |
| 41-5721-14 | 11.5 | 3.5 | 35 | 32 | 13.8 - 14.7 | 13 | ±0.25 | 9 | 1.4 | 3.2 | 150 | 2900 g |

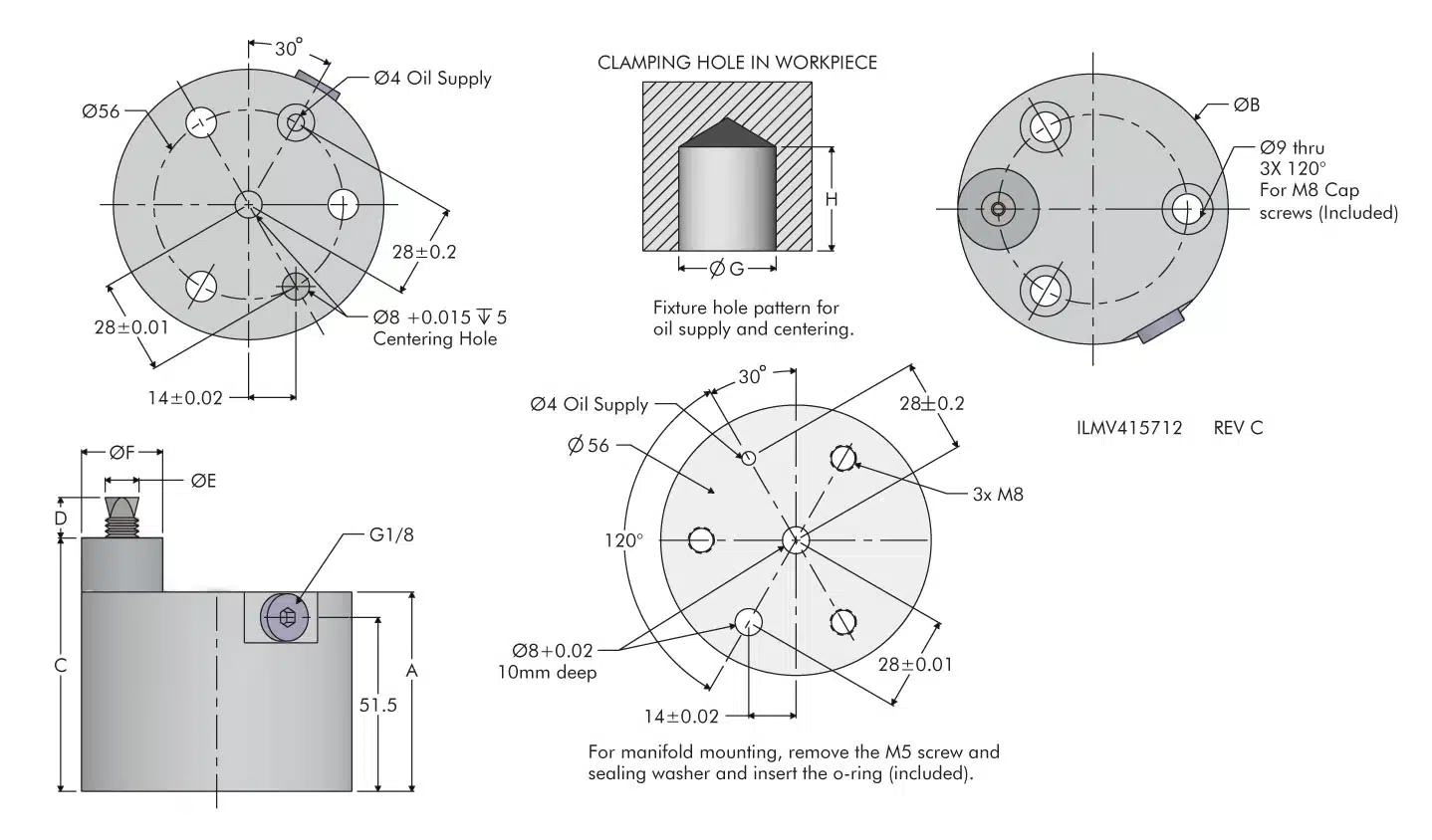

| Model No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 41-5721-07 | 59 | 80 | 75 ± 0.01 | 9.5 | 6.6 | 24 |
| 41-5721-08 | 59 | 80 | 75 ± 0.01 | 9.5 | 7.5 | 24 |
| 41-5721-09 | 59 | 80 | 75 ± 0.01 | 9.5 | 8.5 | 24 |
| 41-5721-10 | 59 | 80 | 75 ± 0.01 | 9.5 | 9.5 | 24 |
| 41-5721-11 | 59 | 80 | 75 ± 0.01 | 12 | 10.5 | 24 |
| 41-5721-12 | 59 | 80 | 75 ± 0.01 | 12 | 11.5 | 24 |
| 41-5721-13 | 59 | 80 | 75 ± 0.01 | 12 | 12.5 | 24 |
| 41-5721-14 | 59 | 80 | 75 ± 0.01 | 12 | 13.5 | 24 |
