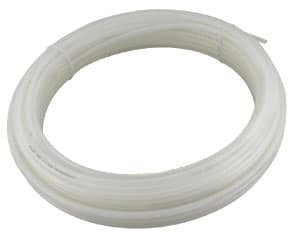

Tubing
Pneumatic Miscellaneous Plumbing
Order in One Foot Increments
For system pressures over the maximum working pressure of nylon tubing, to a maximum pressure of 250 psi, steel or copper tubing must be used along with appropriately rated fittings.

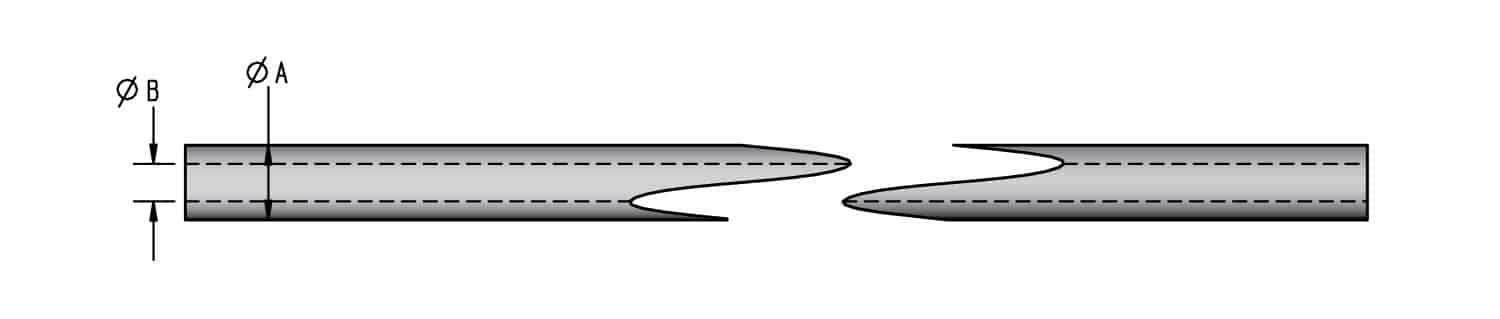

| Model No. | Hose O.D. | Hose I.D. | Material Grade | Max pressure at 75°F | Max pressure at 100°F | Max pressure at 150°F | Minimum Bend Radius (in.) |
|---|---|---|---|---|---|---|---|
| P3-0015-01 | 1/4 | 0.180 | Nylon 11 | 250 | 188 | 137 | 0.88 |
| P3-0015-02 | 3/8 | 0.275 | Nylon 11 | 220 | 165 | 121 | 1.50 |
| P3-0015-04 | 5 mm | 3 mm | Nylon 12 | 250 | 188 | 137 | 25 mm |
| P3-0015-05 | 6 mm | 4 mm | Nylon 12 | 250 | 188 | 137 | 30 mm |
