Boosters with Control Packages
For Single Acting Systems
- Complete package includes everything you need to use a VektorFlo® booster, including hardware.
- Includes filter/regulator with automatic drain, gauge, check valve, control valve, mufflers and all of the fittings and tubing, ready to hook up. (Customer supplies air quick connector.)

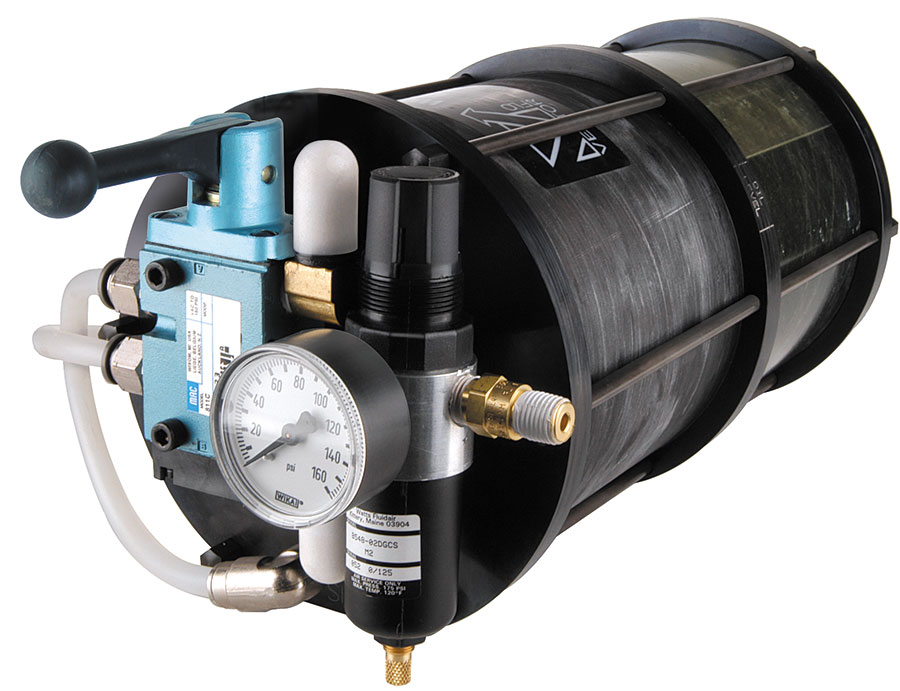

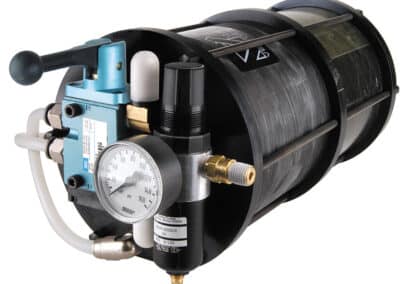

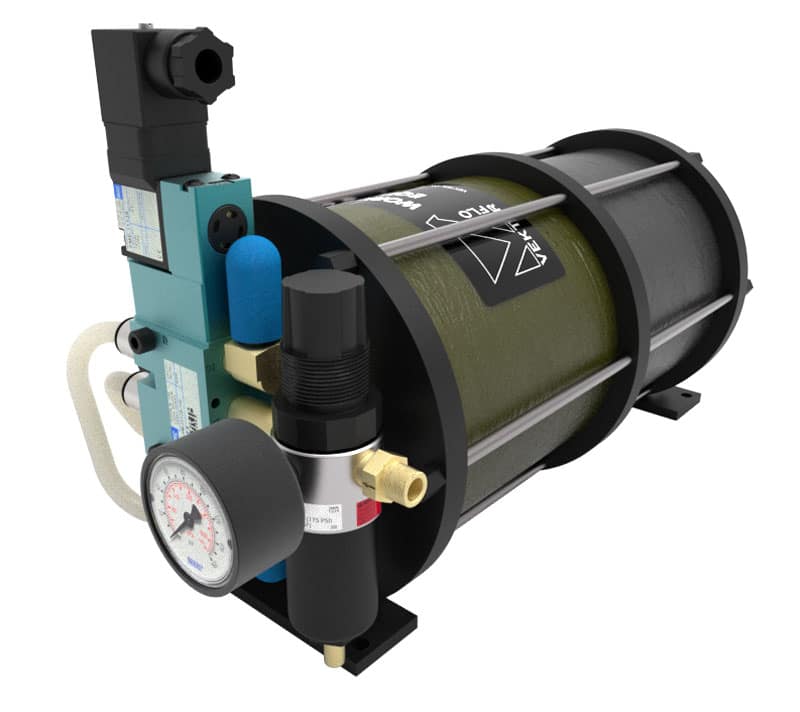

- Available in manual, 115 VAC (6.8 W) or 24 VDC (6.0 W) models.
- Includes air inlet check valve to prevent loss of clamping force in the event of an air line break.
Air/hydraulic boosters are an inexpensive way to power one single acting system. Whether this is your first system or you want a compact ride-along power supply for a system, these boosters are an efficient choice. Solid end and intermediate plates capture a reinforced epoxy case which acts as the air cylinder and fluid reservoir. The hydraulic piston runs in a steel cylinder immersed in the fluid reservoir. The double acting air piston design assures you of full fluid capacity on each actuation of the booster.
NOTE: One booster can be used to operate one single acting system. Boosters are not intended for use with single acting palletized (disconnected) systems. Boosters may be mounted horizontally or vertically. If mounted vertically, the oil discharge end must point up for proper operation.
| Model No. | Intensification Ratio | Useable Oil Volume | Maximum Air Input Pressure |
|---|---|---|---|
| 55-0204-19 | 22:1 | 5.0 cu. in. | 125 psi |
| 55-0214-19 | 40:1 | 2.8 cu. in. | 125 psi |
| 55-0224-19 | 54:1 | 2.1 cu. in. | 125 psi |
| 55-0284-19 | 11:1 | 9.6 cu. in. | 125 psi |
| Model No. | Intensification Ratio | Useable Oil Volume | Maximum Air Input Pressure |
|---|---|---|---|
| 55-0204-16 | 22:1 | 5.0 cu. in. | 125 psi |
| 55-0214-16 | 40:1 | 2.8 cu. in. | 125 psi |
| 55-0224-16 | 54:1 | 2.1 cu. in. | 125 psi |
| 55-0284-16 | 11:1 | 9.6 cu. in. | 125 psi |
| Model No. | Intensification Ratio | Useable Oil Volume | Maximum Air Input Pressure |
|---|---|---|---|
| 55-0204-18 | 22:1 | 5.0 cu. in. | 125 psi |
| 55-0214-18 | 40:1 | 2.8 cu. in. | 125 psi |
| 55-0224-18 | 54:1 | 2.1 cu. in. | 125 psi |
| 55-0284-18 | 11:1 | 9.6 cu. in. | 125 psi |
| Model No. | Intensification Ratio | Useable Oil Volume | Maximum Air Input Pressure |
|---|---|---|---|
| 55-0204-17 | 22:1 | 5.0 cu. in. | 125 psi |
| 55-0214-17 | 40:1 | 2.8 cu. in. | 125 psi |
| 55-0224-17 | 54:1 | 2.1 cu. in. | 125 psi |
| 55-0284-17 | 11:1 | 9.6 cu. in. | 125 psi |
| Model No. | Output |
|---|---|
| 50-0440-01 | 0 - 25 psi |
| 50-0440-02 | 0 - 125 psi |
