    Standard Gauge

    Accessories

    Fully Positionable and Re-adjustable G 1/4 Ported Gauges

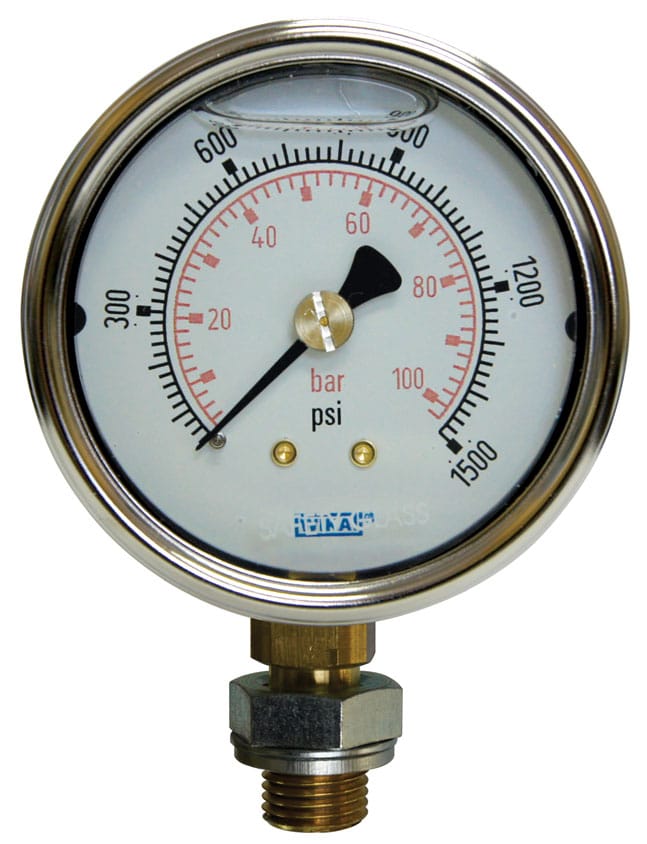

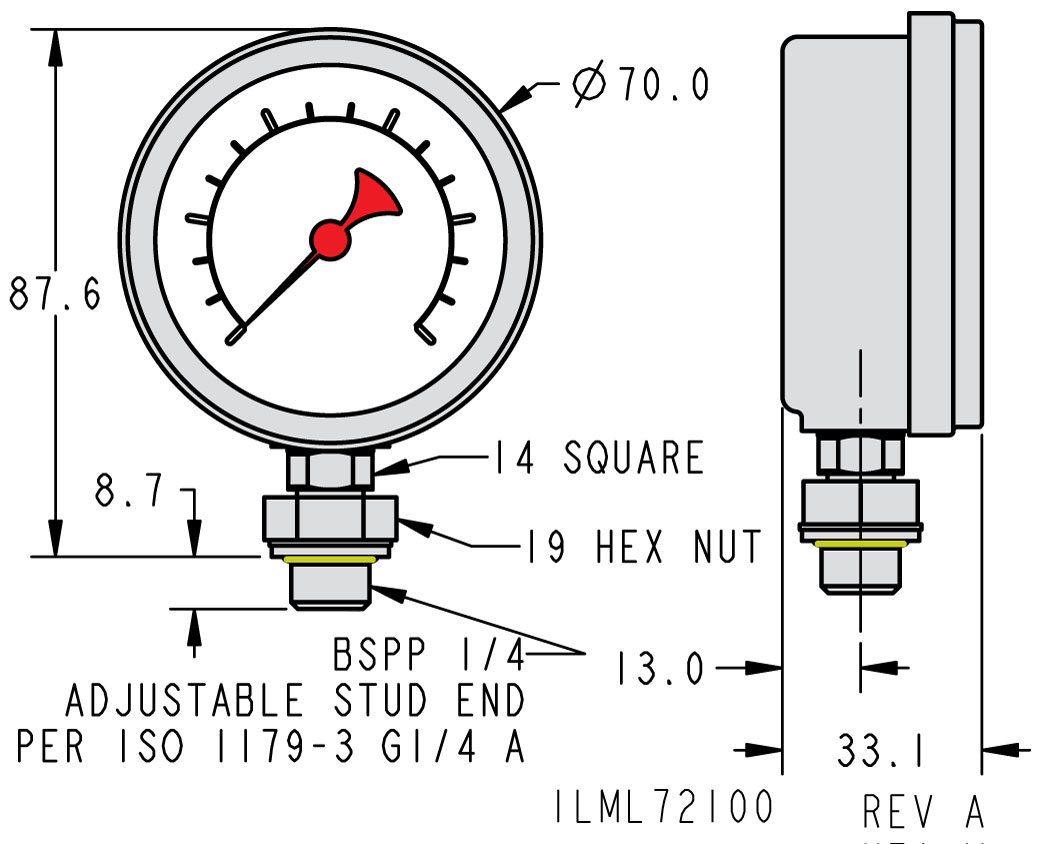

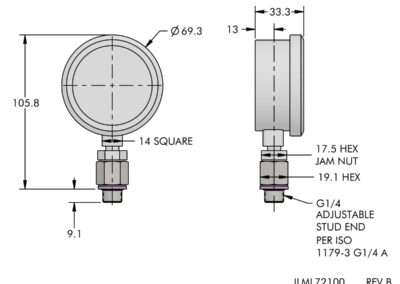

    • 70mm G1/4 LBM hydraulic pressure gauge
    • New, fully adjustable for perfect gauge orientation, G1/4 male stud connection.
    • Install gauge any where on your fixture into any G1/4 port.
    • Thread gauge into port, rotate into optimum orientation for easy viewing, and tighten jam nut.
    • Re-usable O-ring seal means gauge can be removed and reinstalled.
    • No one time use crush rings, no tapered fittings or sealing tape needed.
    • Liquide filled analog gauge.
    • Conforms to ANSI standard B40.1 grade B.
    • Safety Glass window.
    • To extend the life of pressure gauges, run you system at no more than 75% of the gauge scale.
    Top Flange Position Sensing Double Acting Mounting

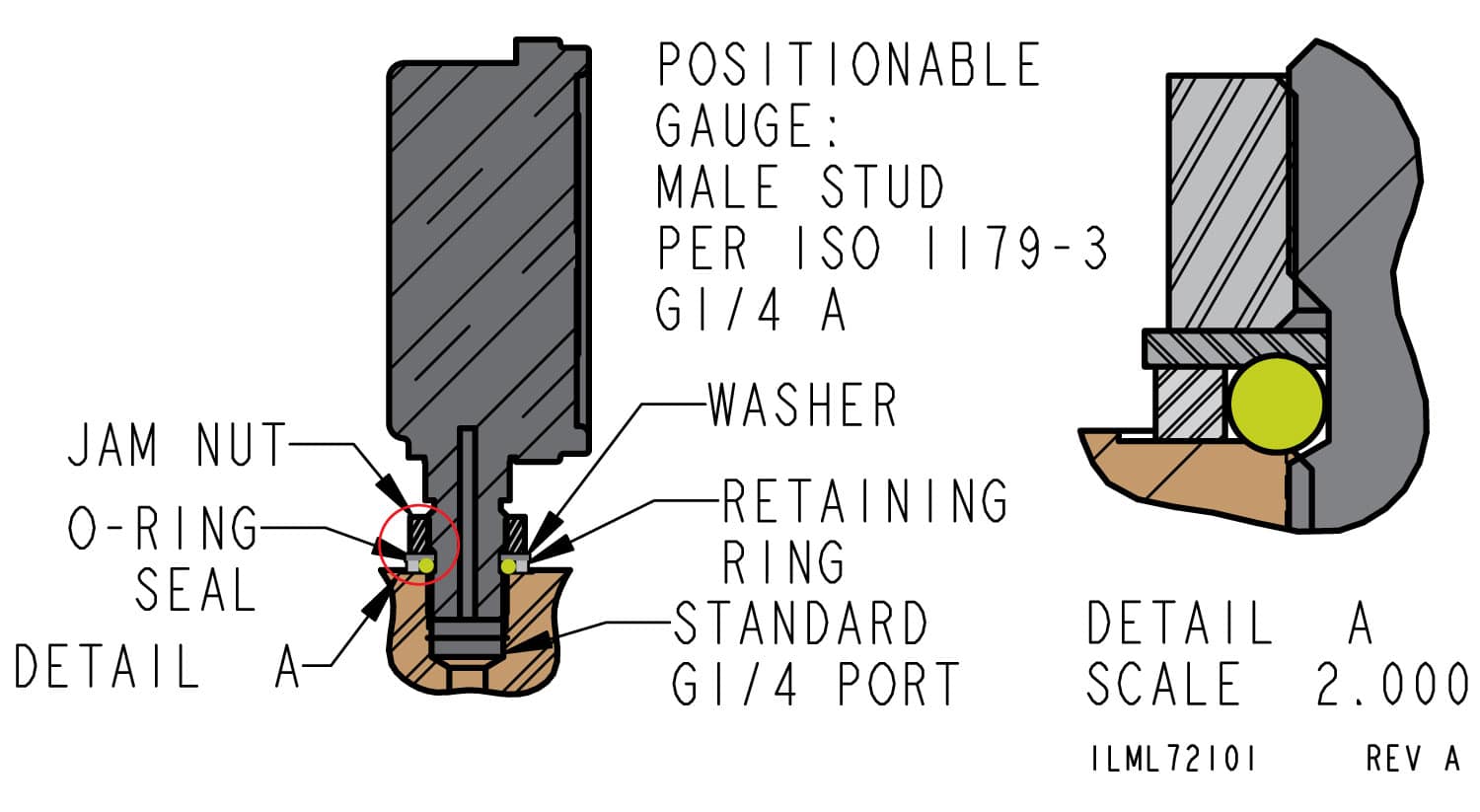

    ILML72101

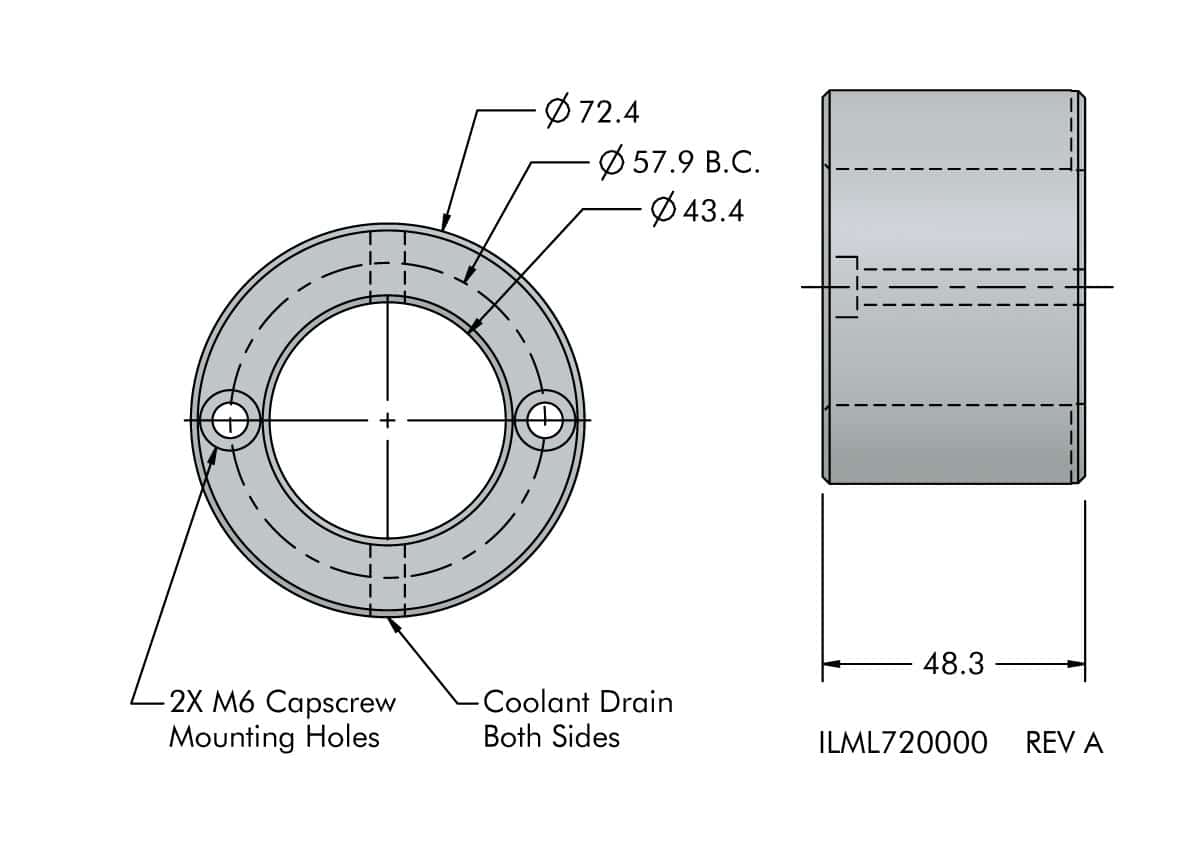

    Gauge Protector
    Model No.Pressure Range
    L7-2212-000 - 100 bar
    Model No.
    L7-2000-00
