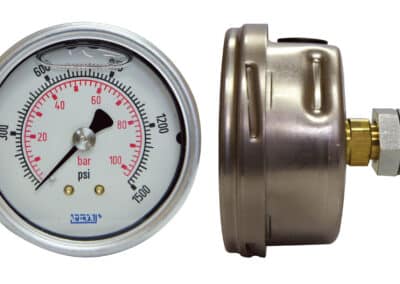

    Back Mount Gauge

    Accessories

    Fully Positionable and Re-adjustable G 1/4 Ported Gauges

    • 70mm & 42.4mm G1/4 CBM hydraulic pressure gauge.
    • New, fully adjustable for perfect gauge orientation, G1/4 male stud connection.
    • Install gauge any where on your fixture into any G1/4 port.
    • Thread gauge into port, rotate into optimum orientation for easy viewing, and tighten jam nut.
    • Re-usable O-ring seal means gauge can be removed and reinstalled.
    • No one time use crush rings, no tapered fittings or sealing tape needed.
    • Liquide filled analog gauge.
    • Conforms to ANSI standard B40.1 grade B.
    • Safety Glass window.
    • To extend the life of pressure gauges, run you system at no more than 75% of the gauge scale.

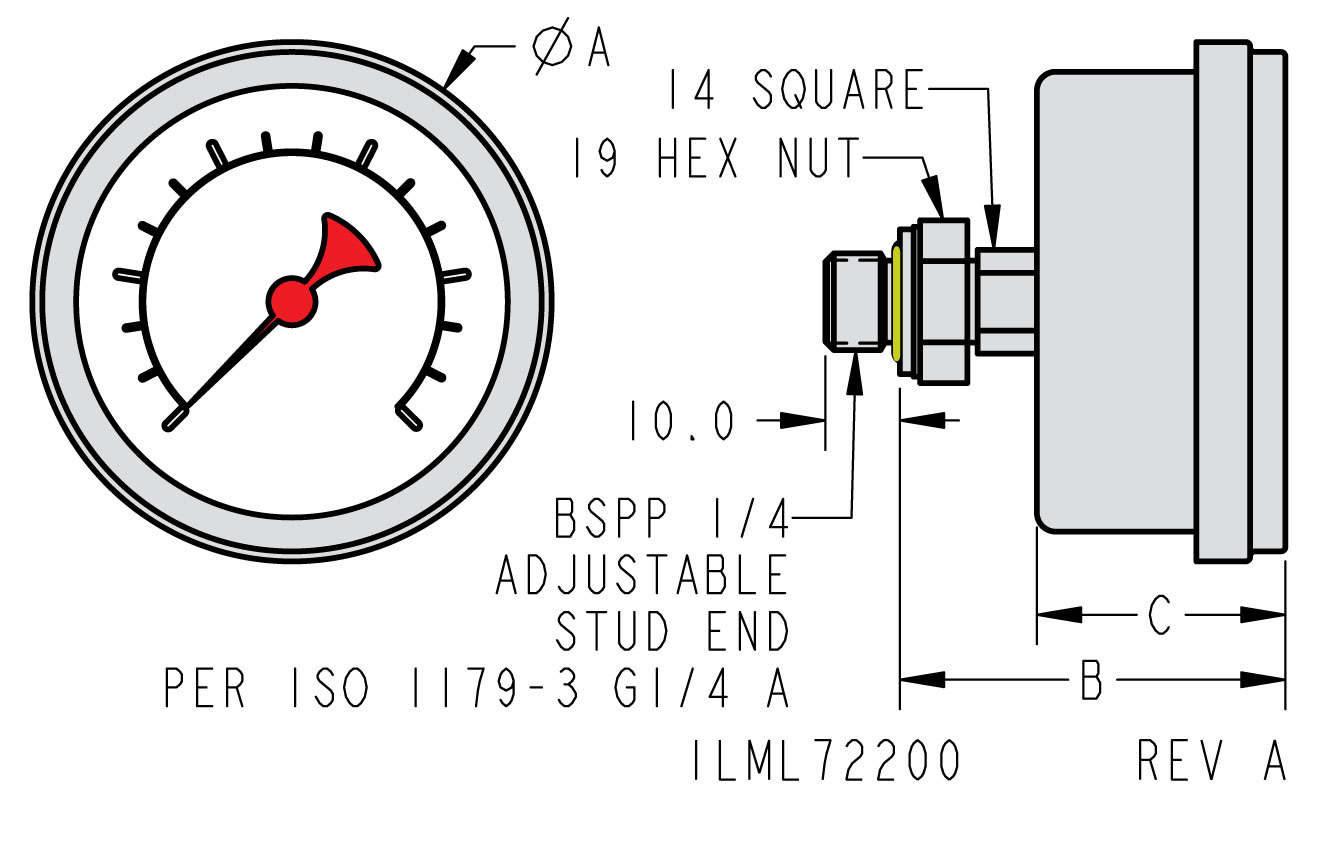

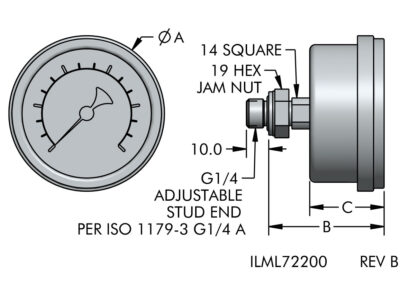

    Back Mount Gauge Dimensions
    ILML72101

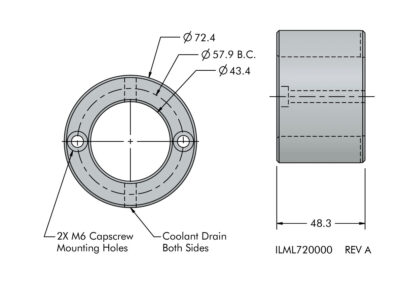

    Gauge Protector
    Model No.Pressure RangeABC
    L7-2122-000 - 100 bar42.247.227.9
    L7-2222-000 - 100 bar707233.5
    Model No.Used With Model No.
    L7-2000-00L7-2122-00
