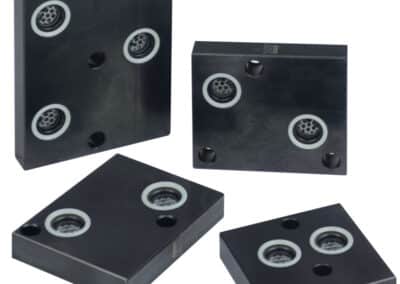

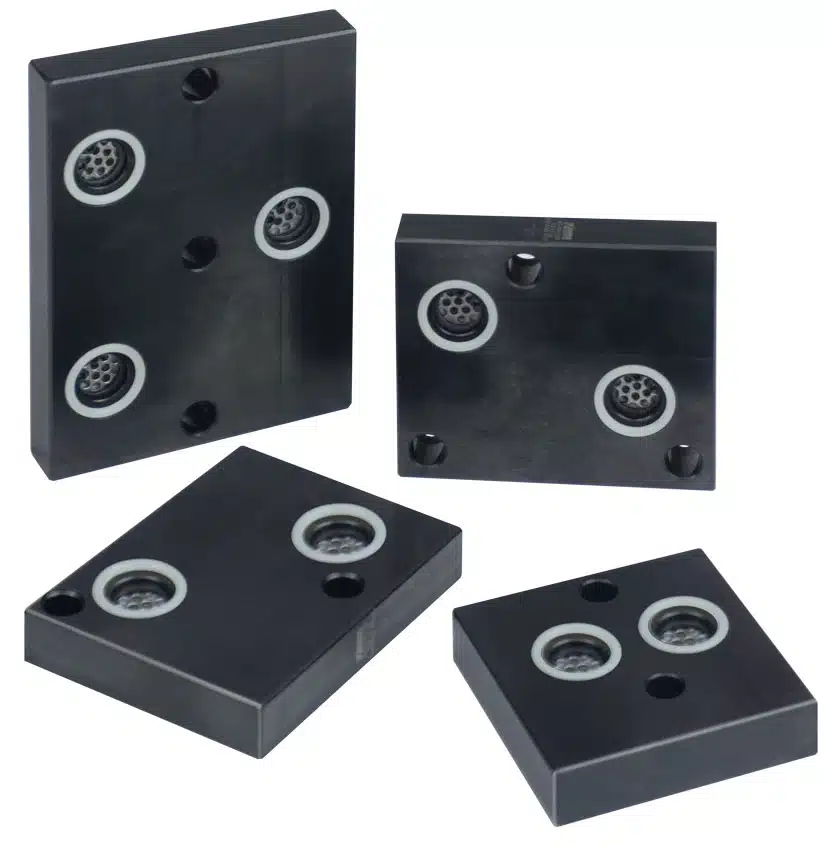

Subplate Isolation Filter
Gauges, Filters and End Effectors
Subplate isolation filters to protect your valves from debris and contamination.

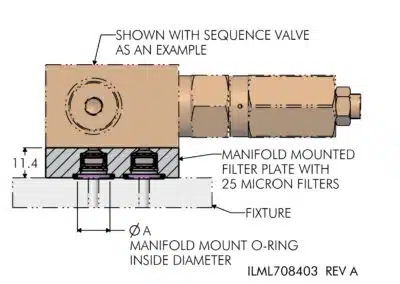

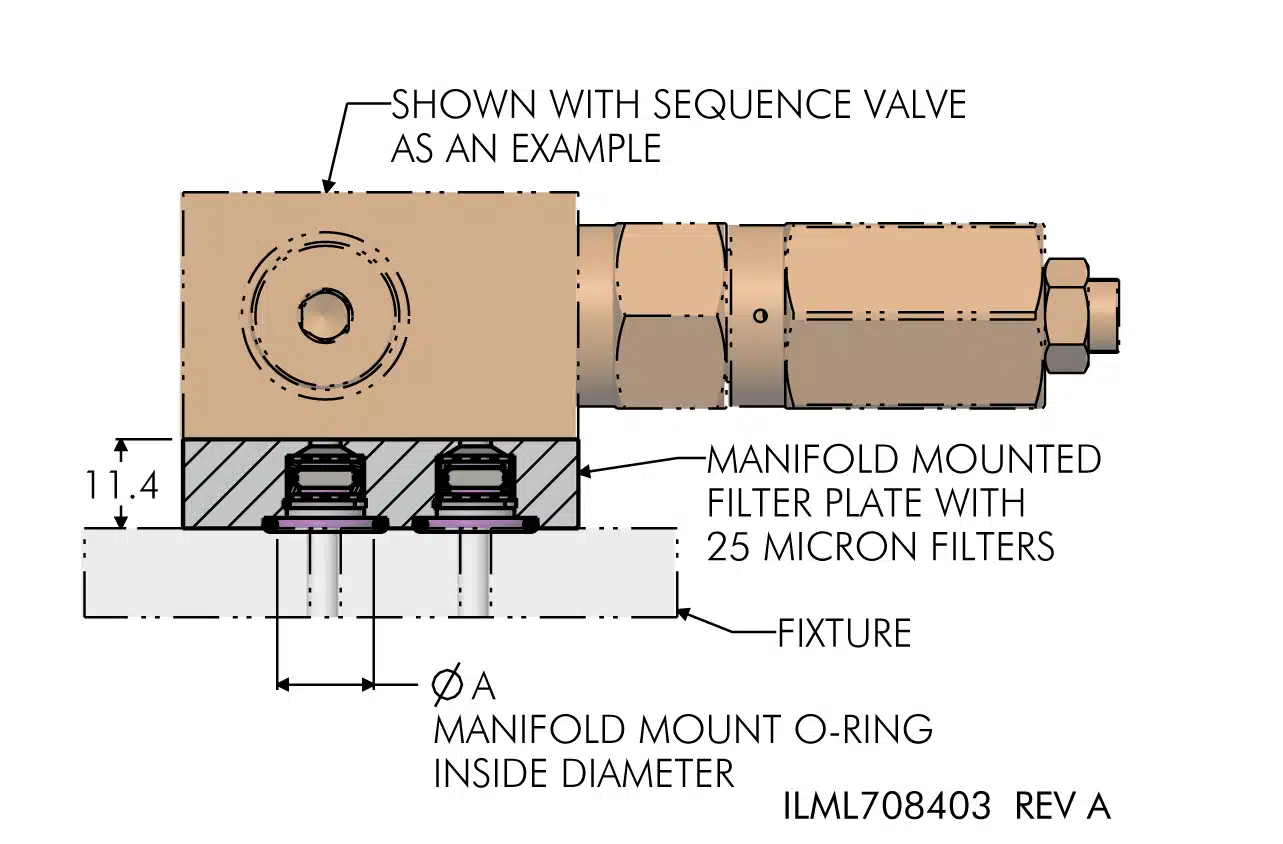

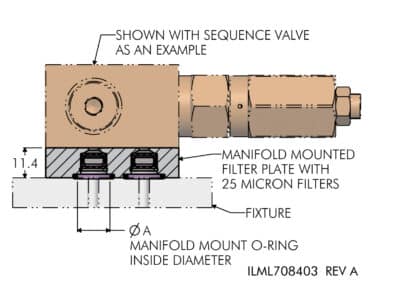

- Compact sandwich subplate design adds only 11.4 mm to the device height.
- Filter Plate dimensions match the mating product footprint.
- 25 micron filters are easily replaceable.
- Service kits available for easy and simple maintenance.
| Model No. | Valve Type | Used With Model No. | A |
|---|---|---|---|
| L7-0842-01 | Combination Sequence / PRV Block | L7-0818-01 | 12 |
| L7-0842-02 | Pressure Reducing Valve | L7-0512-00 | 12 |
| L7-0842-03 | Sequence Valve | L7-0412-00 | 12 |
| L7-0842-05 | Pallet Decoupler Bottom Mount | L5-6005-40 L6005-41 L6005-42 L6005-43 L6005-44 | 18 |
| L7-0842-06 | Pallet Decoupler Rear Mount | L5-6005-40 L6005-41 L6005-42 L6005-43 L6005-44 | 18 |
