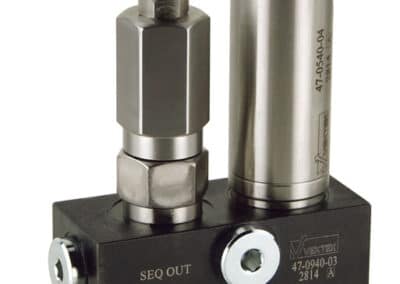

Combination SEQ/PRV Block
Metric Accessory Valves
Timing and Regulated Pressure in One Unit
- Control both timing and pressure with this dual purpose combination block.
- Common inlet port feeds both sequence and reducing valves.
- 3 (M8) manifold ports: Inlet, Sequenced and Sequenced+Reduced Pressure.
- 6 (G1/4) ports: 2 x Inlet, 2 x Sequenced and 2 Sequenced +Reduced Pressure.
- Use with single or double acting devices.
- Block includes standard Sequence and PRV cartridges.
- Direct acting poppet style valve construction.
- Sequence Pressure adjustment range: 20 bar to 350 bar PRV adjustment range: 10 to 310 bar.
- Elements spaced to accommodate Gauge for setup or trouble shooting.
- Recommended Filtration: 25 Micron (NOM) / 40 Micron (ABS) (minimum).
* M8 Ports are counterbored for O-Rings that are used in manifold mounting applications. Ø 2.29/3.30 feed holes.
** PRV set pressure is: 10 – 60 bar with an inlet pressure of < 200 bar 20 – 60 bar with an inlet pressure > 200 bar
Order a Filter Plate to protect valves from debris (Model No. 47-0842-01)
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
| Model No. | Sequence Valve Model No. | Sequence Valve Set Pressure Range | PRV Model No. | PRV Set Pressure Range |
|---|---|---|---|---|
| 47-0940-00 | 47-0440-00 | 52 - 350 bar | 47-0540-00 | 52 - 310 bar |
| 47-0940-01 | 47-0440-00 | 52 - 350 bar | 47-0540-04 | 10 - 62 bar |
| 47-0940-02 | 47-0440-01 | 20 - 62 bar | 47-0540-00 | 52 - 310 bar |
| 47-0940-03 | 47-0440-01 | 20 - 62 bar | 47-0540-04 | 10 - 62 bar |
| Model No. | A | B |
|---|---|---|
| 47-0940-00 | 117.9 | 152.6 |
| 47-0940-01 | 117.9 | 171.3 |
| 47-0940-02 | 133.0 | 152.6 |
| 47-0940-03 | 133.0 | 171.3 |
