Manual Unload Valves-Tombstone

Palletized Fixture Accessories

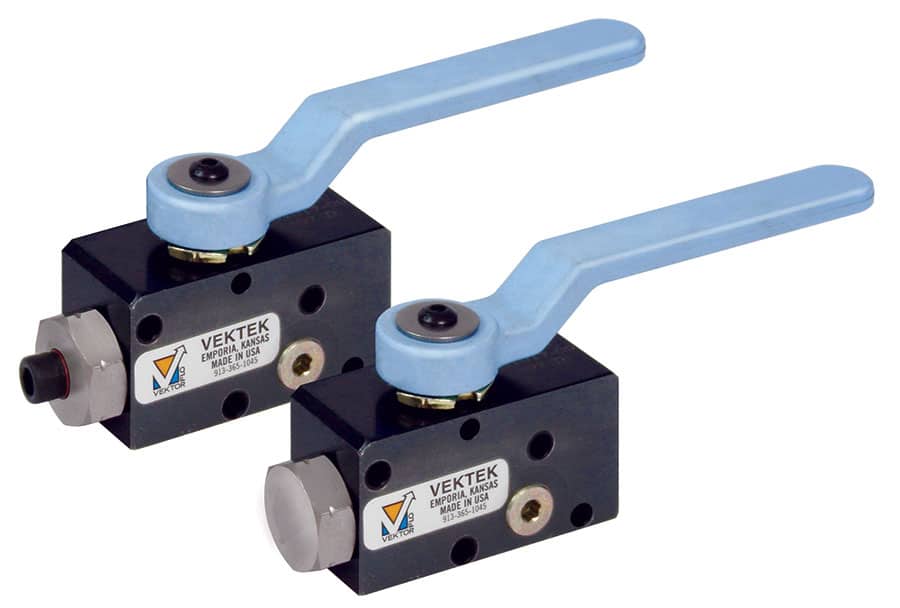

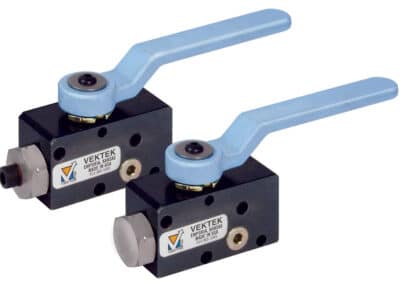

• Manual Dump Valves are compact packages that include a manual shutoff valve, check valve, filter screen, auxiliary gauge port and manifold mounting ports. Available with optional manual pressure bleed port.

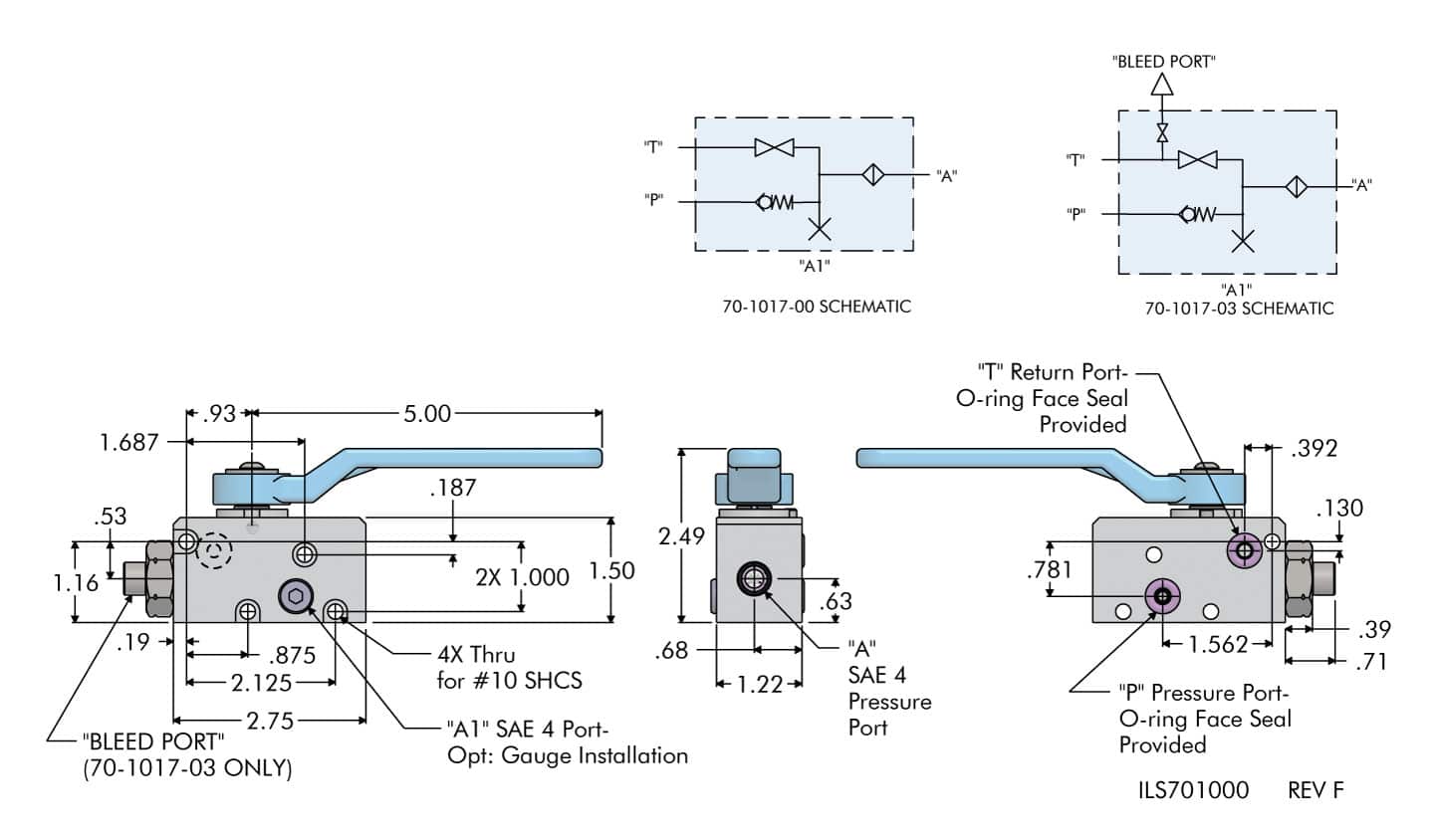

• These valves provide separate control of a tombstone face or pallet circuit when integrated into the complete Tombstone Top Plate system shown in the schematic.

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin Ra surface finish.
