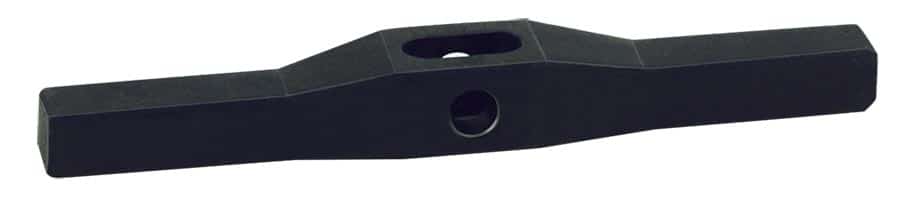

Swing Clamp Arms, Double Ended Rocker
Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.
| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91-5205-09 | 450 | 2.13 | 4.25 | 0.38 | 0.63 | 0.41 | 0.25 | 0.36 | 0.18 | 13° | 0.250 | 0.23 | 0.34 | 0.48 | 0.96 |
| 91-5209-09 | 1100 | 3.00 | 6.00 | 0.48 | 0.88 | 0.56 | 0.38 | 0.50 | 0.25 | 18° | 0.312 | 0.38 | 0.50 | 0.76 | 1.27 |
| 91-5213-09 | 2600 | 4.25 | 8.50 | 0.73 | 1.25 | 0.75 | 0.53 | 0.70 | 0.35 | 25° | 0.437 | 0.55 | 0.63 | 1.10 | 1.78 |
| 91-5218-09 | 5000 | 5.50 | 11.00 | 1.07 | 2.00 | 1.12 | 0.78 | 1.00 | 0.50 | 30° | 0.624 | 0.87 | 0.75 | 1.75 | 2.86 |
