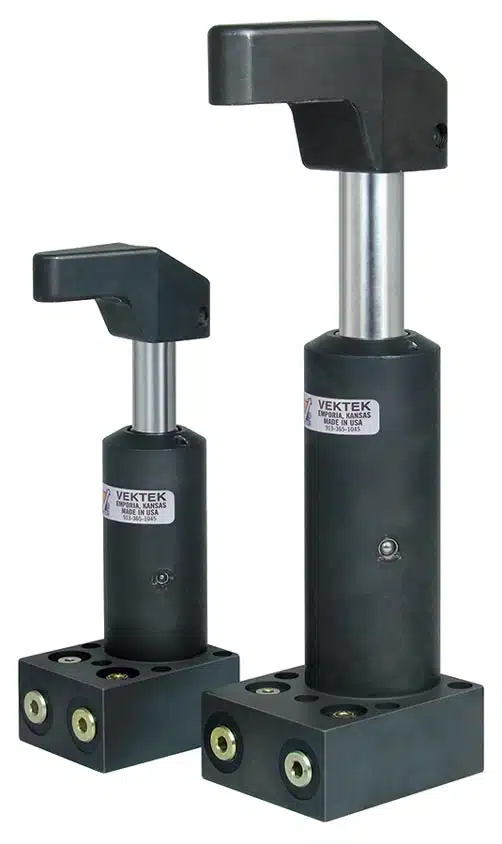

TuffCam Bottom Flange Long Stroke Inch Hydraulic Swing Clamps

Single and Double Acting

  • Available in 1,100 and 2,600 lb. capacity with standard arm at 5,000 psi.
  • More than double the vertical clamping stroke for maximum part deviation allowance and swing clearance.
  • Three cams for accurate arm positioning, smoother rotation and lower per cam surface contact pressure.
  • Patented ball seat for improved rotary function, cam follower contact, and reduced dynamic and static friction.
  • Fluorocarbon wipers are standard for improved coolant compatibility
  • Tungsten-Carbide cam followers for strength and wear.
  • See Clamp Time and Fluid Flow Rate chart regarding flow rate limits and time calculations to be observed to avoid damage and preserve warranty.
  • TuffCam™ Arm Clocking feature is compatible with all standard Vektek arms.
  • Arms sold separately.
  • BHC™ (Black Hard Coating) on the cylinder bodies helps prevent leaks caused by scoring and scratching, especially in the event of high side or “kick” loads which promote excessive scoring in many other brands.
  • Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
  • Optional In-Port Sequence valve is a sequencing device with reverse free flow check valve.
  • Standard swing is 90° swing angles less than 90° require Swing Restrictors. Swings angles greater than 90° are special order products.
  • See Ultrasonic variant.

WARNING: Never allow swing arm to contact workpiece or fixture during arm rotation.

* 2,600 lbs Long Stroke may not be interchangeable with TuffCam™ or VersaCam™ Swing Clamp models. Check overall dimensions for correct mounting in fixture.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 750 psi for single acting, 500 psi for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the cylinder capacity shown above by 5,000, and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
*** To allow for piece part height variations, it is recommended that the vertical travel be set at about 50% of the vertical stroke.
**** To insure maximum service life and trouble-free operation, restrict fluid flow to the level indicated in the TuffCam™ Clamp Time and Flow Rate Chart.
***** In-Port valves require the use of manifold mount ports.

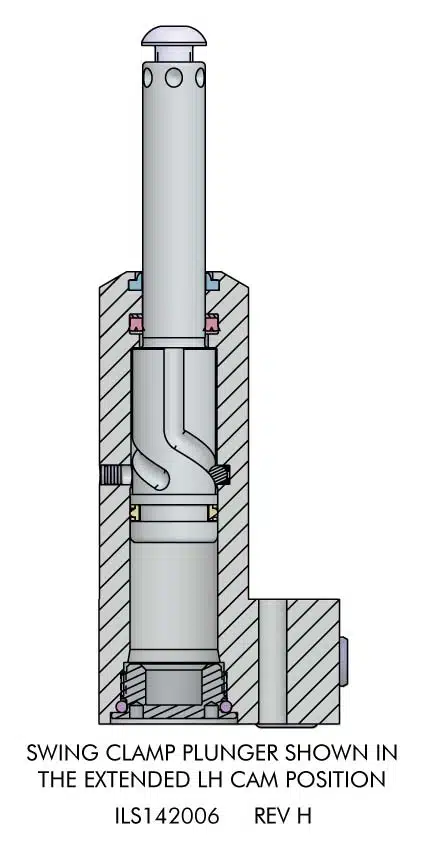

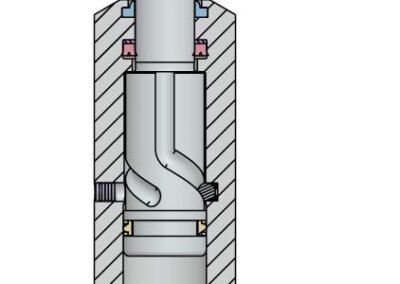

TuffCam™ Bottom Flange Swing Clamp Long Stroke

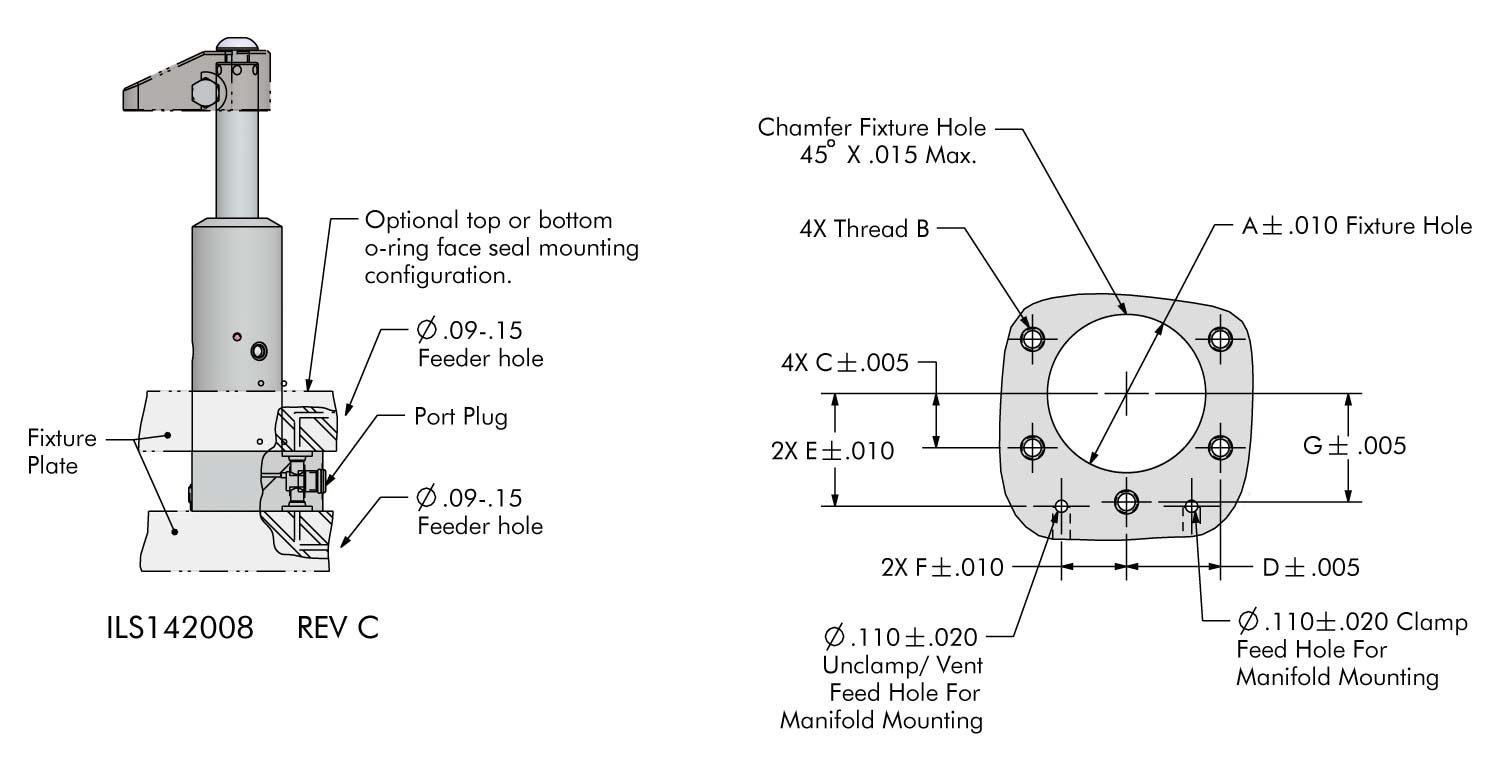

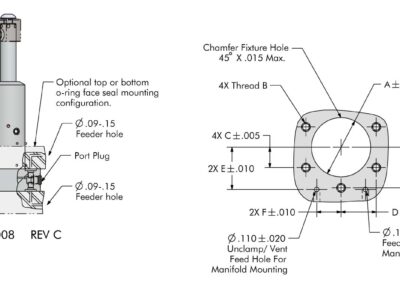

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin Ra surface finish.

* All models are shipped with removable steel plugs installed. O-ring face seals provided.
***All five mounting screws must be used when manifold mounting, to assure a leak free O-ring seal.

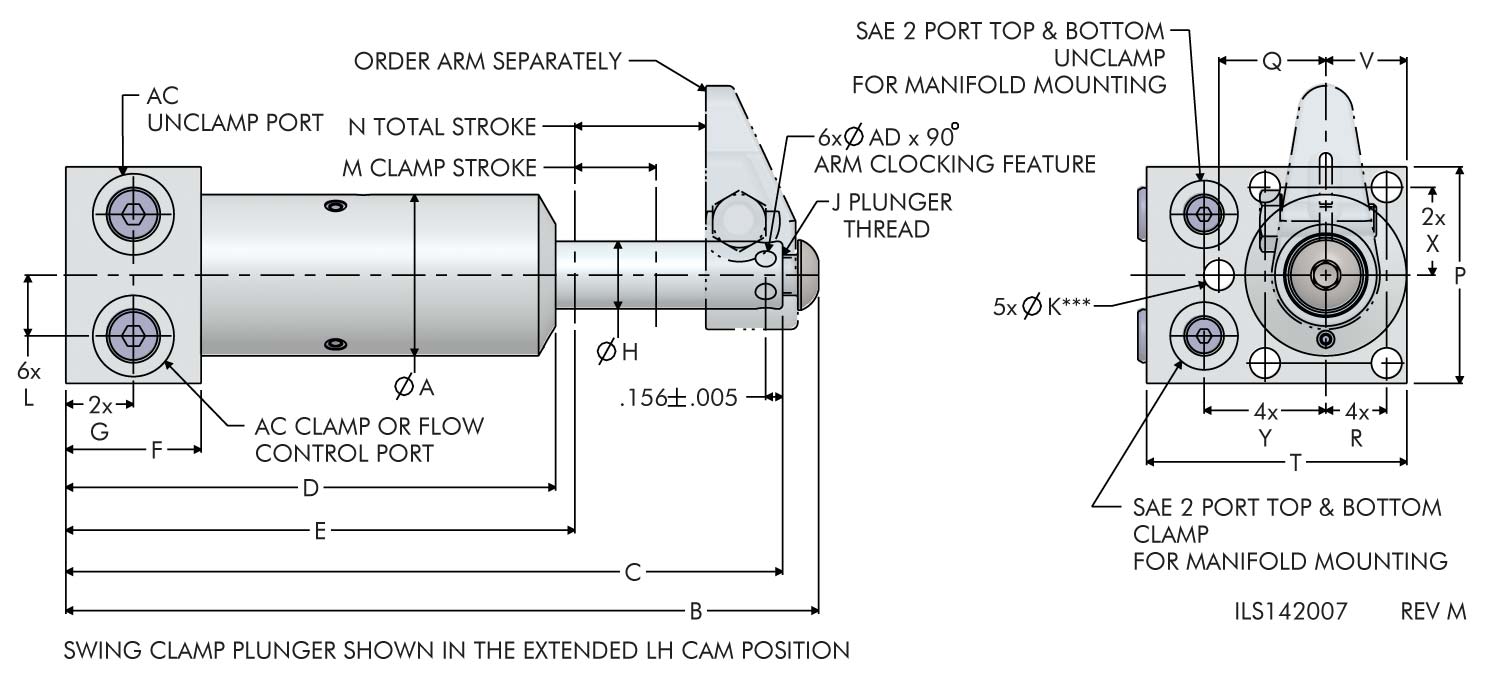

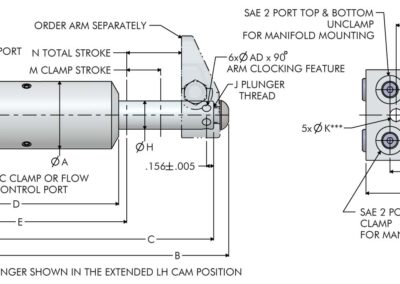

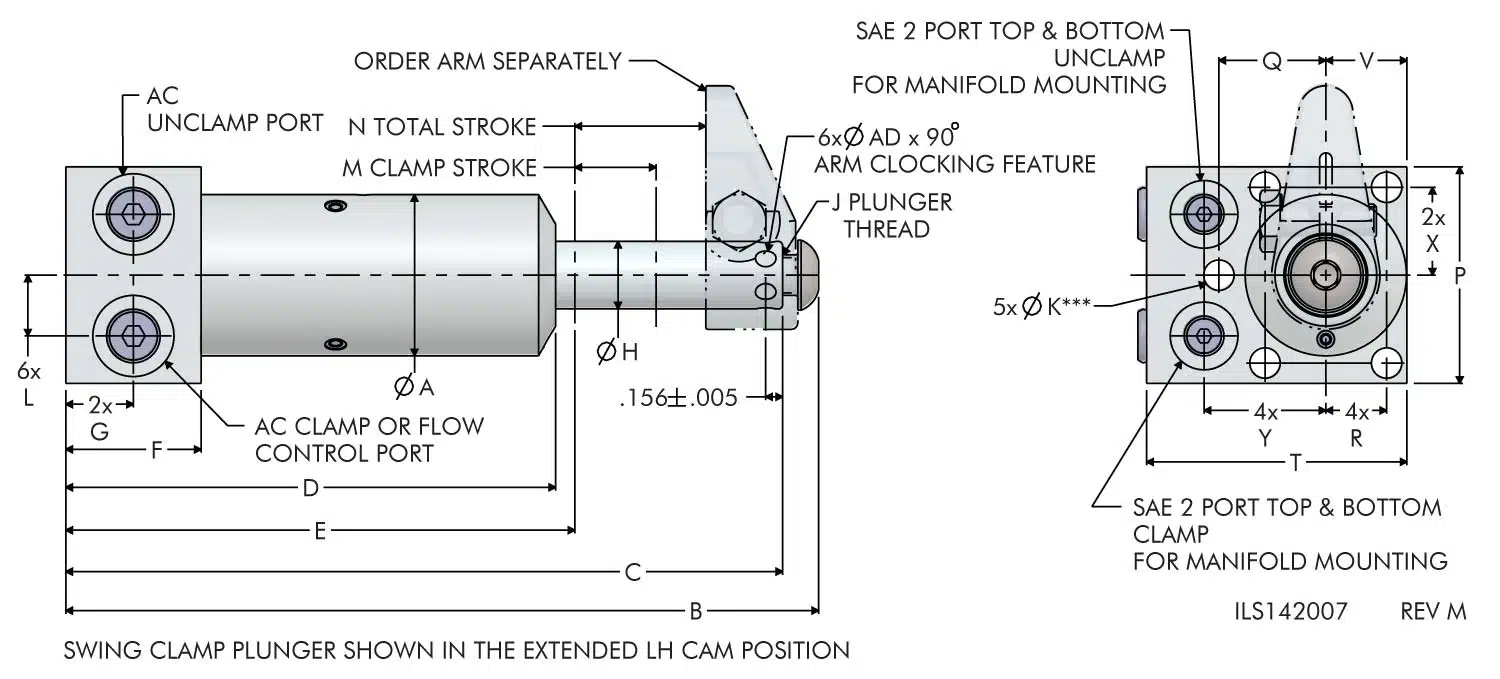

TuffCam™ Bottom Flange Swing Clamp Long Stroke
Model No.Swing DirectionClamp Capacity (lb.)Vertical Clamp Stroke (in.)Total Stroke (Swing + Vertical)Standard Arm LengthPiston Area (sq. in.) RetractOil Capacity Extend (cu. in.)Oil Capacity Retract (cu. in.)Port X For Optional In-Port Valves
14-2209-10-LLeft11000.751.211.500.2950.730.36SAE 4 X 0.75
14-2209-10-RRight11000.751.211.500.2950.730.36SAE 4 X 0.75
14-2209-10-SStraight11001.211.211.500.2950.730.36SAE 4 X 0.75
14-2213-10-LLeft26001.342.002.000.6262.451.25SAE 4 X 0.75
14-2213-10-RRight26001.342.002.000.6262.451.25SAE 4 X 0.75
14-2213-10-SStraight26002.002.002.000.6262.451.25SAE 4 X 0.75
Model No.Clamp Capacity (lb.)ABCDEFGHJKLMNPQRTVXYACAD
14-2209-10-L11001.496.976.624.534.701.250.630.6253/8-24 X 0.470.280.560.751.212.000.990.562.410.750.811.13SAE 40.19
14-2209-10-R11001.496.976.624.534.701.250.630.6253/8-24 X 0.470.280.560.751.212.000.990.562.410.750.811.13SAE 40.19
14-2209-10-S11001.496.976.624.534.701.250.630.6253/8-24 X 0.470.280.561.211.212.000.990.562.410.750.811.13SAE 40.19
14-2213-10-L26001.879.849.346.106.341.250.630.8751/2-20 X 0.520.340.751.342.002.501.210.692.720.941.001.25SAE 40.19
14-2213-10-R26001.879.849.346.106.341.250.630.8751/2-20 X 0.520.340.751.342.002.501.210.692.720.941.001.25SAE 40.19
14-2213-10-S26001.879.849.346.106.341.250.630.8751/2-20 X 0.520.340.752.002.002.501.210.692.720.941.001.25SAE 40.19
Model No.ABCDEFG
14-2209-10-L1.5151/4 - 200.5620.8121.1250.5620.988
14-2209-10-R1.5151/4 - 200.5620.8121.1250.5620.988
14-2209-10-S1.5151/4 - 200.5620.8121.1250.5620.988
14-2213-10-L1.8905/16 - 180.6881.0001.2500.7501.214
14-2213-10-R1.8905/16 - 180.6881.0001.2500.7501.214
14-2213-10-S1.8905/16 - 180.6881.0001.2500.7501.214
