Compact Air/Hydraulic Pump
7MPa Power Supplies

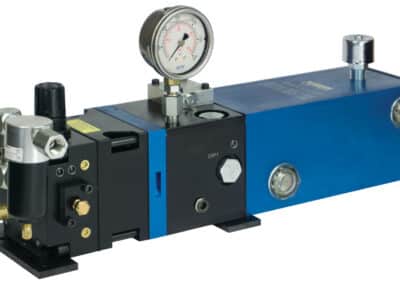

Compact Air/Hydraulic Pump
- Suitable for most single fixtures and small pallet systems operating up to 10 MPa (100 bar).
- Powers either single or double acting cylinders.
- Provided with cross-over plate for remote valve mounting that can be removed for direct mounting of CETOP 3 or D03 valves.

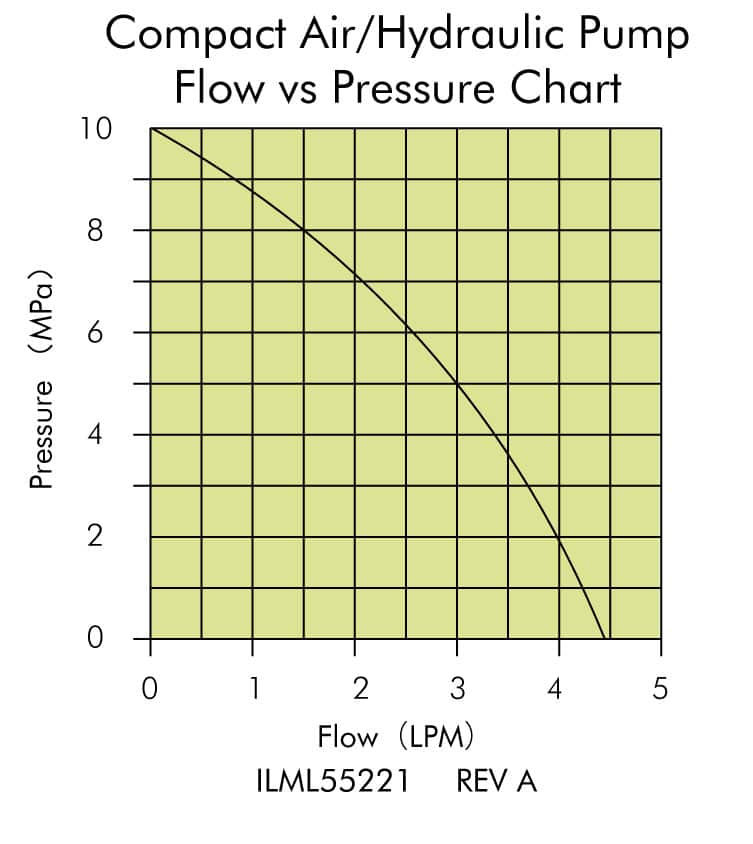

- Hydraulic Flow rates up to 4.4 liters per minute at 550 kPa air pressure input.
- Built in air filter/regulator adjustable to determine hydraulic operating pressure output.
- Mounting hardware is included.
- Noise level, 80 Db at 1 meter.

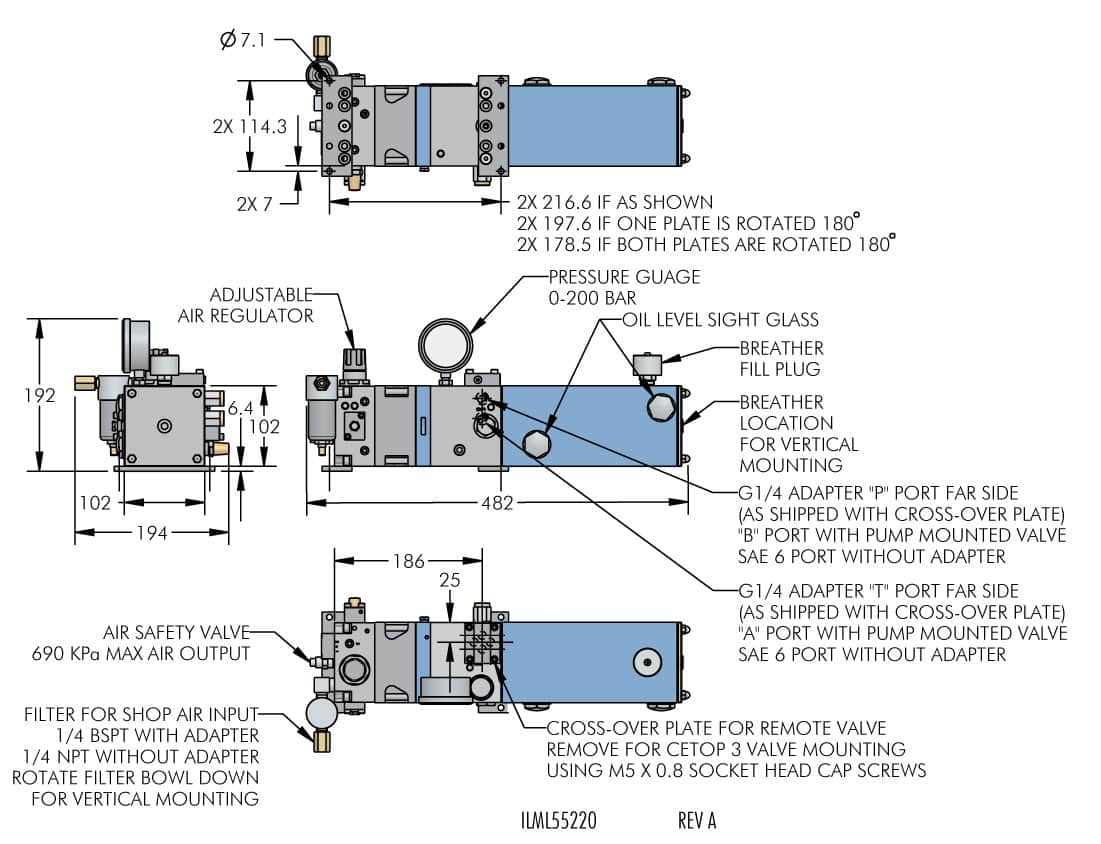

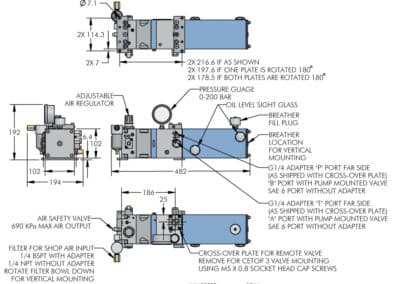

| Model No. | DA Pump Ratio Hydraulic/Air | Mounting Style | Horizontal Reservoir Capacity | Vertical Reservoir Capacity | Minimum Air Input Pressure | Maximum Air Input Pressure | Pressure Range | Weight |
|---|---|---|---|---|---|---|---|---|
| L5-5222-00 | 20/20:1 | Horizontal (shown)/Vertical (reservoir up) | 1.4 L | 1.9 L | 100 kPa | 550 kPa | 2.0 - 10.0 MPa | 10 kg |
