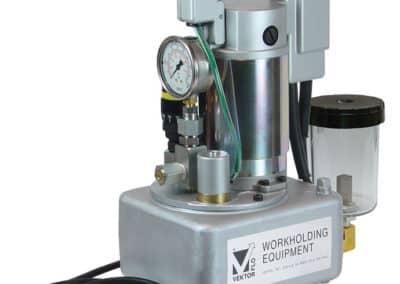

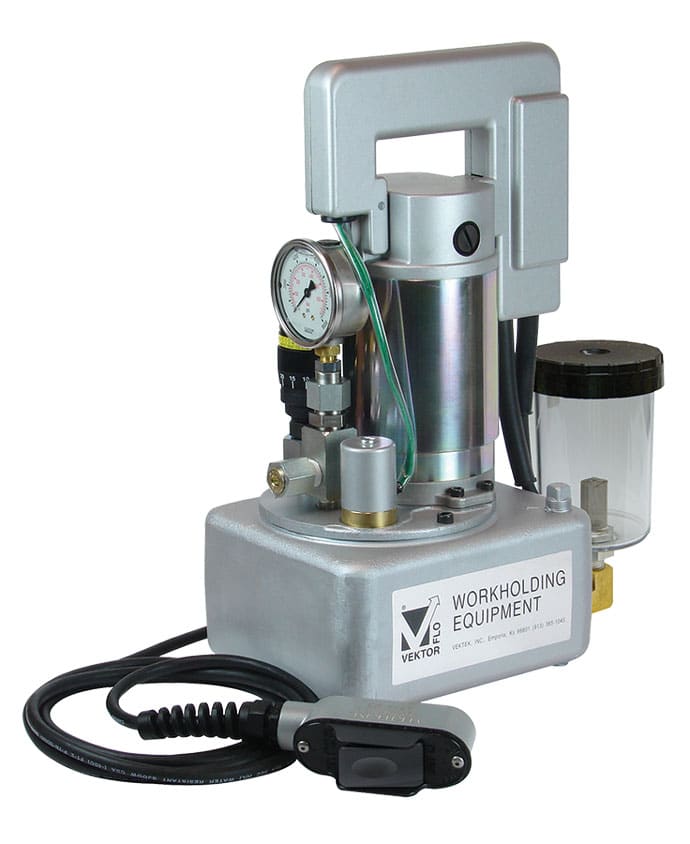

Portable .25 kW Electric/Hydraulic Pump

Power Supplies

Extreme portability and easy pressure adjustment make this a versatile pump that can be fitted with quick connectors to serve as the power source for fixtures used in various plant locations. To ensure long, trouble-free service, VektorFlo® power supplies have been specially engineered to operate at 350 bar, optimum pressure for power workholding. The pump automatically holds the pressure set on the pressure switch and automatically restarts should a pressure drop occur. The compact motor draws low amps at full pressure. Nothing is needed other than a hose to put this self-contained unit to work.

• New enclosed motor housing eliminates entry of motor damaging environmental debris.
• New beefier motor extends life and runs quieter than the previous model.
• Builds to preset pressure, maintains continuous pressure until switched off and will not release until electrically signaled.
• Fully self-contained, yet easily portable, weighs only 14.5 kg with oil.
• Hydraulic pressure switch externally adjustable from 50 to 350 bar.
• Two-stage pump flows 2 liters per minute at low pressure; .2 liters per minute at maximum pressure.
• Integral safety overload valve, factory set at 390 bar.
• Reservoir usable oil capacity: 1.8 liters.
• Equipped with either 1-phase 115VAC or 1-phase 230VAC, .25 kW motor.
• Installed length of the pendant cable is 3 meters.
