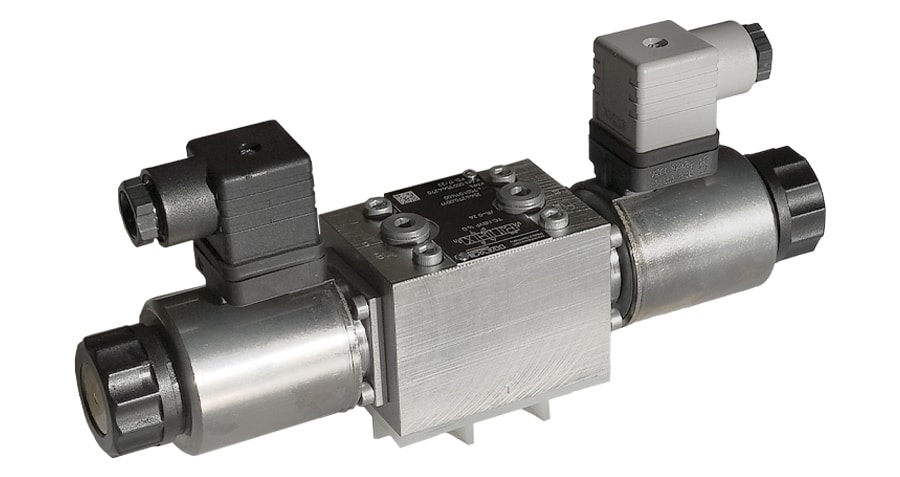

4-Port, 3-Position Solenoid Operated
Directional Control Valves
Control Valves 4-Port, 3-Position
- Provide improved control of clamping circuits with true poppet design.
- Multiple coil voltages available.
- Internal design promotes improved service life.

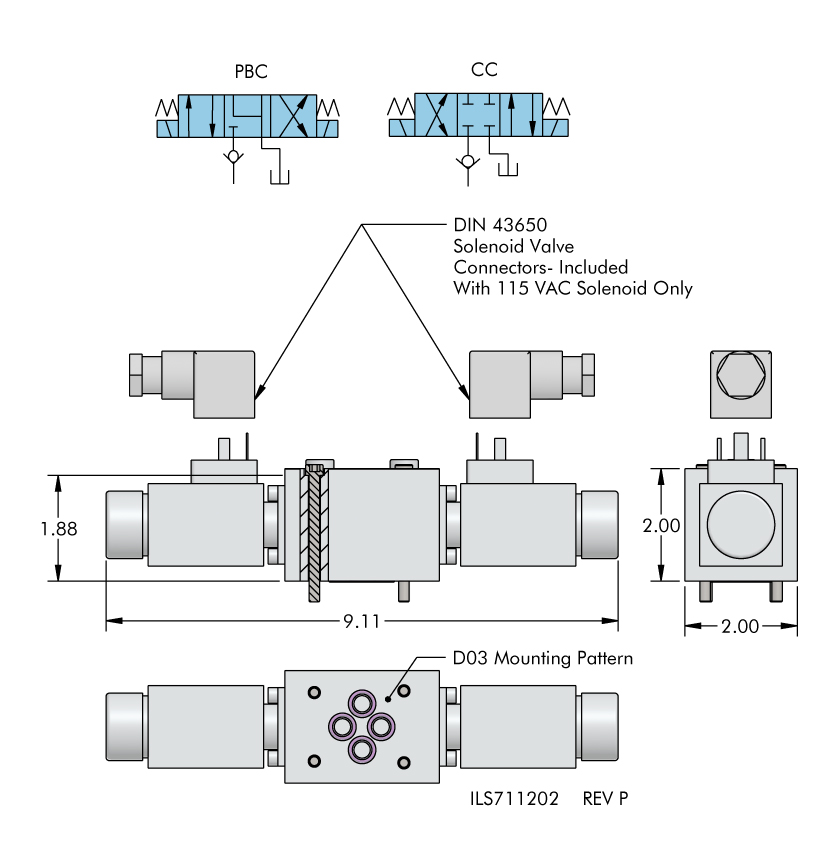

- Narrow width allows mounting of multiple valves on standard DO3 manifolds.
- All valves have built-in P-Block check for fail safe multi-valve operation.
- Coils can be easily replaced.
* Supplied with rectified connectors that must be used to insure proper valve function and warranty. Use of any other connector will void the valve warranty.
| Model No. | Valve Type | Valve Connector Part No. | Solenoid Voltage | Power Consumption | Duty Rating |
|---|---|---|---|---|---|
| 71-1235-21 | Closed Center | 85-5342-91 | 24 VDC | 27.6 Watts | 100% |
| 71-1235-22 | *Closed Center | 87-1123-00 | 115 VAC | 28.6 Watts | 100% |
| 71-1235-40 | P-Blocked Center | 85-5342-91 | 24 VDC | 27.6 Watts | 100% |
| 71-1235-41 | *P-Blocked Center | 87-1123-00 | 115 VAC | 28.6 Watts | 100% |
