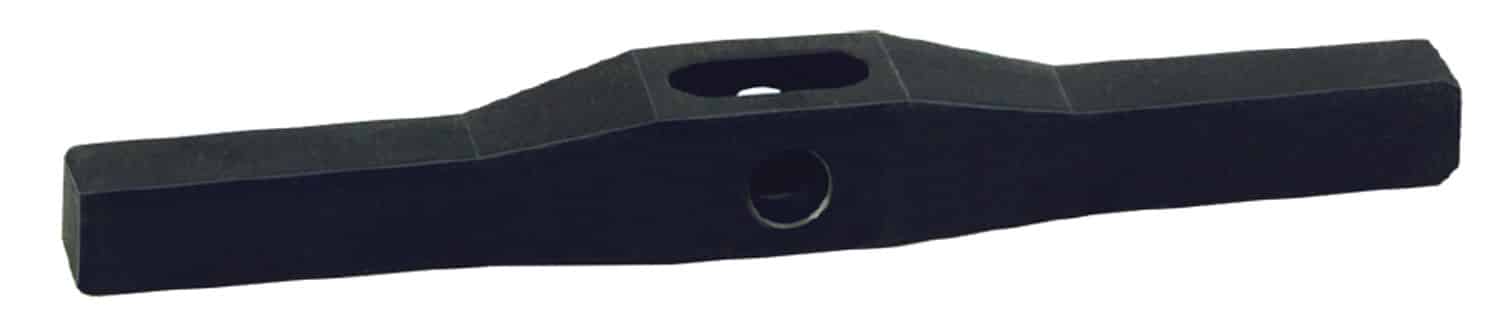

Doubled Ended Rock Arms
Metric Swing Clamp Arms
For arm limits, see the Swing Clamp Arms Learn More Page.

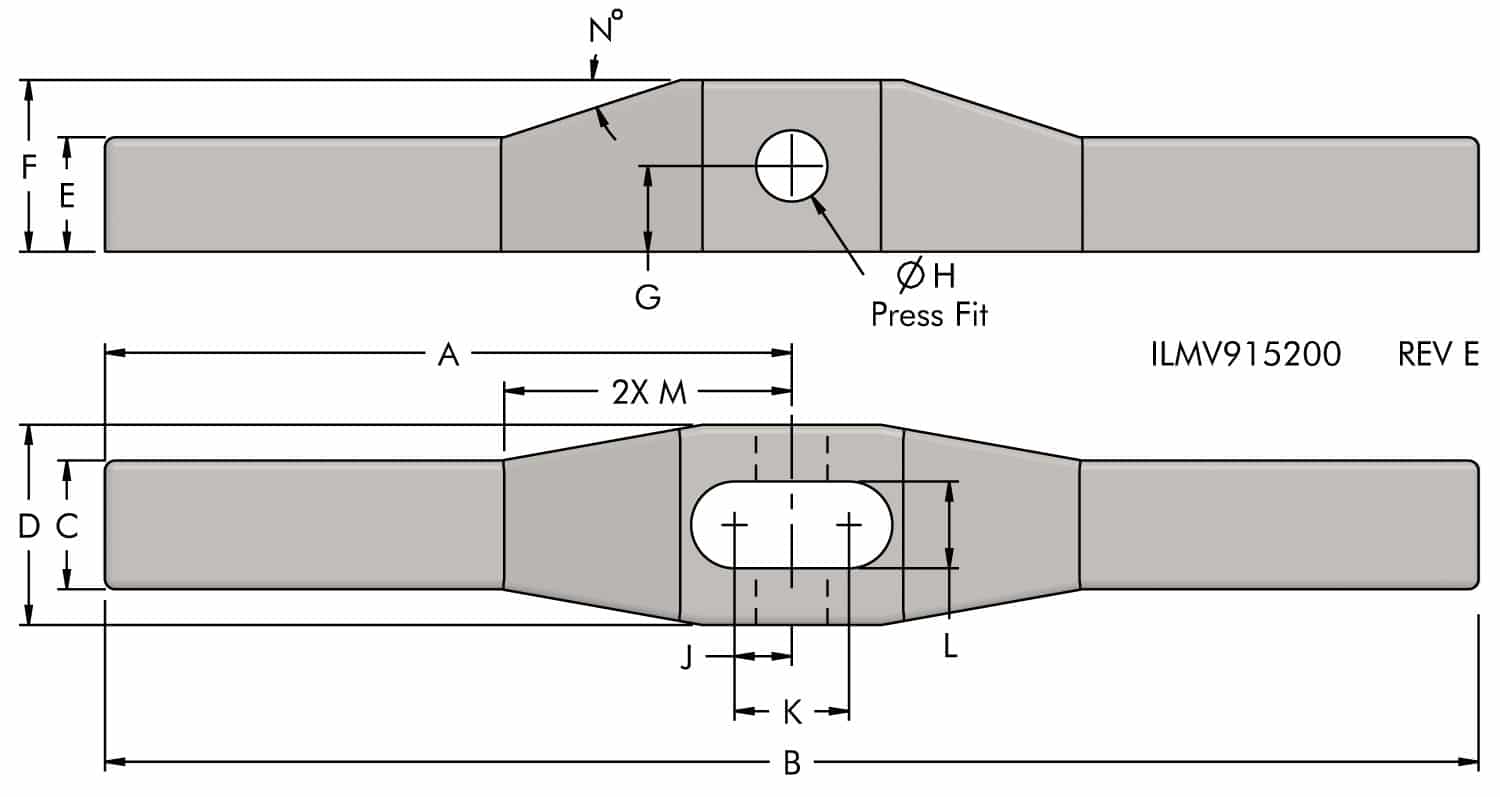

| Model No. | Clamp Capacity (kN) | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-5205-08 | 2 | 54 | 108 | 10.4 | 15.9 | 8.7 | 11.8 | 5.8 | 6.4 | 4.6 | 9.1 | 6.4 | 29.7 | 13 |
| 44-5209-08 | 4.9 | 76.2 | 152.5 | 14.3 | 22.2 | 12.7 | 19.1 | 9.5 | 7.9 | 6.4 | 12.7 | 9.5 | 44 | 18 |
| 44-5213-08 | 11.6 | 108 | 216 | 19.1 | 31.8 | 15.9 | 28 | 14.3 | 11.1 | 8.9 | 17.8 | 13.5 | 62.7 | 25 |
