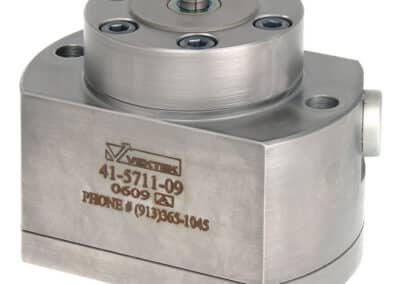

Single Acting Pull-Down Clamp, Concentric

Metric Special Use Clamps

5-sided machining can be carried out safely without clamp interference.
Workpiece can be loaded and unloaded by handling equipment.
Optional oil supply through G1/8 port or manifold connection.
Disk spring for staged pull-down effect.
Serrated grippers.
Body, sleeves and draw bar are made of nitride-hardened alloy steel for longer trouble-free life.
Clamping sleeves are segmented and serrated to form and grip the clamping hole.
These Pull-Down Clamps also serve as a support surface and “Z” locator for the workpiece.

Maximum operating pressure 350 bar (35 MPa)
Minimum operating pressure 30 bar (3 MPa)

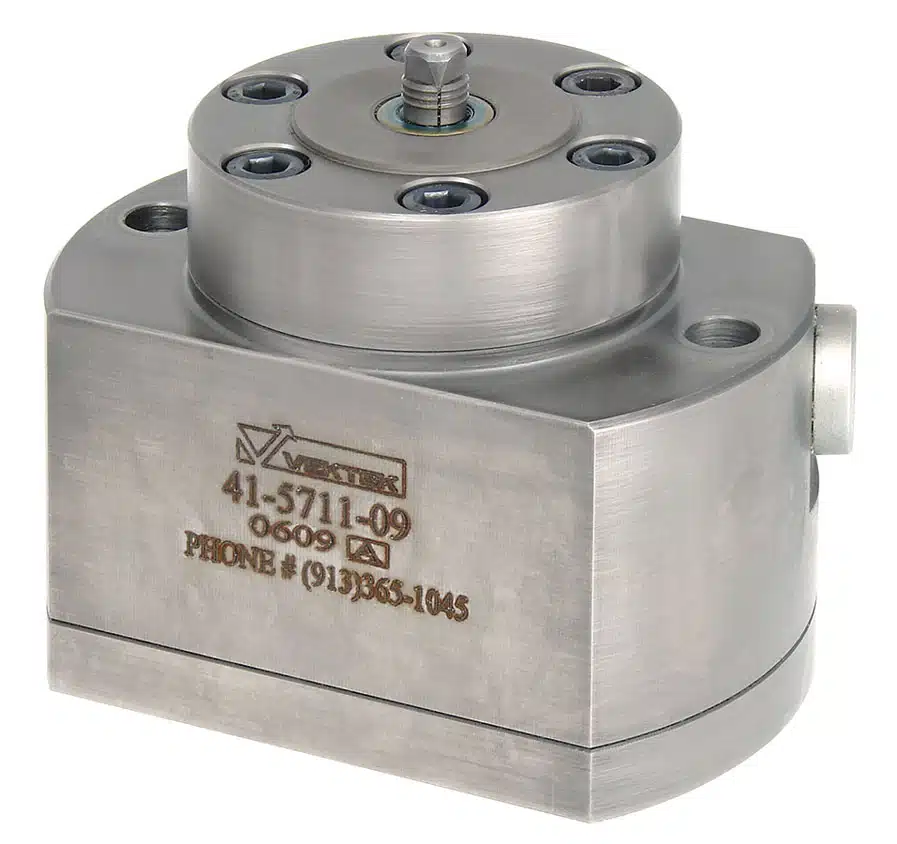

Single Acting Pull-Down Clamp, Concentric

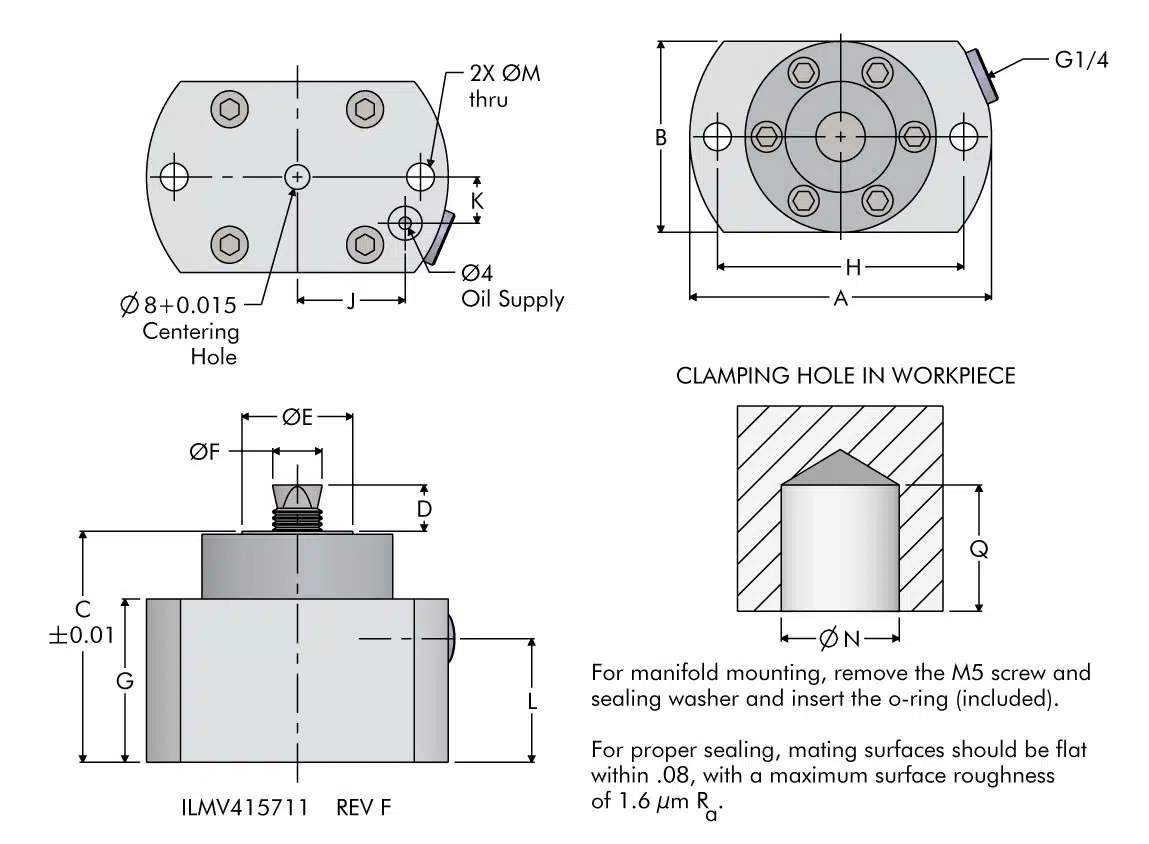

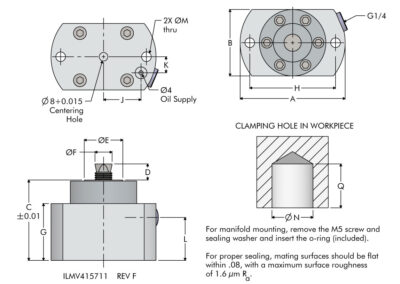

Single Acting Pull-Down Clamp, Concentric Dimensions

For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ R_a.

NOTE: For single acting clamping elements there is a risk of drawing in coolant during return stroke. In this case the clamping element has to be protected against the direct effect of coolant. The built in sinter metal breather should be covered.

Model No.	Permissable Horizontal Force (kN)	Radial Force of Sleeve Segments (kN)	Sleeve Expansion (mm)	Oil Capacity (cm³)	Side Load (unclamp) (N)	Piston Dia. (mm)	Clamp Capacity (kN) Vertical	Work Piece Hole Dia. (mm)	Work Piece Hole Depth (mm)	Lateral Comp/Clamp (mm)	Clamp Rim Height Min. (mm)	Weight
41-5711-09	1.2	12	1.4	0.5	50	28	4	8.8 - 9.7	10	±0.25	6	2600 g
41-5711-10	1.2	12	1.4	0.5	50	28	4	9.8 - 10.7	10	±0.25	6	2600 g
41-5711-11	3	30	1.7	1.6	150	32	10	10.8 - 11.9	15	±0.25	8	2600 g
41-5711-12	3	30	1.7	1.6	150	32	10	12 - 12.9	15	±0.25	8	2600 g
41-5711-13	3	30	1.7	1.6	150	32	10	13 - 13.9	15	±0.25	8	2600 g
41-5711-14	3	30	1.7	1.6	150	32	10	14 - 14.9	15	±0.25	8	2600 g
41-5711-15	7.7	77	1.7	3.8	200	40	26	15 - 15.9	17	±0.25	9	2800 g
41-5711-16	7.7	77	1.7	3.8	200	40	26	16 - 16.9	17	±0.25	9	2800 g
41-5711-17	7.7	77	1.7	3.8	200	40	26	17 - 17.9	17	±0.25	9	2800 g
41-5711-18	7.7	77	1.7	3.8	200	40	26	18 - 18.9	17	±0.25	9	2800 g
41-5711-19	7.7	77	1.7	3.8	200	40	26	19 - 19.9	17	±0.25	9	2800 g
41-5711-20	9.2	92	1.7	4.4	300	42	31	20 - 20.9	17	±0.25	10	2900 g
41-5711-21	9.2	92	1.7	4.4	300	42	31	21 - 21.9	17	±0.25	10	2900 g
41-5711-22	9.2	92	1.7	4.4	300	42	31	22 - 22.9	17	±0.25	10	2900 g
41-5711-23	9.2	92	1.7	4.4	300	42	31	23 - 23.9	17	±0.25	10	2900 g
41-5711-24	9.2	92	1.7	4.4	300	42	31	24 - 24.9	17	±0.25	10	2900 g
41-5711-25	9.2	92	1.7	4.4	300	42	31	25 - 25.9	17	±0.25	10	2900 g

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N	Q
41-5711-09	98	62	75	9.5	36	8.5	53	80	31	13	40	9	8.8 - 9.7	10
41-5711-10	98	62	75	9.5	36	9.5	53	80	31	13	40	9	9.8 - 10.7	10
41-5711-11	98	62	75	14	36	10.5	53	80	31	13	40	9	10.8 - 11.9	15
41-5711-12	98	62	75	14	36	11.5	53	80	31	13	40	9	12 - 12.9	15
41-5711-13	98	62	75	14	36	12.5	53	80	31	13	40	9	13 - 13.9	15
41-5711-14	98	62	75	14	36	13.5	53	80	31	13	40	9	14 - 14.9	15
41-5711-15	115	62	75	16	36	14.5	53	90	35	15	40	13	15 - 15.9	17
41-5711-16	115	62	75	16	36	15.5	53	90	35	15	40	13	16 - 16.9	17
41-5711-17	115	62	75	16	36	16.5	53	90	35	15	40	13	17 - 17.9	17
41-5711-18	115	62	75	16	36	17.5	53	90	35	15	40	13	18 - 18.9	17
41-5711-19	115	62	75	16	36	18.5	53	90	35	15	40	13	19 - 19.9	17
41-5711-20	115	62	75	16	36	19.5	53	90	35	15	40	13	20 - 20.9	17
41-5711-21	115	62	75	16	36	20.5	53	90	35	15	40	13	21 - 21.9	17
41-5711-22	115	62	75	16	36	21.5	53	90	35	15	40	13	22 - 22.9	17
41-5711-23	115	62	75	16	62	22.5	53	90	35	15	40	13	23 - 23.9	17
41-5711-24	115	62	75	16	62	23.5	53	90	35	15	40	13	24 - 24.9	17
41-5711-25	115	62	75	16	62	24.5	53	90	35	15	40	13	25 - 25.9	17
