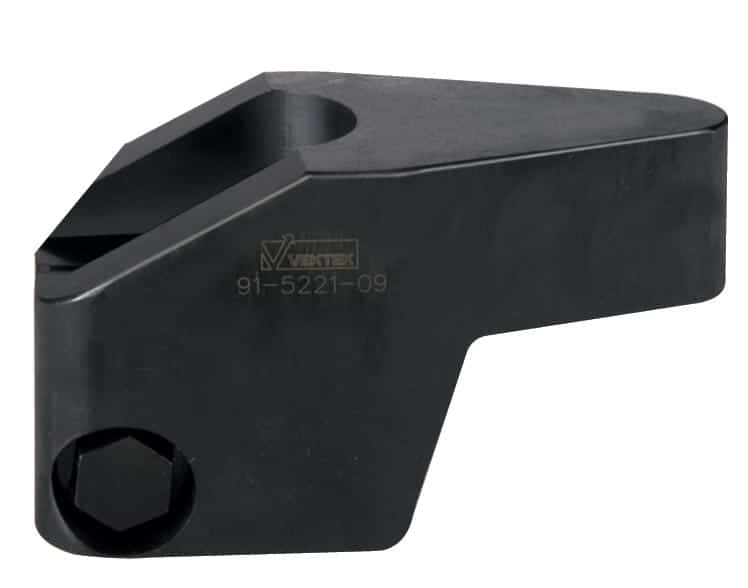

Swing Clamp Arms, Low Profile, Upreach
Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.

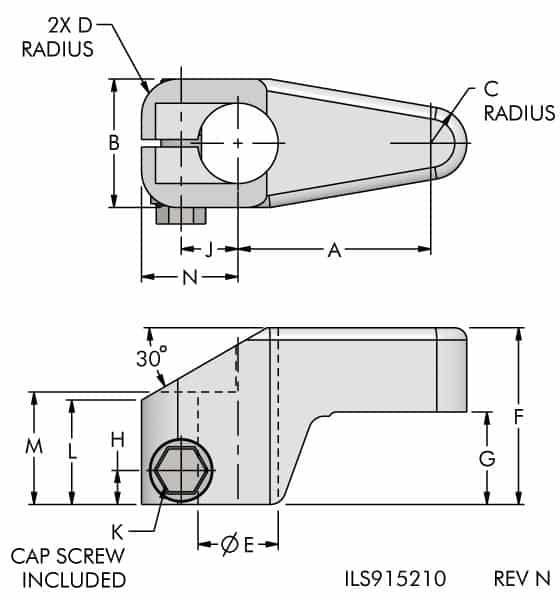

| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91-5218-15 | 5000 | 3.00 | 2.00 | 0.56 | 0.56 | 1.2500 / 1.2520 | 2.75 | 1.44 | 0.53 | 0.884 | M16 X 1.5 | 1.63 | 1.75 | 1.50 |
| 91-5221-09 | 7500 | 3.19 | 2.73 | 0.56 | 0.56 | 1.5005 / 1.5025 | 3.00 | 1.56 | 0.53 | 1.009 | M16 X 1.5 | 1.88 | 1.75 | 1.62 |
