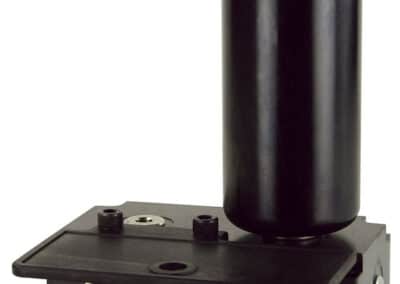

External Accumulator with Air

Palletized Fixture Accessories

Automatic Shutoff Valve Decouplers forSingle and Double Acting Systems

• Decouplers are a convenient, self-contained package that includes quick connect couplings, accumulator, filters, pilot operated check valve, accumulator and over pressure relief valve and separate path for compressed air.
• Robust pilot operated check valve with 1 to 5 ratio of pilot to check pressure for proven long term reliability.
• Internal 25 micron filters for added protection of pilot operated check valve through port A1, A2, A3, A4 and A5. Additional filtration provided at port B1. No filtration at remaining ports. Filtration is not provided at ports B2, B3, and B4 due to space constraints and the isolation of the check valve by the actuation piston.
• External accumulator available in three operating pressure ranges.

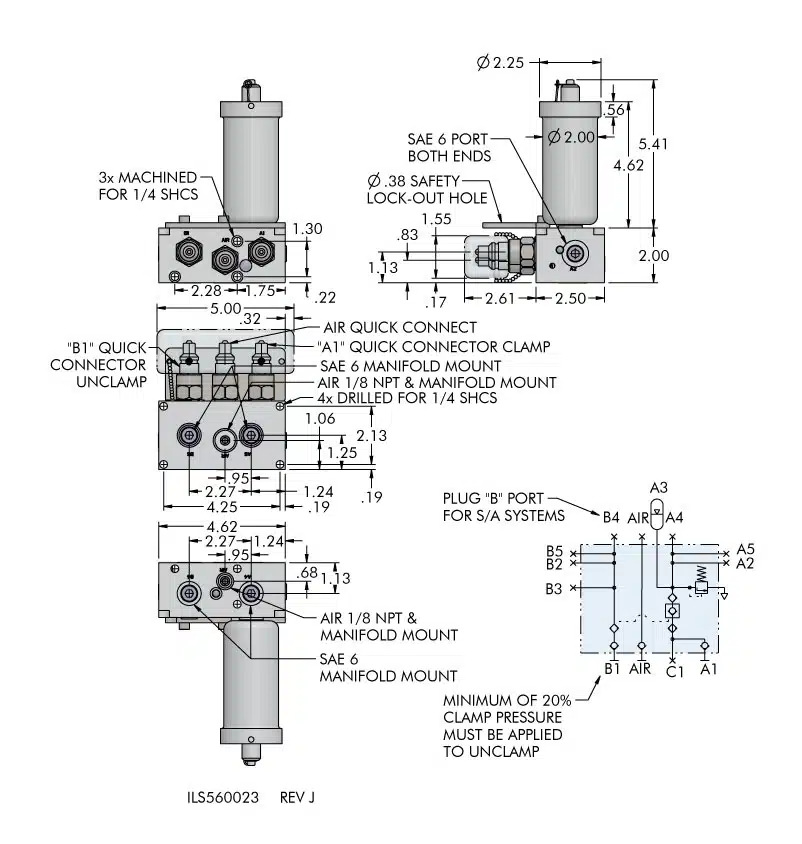

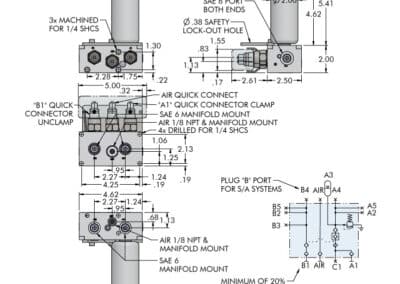

• SAE female external ports and manifold mounting (bottom and rear) connections.

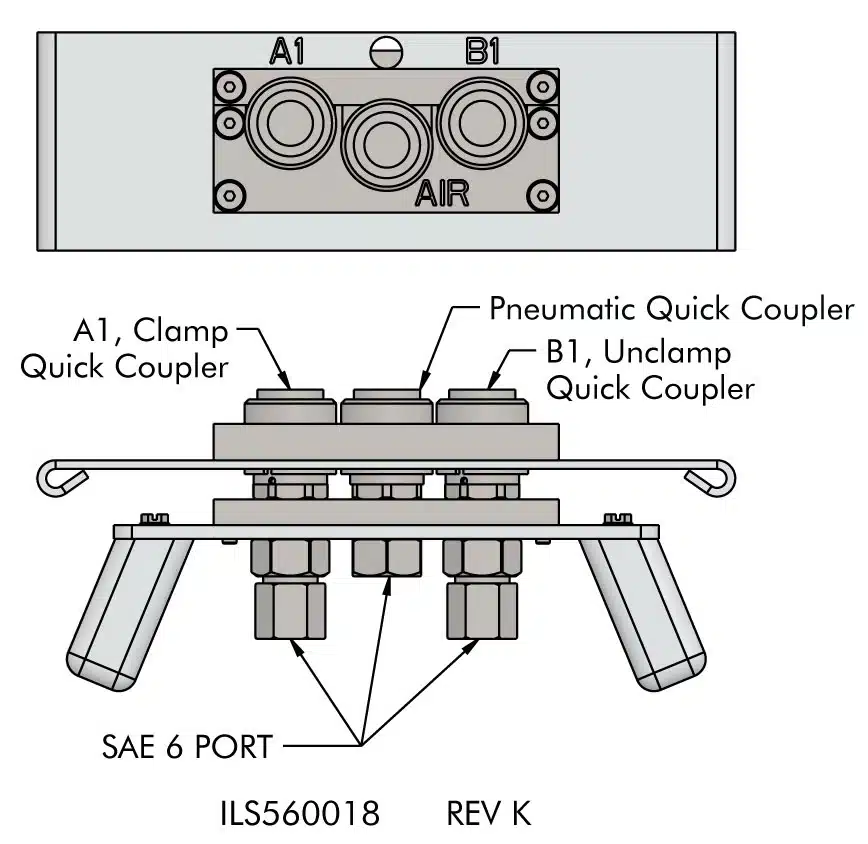

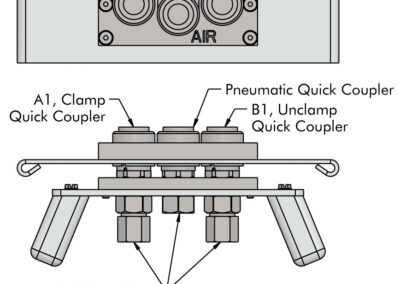

• Single acting pallet circuits require 2 hoses to the Operating Handle for pressure release. For single hose systems see the Manual Shutoff Valve Decoupler in this section.
• Additional filtration available through the use of manifold mount and in-line filtration. Filter kit model no. #62-5600-05 (for in-line mounting) or #62-5600-06 (for manifold mounting).

These automatic shutoff valve decouplers and operating handle must be used with a suitable pump which includes a 4 port/3 position, P-blocked center (“A” and “B” connected to tank) directional control valve for operation of single or double acting systems. See the pump convenience package for the pump model of your choice, Pallet Decoupler (two hose) in section J. One automatic shutoff valve decoupler can be used to operate only one double acting or one single acting circuit. For operation of a single acting circuit, plug the decoupler outlet port “B” (as shown in the schematic).

For proper sealing, mating surface must be flat within 0.003 with a maximum 63 µin Ra surface finish.

Model No. 56-0007-01 For use with Decoupler Models 56-0005-21 and 56-0005-22

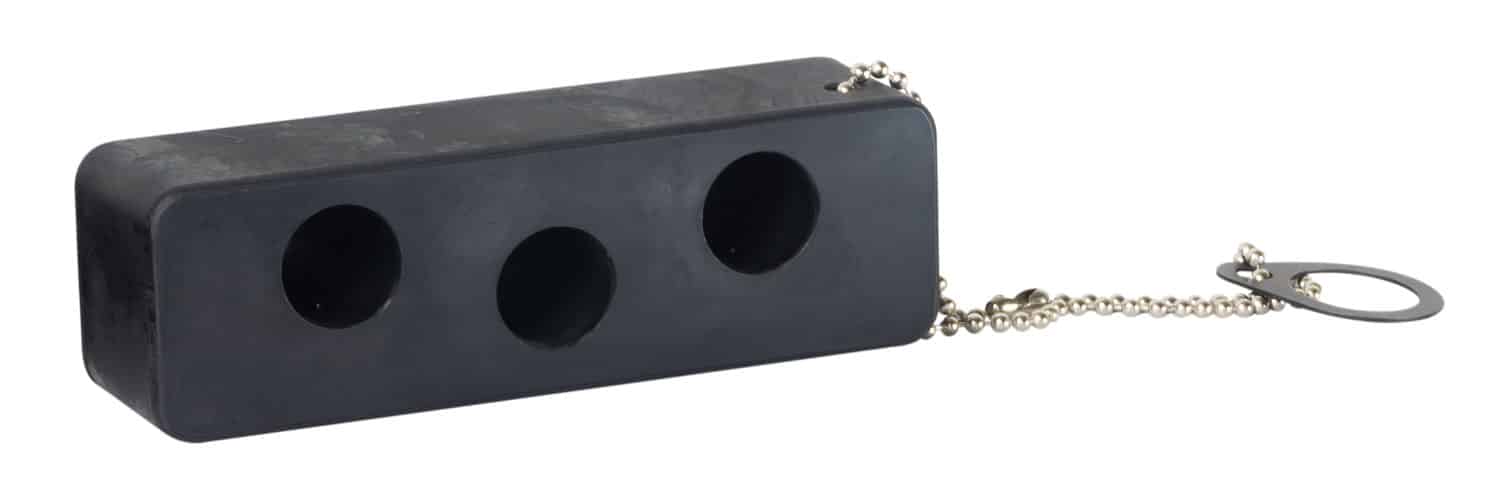

Customers that have previously bought a decoupler can purchase a new cover for their old decoupler.

New orders of decouplers will come with cover.
