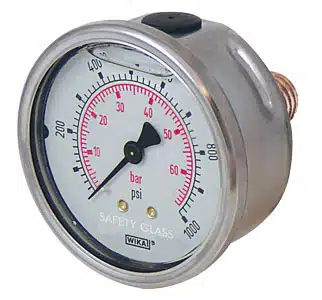

Back Mount Gauge
Gauges
- Liquid filled gauges up to 700 bar (70 MPa) analog readouts.
- Conform to ANSI standard B40.1 Grade B. G 1/8 or G 1/4 connections.
To extend the life of Pressure Gauges, run your system at no more than 75% of the gauge scale.
* Gauge Protector is available for this gauge model number 47-2000-00.

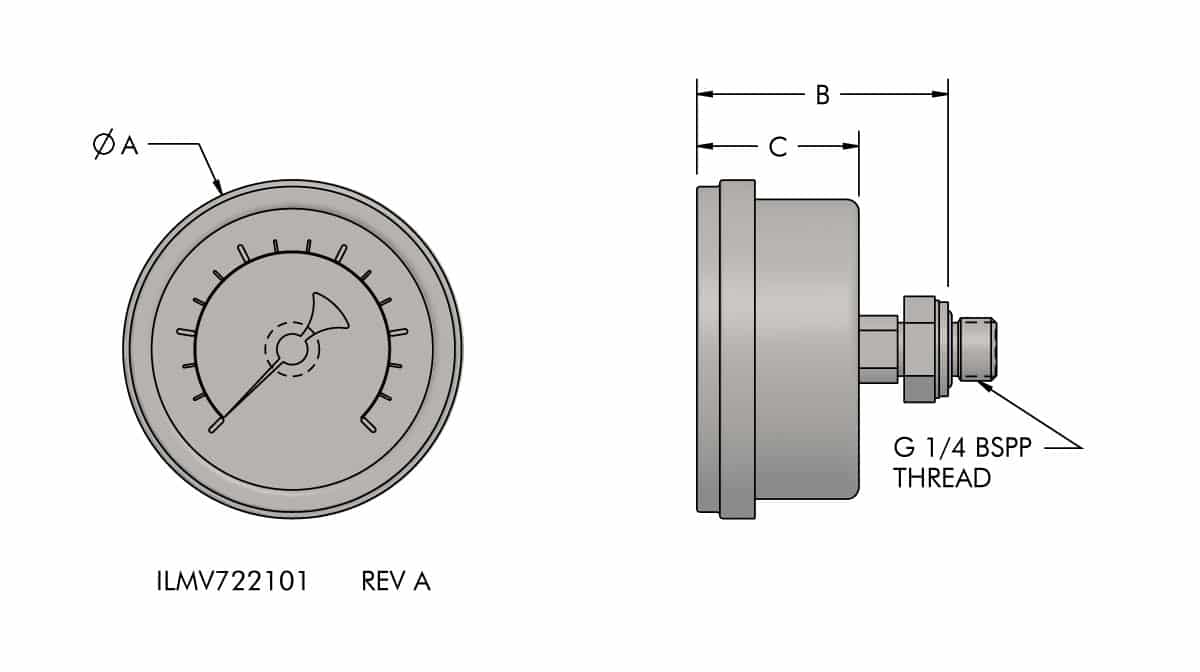

| Model No. | Pressure Range | A | B | C |
|---|---|---|---|---|
| 47-2122-00 | 0 - 100 bar | 42.2 | 47.2 | 27.9 |
| 47-2222-00 | 0 - 100 bar | 70 | 72 | 33.5 |
| Model No. | Used With Model No. |
|---|---|
| 47-2000-00 | 47-2222-00 |
