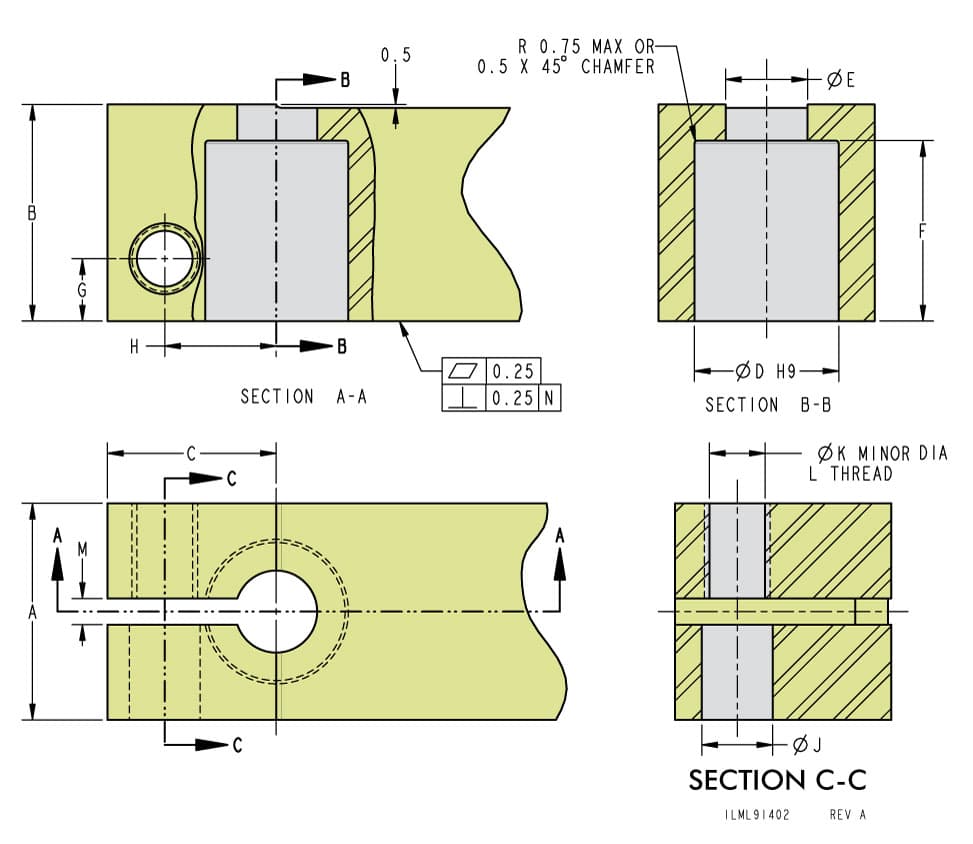

Self Produced Arm Dimensions
Low Pressure Swing Clamp Arms
| Arm Series | Cylinder Capacity (kN) | Bore Size (mm) | A | B | C | ØD | ØE | F | G | H | ØJ | ØK | L | M |
| L9-1425-XX | 1.9 | 25 | 22.5 | 22.5 | 17.13 | 15 | 8.5 | 18.75 | 6 | 11.5 | 6.8 | 4.92 – 5.15 | M6 x 1-6H | 3 |
| L9-1432-XX | 3.3 | 32 | 27 | 27 | 21.25 | 18 | 10.5 | 22.5 | 7.75 | 14 | 8.8 | 6.65 – 6.91 | M8 x 1.25-6H | 3 |
| L9-1440-XX | 5.2 | 40 | 33 | 33 | 25.75 | 22 | 12.5 | 27.5 | 9.5 | 17 | 10.8 | 8.38 – 8.68 | M10 x 1.5-6H | 3 |
| L9-1450-XX | 8.0 | 50 | 42 | 42 | 30.75 | 28 | 14.5 | 35 | 10.75 | 21 | 12.8 | 10.11 – 10.44 | M12 x 1.75-6H | 4 |
| L9-1463-XX | 12.5 | 63 | 54 | 54 | 39.75 | 36 | 18.5 | 45 | 14 | 27 | 16.75 | 13.83 – 14.21 | M16 x 2-6H | 4 |
| L9-1480-XX | 20.4 | 80 | 67.5 | 67.5 | 49.25 | 45 | 22.5 | 56.25 | 17 | 33.5 | 20.75 | 17.29 – 17.74 | M20 x 2.5-6H | 5 |
