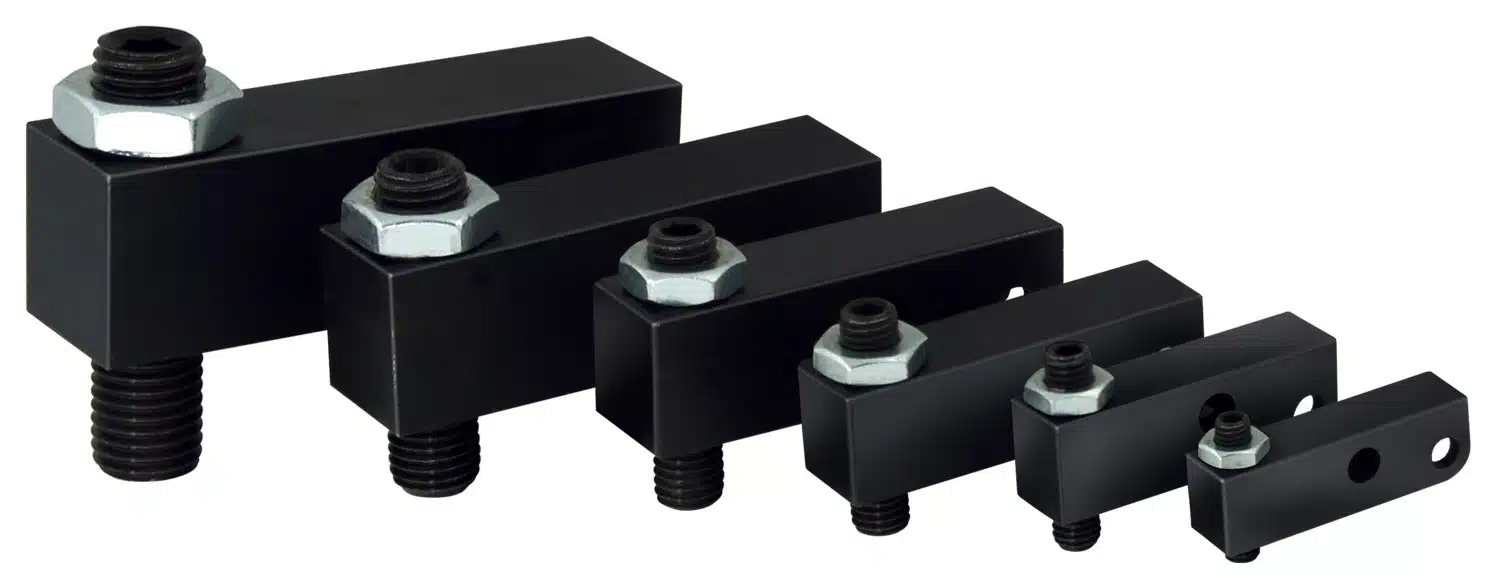

TuffLink™ 360° Link Clamp Levers

Link Clamps

Levers for both Double Acting and Single Acting TuffLink™ 360° Link Clamps.

NOTE: See Clamping Force and Tables for the clamping force of various lever lengths and pressures. (Actual force will vary slightly due to mechanical inefficiencies, friction and/or return springs.)

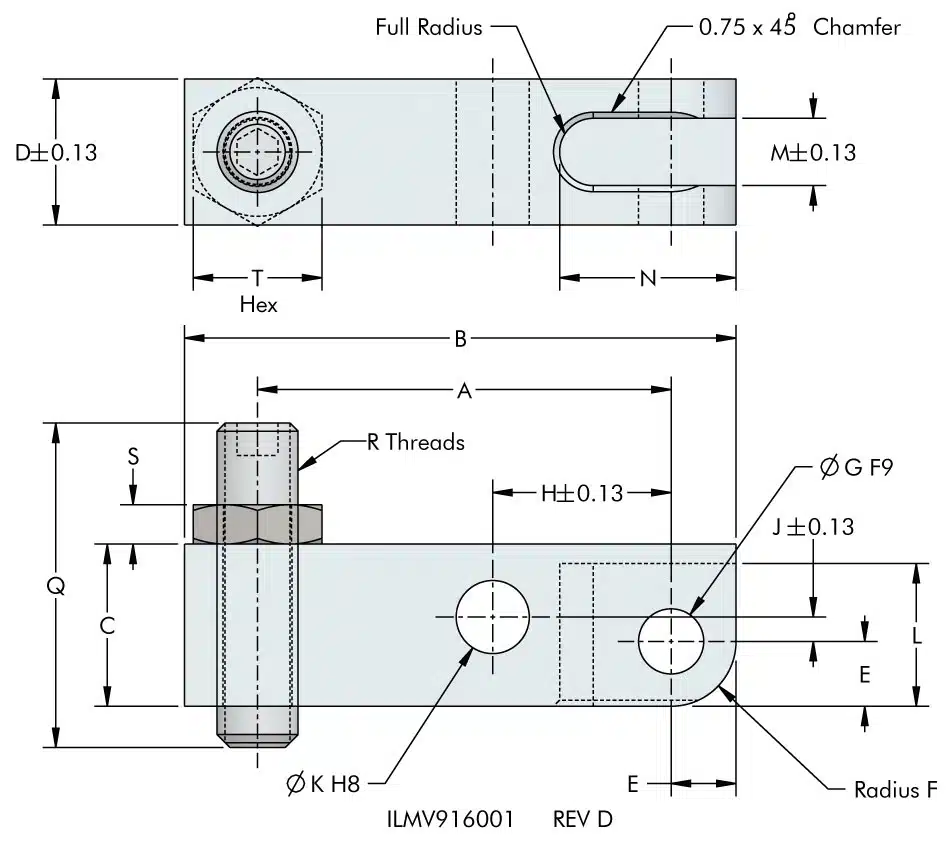

TuffLink™ 360° Link Clamp Lever Dimensions

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N	Q	R	S	T
91-6112-03	35.0	46	14	12	5	5	5	15	3	6	11	5.3	13.65	25	M6 X 1	3.2	10
91-6115-03	41.5	54.5	18	14	6	6	6	18	5	7	13.2	6.3	16.35	35	M8 X 1.25	4	13
91-6118-03	51.0	68	20	18	8	8	8	22	3	9	17.6	8.3	21.75	40	M10 X 1.5	5	16
91-6122-03	59.0	80	25	22	10	10	10	26.5	4	11	22	10.3	27.15	50	M12 X 1.75	6	18
91-6128-03	72.0	97	30	26	12	12	12	32	5	13	26.4	12.3	32.55	60	M16 X 2.0	8	24
91-6132-03	86.5	116.5	36	32	14	14	14	40	6	16	30.8	14.3	37.95	80	M20 X 2.5	10	30

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N	Q	R	S	T
91-6112-02	N/A	66	25	22	10	10	10	26.5	4	11	22	10.3	27.15	N/A	N/A	N/A	N/A
91-6115-02	N/A	78	18	14	6	6	6	18	5	7	13.2	6.3	16.35	N/A	N/A	N/A	N/A
91-6118-02	N/A	97	20	18	8	8	8	22	3	9	17.6	8.3	21.75	N/A	N/A	N/A	N/A
91-6122-02	N/A	112.5	25	22	10	10	10	26.5	4	11	22	10.3	27.15	N/A	N/A	N/A	N/A
91-6128-02	N/A	137	30	26	12	12	12	32	5	13	26.4	12.3	32.55	N/A	N/A	N/A	N/A
91-6132-02	N/A	163	36	32	14	14	14	40	6	16	30.8	14.3	37.95	N/A	N/A	N/A	N/A
