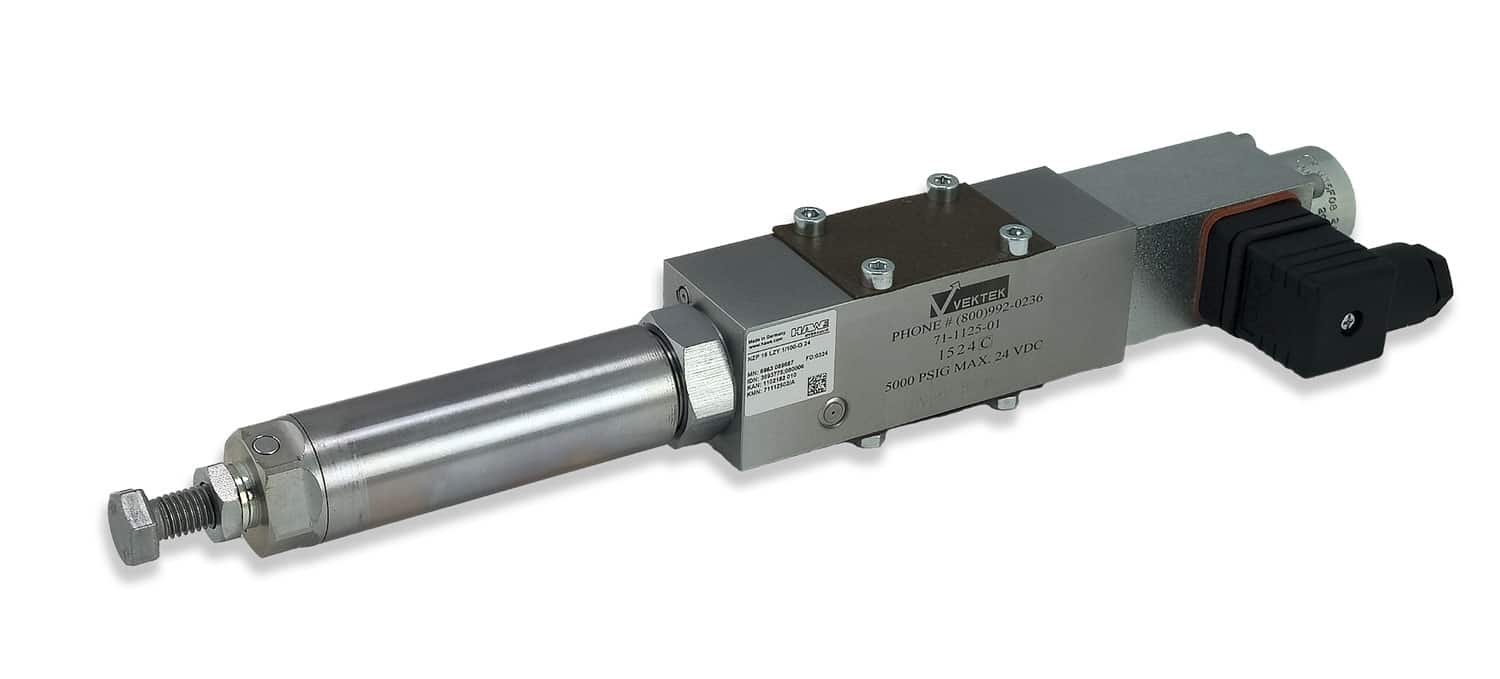

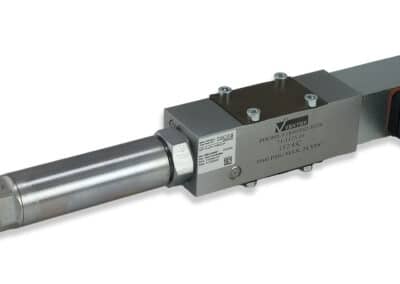

Alternating Valve
Metric Accessory Valves
- Provides low pressure pre-clamping with delayed high pressure clamping.
- Pre-clamp allows for soft clamping with light force to position part.
- Uses a solenoid activated valve that is sandwiched between a directional control valve and the valve manifold.
- Adjust the pressure relieving/reducing valve to determine the force of your pre-clamp.
- Valve can vary from low to high pressure or high to low pressure.

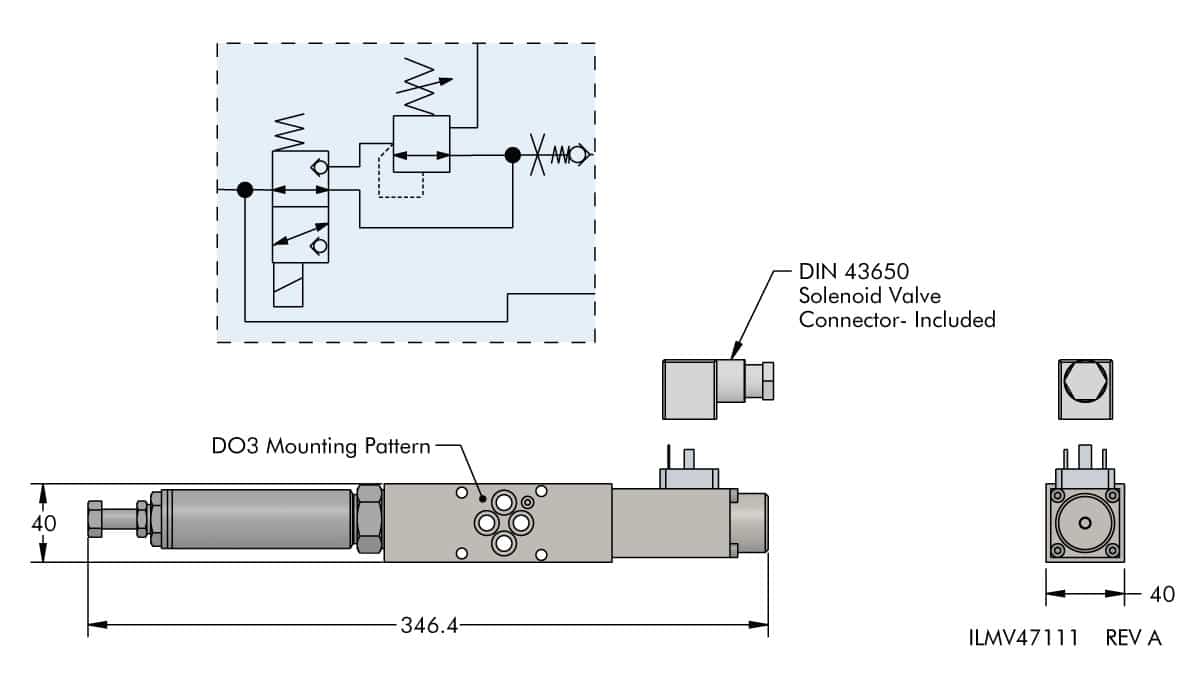

- Uses standard D03 Mounting pattern.
| Model No. | Valve Type | Replacement Valve Connector Part No. | Solenoid Voltage | Power Consumption | Duty Rating | Pressure Reduction Range |
|---|---|---|---|---|---|---|
| 71-1125-01 | Alternating Pressure | 85-5342-91 | 24 VDC | 27.6 watts | 100% | 30 - 300 bar |
