Advanced Automation Workholding Pumps
With OKUMA THINC App

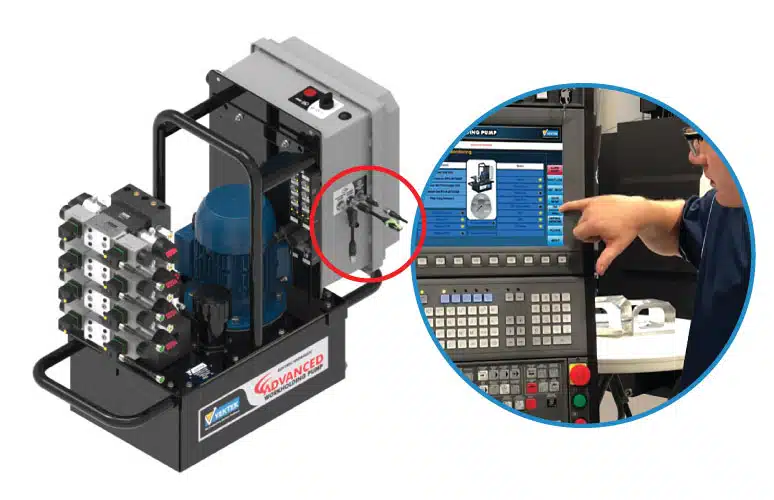

- Runs on your THINC App OSP-P300 and OSP-P500 enabled controller.
- All programming and monitoring is done on and through your OKUMA controller.
- RJ45 Ethernet connection to your OKUMA machine.
- Easily installed with downloadable Vektek Pump OKUMA THINC App.
- All valve functions are controlled by your OKUMA controller.
- – Clamp sequence and confirmation
- – Unclamp sequence and confirmation
- – Confirmation of pneumatic sensing
- Communicates and displays pump function and status on your OKUMA controller.
- – Clamping status
- – Unclamping status
- – Filter status
- – Oil level and temperature status
- 1500-5000 psi or 0-1500 psi operating pressure.
- High duty cycle, on-demand, VFD pump.
- 3 flow rates available in 1 and 2 HP configurations.
- Several 3 phase electrical choices in multiple voltages.
- Operates either continuously connected or decoupled fixtures.
- 5 gallon reservoir for plenty of reserve.

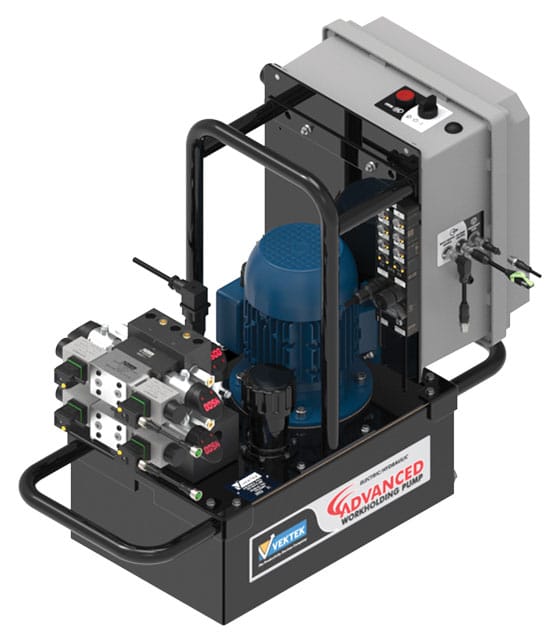

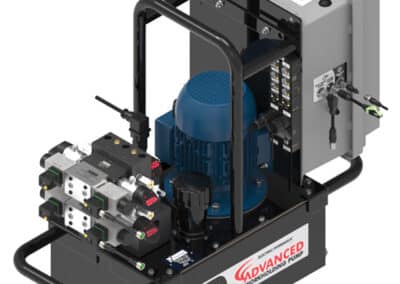

Okuma THINC App® Fixture Decoupling Pump
- 1 HP, 2 HP, 2 HP Low Pressure
- P-Blocked Center Valves for Decoupling Fixtures
- Pressure Reduction Valves on all A and B ports
- Pressure Switch Confirmation on all A and B ports
- Air Sensing Control Kit for Part Confirmation Valves
- Power Boss Cart

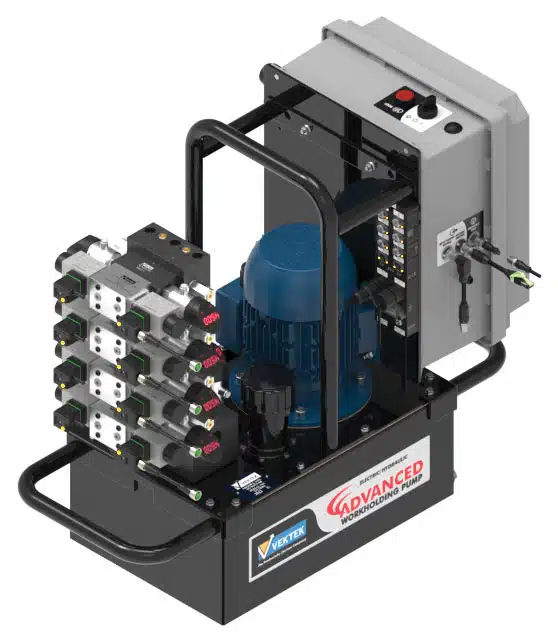

Okuma THINC App® Continuously Connected Pump
- 1 HP, 2 HP, 2 HP Low Pressure
- Closed Center Valves for Continuously Connected Fixtures
- Pressure Reduction Valves on all A and B ports
- Pressure Switch Confirmation on all A and B ports
- Air Sensing Control Kit for Part Confirmation Valves
- Power Boss Cart
Call Sales Representative 800-992-0236 for Custom Configurations
All Automation grade pumps are custom configured to order and for a specific fixture circuit function. Each Automation grade pump is assigned a specific part number for repeatable ordering, service, or replacement. Available in 1HP, 2HP, and 2 HP Low Pressure models and alternate voltage of 525-600 VAC on request. Example pumps are preconfigured illustrations which require additional customization for your specific application.

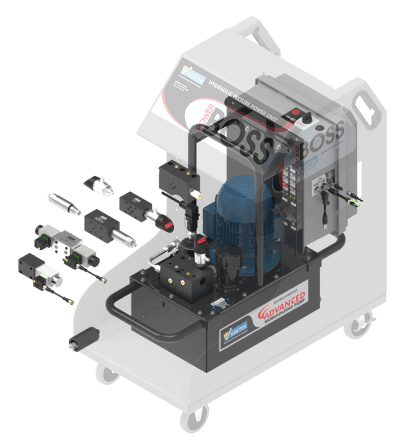

Pump Add-on Options
- Pump/Machine Tool Interface Cable with Okuma THINC App.
- Electronic pressure switch (24V power required).
- Solenoid directional control valve functions.
- Pressure reducing valves for each circuit.
- Accumulator (for small or low pressure systems).
