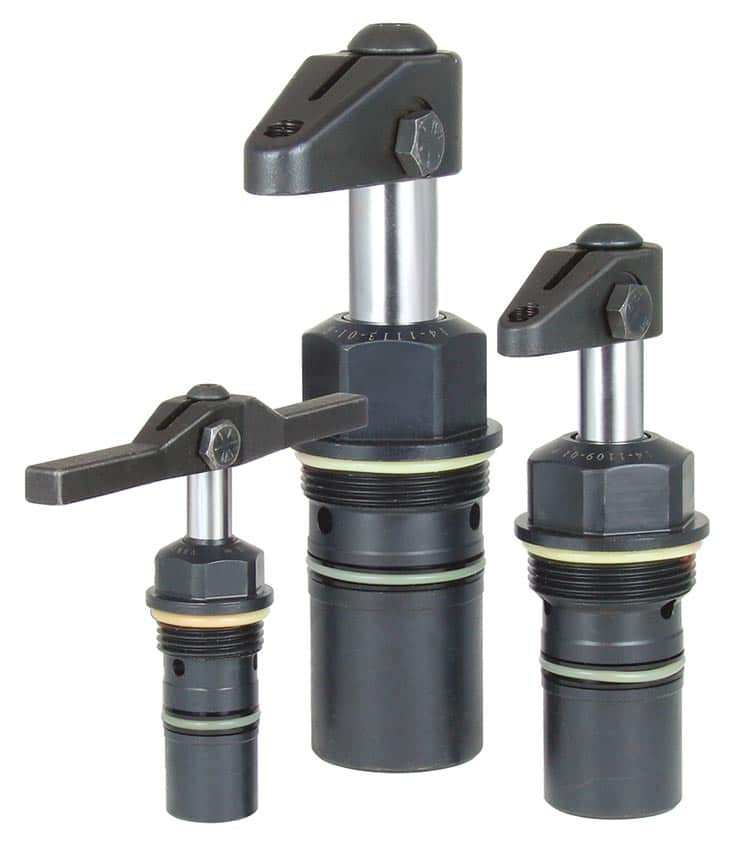

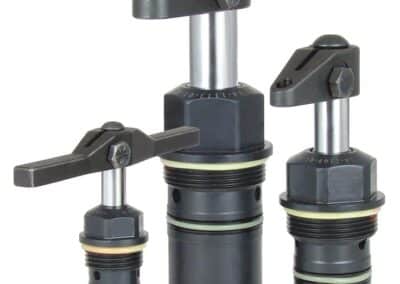

TuffCam Cartridge Mount Inch Hydraulic Swing Clamps

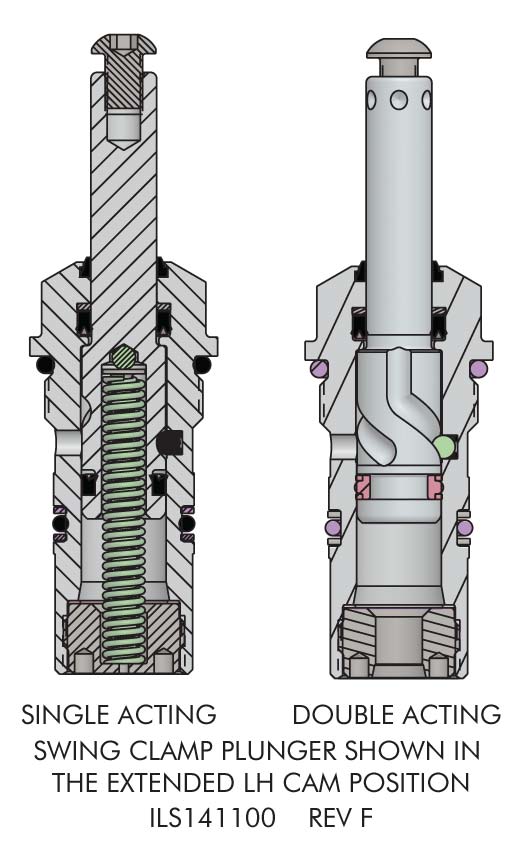

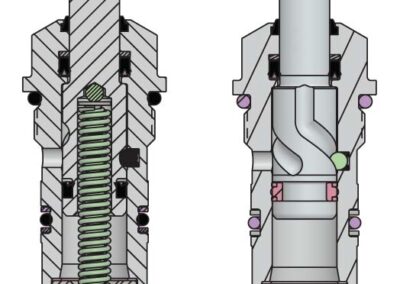

Single and Double Acting
- Available in three capacities from 450 to 2,600 lb. using a standard VEKTEK arm at 5,000 psi.
- Three cams for more accurate arm positioning, smoother rotation and lower per cam surface contact pressure.
- Patented ball seat for improved rotary function, cam following contact, and reduced friction both dynamic and static (patent #7,032,897).
- Fluorocarbon wipers are standard for improved coolant compatibility.
- Tungsten-Carbide Cam Followers for strength and wear.
- Same mounting envelope as standard VektorFlo® Swing Clamps.
- BHC™ (Black Hard Coat) on the cylinder bodies helps prevent scoring and scratching.
- TuffCam™ Arm Clocking feature is compatible with all standard Vektek arms.
- Arms sold separately.
Single Acting models must be vented. Do not install in a blind hole.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 750 psi for single acting, 500 psi for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the cylinder capacity shown above by 5,000 and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
*** To allow for piece part height variations, it is recommended that the vertical travel be set at about 50% of the vertical stroke.
**** To insure maximum service life and trouble-free operation, restrict fluid flow to the level indicated in the TuffCam™ Clamp Time and Flow Rate Chart.
WARNING: Never allow swing arm to contact workpiece or fixture during arm rotation.
*Single acting models must be vented. Do NOT install in a blind hole.

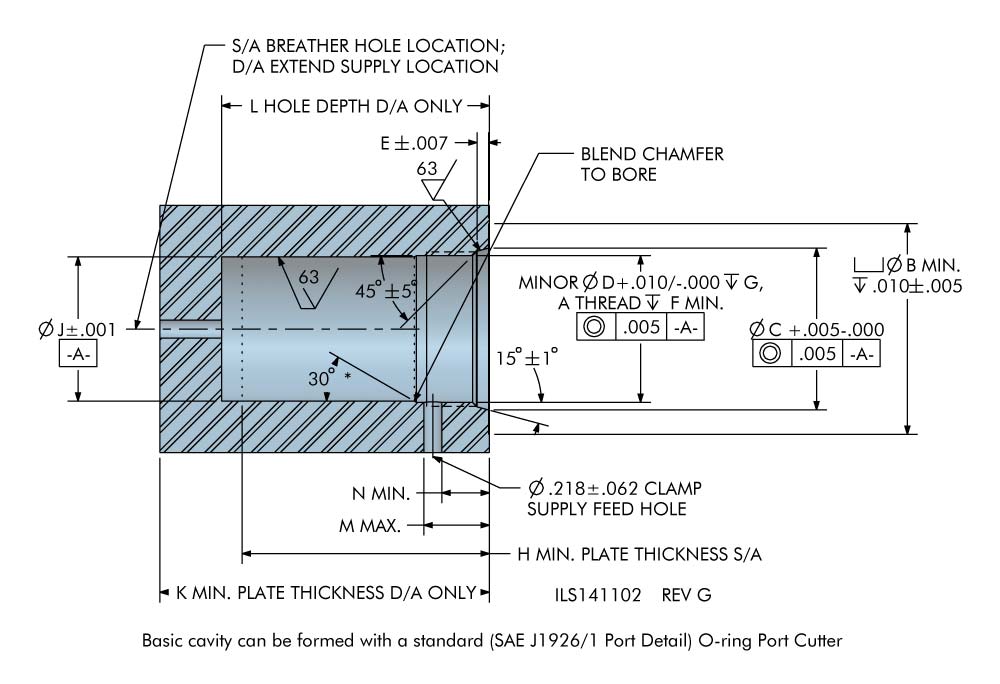

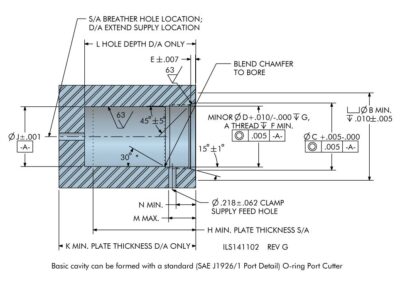

* The 30° lead in angle is to ensure trouble free seal installation.
NOTE: Flexible honing of cavity is strongly recommended. Flex-Hone is a registered trademark of Brush Research Manufacturing Co. Inc., Los Angeles, CA, 323-261-2193. Please contact Brush Research for additional information.
| Model No. | Swing Direction | Clamp Capacity (lb.) | Vertical Clamp Stroke (in.) | Total Stroke (Swing + Vertical) | Body Thread | Standard Arm Length | Piston Area (sq. in.) Extend | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) |
|---|---|---|---|---|---|---|---|---|---|
| 14-1105-01-L | Left | 450 | 0.22 | 0.57 | 1 1/16-12 | 1.06 | 0.098 | N/A | 0.056 |
| 14-1105-01-R | Right | 450 | 0.22 | 0.57 | 1 1/16-12 | 1.06 | 0.098 | N/A | 0.056 |
| 14-1105-01-S | Straight | 450 | 0.57 | 0.57 | 1 1/16-12 | 1.06 | 0.098 | N/A | 0.056 |
| 14-1109-01-L | Left | 1100 | 0.31 | 0.79 | 1 5/8-12 | 1.50 | 0.295 | N/A | 0.233 |
| 14-1109-01-R | Right | 1100 | 0.31 | 0.79 | 1 5/8-12 | 1.50 | 0.295 | N/A | 0.233 |
| 14-1109-01-S | Straight | 1100 | 0.79 | 0.79 | 1 5/8-12 | 1.50 | 0.295 | N/A | 0.233 |
| 14-1113-01-L | Left | 2600 | 0.50 | 1.16 | 1 7/8-12 | 2.00 | 0.626 | N/A | 0.726 |
| 14-1113-01-R | Right | 2600 | 0.50 | 1.16 | 1 7/8-12 | 2.00 | 0.626 | N/A | 0.726 |
| 14-1113-01-S | Straight | 2600 | 1.16 | 1.16 | 1 7/8-12 | 2.00 | 0.626 | N/A | 0.726 |
| Model No. | Swing Direction | Clamp Capacity (lb.) | Vertical Clamp Stroke (in.) | Total Stroke (Swing + Vertical) | Body Thread | Standard Arm Length | Piston Area (sq. in.) Extend | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) |
|---|---|---|---|---|---|---|---|---|---|
| 14-1205-01-L | Left | 450 | 0.22 | 0.57 | 1 1/16-12 | 1.06 | 0.098 | 0.142 | 0.056 |
| 14-1205-01-R | Right | 450 | 0.22 | 0.57 | 1 1/16-12 | 1.06 | 0.098 | 0.142 | 0.056 |
| 14-1205-01-S | Straight | 450 | 0.57 | 0.57 | 1 1/16-12 | 1.06 | 0.098 | 0.142 | 0.056 |
| 14-1209-01-L | Left | 1100 | 0.31 | 0.79 | 1 5/8-12 | 1.50 | 0.295 | 0.475 | 0.233 |
| 14-1209-01-R | Right | 1100 | 0.31 | 0.79 | 1 5/8-12 | 1.50 | 0.295 | 0.475 | 0.233 |
| 14-1209-01-S | Straight | 1100 | 0.79 | 0.79 | 1 5/8-12 | 1.50 | 0.295 | 0.475 | 0.233 |
| 14-1213-01-L | Left | 2600 | 0.50 | 1.16 | 1 7/8-12 | 2.00 | 0.626 | 1.423 | 0.726 |
| 14-1213-01-R | Right | 2600 | 0.50 | 1.16 | 1 7/8-12 | 2.00 | 0.626 | 1.423 | 0.726 |
| 14-1213-01-S | Straight | 2600 | 1.16 | 1.16 | 1 7/8-12 | 2.00 | 0.626 | 1.423 | 0.726 |

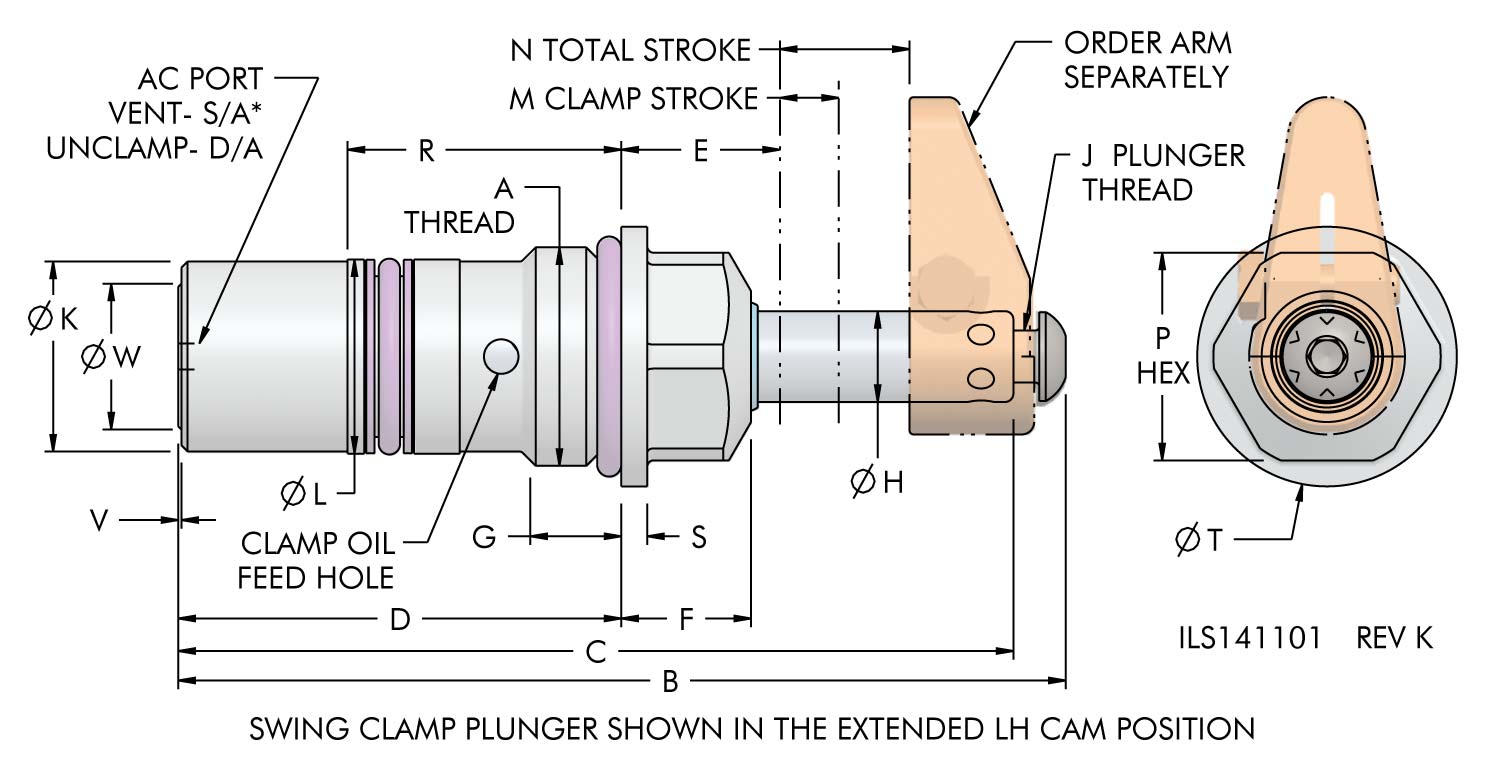

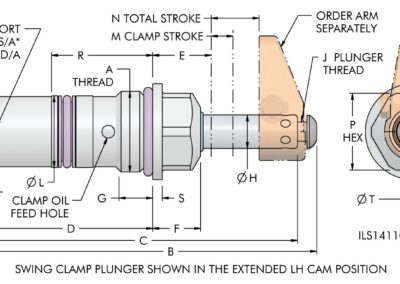

| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | R | S | T | V | W | AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-1105-01-L | 450 | 1 1/16-12 | 4.25 | 4.00 | 2.12 | 0.83 | 0.63 | 0.49 | 0.438 | 1/4-28 x 0.28 | 0.92 | 0.935 | 0.22 | 0.57 | 1.00 | 1.32 | 0.13 | 1.25 | N/A | N/A | Breather |
| 14-1105-01-R | 450 | 1 1/16-12 | 4.25 | 4.00 | 2.12 | 0.83 | 0.63 | 0.49 | 0.438 | 1/4-28 x 0.28 | 0.92 | 0.935 | 0.22 | 0.57 | 1.00 | 1.32 | 0.13 | 1.25 | N/A | N/A | Breather |
| 14-1105-01-S | 450 | 1 1/16-12 | 4.25 | 4.00 | 2.12 | 0.83 | 0.63 | 0.49 | 0.438 | 1/4-28 x 0.28 | 0.92 | 0.935 | 0.57 | 0.57 | 1.00 | 1.32 | 0.13 | 1.25 | N/A | N/A | Breather |
| 14-1109-01-L | 1100 | 1 5/8-12 | 5.66 | 5.31 | 2.68 | 1.13 | 0.94 | 0.65 | 0.625 | 3/8-24 x 0.47 | 1.34 | 1.372 | 0.31 | 0.79 | 1.50 | 1.50 | 0.13 | 1.88 | 0.02 | 1.03 | Breather |
| 14-1109-01-R | 1100 | 1 5/8-12 | 5.66 | 5.31 | 2.68 | 1.13 | 0.94 | 0.65 | 0.625 | 3/8-24 x 0.47 | 1.34 | 1.372 | 0.31 | 0.79 | 1.50 | 1.50 | 0.13 | 1.88 | 0.02 | 1.03 | Breather |
| 14-1109-01-S | 1100 | 1 5/8-12 | 5.66 | 5.31 | 2.68 | 1.13 | 0.94 | 0.65 | 0.625 | 3/8-24 x 0.47 | 1.34 | 1.372 | 0.79 | 0.79 | 1.50 | 1.50 | 0.13 | 1.88 | 0.02 | 1.03 | Breather |
| 14-1113-01-L | 2600 | 1 7/8-12 | 7.32 | 6.80 | 3.15 | 1.49 | 1.25 | 0.55 | 0.875 | 1/2-20 x 0.52 | 1.72 | 1.747 | 0.50 | 1.16 | 1.63 | 1.50 | 0.16 | 2.13 | 0.02 | 1.40 | Breather |
| 14-1113-01-R | 2600 | 1 7/8-12 | 7.32 | 6.80 | 3.15 | 1.49 | 1.25 | 0.55 | 0.875 | 1/2-20 x 0.52 | 1.72 | 1.747 | 0.50 | 1.16 | 1.63 | 1.50 | 0.16 | 2.13 | 0.02 | 1.40 | Breather |
| 14-1113-01-S | 2600 | 1 7/8-12 | 7.32 | 6.80 | 3.15 | 1.49 | 1.25 | 0.55 | 0.875 | 1/2-20 x 0.52 | 1.72 | 1.747 | 1.16 | 1.16 | 1.63 | 1.50 | 0.16 | 2.13 | 0.02 | 1.40 | Breather |
| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | R | S | T | V | W | AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-1205-01-L | 450 | 1 1/16-12 | 4.25 | 4.00 | 2.12 | 0.83 | 0.63 | 0.49 | 0.438 | 1/4-28 x 0.28 | 0.92 | 0.935 | 0.22 | 0.57 | 1.00 | 1.32 | 0.13 | 1.25 | N/A | N/A | SAE 2 |
| 14-1205-01-R | 450 | 1 1/16-12 | 4.25 | 4.00 | 2.12 | 0.83 | 0.63 | 0.49 | 0.438 | 1/4-28 x 0.28 | 0.92 | 0.935 | 0.22 | 0.57 | 1.00 | 1.32 | 0.13 | 1.25 | N/A | N/A | SAE 2 |
| 14-1205-01-S | 450 | 1 1/16-12 | 4.25 | 4.00 | 2.12 | 0.83 | 0.63 | 0.49 | 0.438 | 1/4-28 x 0.28 | 0.92 | 0.935 | 0.57 | 0.57 | 1.00 | 1.32 | 0.13 | 1.25 | N/A | N/A | SAE 2 |
| 14-1209-01-L | 1100 | 1 5/8-12 | 5.66 | 5.31 | 2.68 | 1.13 | 0.94 | 0.65 | 0.625 | 3/8-24 x 0.47 | 1.34 | 1.372 | 0.31 | 0.79 | 1.50 | 1.50 | 0.13 | 1.88 | 0.02 | 1.03 | SAE 4 |
| 14-1209-01-R | 1100 | 1 5/8-12 | 5.66 | 5.31 | 2.68 | 1.13 | 0.94 | 0.65 | 0.625 | 3/8-24 x 0.47 | 1.34 | 1.372 | 0.31 | 0.79 | 1.50 | 1.50 | 0.13 | 1.88 | 0.02 | 1.03 | SAE 4 |
| 14-1209-01-S | 1100 | 1 5/8-12 | 5.66 | 5.31 | 2.68 | 1.13 | 0.94 | 0.65 | 0.625 | 3/8-24 x 0.47 | 1.34 | 1.372 | 0.79 | 0.79 | 1.50 | 1.50 | 0.13 | 1.88 | 0.02 | 1.03 | SAE 4 |
| 14-1213-01-L | 2600 | 1 7/8-12 | 7.32 | 6.80 | 3.15 | 1.49 | 1.25 | 0.55 | 0.875 | 1/2-20 x 0.52 | 1.72 | 1.747 | 0.50 | 1.16 | 1.63 | 1.50 | 0.16 | 2.13 | 0.02 | 1.40 | SAE 4 |
| 14-1213-01-R | 2600 | 1 7/8-12 | 7.32 | 6.80 | 3.15 | 1.49 | 1.25 | 0.55 | 0.875 | 1/2-20 x 0.52 | 1.72 | 1.747 | 0.50 | 1.16 | 1.63 | 1.50 | 0.16 | 2.13 | 0.02 | 1.40 | SAE 4 |
| 14-1213-01-S | 2600 | 1 7/8-12 | 7.32 | 6.80 | 3.15 | 1.49 | 1.25 | 0.55 | 0.875 | 1/2-20 x 0.52 | 1.72 | 1.747 | 1.16 | 1.16 | 1.63 | 1.50 | 0.16 | 2.13 | 0.02 | 1.40 | SAE 4 |
| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-1105-01-L | 1 1/16-12 | 1.38 | 1.148 | 0.979 | 0.137 | 0.50 | 0.750 Min / 0.906 Max | 1.25 | 0.938 | N/A | N/A | 0.750 | 0.417 |
| 14-1105-01-R | 1 1/16-12 | 1.38 | 1.148 | 0.979 | 0.137 | 0.50 | 0.750 Min / 0.906 Max | 1.25 | 0.938 | N/A | N/A | 0.750 | 0.417 |
| 14-1105-01-S | 1 1/16-12 | 1.38 | 1.148 | 0.979 | 0.137 | 0.50 | 0.750 Min / 0.906 Max | 1.25 | 0.938 | N/A | N/A | 0.750 | 0.417 |
| 14-1109-01-L | 1 5/8-12 | 2.00 | 1.713 | 1.541 | 0.139 | 0.68 | 0.815 Min / 0.906 Max | 1.50 | 1.376 | N/A | N/A | 0.815 | 0.525 |
| 14-1109-01-R | 1 5/8-12 | 2.00 | 1.713 | 1.541 | 0.139 | 0.68 | 0.815 Min / 0.906 Max | 1.50 | 1.376 | N/A | N/A | 0.815 | 0.525 |
| 14-1109-01-S | 1 5/8-12 | 2.00 | 1.713 | 1.541 | 0.139 | 0.68 | 0.815 Min / 0.906 Max | 1.50 | 1.376 | N/A | N/A | 0.815 | 0.525 |
| 14-1113-01-L | 1 7/8-12 | 2.25 | 1.962 | 1.792 | 0.139 | 0.62 | 0.875 Min / 0.906 Max | 1.50 | 1.751 | N/A | N/A | 0.875 | 0.403 |
| 14-1113-01-R | 1 7/8-12 | 2.25 | 1.962 | 1.792 | 0.139 | 0.62 | 0.875 Min / 0.906 Max | 1.50 | 1.751 | N/A | N/A | 0.875 | 0.403 |
| 14-1113-01-S | 1 7/8-12 | 2.25 | 1.962 | 1.792 | 0.139 | 0.62 | 0.875 Min / 0.906 Max | 1.50 | 1.751 | N/A | N/A | 0.875 | 0.403 |
| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-1205-01-L | 1 1/16-12 | 1.38 | 1.148 | 0.979 | 0.137 | 0.50 | 0.750 Min / 0.906 Max | N/A | 0.938 | 2.75 | 2.25 | 0.750 | 0.417 |
| 14-1205-01-R | 1 1/16-12 | 1.38 | 1.148 | 0.979 | 0.137 | 0.50 | 0.750 Min / 0.906 Max | N/A | 0.938 | 2.75 | 2.25 | 0.750 | 0.417 |
| 14-1205-01-S | 1 1/16-12 | 1.38 | 1.148 | 0.979 | 0.137 | 0.50 | 0.750 Min / 0.906 Max | N/A | 0.938 | 2.75 | 2.25 | 0.750 | 0.417 |
| 14-1209-01-L | 1 5/8-12 | 2.00 | 1.713 | 1.541 | 0.139 | 0.68 | 0.815 Min / 0.906 Max | N/A | 1.376 | 3.25 | 2.75 | 0.815 | 0.525 |
| 14-1209-01-R | 1 5/8-12 | 2.00 | 1.713 | 1.541 | 0.139 | 0.68 | 0.815 Min / 0.906 Max | N/A | 1.376 | 3.25 | 2.75 | 0.815 | 0.525 |
| 14-1209-01-S | 1 5/8-12 | 2.00 | 1.713 | 1.541 | 0.139 | 0.68 | 0.815 Min / 0.906 Max | N/A | 1.376 | 3.25 | 2.75 | 0.815 | 0.525 |
| 14-1213-01-L | 1 7/8-12 | 2.25 | 1.962 | 1.792 | 0.139 | 0.62 | 0.875 Min / 0.906 Max | N/A | 1.751 | 3.75 | 3.25 | 0.875 | 0.403 |
| 14-1213-01-R | 1 7/8-12 | 2.25 | 1.962 | 1.792 | 0.139 | 0.62 | 0.875 Min / 0.906 Max | N/A | 1.751 | 3.75 | 3.25 | 0.875 | 0.403 |
| 14-1213-01-S | 1 7/8-12 | 2.25 | 1.962 | 1.792 | 0.139 | 0.62 | 0.875 Min / 0.906 Max | N/A | 1.751 | 3.75 | 3.25 | 0.875 | 0.403 |
