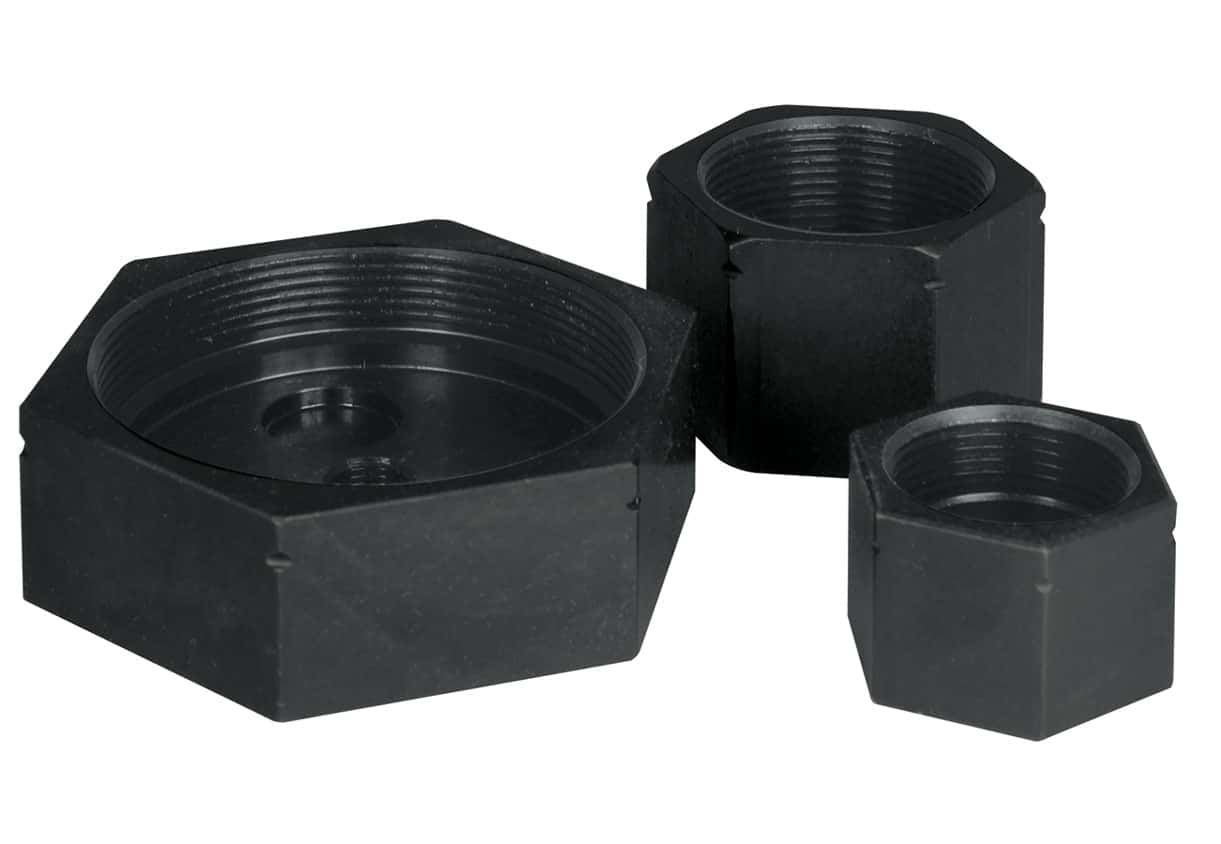

Feeder Caps
Metric Work Support Accessories

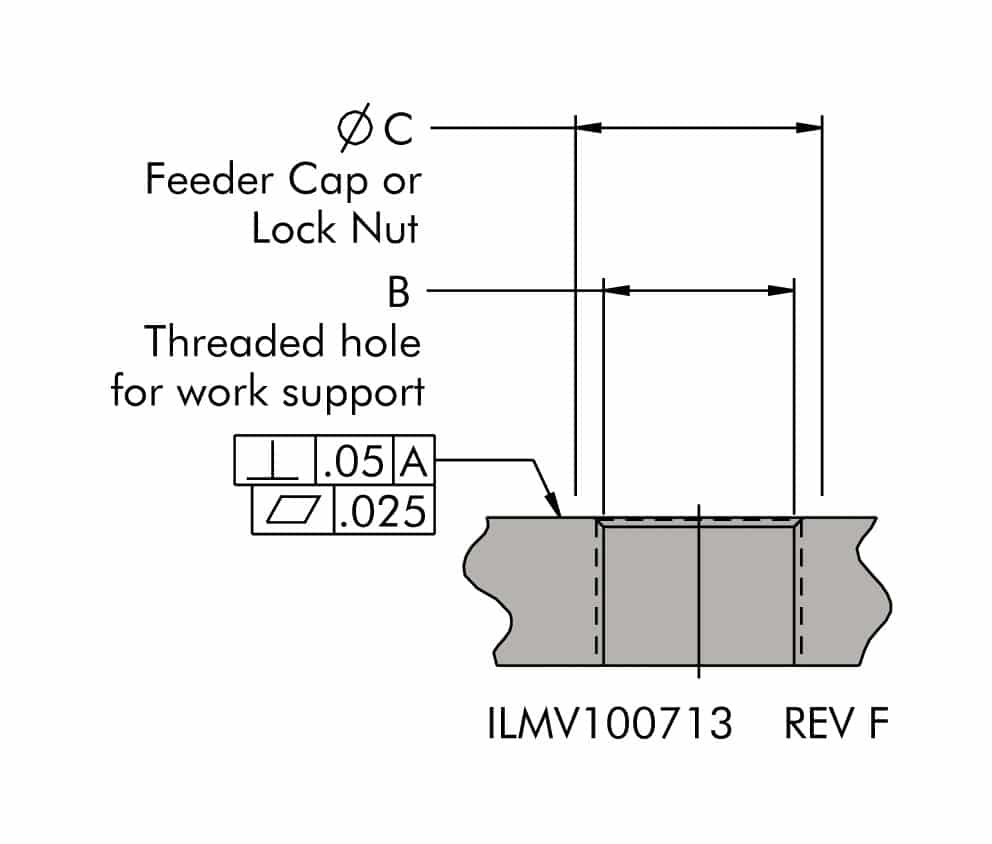

Support Mounted with a Feeder Cap or Lock Nut
| Capacity | B | C | Lock Nut |
| 4.4/6.2/8.9 kN | M26 x 1.5 | 37 | 44-0026-00 |
| 11/13.4/17.8 kN | M35 x 1.5 | 48 | 44-0035-00 |
| 17kN | M60 x 1.5 | 77 | N/A |

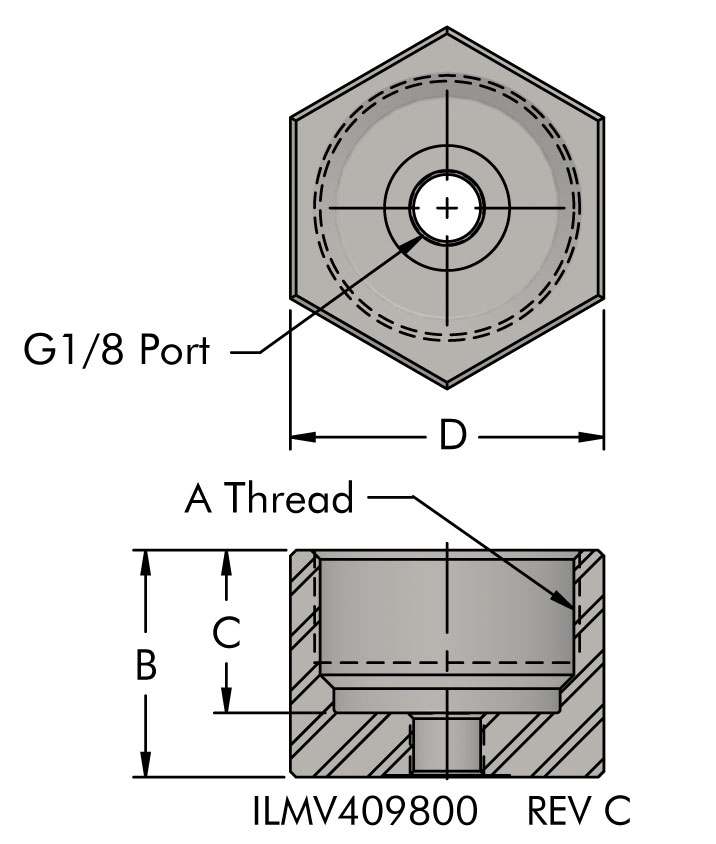

| Model No. | A | B | C | D |
|---|---|---|---|---|
| 40-9872-40 | M26 X 1.5 | 23 | 14.5 | 32 |
| 40-9872-43 | M35 X 1.5 | 30 | 21.5 | 41.5 |
| 40-9872-47 | M60 X 1.5 | 23.5 | 15 | 66.5 |
