End Effectors
Accessories

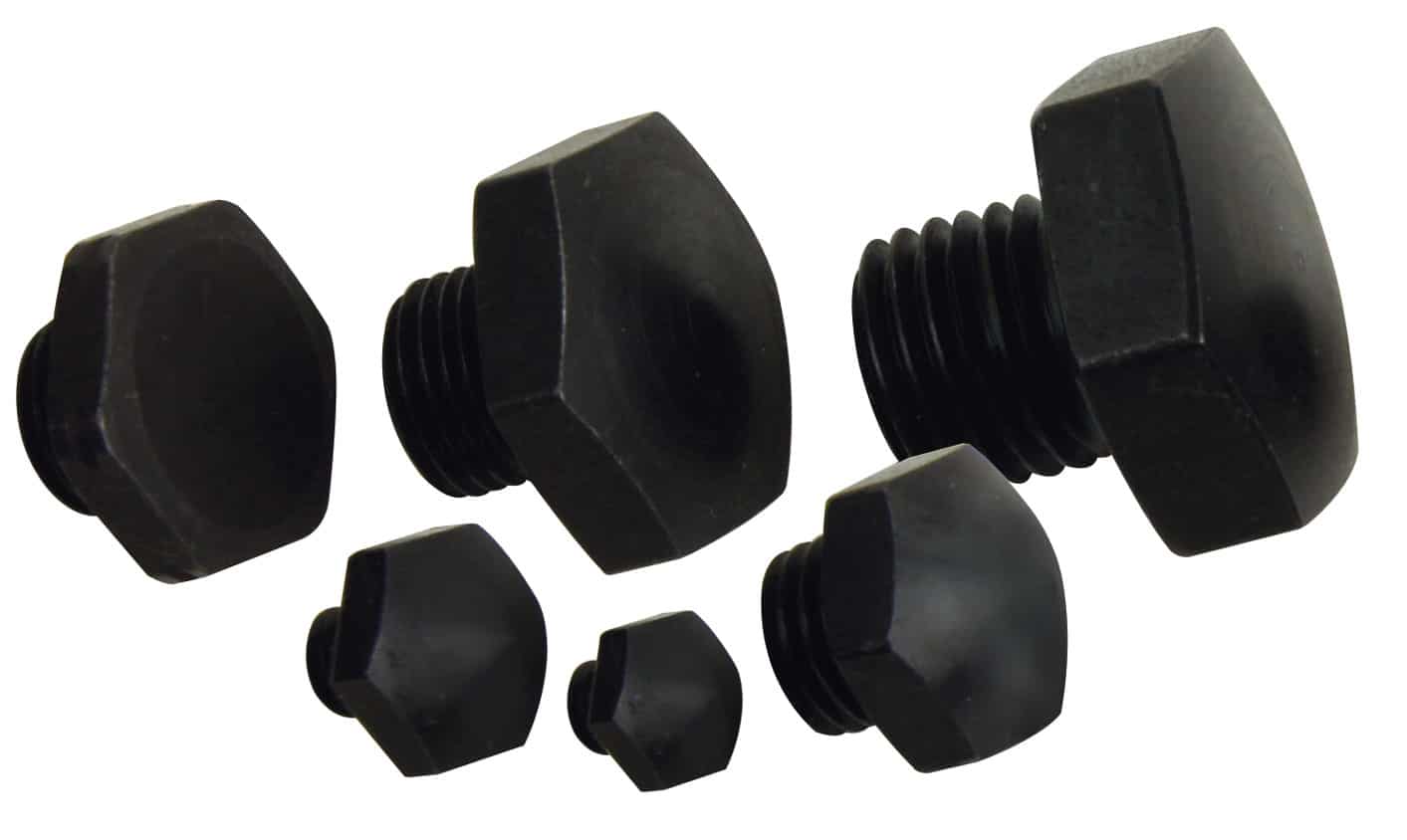

Spherical Contact Points
- Contact points are through hardened to Rc 46-50.

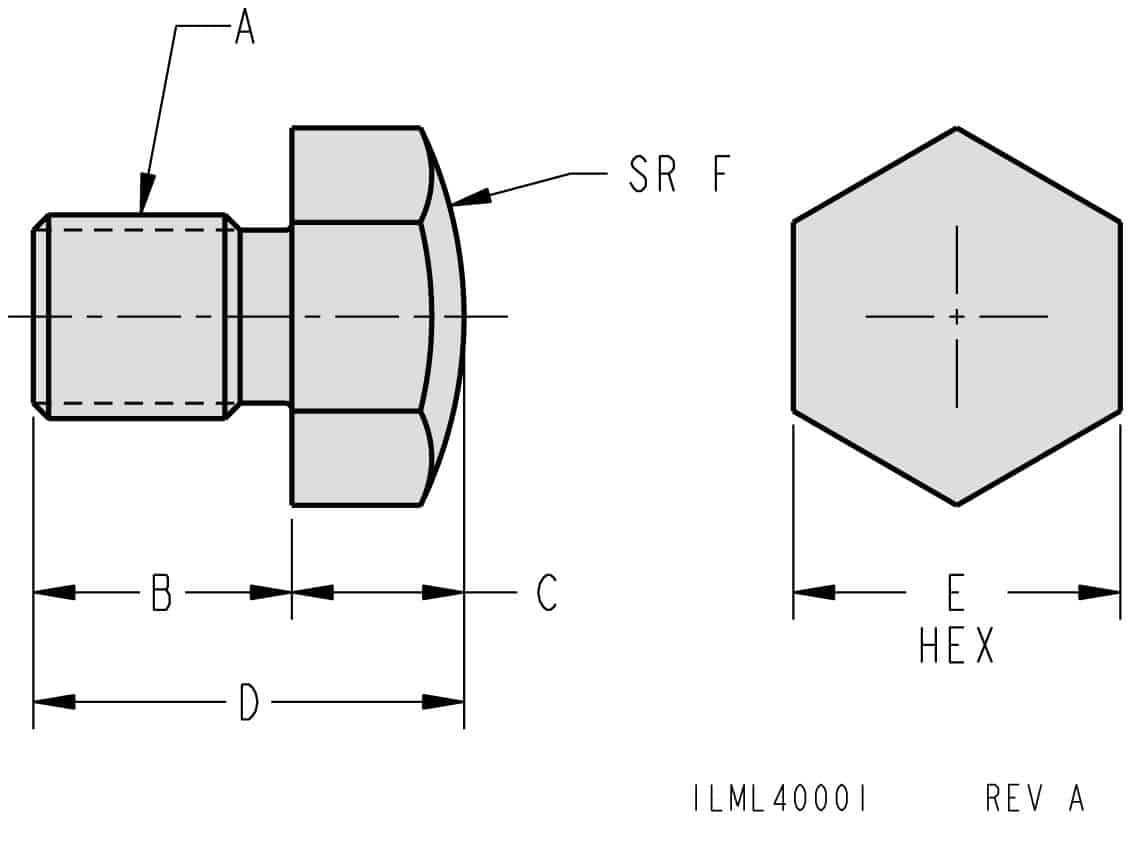

| Model No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| L4-2106-00 | M6 X 1.00 | 9 | 8 | 17 | 10 | 12 |
| L4-2108-00 | M8 X 1.25 | 10 | 8 | 18 | 13 | 16 |
| L4-2110-00 | M10 X 1.50 | 12 | 10 | 22 | 17 | 22 |
| L4-2112-00 | M12 X 1.75 | 15 | 10 | 25 | 19 | 25 |
| L4-2116-00 | M16 X 2 | 20 | 10 | 30 | 24 | 50 |
| L4-2120-00 | M20 X 2.5 | 25 | 10 | 35 | 30 | 60 |
