Standard

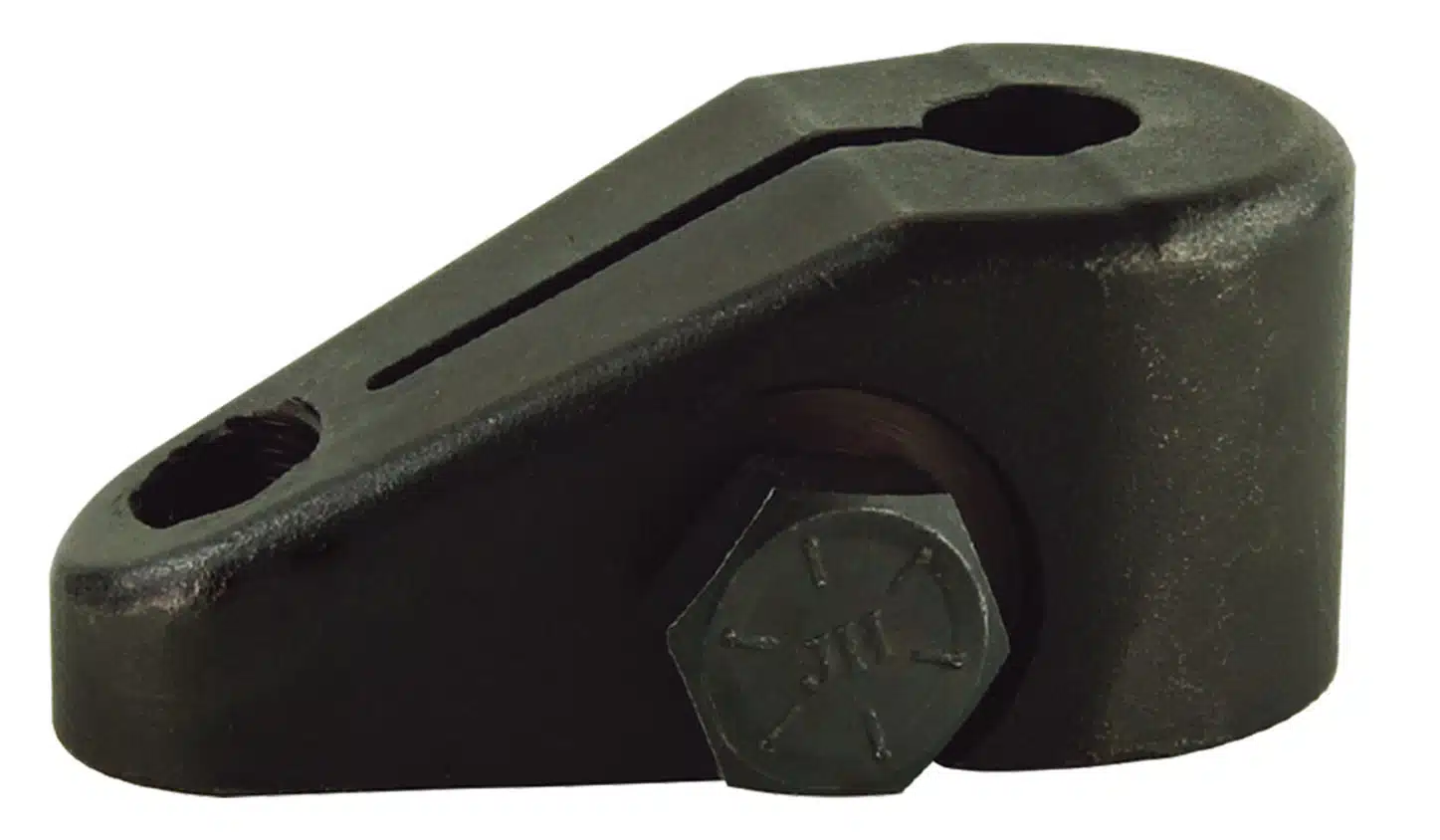

Metric Swing Clamp Arms
Find suggested tapped hole location on the TuffCam™ Clocking page or on the VersaCam™ Clocking page. For arm limits, see the Swing Clamp Arms Learn More Page.

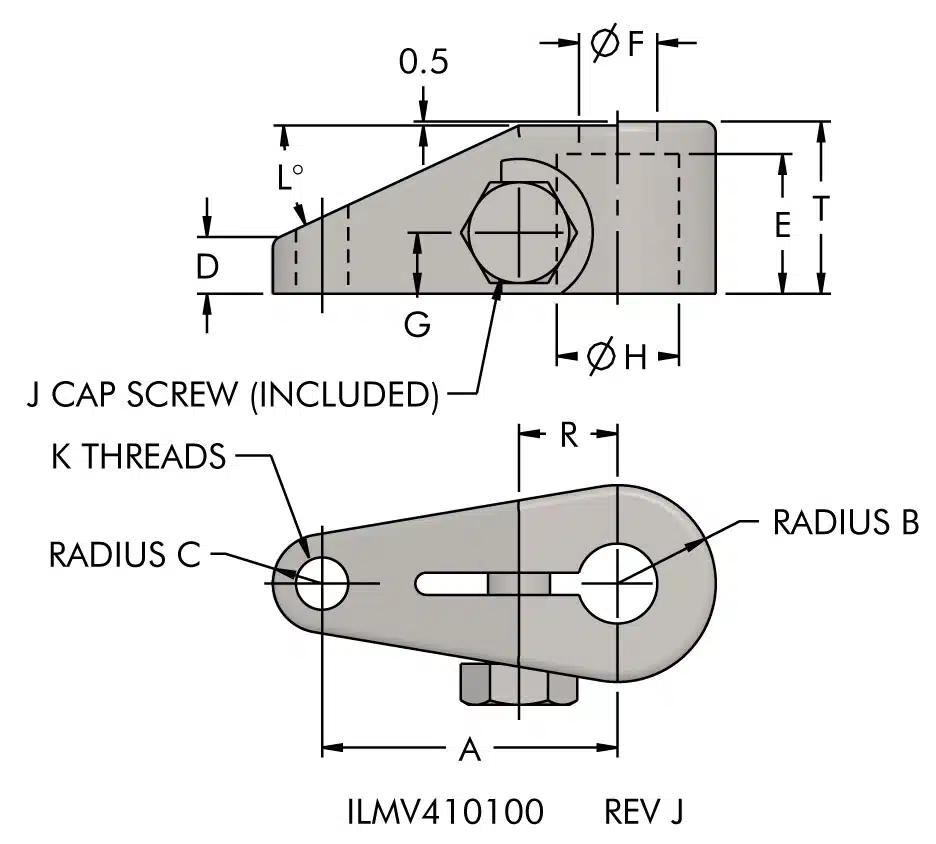

| Model No. | Clamp Capacity (kN) | A | B | C | D | E | F | G | H | J | K | L | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-1011-00 | 2 | 27 | 9.5 | 4.5 | 6.2 | 12.5 | 7 | 7 | 11.13 - 11.18 | M6 X 1.0 | M6 X 1.0 | 22 | 9.5 | 15 |
| 44-1015-00 | 4.9 | 38 | 12.5 | 6.5 | 6.7 | 18 | 10.5 | 8 | 15.88 - 15.92 | M8 X 1.25 | M8 X 1.25 | 25 | 12.7 | 22 |
| 44-1022-00 | 11.6 | 51 | 17.5 | 9.5 | 11.8 | 25.5 | 13.5 | 9.5 | 22.23 - 22.28 | M10 X 1.25 | M10 X 1.5 | 25 | 16.6 | 32 |
| 44-1031-01 | 22 | 63.5 | 25.5 | 14.5 | 16.1 | 36.5 | 16.5 | 14.3 | 31.75 - 31.80 | M16 X 1.5 | M12 X 1.75 | 25 | 24.6 | 44 |
