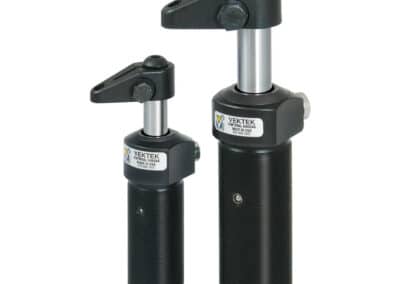

Threaded Body Long Stroke
VersaCam™ Swing Clamp
Double Acting
- Available in 4.9 kN and 11.6 kN at 350 bar (35 MPa).
- Can be pressure limited to yield force matching smaller models, yet retains full straight line clamping stroke.
- To avoid cylinder damage and preserve warranty, use recommended flow rate limits and time calculations shown here.
- Clocking feature uses standard length Vektek arm.
- Arms sold separately.
Threaded plunger end with cap screw provides secure attachment of standard or custom built arms.
Porting is all on the top of the cylinder body for easy access, no need to modify fixtures to access cylinder end to unclamp.
Hardened V-cam tracks resist damage and give you a built in extra cam (opposite swing direction) or straight line option should you accidentally damage one.
BHC™ (Black Hard Coating) on the cylinder body helps prevent leaks caused by scoring and scratching, especially in the event of high side or kick loads which promote excessive scoring in many other brands.
* Cylinder capacities are listed at 350 bar (35 MPa) maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 52 bar (5.2 MPa) for single acting, 35 bar (3.5 MPa) for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the cylinder capacity shown above by 350 (35), and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
** To allow for workpiece height variations, it is recommended that the vertical travel be set to about 50% of the vertical stroke.
*** To ensure maximum service life and trouble-free operation, restrict fluid flow according to the Flow Rate Chart.
Warning: Never allow swing arm to contact workpiece or fixture during arm rotation.
| Model No. | Swing Direction | Clamp Capacity (kN) | Vertical Clamp Stroke (mm) | Total Stroke (Swing + Vertical) (mm) | Body Thread | Piston Area (cm²) Retract | Oil Capacity Extend (cm³) | Oil Capacity Retract (cm³) |
|---|---|---|---|---|---|---|---|---|
| 41-5005-23 | Right | 4.9 | 19 | 31 | M38 X 1.5 | 1.90 | 11.9 | 5.9 |
| 41-5005-24 | Left | 4.9 | 19 | 31 | M38 X 1.5 | 1.90 | 11.9 | 5.9 |
| 41-5005-26 | Straight | 4.9 | 31 | 31 | M38 X 1.5 | 1.90 | 11.9 | 5.9 |
| 41-5011-23 | Right | 11.6 | 34 | 51 | M48 X 1.5 | 4.04 | 40 | 20.5 |
| 41-5011-24 | Left | 11.6 | 34 | 51 | M48 X 1.5 | 4.04 | 40 | 20.5 |
| 41-5011-26 | Straight | 11.6 | 51 | 51 | M48 X 1.5 | 4.04 | 40 | 20.5 |

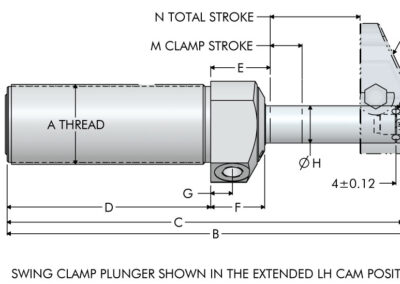

| Model No. | Clamp Capacity (kN) | A | B | C | D | E | F | G | H | J | M | N | P | S | T | V | W | Z | AC | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41-5005-23 | 4.9 | M38 X 1.5 | 176.5 | 167 | 82.5 | 35.5 | 31 | 13 | 15.88 | M10 X 1.5 X 12 | 19 | 31 | 38 | 26 | 47.5 | 19.5 | 2.41 | 35 | G1/8 | 4.8 |
| 41-5005-24 | 4.9 | M38 X 1.5 | 176.5 | 167 | 82.5 | 35.5 | 31 | 13 | 15.88 | M10 X 1.5 X 12 | 19 | 31 | 38 | 26 | 47.5 | 19.5 | 2.41 | 35 | G1/8 | 4.8 |
| 41-5005-26 | 4.9 | M38 X 1.5 | 176.5 | 167 | 82.5 | 35.5 | 31 | 13 | 15.88 | M10 X 1.5 X 12 | 31 | 31 | 38 | 26 | 47.5 | 19.5 | 2.41 | 35 | G1/8 | 4.8 |
| 41-5011-23 | 11.6 | M48 X 1.5 | 249 | 235.5 | 121.5 | 38 | 32 | 13 | 22.23 | M12 X 1.75 X 13 | 34 | 51 | 47.5 | 31.5 | 60 | 25.5 | 2.22 | 30 | G1/4 | 4.8 |
| 41-5011-24 | 11.6 | M48 X 1.5 | 249 | 235.5 | 121.5 | 38 | 32 | 13 | 22.23 | M12 X 1.75 X 13 | 34 | 51 | 47.5 | 31.5 | 60 | 25.5 | 2.22 | 30 | G1/4 | 4.8 |
| 41-5011-26 | 11.6 | M48 X 1.5 | 249 | 235.5 | 121.5 | 38 | 32 | 13 | 22.23 | M12 X 1.75 X 13 | 51 | 51 | 47.5 | 31.5 | 60 | 25.5 | 2.22 | 30 | G1/4 | 4.8 |
