TuffCam Threaded Body Inch Hydraulic Swing Clamps
Single and Double Acting
- Available in three capacities 450, 1,100 and 2,600 lbs.
- Three cams for accurate arm positioning, smoother rotation and lower per cam surface contact pressure.
- Patented ball seat for improved rotary function, cam follower contact, and reduced dynamic and static friction (patent #7,032,897).
- Fluorocarbon wipers are standard for improved coolant compatibility.
- To avoid cylinder damage and preserve warranty, recommended flow rate limits and time calculations.
- Tungsten Carbide ball for improved strength and wear.
- Same mounting envelope as VersaCam Swing Clamps.
- Arms sold separately.
- Standard swing is 90° swing angles less than 90° require Swing Restrictors. Swings angles greater than 90° are special order products.
- See Ultrasonic variant.
Contact our technical sales team today to discuss integrating TuffCam Swing Clamps into your next fixture build—optimize throughput, improve reliability and simplify setup with a premium swing clamp solution.
** Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 750 psi for single acting, 500 psi for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the cylinder capacity shown above by 5,000, and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
*** To allow for piece part height variations, it is recommended that the vertical travel be set at about 50% of the vertical stroke.
**** To insure maximum service life and trouble-free operation, restrict fluid flow to the level indicated in the Clamp Time and Flow Rate Charts.
WARNING: Never allow swing arm to contact workpiece or fixture during arm rotation.
- BHC™ (Black Hard Coating) on the cylinder bodies helps prevent scoring and scratching..
- SAE porting is all on the top of the cylinder body for easy access (bottom unclamp porting is available).
- Vent port with bronze filter gives single acting Swing Clamps a place to breathe and helps keep out contamination.

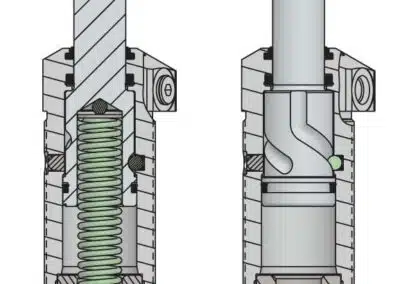

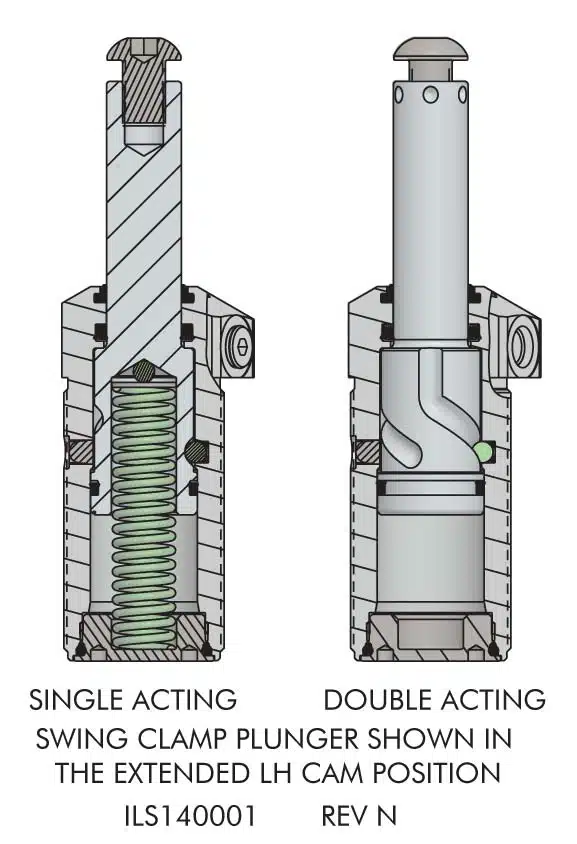

- Single Acting Cylinders, actuated hydraulically one direction, spring returned.
- Double Acting Cylinders, actuated hydraulically both directions.
| Model No. | Swing Direction | Clamp Capacity (lb.) | Vertical Clamp Stroke (in.) | Total Stroke (Swing + Vertical) | Body Thread | Standard Arm Length | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) |
|---|---|---|---|---|---|---|---|---|---|
| 14-0105-01-L | Left | 450 | 0.22 | 0.57 | 1 1/6-16 | 1.06 | 0.098 | N/A | 0.056 |
| 14-0105-01-R | Right | 450 | 0.22 | 0.57 | 1 1/6-16 | 1.06 | 0.098 | N/A | 0.056 |
| 14-0105-01-S | Straight | 450 | 0.57 | 0.57 | 1 1/6-16 | 1.06 | 0.098 | N/A | 0.056 |
| 14-0109-01-L | Left | 1100 | 0.31 | 0.79 | 1 1/2-16 | 1.50 | 0.295 | N/A | 0.233 |
| 14-0109-01-R | Right | 1100 | 0.31 | 0.79 | 1 1/2-16 | 1.50 | 0.295 | N/A | 0.233 |
| 14-0109-01-S | Straight | 1100 | 0.79 | 0.79 | 1 1/2-16 | 1.50 | 0.295 | N/A | 0.233 |
| 14-0113-01-L | Left | 2600 | 0.50 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | N/A | 0.726 |
| 14-0113-01-R | Right | 2600 | 0.50 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | N/A | 0.726 |
| 14-0113-01-S | Straight | 2600 | 1.16 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | N/A | 0.726 |
| Model No. | Swing Direction | Clamp Capacity (lb.) | Vertical Clamp Stroke (in.) | Total Stroke (Swing + Vertical) | Body Thread | Standard Arm Length | Piston Area (sq. in.) Retract | Oil Capacity Extend (cu. in.) | Oil Capacity Retract (cu. in.) |
|---|---|---|---|---|---|---|---|---|---|
| 14-0205-01-L | Left | 450 | 0.22 | 0.57 | 1 1/16-16 | 1.06 | 0.098 | 0.142 | 0.056 |
| 14-0205-01-R | Right | 450 | 0.22 | 0.57 | 1 1/16-16 | 1.06 | 0.098 | 0.142 | 0.056 |
| 14-0205-01-S | Straight | 450 | 0.57 | 0.57 | 1 1/16-16 | 1.06 | 0.098 | 0.142 | 0.056 |
| 14-0209-01-L | Left | 1100 | 0.31 | 0.79 | 1 1/2-16 | 1.50 | 0.295 | 0.475 | 0.233 |
| 14-0209-01-R | Right | 1100 | 0.31 | 0.79 | 1 1/2-16 | 1.50 | 0.295 | 0.475 | 0.233 |
| 14-0209-01-S | Straight | 1100 | 0.79 | 0.79 | 1 1/2-16 | 1.50 | 0.295 | 0.475 | 0.233 |
| 14-0213-01-L | Left | 2600 | 0.50 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | 1.423 | 0.726 |
| 14-0213-01-R | Right | 2600 | 0.50 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | 1.423 | 0.726 |
| 14-0213-01-S | Straight | 2600 | 1.16 | 1.16 | 1 7/8-16 | 2.00 | 0.626 | 1.423 | 0.726 |

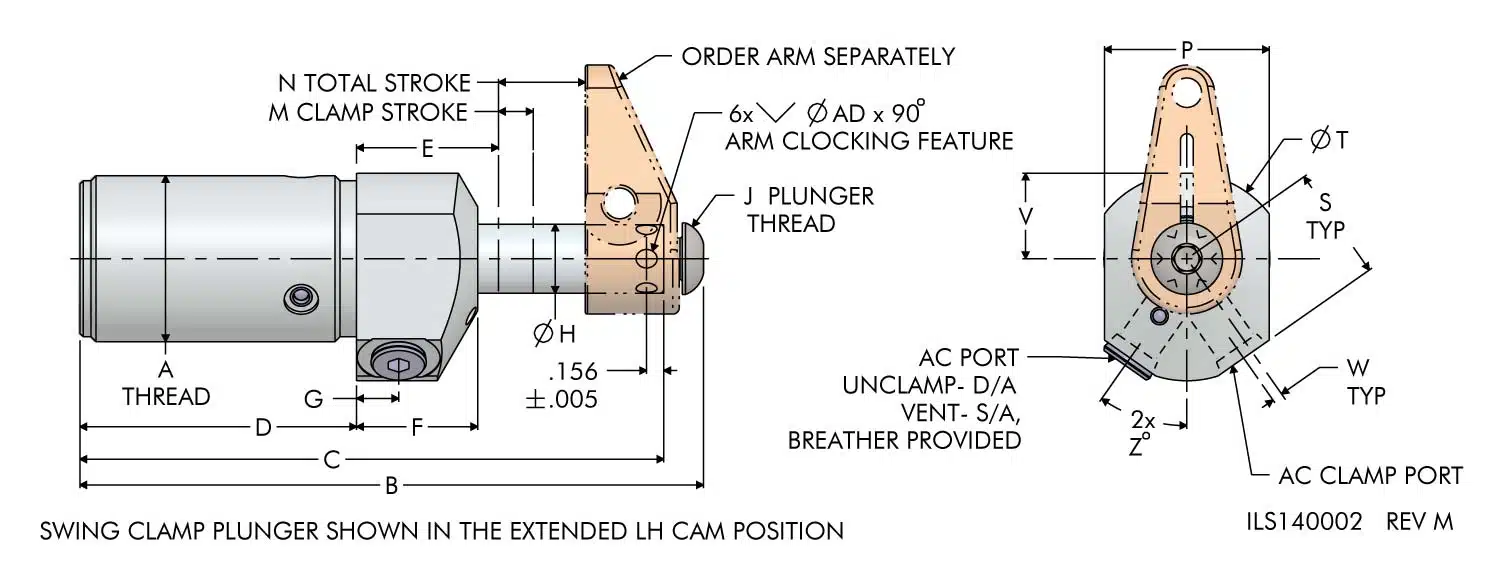

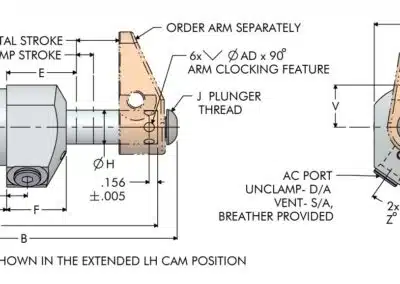

| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | M | N | P | S | T | V | W | Z | AC | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-0105-01-L | 450 | 1 1/16-16 | 4.28 | 4.02 | 2.02 | 0.94 | 0.75 | 0.27 | 0.437 | 1/4-28 X 0.28 | 0.22 | 0.57 | 1.13 | 0.81 | 1.50 | 0.56 | N/A | 25 | SAE 2 | 0.13 |
| 14-0105-01-R | 450 | 1 1/16-16 | 4.28 | 4.02 | 2.02 | 0.94 | 0.75 | 0.27 | 0.437 | 1/4-28 X 0.28 | 0.22 | 0.57 | 1.13 | 0.81 | 1.50 | 0.56 | N/A | 25 | SAE 2 | 0.13 |
| 14-0105-01-S | 450 | 1 1/16-16 | 4.28 | 4.02 | 2.02 | 0.94 | 0.75 | 0.27 | 0.437 | 1/4-28 X 0.28 | 0.57 | 0.57 | 1.13 | 0.81 | 1.50 | 0.56 | N/A | 25 | SAE 2 | 0.13 |
| 14-0109-01-L | 1100 | 1 1/2-16 | 5.68 | 5.32 | 2.54 | 1.27 | 1.09 | 0.38 | 0.625 | 3/8-24 X 0.47 | 0.31 | 0.79 | 1.50 | 1.03 | 1.88 | 0.78 | 0.09 | 35 | SAE 4 | 0.19 |
| 14-0109-01-R | 1100 | 1 1/2-16 | 5.68 | 5.32 | 2.54 | 1.27 | 1.09 | 0.38 | 0.625 | 3/8-24 X 0.47 | 0.31 | 0.79 | 1.50 | 1.03 | 1.88 | 0.78 | 0.09 | 35 | SAE 4 | 0.19 |
| 14-0109-01-S | 1100 | 1 1/2-16 | 5.68 | 5.32 | 2.54 | 1.27 | 1.09 | 0.38 | 0.625 | 3/8-24 X 0.47 | 0.79 | 0.79 | 1.50 | 1.03 | 1.88 | 0.78 | 0.09 | 35 | SAE 4 | 0.19 |
| 14-0113-01-L | 2600 | 1 7/8-16 | 7.33 | 6.81 | 3.35 | 1.30 | 1.06 | 0.36 | 0.875 | 1/2-20 X 0.52 | 0.50 | 1.16 | 1.88 | 1.20 | 2.25 | 0.97 | 0.08 | 30 | SAE 4 | 0.19 |
| 14-0113-01-R | 2600 | 1 7/8-16 | 7.33 | 6.81 | 3.35 | 1.30 | 1.06 | 0.36 | 0.875 | 1/2-20 X 0.52 | 0.50 | 1.16 | 1.88 | 1.20 | 2.25 | 0.97 | 0.08 | 30 | SAE 4 | 0.19 |
| 14-0113-01-S | 2600 | 1 7/8-16 | 7.33 | 6.81 | 3.35 | 1.30 | 1.06 | 0.36 | 0.875 | 1/2-20 X 0.52 | 1.16 | 1.16 | 1.88 | 1.20 | 2.25 | 0.97 | 0.08 | 30 | SAE 4 | 0.19 |
| Model No. | Clamp Capacity (lb.) | A | B | C | D | E | F | G | H | J | M | N | P | S | T | V | W | Z | AC | AD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-0205-01-L | 450 | 1 1/16-16 | 4.28 | 4.02 | 2.02 | 0.94 | 0.75 | 0.27 | 0.437 | 1/4-28 X 0.28 | 0.22 | 0.57 | 1.13 | 0.81 | 1.50 | 0.56 | N/A | 25 | SAE 2 | 0.13 |
| 14-0205-01-R | 450 | 1 1/16-16 | 4.28 | 4.02 | 2.02 | 0.94 | 0.75 | 0.27 | 0.437 | 1/4-28 X 0.28 | 0.22 | 0.57 | 1.13 | 0.81 | 1.50 | 0.56 | N/A | 25 | SAE 2 | 0.13 |
| 14-0205-01-S | 450 | 1 1/16-16 | 4.28 | 4.02 | 2.02 | 0.94 | 0.75 | 0.27 | 0.437 | 1/4-28 X 0.28 | 0.57 | 0.57 | 1.13 | 0.81 | 1.50 | 0.56 | N/A | 25 | SAE 2 | 0.13 |
| 14-0209-01-L | 1100 | 1 1/2-16 | 5.68 | 5.32 | 2.54 | 1.27 | 1.09 | 0.38 | 0.625 | 3/8-24 X 0.47 | 0.31 | 0.79 | 1.50 | 1.03 | 1.88 | 0.78 | 0.09 | 35 | SAE 4 | 0.19 |
| 14-0209-01-R | 1100 | 1 1/2-16 | 5.68 | 5.32 | 2.54 | 1.27 | 1.09 | 0.38 | 0.625 | 3/8-24 X 0.47 | 0.31 | 0.79 | 1.50 | 1.03 | 1.88 | 0.78 | 0.09 | 35 | SAE 4 | 0.19 |
| 14-0209-01-S | 1100 | 1 1/2-16 | 5.68 | 5.32 | 2.54 | 1.27 | 1.09 | 0.38 | 0.625 | 3/8-24 X 0.47 | 0.79 | 0.79 | 1.50 | 1.03 | 1.88 | 0.78 | 0.09 | 35 | SAE 4 | 0.19 |
| 14-0213-01-L | 2600 | 1 7/8-16 | 7.33 | 6.81 | 3.35 | 1.30 | 1.06 | 0.36 | 0.875 | 1/2-20 X 0.52 | 0.50 | 1.16 | 1.88 | 1.20 | 2.25 | 0.97 | 0.08 | 30 | SAE 4 | 0.19 |
| 14-0213-01-R | 2600 | 1 7/8-16 | 7.33 | 6.81 | 3.35 | 1.30 | 1.06 | 0.36 | 0.875 | 1/2-20 X 0.52 | 0.50 | 1.16 | 1.88 | 1.20 | 2.25 | 0.97 | 0.08 | 30 | SAE 4 | 0.19 |
| 14-0213-01-S | 2600 | 1 7/8-16 | 7.33 | 6.81 | 3.35 | 1.30 | 1.06 | 0.36 | 0.875 | 1/2-20 X 0.52 | 1.16 | 1.16 | 1.88 | 1.20 | 2.25 | 0.97 | 0.08 | 30 | SAE 4 | 0.19 |
