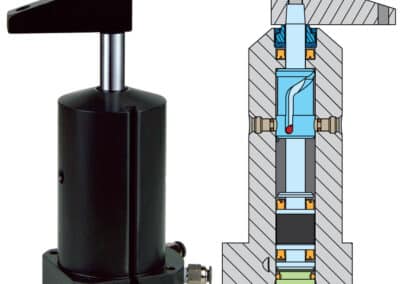

Bottom Flange Swing Clamps
Pneumatic Swing Clamps
Standard Features
- Arms swing 90°
- Our capscrew arm design is available. You may modify our arm, or we have provided you with dimensions to make your own.
- Special wipers and swept-line cylinder tops help keep chips from packing and coolant contaminants from entering the operation.
- Swing clamp bodies are wrought aluminum alloy with PHC™ (Pneumatic Hardcoat) coating on all external and internal surfaces. This gives the clamps extended life.
- Plungers are carbon steel with hard chrome plating and hardened alloy steel bushings.
- All dynamic seals are internally lubricated and made from a specially compounded elastomer to promote smooth break away and low operational drag.
- All models are available in straight pull and left or right swings.
- Magnetic pistons are standard on all models, allowing you to use position-indicating sensors.
- Position sensors mount within the clamp’s space envelope so switch usage doesn’t encroach on the clamp’s mounting envelope.
- Position sensors have an LED indicator to reduce set-up time.
- All swing clamps have internal orifices to prevent cam damage caused from over accelerating the clamp.
- VektorAir™ clamps are double acting to reduce mounting envelope and prevent non-return and slow return problems inherent with single acting clamps.
- To determine whether a straight pull, left or right swing should be specified, imagine viewing the arm from above during the clamping. Arms moving clockwise are right hand swings, counter-clockwise are left hand swings.
* See graphs on the Clamping Forces Table tab above for clamp curves and extended arm performance force. It is recommended that the clamp position be set at about 50% of the clamp stroke. These devices should be positioned in no less than 1/2 second. These recommendations apply when using the standard arm. When using the extended or large custom arms, allow 1 second for positioning.
Operating temperature limits are 32-150° F
| Model No. | Swing Direction | Bore Size (in.) | Piston Area (sq. in.) Extend | Piston Area (sq. in.) Retract | Air Usage (cu. in.) Per complete cycle |
|---|---|---|---|---|---|
| P1-5047-00 | Left | 0.500 | 0.20 | 0.15 | 0.25 |
| P1-5077-00 | Left | 0.875 | 0.60 | 0.40 | 0.80 |
| P1-5117-00 | Left | 1.125 | 1.00 | 0.80 | 1.50 |
| P1-5147-00 | Left | 1.500 | 1.77 | 1.46 | 5.00 |
| P1-5207-00 | Left | 2.000 | 3.14 | 2.83 | 9.00 |
| P1-5247-00 | Left | 2.500 | 4.91 | 4.47 | 14.00 |
| Model No. | Swing Direction | Bore Size (in.) | Piston Area (sq. in.) Extend | Piston Area (sq. in.) Retract | Air Usage (cu. in.) Per complete cycle |
|---|---|---|---|---|---|
| P1-5041-00 | Right | 0.500 | 0.20 | 0.15 | 0.25 |
| P1-5071-00 | Right | 0.875 | 0.60 | 0.40 | 0.80 |
| P1-5111-00 | Right | 1.125 | 1.00 | 0.80 | 1.50 |
| P1-5141-00 | Right | 1.500 | 1.77 | 1.46 | 5.00 |
| P1-5201-00 | Right | 2.000 | 3.14 | 2.83 | 9.00 |
| P1-5241-00 | Right | 2.500 | 4.91 | 4.47 | 14.00 |
| Model No. | Swing Direction | Bore Size (in.) | Piston Area (sq. in.) Extend | Piston Area (sq. in.) Retract | Air Usage (cu. in.) Per complete cycle |
|---|---|---|---|---|---|
| P1-5049-00 | Straight | 0.500 | 0.20 | 0.15 | 0.25 |
| P1-5079-00 | Straight | 0.875 | 0.60 | 0.40 | 0.80 |
| P1-5119-00 | Straight | 1.125 | 1.00 | 0.80 | 1.50 |
| P1-5149-00 | Straight | 1.500 | 1.77 | 1.46 | 5.00 |
| P1-5209-00 | Straight | 2.000 | 3.14 | 2.83 | 9.00 |
| P1-5249-00 | Straight | 2.500 | 4.91 | 4.47 | 14.00 |

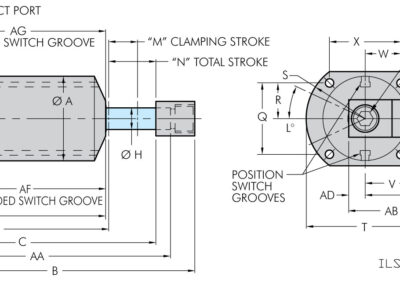

| Model No. | Bore Size (in.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AA | AB | AC | AD | AE | AF | AG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P1-5047-00 | 0.500 | 1.19 | 4.86 | 4.36 | 3.67 | 3.59 | 0.84 | 0.56 | 0.25 | 8 - 32 X 0.5 | 0.17 | 23 | 0.40 | 0.69 | 1.44 | 1.10 | 0.55 | 0.94 | 1.67 | 0.73 | 0.55 | 1.10 | 0.72 | 1.13 | 4.59 | 1.59 | 0.38 | 0.31 | 8 - 32 | 2.12 | 2.91 |
| P1-5077-00 | 0.875 | 1.56 | 5.48 | 4.79 | 3.97 | 3.91 | 0.91 | 0.56 | 0.50 | 5/16 - 18 X 0.5 | 0.19 | 25 | 0.47 | 0.82 | 1.75 | 1.37 | 0.69 | 1.19 | 2.06 | 0.87 | 0.69 | 1.37 | 0.88 | 1.50 | 5.02 | 2.19 | 0.63 | 0.44 | 1/4 - 20 | 2.37 | 3.16 |
| P1-5117-00 | 1.125 | 1.81 | 5.48 | 4.79 | 3.97 | 3.91 | 0.91 | 0.56 | 0.50 | 5/16 - 18 X 0.5 | 0.19 | 25 | 0.47 | 0.82 | 2.00 | 1.55 | 0.78 | 1.31 | 2.28 | 0.97 | 0.78 | 1.55 | 1.00 | 1.50 | 5.02 | 2.19 | 0.63 | 0.44 | 1/4 - 20 | 2.37 | 3.16 |
| P1-5147-00 | 1.500 | 2.25 | 8.24 | 7.11 | 5.61 | 5.47 | 0.97 | 0.62 | 0.63 | 3/8 - 24 X 0.75 | 0.22 | 25 | 0.75 | 1.50 | 2.50 | 1.90 | 0.95 | 1.56 | 2.78 | 1.22 | 0.95 | 1.90 | 1.25 | 2.18 | 7.56 | 2.99 | 0.75 | 0.44 | 3/8 - 16 | 3.87 | 4.66 |
| P1-5207-00 | 2.000 | 2.69 | 8.24 | 7.11 | 5.61 | 5.47 | 0.97 | 0.62 | 0.63 | 3/8 - 24 X 0.75 | 0.22 | 25 | 0.75 | 1.50 | 2.87 | 2.21 | 1.10 | 1.81 | 3.24 | 1.43 | 1.10 | 2.21 | 1.44 | 2.18 | 7.56 | 2.99 | 0.75 | 0.44 | 3/8 - 16 | 3.87 | 4.66 |
| P1-5247-00 | 2.500 | 3.19 | 8.20 | 7.07 | 5.57 | 5.47 | 0.97 | 0.62 | 0.75 | 3/8 - 24 X 0.75 | 0.28 | 25 | 0.75 | 1.50 | 3.40 | 2.61 | 1.30 | 2.13 | 3.81 | 1.68 | 1.30 | 2.61 | 1.70 | 2.43 | 7.56 | 3.31 | 0.87 | 0.50 | 3/8 - 16 | 3.87 | 4.66 |
| Model No. | Bore Size (in.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AA | AB | AC | AD | AE | AF | AG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P1-5041-00 | 0.500 | 1.19 | 4.86 | 4.36 | 3.67 | 3.59 | 0.84 | 0.56 | 0.25 | 8 - 32 X 0.5 | 0.17 | 23 | 0.40 | 0.69 | 1.44 | 1.10 | 0.55 | 0.94 | 1.67 | 0.73 | 0.55 | 1.10 | 0.72 | 1.13 | 4.59 | 1.59 | 0.38 | 0.31 | 8 - 32 | 2.12 | 2.91 |
| P1-5071-00 | 0.875 | 1.56 | 5.48 | 4.79 | 3.97 | 3.91 | 0.91 | 0.56 | 0.50 | 5/16 - 18 X 0.5 | 0.19 | 25 | 0.47 | 0.82 | 1.75 | 1.37 | 0.69 | 1.19 | 2.06 | 0.87 | 0.69 | 1.37 | 0.88 | 1.50 | 5.02 | 2.19 | 0.63 | 0.44 | 1/4 - 20 | 2.37 | 3.16 |
| P1-5111-00 | 1.125 | 1.81 | 5.48 | 4.79 | 3.97 | 3.91 | 0.91 | 0.56 | 0.50 | 5/16 - 18 X 0.5 | 0.19 | 25 | 0.47 | 0.82 | 2.00 | 1.55 | 0.78 | 1.31 | 2.28 | 0.97 | 0.78 | 1.55 | 1.00 | 1.50 | 5.02 | 2.19 | 0.63 | 0.44 | 1/4 - 20 | 2.37 | 3.16 |
| P1-5141-00 | 1.500 | 2.25 | 8.24 | 7.11 | 5.61 | 5.47 | 0.97 | 0.62 | 0.63 | 3/8 - 24 X 0.75 | 0.22 | 25 | 0.75 | 1.50 | 2.50 | 1.90 | 0.95 | 1.56 | 2.78 | 1.22 | 0.95 | 1.90 | 1.25 | 2.18 | 7.56 | 2.99 | 0.75 | 0.44 | 3/8 - 16 | 3.87 | 4.66 |
| P1-5201-00 | 2.000 | 2.69 | 8.24 | 7.11 | 5.61 | 5.47 | 0.97 | 0.62 | 0.63 | 3/8 - 24 X 0.75 | 0.22 | 25 | 0.75 | 1.50 | 2.87 | 2.21 | 1.10 | 1.81 | 3.24 | 1.43 | 1.10 | 2.21 | 1.44 | 2.18 | 7.56 | 2.99 | 0.75 | 0.44 | 3/8 - 16 | 3.87 | 4.66 |
| P1-5241-00 | 2.500 | 3.19 | 8.20 | 7.07 | 5.57 | 5.47 | 0.97 | 0.62 | 0.75 | 3/8 - 24 X 0.75 | 0.28 | 25 | 0.75 | 1.50 | 3.40 | 2.61 | 1.30 | 2.13 | 3.81 | 1.68 | 1.30 | 2.61 | 1.70 | 2.43 | 7.56 | 3.31 | 0.87 | 0.50 | 3/8 - 16 | 3.87 | 4.66 |
| Model No. | Bore Size (in.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AA | AB | AC | AD | AE | AF | AG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P1-5049-00 | 0.500 | 1.19 | 4.86 | 4.36 | 3.67 | 3.59 | 0.84 | 0.56 | 0.25 | 8 - 32 X 0.5 | 0.17 | 23 | 0.69 | 0.69 | 1.44 | 1.10 | 0.55 | 0.94 | 1.67 | 0.73 | 0.55 | 1.10 | 0.72 | 1.13 | 4.59 | 1.59 | 0.38 | 0.31 | 8 - 32 | 2.12 | 2.91 |
| P1-5079-00 | 0.875 | 1.56 | 5.48 | 4.79 | 3.97 | 3.91 | 0.91 | 0.56 | 0.50 | 5/16 - 18 X 0.5 | 0.19 | 25 | 0.82 | 0.82 | 1.75 | 1.37 | 0.69 | 1.19 | 2.06 | 0.87 | 0.69 | 1.37 | 0.88 | 1.50 | 5.02 | 2.19 | 0.63 | 0.44 | 1/4 - 20 | 2.37 | 3.16 |
| P1-5119-00 | 1.125 | 1.81 | 5.48 | 4.79 | 3.97 | 3.91 | 0.91 | 0.56 | 0.50 | 5/16 - 18 X 0.5 | 0.19 | 25 | 0.82 | 0.82 | 2.00 | 1.55 | 0.78 | 1.31 | 2.28 | 0.97 | 0.78 | 1.55 | 1.00 | 1.50 | 5.02 | 2.19 | 0.63 | 0.44 | 1/4 - 20 | 2.37 | 3.16 |
| P1-5149-00 | 1.500 | 2.25 | 8.24 | 7.11 | 5.61 | 5.47 | 0.97 | 0.62 | 0.63 | 3/8 - 24 X 0.75 | 0.22 | 25 | 1.50 | 1.50 | 2.50 | 1.90 | 0.95 | 1.56 | 2.78 | 1.22 | 0.95 | 1.90 | 1.25 | 2.18 | 7.56 | 2.99 | 0.75 | 0.44 | 3/8 - 16 | 3.87 | 4.66 |
| P1-5209-00 | 2.000 | 2.69 | 8.24 | 7.11 | 5.61 | 5.47 | 0.97 | 0.62 | 0.63 | 3/8 - 24 X 0.75 | 0.22 | 25 | 1.50 | 1.50 | 2.87 | 2.21 | 1.10 | 1.81 | 3.24 | 1.43 | 1.10 | 2.21 | 1.44 | 2.18 | 7.56 | 2.99 | 0.75 | 0.44 | 3/8 - 16 | 3.87 | 4.66 |
| P1-5249-00 | 2.500 | 3.19 | 8.20 | 7.07 | 5.57 | 5.47 | 0.97 | 0.62 | 0.75 | 3/8 - 24 X 0.75 | 0.28 | 25 | 1.50 | 1.50 | 3.40 | 2.61 | 1.30 | 2.13 | 3.81 | 1.68 | 1.30 | 2.61 | 1.70 | 2.43 | 7.56 | 3.31 | 0.87 | 0.50 | 3/8 - 16 | 3.87 | 4.66 |
