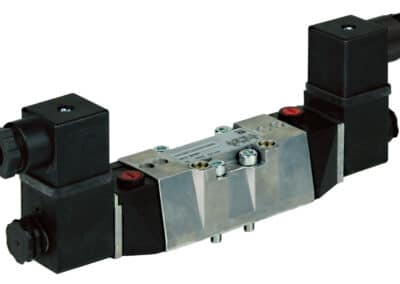

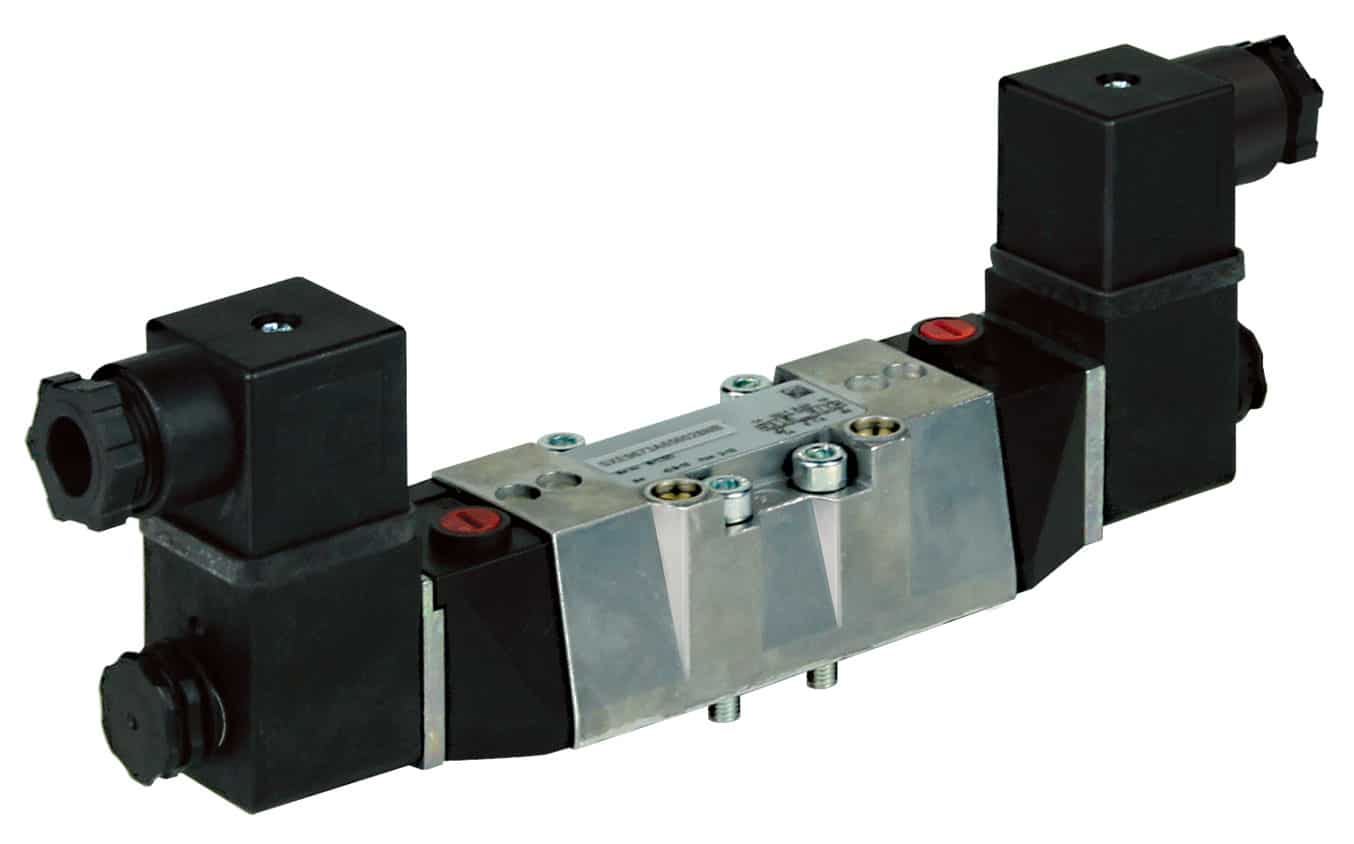

Manifold Mount, Solenoid Valve

Pneumatic Valves

• These valves are designed to control double acting pneumatic clamping systems.
• Valves can be run on lubricated or unlubricated air. Cylinder exhaust is controlled by internal flow controls, allowing individual exhausts to be controlled with only one common exhaust in the end plate.
• If electrical power is lost, manual overrides allow the valves to be shifted. Overrides can also be used to help in system troubleshooting.
• Rapid return is achieved when the valve is de-actuated, since the exhaust orifice is oversized.
• Installing the valves is aided by captive mounting parts, eliminating lost screws and seals during assembly/disassembly.
• Installation is made easier since the coil can be rotated in 90° increments and the grip connector moves 180°.
• Connections are made easily with our push-to-connect tubing. It functions with Nylon 11 tubing for inch sizes and Nylon 12 tubing for metric sizes, as well as copper or stainless steel tubing. Standard NPT ports are used in the manifolds.
• Valve bodies are made of die-cast aluminum.
