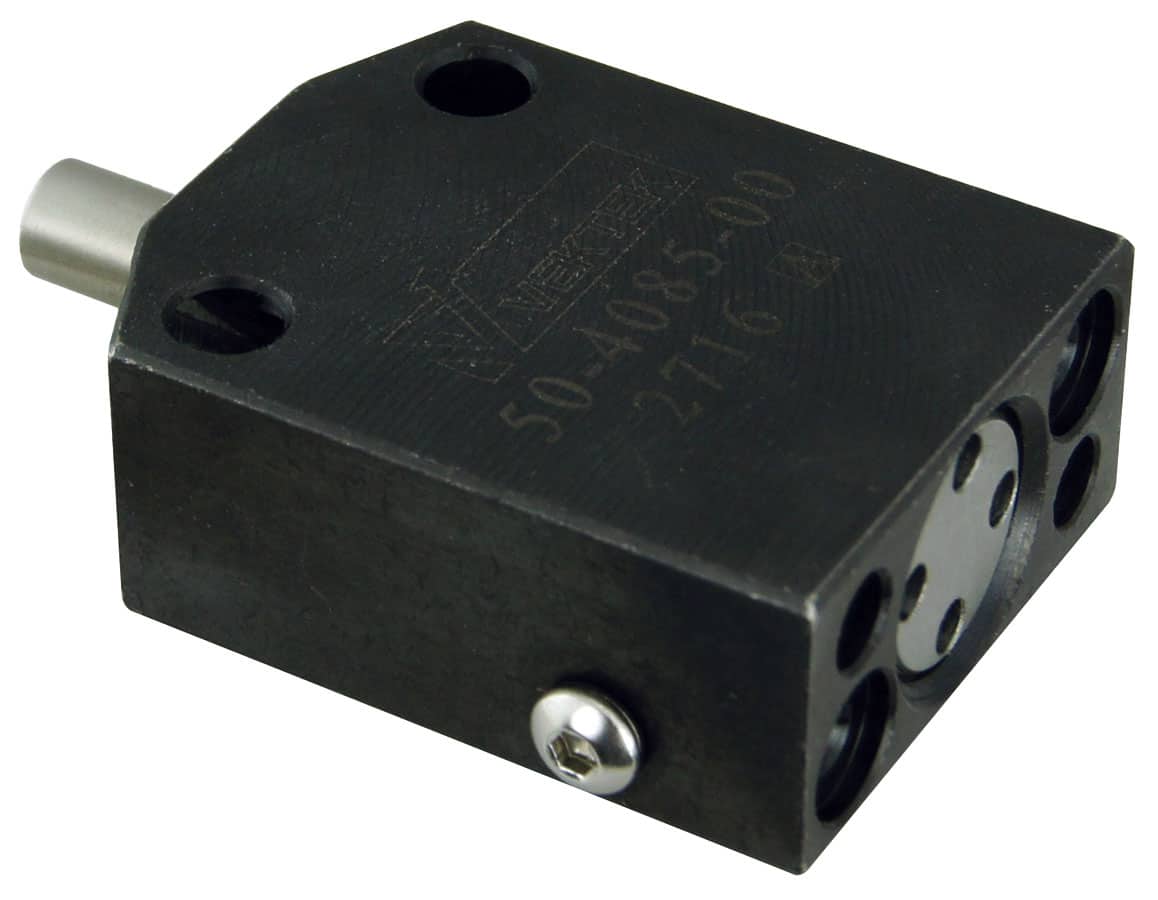

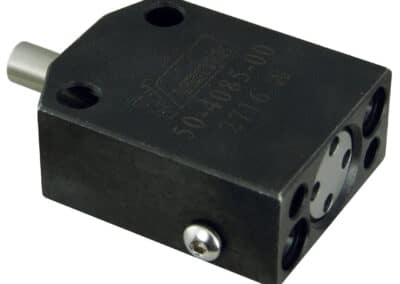

Pneumatic Confirmation Valve, Block
The pneumatic confirmation valve confirms the stage of loading before or after clamping. It is adaptable to multiple devices including: Swing clamps, link clamps, cylinders and work supports. Avoid machine crashes by confirming specific actions before you cycle your machine. It is designed to be used in both coolant and dry environments, and is easily mounted either vertically or horizontally. Confirmation at its finest!
- Easily fine tune to your fixture giving you a choice of set and differential pressure.
- Confirm signal is based on restricting air flow when tested function is present.
- Over-travel sensing will reopen if a device depresses plunger too far on over travel models.
- Pneumatic Confirmation Valve can be used with almost any clamping device.
- Can help you detect missing or misloaded parts.
- Remote venting recommended in coolant applications.
- 1/8 Tube – M3 Connector – Part No. P3-0370-20, (Order Separately).
* Pressure drop when one or more valves are open. All valves must be closed for pressure confirmation. Plumb multiple valves in parallel.

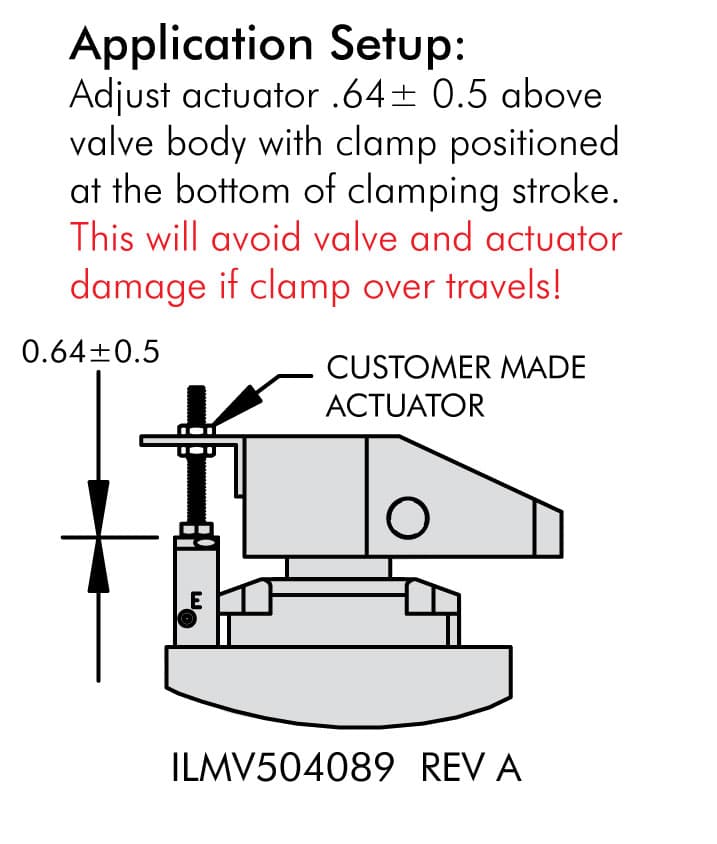

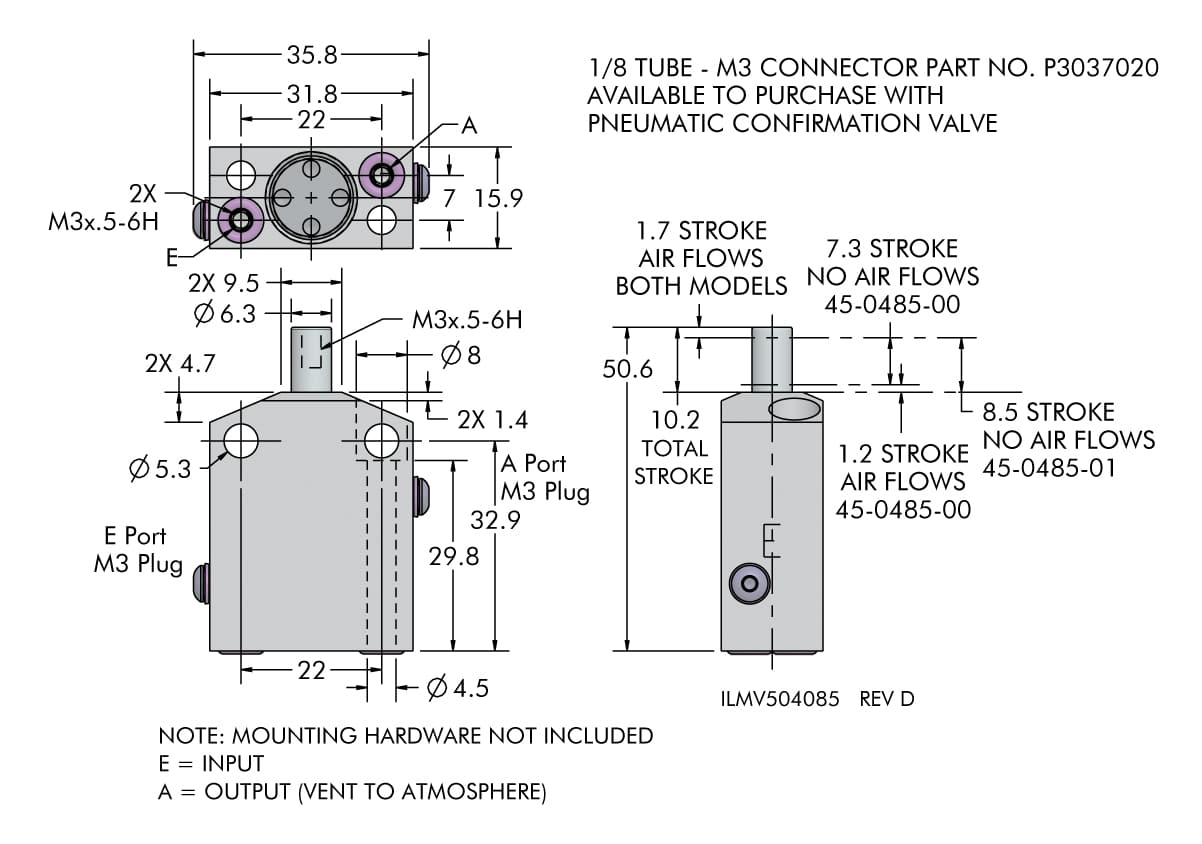

NOTE: Mounting hardware not included.
NOTE: Mounting hardware not included.

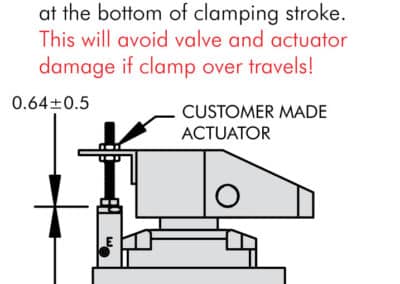

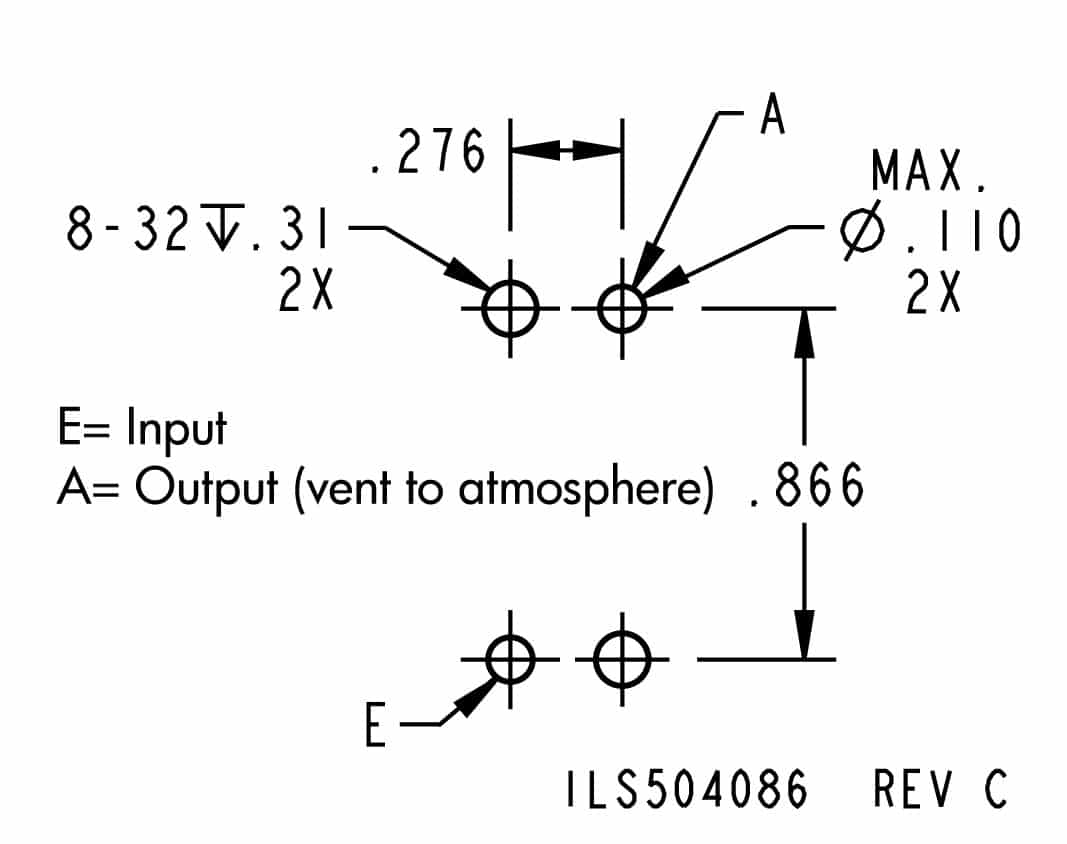

For proper sealing, mating surface must be flat within 0.08 mm with a maximum 1.6 mµ Ra surface finish.
| Model No. | Action | Max Air Pressure | Pressure Range | Air Flow Rate | Differential Pressure @ 140 kPa Air Pressure | Differential Pressure @ 480 kPa Air Pressure | Plunger Stroke (mm) | Spring Force (N) | Nom. Ø | Port Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 45-0485-00 | Over-Travel Sensing | 1000 kPa | 70 - 480 kPa | 10 - 20 L/Min | Min. 80 | Min. 310 | 10 Max | 6.6 - 13.3 | 2 | Manifold & M3 |
| 45-0485-01 | Standard | 1000 kPa | 70 - 480 kPa | 10 - 20 L/Min | Min. 80 | Min. 310 | 10 Max | 6.6 - 13.3 | 2 | Manifold & M3 |
