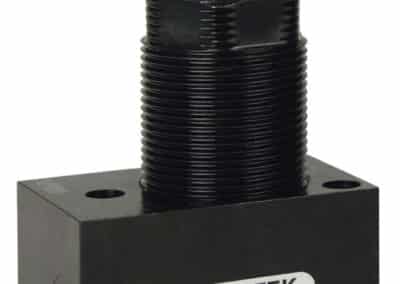

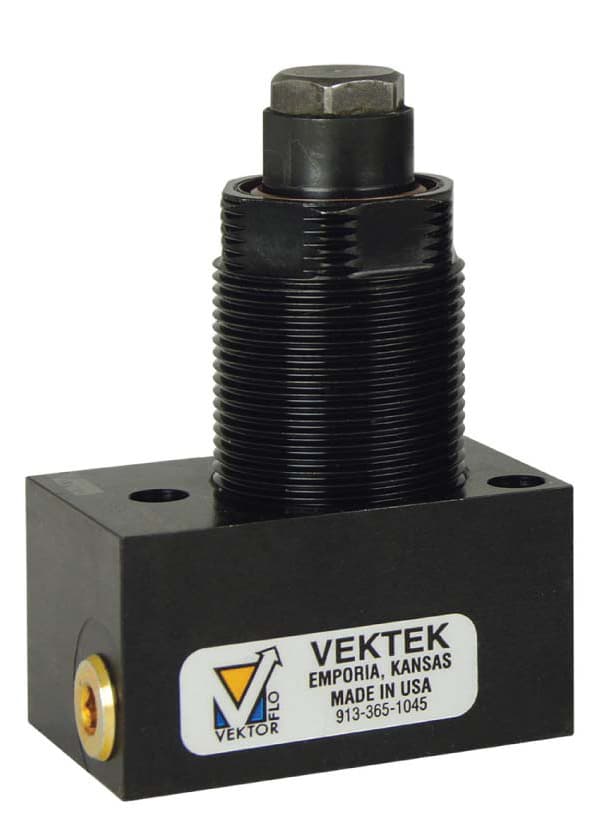

TuffGrip High Capacity Fluid Advance 3-Bolt Base Inch Hydraulic Work Supports

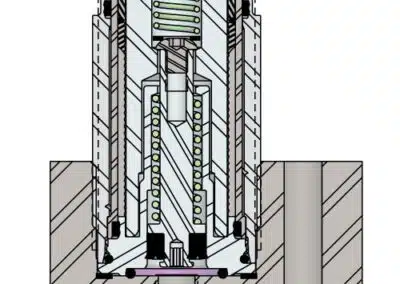

Normally retracted plungers do not interfere with part loading. Advance them with hydraulic pressure, exerting only spring force to bring the plunger into contact with your part. Hydraulic pressure then automatically sequences, freezing the plunger properly against the part.
- Available in 2000 or 4000 lb. capacity.
- Order with base or cartridge only.
- Ventless configuration and built in wipers protect the plunger movement from chips and debris.
- Up to 3.5X capacity of competitor’s version.
- Uses Vektek’s BHC (Black Hard Coating) technology to guard against corrosion.
- O-Ring face seal design makes machining cavities easier.
Standard SAE porting and alternate O-Ring manifold face seal is located in the base of the support for bolt down installation. The base can be removed for direct cartridge mounting.

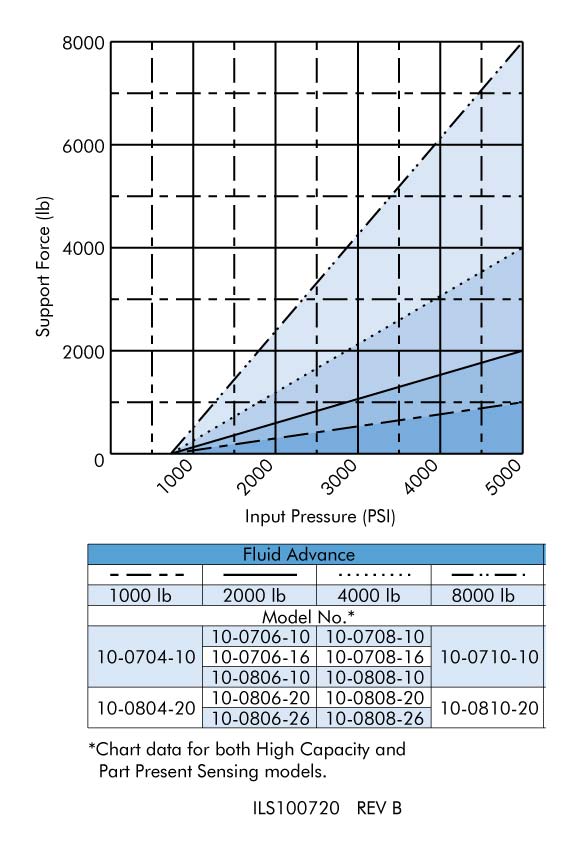

* Support capacities are listed at 5,000 psi maximum pressure. Support capacities for other pressures
are shown in the fluid advance High Capacity and Part Present Sensing load capacity chart tab.
** Restrict flow rate to a maximum of 130 cu. in./minute.
*** For cartridge mount models, see cavity dimensions drawing in this section.
**** For complete dimensions, see Fluid Advance Work Supports.
NOTE: The maximum system back-pressure a fluid advance work support can overcome is 10 psi. Returning back-pressure greater than 10 psi may cause slow or failed retraction.
For proper sealing, all mating surfaces should be flat within 0.003 inches, with a maximum surface roughness of 63 μ in. Ra. Hydraulic oil feed holes for manifold mounting Ø 0.09 to Ø 0.20 inches.
For Spherical Work Support Contact Bolt, click here.
| Model No. | Direct Replacement for Older Model | Support Capacity (lb.) | Mounting Style | Contact Force (lb.) | Stroke (in.) | Base Dimension (in.) | Retracted Height (in.) | Oil Capacity (cu. in.) |
|---|---|---|---|---|---|---|---|---|
| 10-0806-10 | 10-0806-05 | 2000 | Base - SAE/Manifold - 3 Bolt | 1-6 | 0.25 | 0.90 X 1.31 X 1.75 | 2.51 | 0.05 |
| 10-0806-16 | 10-0806-15 | 2000 | Base - SAE/Manifold - 3 Bolt | 1-6 | 0.50 | 0.90 X 1.31 X 1.75 | 3.01 | 0.07 |
| 10-0808-10 | 10-0808-07 | 4000 | Base - SAE/Manifold - 3 Bolt | 3-10 | 0.25 | 1.25 X 1.50 X 2.31 | 3.25 | 0.12 |
| 10-0808-16 | 10-0808-17 | 4000 | Base - SAE/Manifold - 3 Bolt | 3-10 | 0.50 | 1.25 X 1.50 X 2.31 | 3.75 | 0.15 |

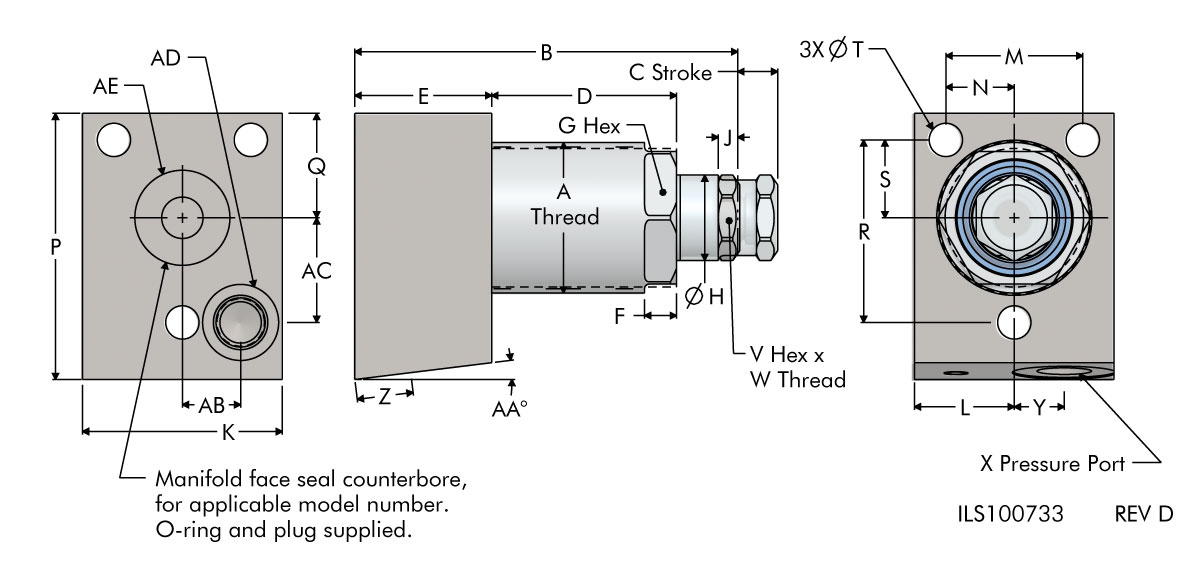

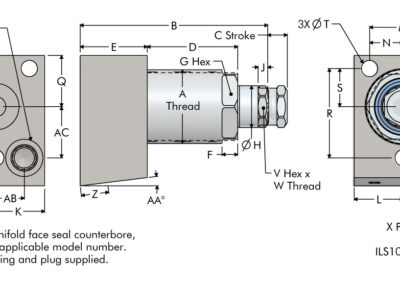

| Model No. | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | W | X | Y | Z | AA | AB | AC | AD | AE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-0806-10 | 1 - 16 | 2.51 | 0.25 | 1.19 | 0.90 | 0.21 | 0.88 | 0.56 | 0.14 | 1.31 | 0.66 | 0.90 | 0.45 | 1.75 | 0.69 | 1.20 | 0.51 | 0.22 | 0.50 | 5/16 -18 X 0.20 | SAE 2 | 0.33 | 0.38 | 7 | 0.38 | 0.69 | YES | N/A |
| 10-0806-16 | 1 - 16 | 3.01 | 0.50 | 1.65 | 0.90 | 0.21 | 0.88 | 0.56 | 0.14 | 1.31 | 0.66 | 0.90 | 0.45 | 1.75 | 0.69 | 1.20 | 0.51 | 0.22 | 0.50 | 3/8-24 X 0.20 | SAE 2 | 0.33 | 0.38 | 7 | 0.38 | 0.69 | YES | N/A |
| 10-0808-10 | 1 1/4 - 16 | 3.25 | 0.25 | 1.44 | 1.25 | 0.36 | 1.13 | 0.75 | 0.19 | 1.50 | 0.75 | 1.06 | 0.53 | 2.31 | 0.94 | 1.66 | 0.72 | 0.28 | 0.63 | 7/16-14 X 0.25 | SAE 4 | 0.43 | 0.38 | N/A | N/A | N/A | N/A | YES |
| 10-0808-16 | 1 1/4 - 16 | 3.75 | 0.50 | 1.83 | 1.25 | 0.36 | 1.13 | 0.75 | 0.19 | 1.50 | 0.75 | 1.06 | 0.53 | 2.31 | 0.94 | 1.66 | 0.72 | 0.28 | 0.63 | 7/16-14 X 0.25 | SAE 4 | 0.43 | 0.38 | N/A | N/A | N/A | N/A | YES |
| Model No. | Support Capacity (lb.) |
|---|---|
| 10-0806-10 | 2000 |
| 10-0806-16 | 2000 |
| 10-0808-10 | 4000 |
| 10-0808-16 | 4000 |
| Model No. | Support Capacity (lb.) | O-Ring Part Number | O-Ring Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|
| 10-0806-10 | 2000 | 39-0510-59 | 0.236 X 0.059 | 0.384 | 0.197 | 0.238 | 0.047 | 5/16 - 18 UNC-2A |
| 10-0806-16 | 2000 | 39-0000-69 | 0.301 X 0.064 | 0.450 | 0.197 | 0.302 | 0.047 | 3/8 - 24 UNF-2A |
| 10-0808-10 | 4000 | 55-2500-05 | 0.301 X 0.070 | 0.493 | 0.250 | 0.328 | 0.070 | 7/16 - 14 UNC-2A |
| 10-0808-16 | 4000 | 55-2500-05 | 0.301 X 0.070 | 0.493 | 0.250 | 0.328 | 0.070 | 7/16 - 14 UNC-2A |
