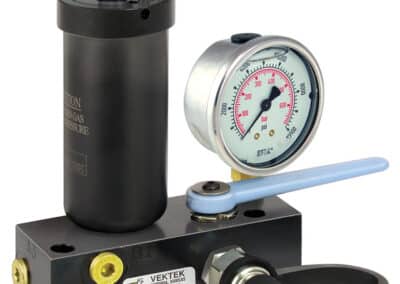

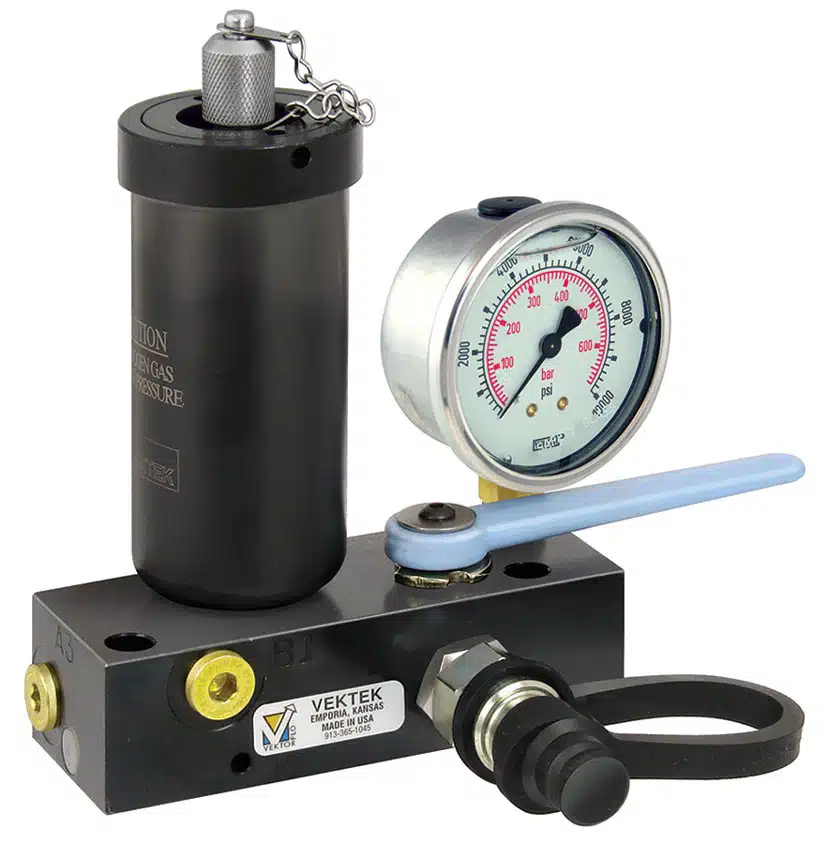

Manual Shutoff Valve Decoupler
Metric Palletized Fixtures Accessories
For Single Acting Systems

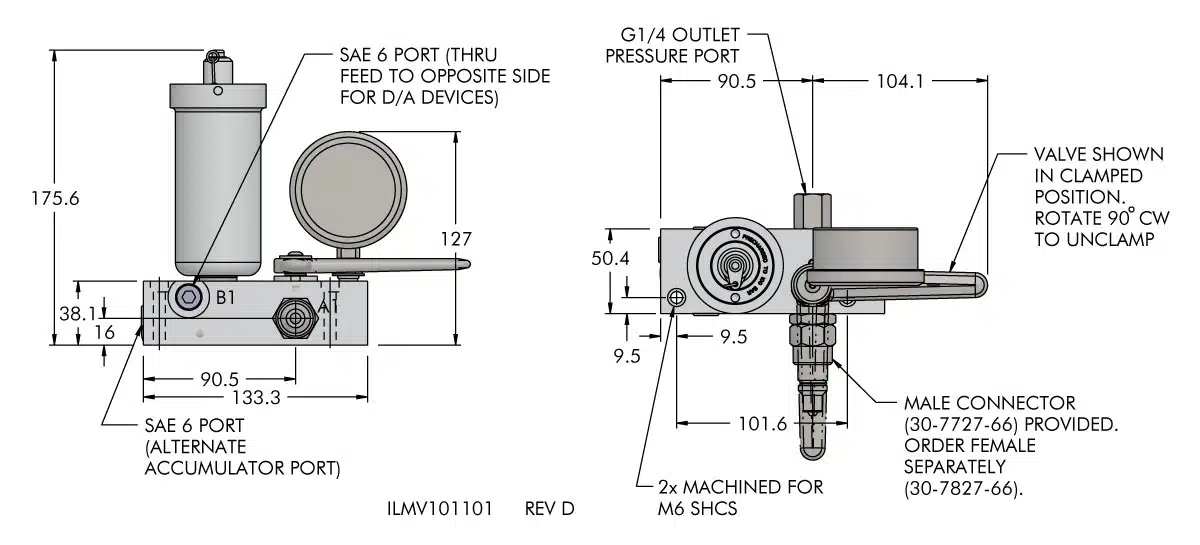

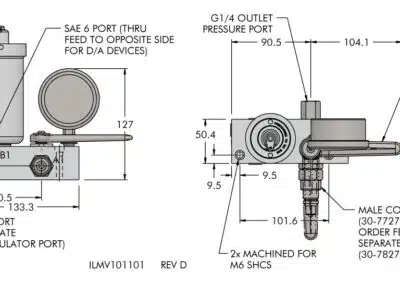

- This Decoupler is a convenient, self-contained package that includes a quick connect coupling, manual shutoff valve, accumulator (choose from horizontal or vertical arrangement), filter screen, pressure gauge, and over-pressure relief valve.
- Includes auxiliary ports that can be used for double acting pallet circuits or compressed air.
- External accumulator can be repositioned horizontally or vertically to suit the pallet layout.

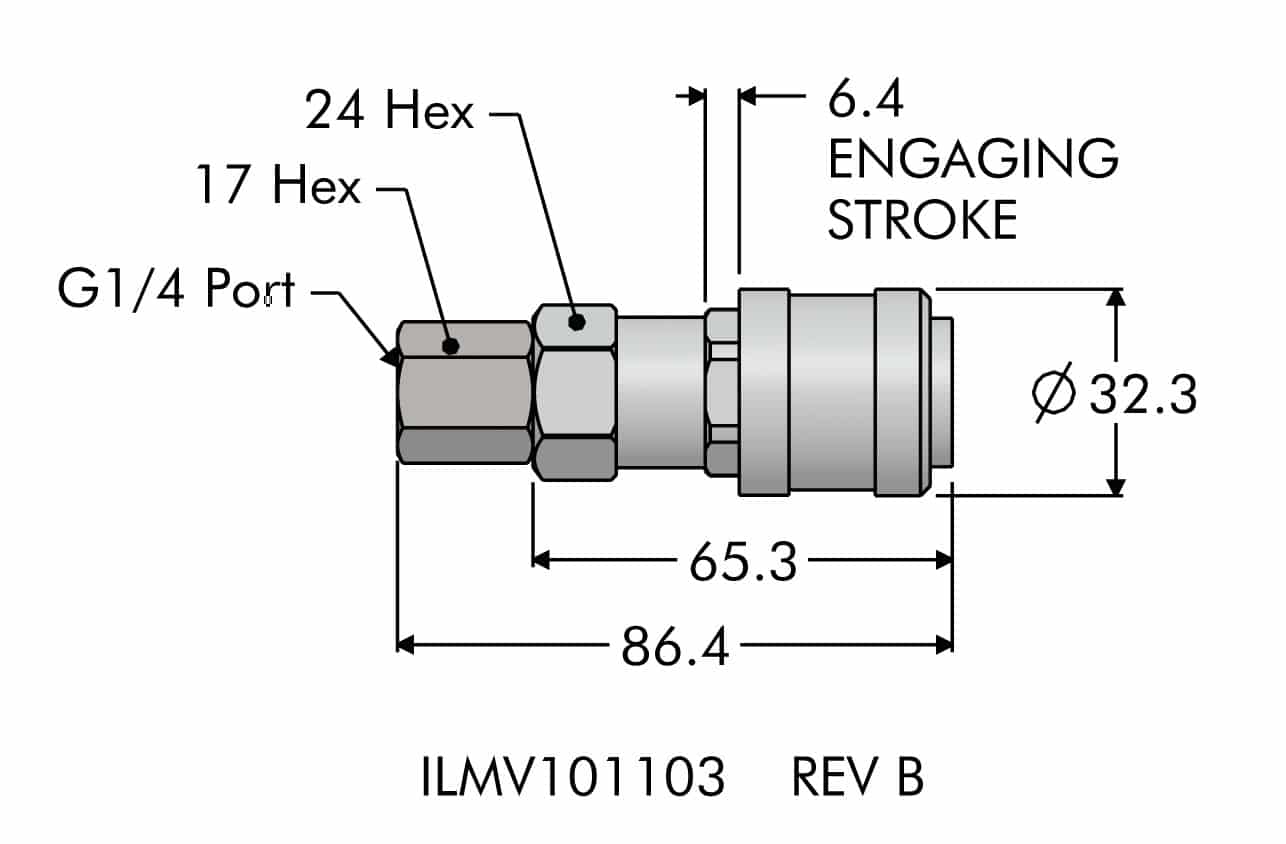

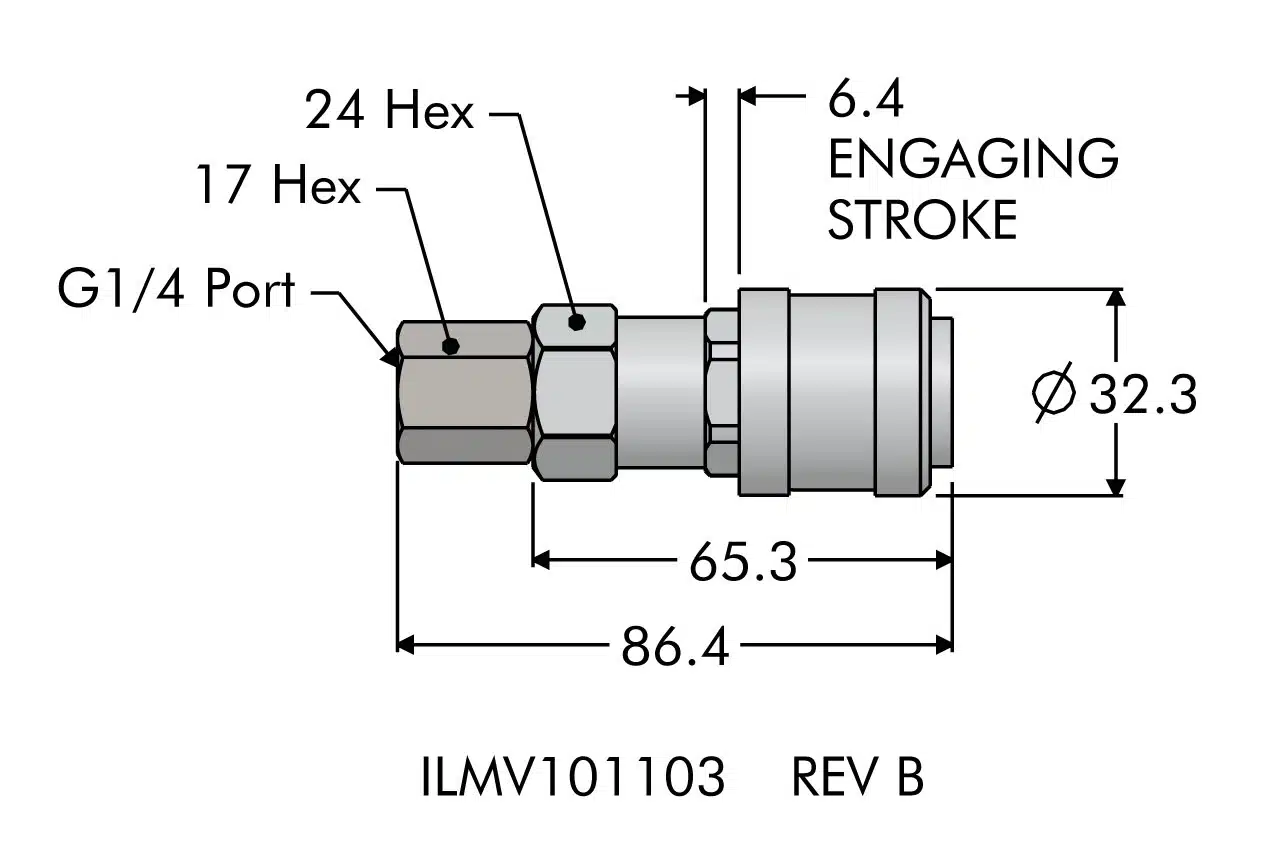

- Quick Connect with female G 1/4, Model No. 49-5600-00, sold separately.
NOTE: Please check accumulator’s gas pre-charge during your annual maintenance check. Consult factory if you require assistance. This Manual Shutoff Valve Decoupler must be used with a suitable pump which includes a 2-position/3-port, directional control valve for operation of one single acting circuit. Contact Vektek for considerations in the use of this Manual Shutoff Decoupler to control double acting circuits.
For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ Ra.
| Model No. | Pressure Range | Accumulator Capacity |
|---|---|---|
| 45-6001-01 | 140 - 350 bar (14 - 35 MPa) | 52 cm³ |
| 45-6001-02 | 70 - 250 bar (7 - 25 MPa) | 59 cm³ |
| 45-6001-03 | 30 - 100 bar (3 - 10 MPa) | 62 cm³ |
