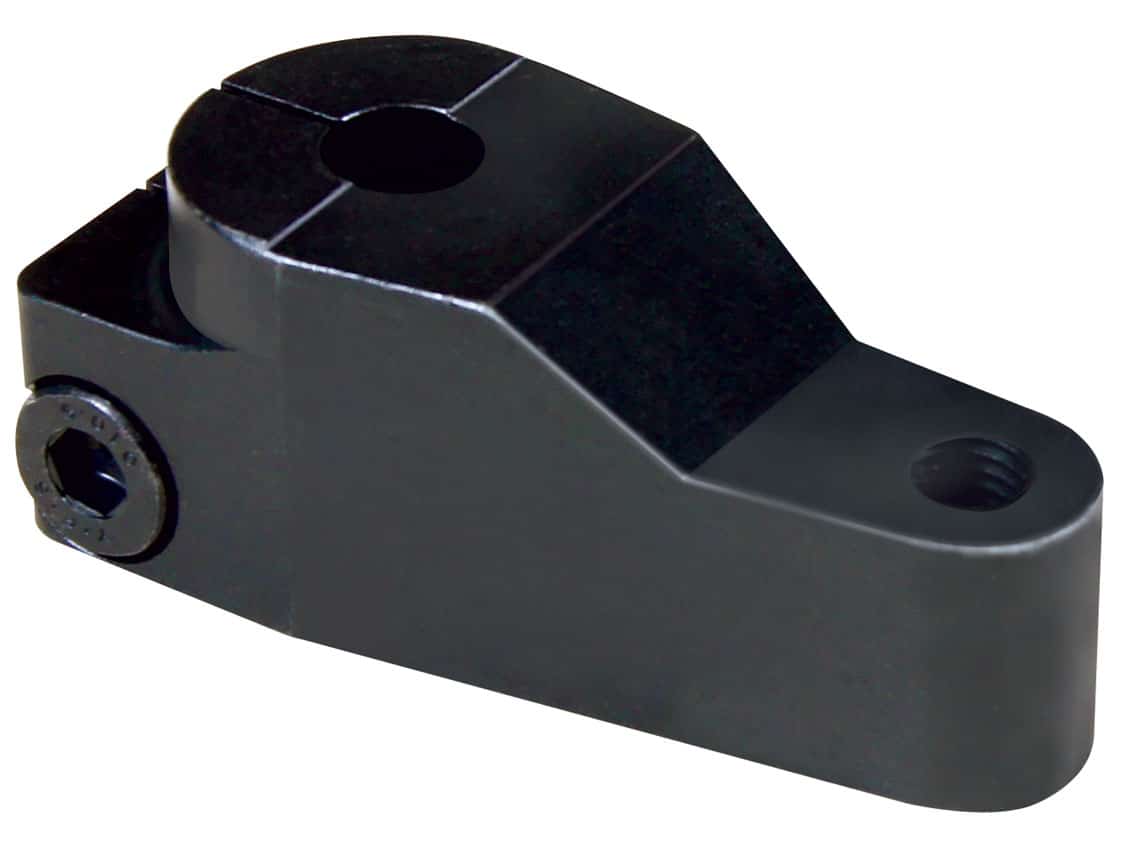

Standard 7MPa Arm

Low Pressure Swing Clamp Arms

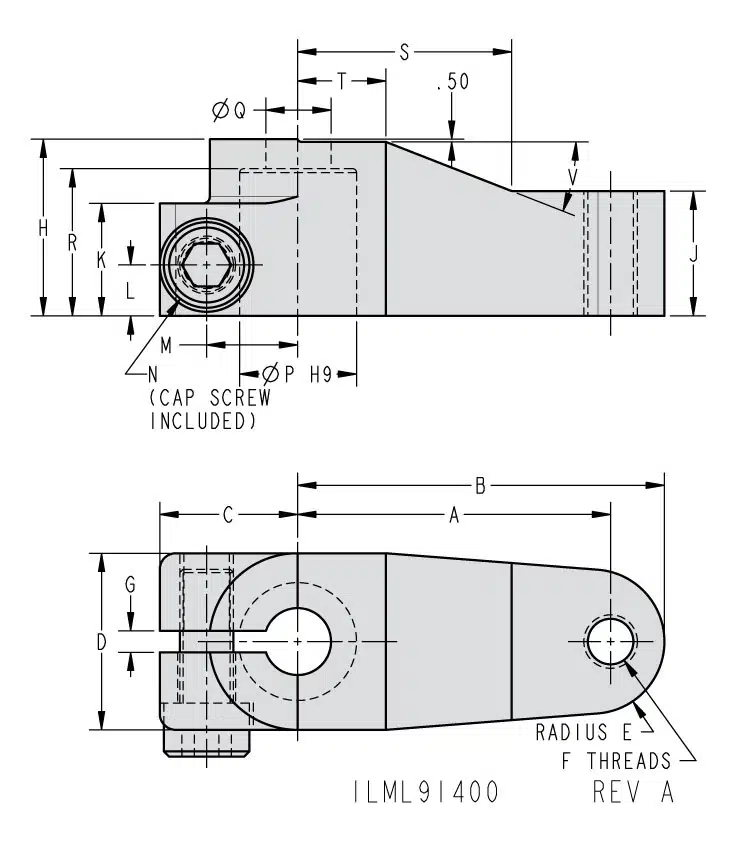

Model No.	Clamp Capacity (kN)	Bore Size (mm)	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	V
L9-1425-01	1.9	25	45.5	51.5	17.13	22.5	8.8	M6 X 1	4	22.5	15.5	15	6	11.5	M6 X 1	15	8.5	18.75	29	11.25	20
L9-1432-01	3.3	32	49	57	21.25	27	11.1	M8 X 1.25	4	27	19.5	18	7.75	14	M8 X 1.25	18	10.5	22.5	32.25	13.5	20
L9-1440-01	5.2	40	58.5	68.5	25.75	33	13.5	M10 X 1.5	4	33	23.3	21	9.5	17	M10 X 1.5	22	12.5	27.5	40	16.5	21
L9-1450-01	8.0	50	68	80	30.75	42	17.5	M12 X 1.75	4	42	30.5	28	10.75	21	M12 X 1.75	28	14.5	35	49	21	21
L9-1463-01	12.5	63	80.5	96.5	39.75	54	23.1	M16 X 2	4	54	40.2	35	14	27	M16 X 2	36	18.5	45	56	27	25
L9-1480-01	20.4	80	89.5	109.5	49.25	67.5	29.9	M20 X 2.5	4	67.5	52.4	45	17	33.5	M20 X 2.5	45	22.5	56.25	67.5	33.75	24
