Threaded Body

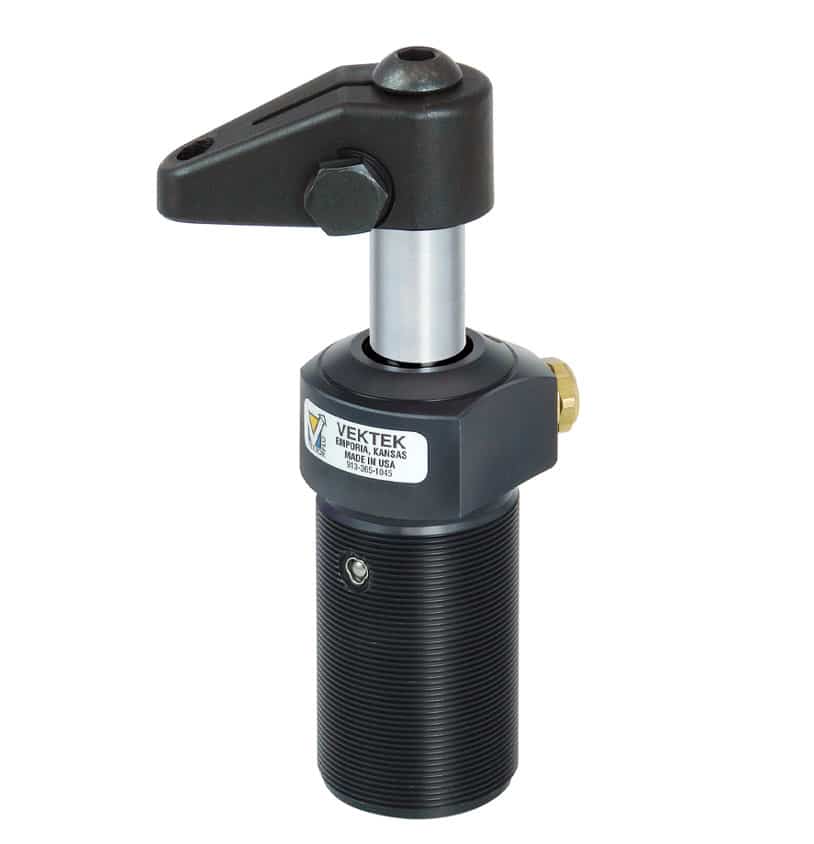

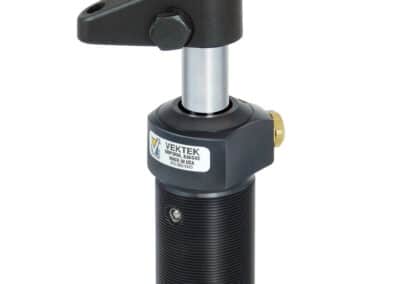

VersaCam™ Swing Clamps

Single and Double Acting

Available in four capacities from 2 kN to 22 kN at 350 bar (35 MPa).
Standard models swing 90°, swing angles of less than 90° readily available for a small additional charge, swings of more than 90° are special order products. (Swing Restrictors)
See Clamp Time and Flow Rate Chart for time and rates to avoid cylinder damage and preserve warranty.
Standard Arm Clocking uses standard Vektek Arms.
Arms sold separately.
See Ultrasonic variant.

Porting is all on the top of the cylinder body for easy access (bottom unclamp porting is available), no need to modify fixtures or reroute tubing to access cylinder end to unclamp.

Vent port with bronze filter gives the cylinder a place to breathe and helps keep chips from drawing past wipers.

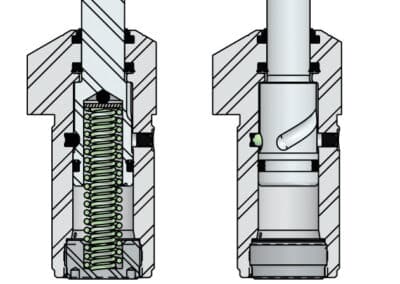

Hardened V-cam tracks resist damage and give you a built in extra cam or straight line option should you accidentally damage one. Specify left, right or straight cam, and we will preset the swing when you order.

* Cylinder capacities are listed at 350 bar (35 MPa) maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 52 bar (5.2 MPa) for single acting, 35 bar (3.5 MPa) for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the cylinder capacity shown above by 350 (35), and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
** To allow for piece part height variations, it is recommended that the vertical travel be set at about 50% of the vertical stroke.
*** To insure maximum service life and trouble-free operation, restrict fluid flow to the level indicated in the Clamp Time and Flow Rate Chart.

WARNING: Never allow swing arm to contact workpiece or fixture during arm rotation.

Model No.	Swing Direction	Clamp Capacity (kN)	Vertical Clamp Stroke (mm)	Total Stroke (Swing + Vertical) (mm)	Body Thread	Piston Area (cm²) Retract	Oil Capacity Extend (cm³)	Oil Capacity Retract (cm³)
41-5002-11	Right	2	6	14.5	M28 X 1.5	0.63	N/A	0.92
41-5002-12	Left	2	6	14.5	M28 X 1.5	0.63	N/A	0.92
41-5002-15	Straight	2	14.5	14.5	M28 X 1.5	0.63	N/A	0.92
41-5002-21	Right	2	6	14.5	M28 X 1.5	0.63	2.3	0.92
41-5002-22	Left	2	6	14.5	M28 X 1.5	0.63	2.3	0.92
41-5002-25	Straight	2	14.5	14.5	M28 X 1.5	0.63	2.3	0.92
41-5005-11	Right	4.9	8	20	M38 X 1.5	1.90	N/A	3.82
41-5005-12	Left	4.9	8	20	M38 X 1.5	1.90	N/A	3.82
41-5005-15	Straight	4.9	20	20	M38 X 1.5	1.90	N/A	3.82
41-5005-21	Right	4.9	8	20	M38 X 1.5	1.90	7.8	3.82
41-5005-22	Left	4.9	8	20	M38 X 1.5	1.90	7.8	3.82
41-5005-25	Straight	4.9	20	20	M38 X 1.5	1.90	7.8	3.82
41-5011-11	Right	11.6	13	29.5	M48 X 1.5	4.04	N/A	11.9
41-5011-12	Left	11.6	13	29.5	M48 X 1.5	4.04	N/A	11.9
41-5011-15	Straight	11.6	29.5	29.5	M48 X 1.5	4.04	N/A	11.9
41-5011-21	Right	11.6	13	29.5	M48 X 1.5	4.04	23	11.9
41-5011-22	Left	11.6	13	29.5	M48 X 1.5	4.04	23	11.9
41-5011-25	Straight	11.6	29.5	29.5	M48 X 1.5	4.04	23	11.9
41-5022-11	Right	22	16	42	M65 X 1.5	7.60	N/A	32
41-5022-12	Left	22	16	42	M65 X 1.5	7.60	N/A	32
41-5022-15	Straight	22	42	42	M65 X 1.5	7.60	N/A	32
41-5022-21	Right	22	16	42	M65 X 1.5	7.60	65.4	32
41-5022-22	Left	22	16	42	M65 X 1.5	7.60	65.4	32
41-5022-25	Straight	22	42	42	M65 X 1.5	7.60	65.4	32

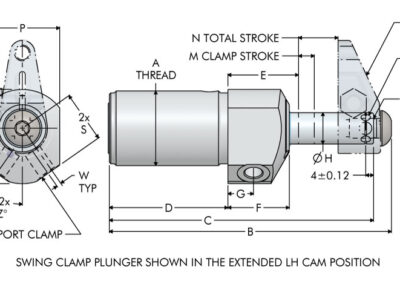

Model No.	A	B	C	D	E	F	G	H	J	M	N	P	S	T	V	W	Z	AC	AD
41-5002-11	M28 X 1.5	108	102	44	30.5	25.5	13	11.13	M6 X 1 X 7	6	14.5	32	20.5	38	14	N/A	25	G1/8	3.2
41-5002-12	M28 X 1.5	108	102	44	30.5	25.5	13	11.13	M6 X 1 X 7	6	14.5	32	20.5	38	14	N/A	25	G1/8	3.2
41-5002-15	M28 X 1.5	108	102	44	30.5	25.5	13	11.13	M6 X 1 X 7	14.5	14.5	32	20.5	38	14	N/A	25	G1/8	3.2
41-5002-21	M28 X 1.5	108	102	44	30.5	25.5	13	11.13	M6 X 1 X 7	6	14.5	32	20.5	38	14	N/A	25	G1/8	3.2
41-5002-22	M28 X 1.5	108	102	44	30.5	25.5	13	11.13	M6 X 1 X 7	6	14.5	32	20.5	38	14	N/A	25	G1/8	3.2
41-5002-25	M28 X 1.5	108	102	44	30.5	25.5	13	11.13	M6 X 1 X 7	14.5	14.5	32	20.5	38	14	N/A	25	G1/8	3.2
41-5005-11	M38 X 1.5	143	134	60	36	31	13	15.88	M10 X 1.5 X 12	8	20	38	26	47.5	19.5	2.41	35	G1/8	4.8
41-5005-12	M38 X 1.5	143	134	60	36	31	13	15.88	M10 X 1.5 X 12	8	20	38	26	47.5	19.5	2.41	35	G1/8	4.8
41-5005-15	M38 X 1.5	143	134	60	36	31	13	15.88	M10 X 1.5 X 12	20	20	38	26	47.5	19.5	2.41	35	G1/8	4.8
41-5005-21	M38 X 1.5	143	134	60	36	31	13	15.88	M10 X 1.5 X 12	8	20	38	26	47.5	19.5	2.41	35	G1/8	4.8
41-5005-22	M38 X 1.5	143	134	60	36	31	13	15.88	M10 X 1.5 X 12	8	20	38	26	47.5	19.5	2.41	35	G1/8	4.8
41-5005-25	M38 X 1.5	143	134	60	36	31	13	15.88	M10 X 1.5 X 12	20	20	38	26	47.5	19.5	2.41	35	G1/8	4.8
41-5011-11	M48 X 1.5	185	172	79	38	32	13	22.23	M12 X 1.75 X 13	13	29.5	47.5	31.5	60	25.5	2.22	30	G1/4	4.8
41-5011-12	M48 X 1.5	185	172	79	38	32	13	22.23	M12 X 1.75 X 13	13	29.5	47.5	31.5	60	25.5	2.22	30	G1/4	4.8
41-5011-15	M48 X 1.5	185	172	79	38	32	13	22.23	M12 X 1.75 X 13	29.5	29.5	47.5	31.5	60	25.5	2.22	30	G1/4	4.8
41-5011-21	M48 X 1.5	185	172	79	38	32	13	22.23	M12 X 1.75 X 13	13	29.5	47.5	31.5	60	25.5	2.22	30	G1/4	4.8
41-5011-22	M48 X 1.5	185	172	79	38	32	13	22.23	M12 X 1.75 X 13	13	29.5	47.5	31.5	60	25.5	2.22	30	G1/4	4.8
41-5011-25	M48 X 1.5	185	172	79	38	32	13	22.23	M12 X 1.75 X 13	29.5	29.5	47.5	31.5	60	25.5	2.22	30	G1/4	4.8
41-5022-11	M65 X 1.5	252	236	115.5	42	34	13	31.71	M16 X 2 X 19	16	42	65	37	73	33	1.27	30	G1/4	4.8
41-5022-12	M65 X 1.5	252	236	115.5	42	34	13	31.71	M16 X 2 X 19	16	42	65	37	73	33	1.27	30	G1/4	4.8
41-5022-15	M65 X 1.5	252	236	115.5	42	34	13	31.71	M16 X 2 X 19	42	42	65	37	73	33	1.27	30	G1/4	4.8
41-5022-21	M65 X 1.5	252	236	115.5	42	34	13	31.71	M16 X 2 X 19	16	42	65	37	73	33	1.27	30	G1/4	4.8
41-5022-22	M65 X 1.5	252	236	115.5	42	34	13	31.71	M16 X 2 X 19	16	42	65	37	73	33	1.27	30	G1/4	4.8
41-5022-25	M65 X 1.5	252	236	115.5	42	34	13	31.71	M16 X 2 X 19	42	42	65	37	73	33	1.27	30	G1/4	4.8
