Low Profile Double Ended Arms
Metric Swing Clamp Arms
- 44-1431-00 For use with Low Profile Swing Clamp Models 41-4622-XX, 41-4222-XX.
- 44-1232-00 For use with Low Profile Swing Clamp Models 41-4633-XX, 41-4233-XX.
NOTE
Replacement Cap Screw for 44-1231-00 is Model No. 21-5000-24 Replacement Cap Screw for 44-1232-00 is Model No. 21-5000-28. For arm limits, see the Swing Clamp Arms Learn More Page.

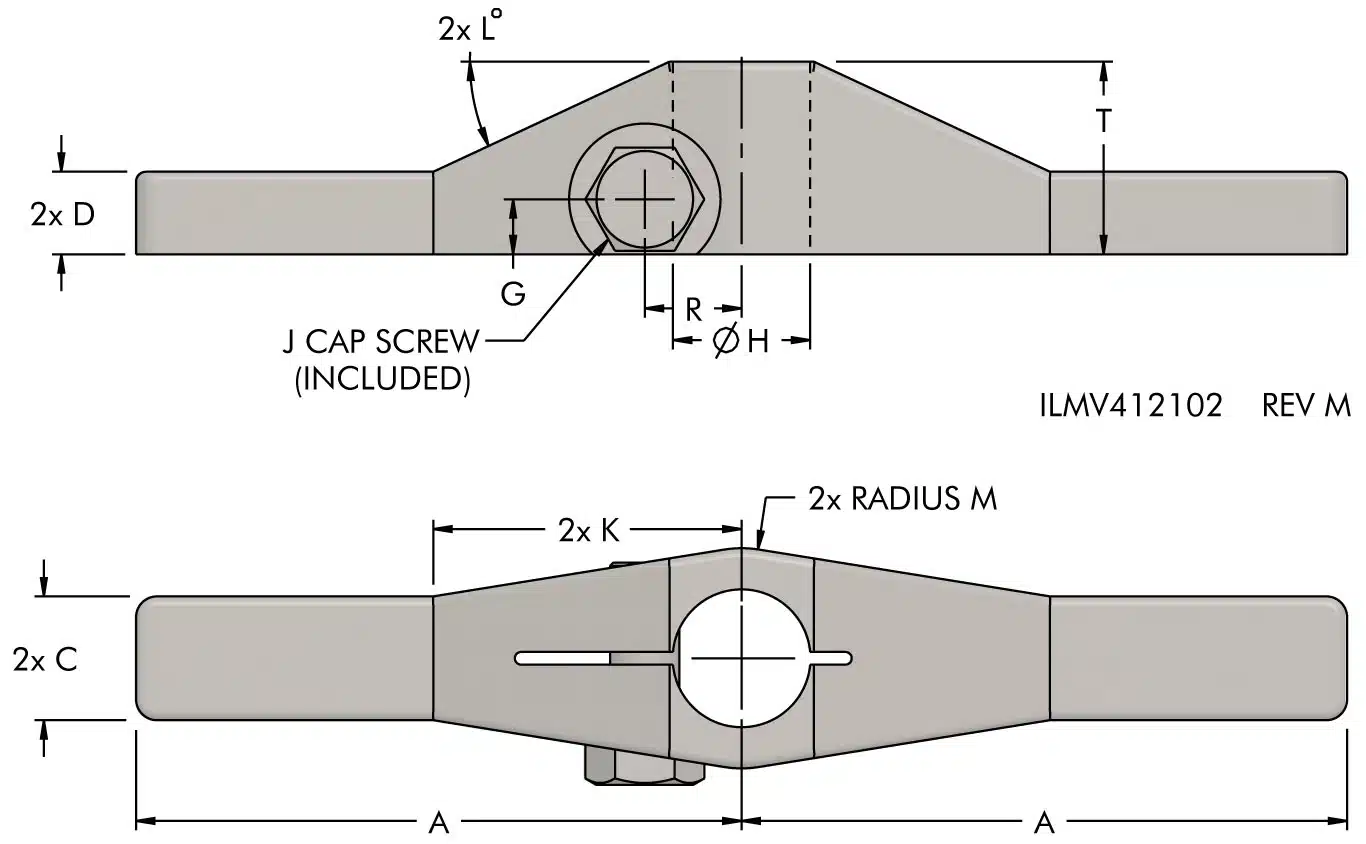

| Model No. | Clamp Capacity (kN) | A | C | D | G | H | J | K | L | M | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44-1231-00 | 22 | 140 | 28.5 | 19.1 | 12.5 | 31.75 - 31.80 | M16 X 1.5 | 70.5 | 25 | 25.5 | 22.5 | 44.5 |
| 44-1232-00 | 33 | 180.3 | 30.2 | 33.8 | 14.2 | 38.11 - 38.16 | M16 X 1.5 | 44.6 | 25 | 35 | 25.6 | 44.5 |
