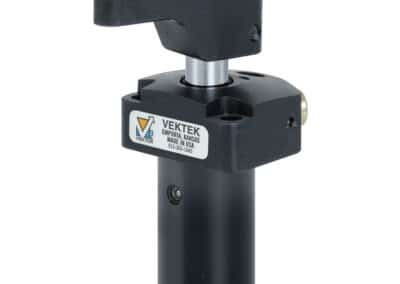

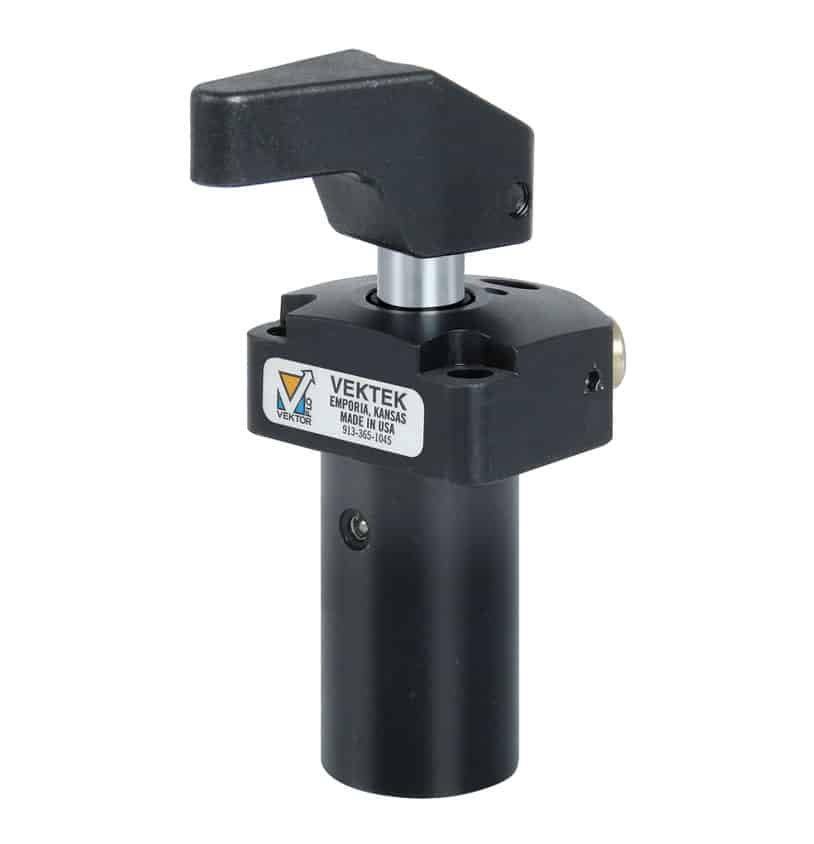

Top Flange

VersaCam™ Swing Clamp

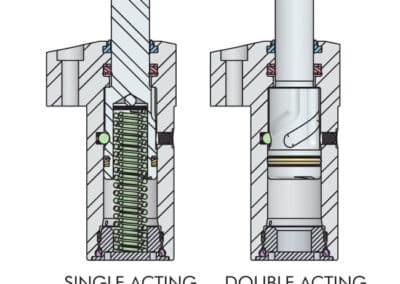

Single And Double Acting

Available in capacities from 2 kN to 11.6 kN at 350 bar (35 MPa) pressure.
Easy to use, just bolt in place and plumb or use the easy-to-make manifold pattern to eliminate external plumbing.
Can be either manifold mounted or standard plumbed using standard fittings.
Single piece body and mounting give a rigid installation, no threads to rock around or additional mounting hardware to buy.
To avoid cylinder damage and preserve warranty, use recommended flow rate limits and time calculations shown here.
Standard swing is 90°; swing angles of less than 90° require Swing Restrictors. Swing angles greater than 90° are special order products.
Clocking feature uses standard length Vektek arm.
Arms sold separately.
Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
Optional In-Port Sequence valve is a sequencing device with reverse free flow check valve.
See Ultrasonic variant.

* Cylinder capacities are listed at 350 bar (356 MPa) maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 52 bar (5.2 MPa) for single acting, 35 bar (3.5 MPa) for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the cylinder capacity shown above by 350 (35), and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
** To allow for workpiece height variations, it is recommended that the vertical travel be set to about 50% of the vertical stroke.
*** To ensure maximum service life and trouble-free operation, restrict fluid flow according to the Flow Rate Chart.

Warning: Never allow swing arm to contact workpiece or fixture during arm rotation.

For proper sealing, the mating surface must be flat within 0.08 mm with a maximum surface roughness of 1.6 mµ R_a.

Model No.	Swing Direction	Clamp Capacity (kN)	Vertical Clamp Stroke (mm)	Total Stroke (Swing + Vertical) (mm)	Piston Area (cm²) Retract	Oil Capacity Extend (cm³)	Oil Capacity Retract (cm³)	Port X For Optional In-Port Valves
41-5602-13	Right	2	6	14.5	0.63	N/A	0.92	G 1/8 X 15.16
41-5602-14	Left	2	6	14.5	0.63	N/A	0.92	G 1/8 X 15.16
41-5602-16	Straight	2	14.5	14.5	0.63	N/A	0.92	G 1/8 X 15.16
41-5605-13	Right	4.9	8	20	1.90	N/A	3.82	G 1/8 X 15.16
41-5605-14	Left	4.9	8	20	1.90	N/A	3.82	G 1/8 X 15.16
41-5605-16	Straight	4.9	20	20	1.90	N/A	3.82	G 1/8 X 15.16
41-5611-13	Right	11.6	13	29.5	4.04	N/A	11.9	G 1/4 X 18.72
41-5611-14	Left	11.6	13	29.5	4.04	N/A	11.9	G 1/4 X 18.72
41-5611-16	Straight	11.6	29.5	29.5	4.04	N/A	11.9	G 1/4 X 18.72

Model No.	Swing Direction	Clamp Capacity (kN)	Vertical Clamp Stroke (mm)	Total Stroke (Swing + Vertical) (mm)	Piston Area (cm²) Retract	Oil Capacity Extend (cm³)	Oil Capacity Retract (cm³)	Port X For Optional In-Port Valves
41-5602-23	Right	2	6	14.5	0.63	2.3	0.92	G 1/8 X 15.16
41-5602-24	Left	2	6	14.5	0.63	2.3	0.92	G 1/8 X 15.16
41-5602-26	Straight	2	14.5	14.5	0.63	2.3	0.92	G 1/8 X 15.16
41-5605-23	Right	4.9	8	20	1.90	7.8	3.82	G 1/8 X 15.16
41-5605-24	Left	4.9	8	20	1.90	7.8	3.82	G 1/8 X 15.16
41-5605-26	Straight	4.9	20	20	1.90	7.8	3.82	G 1/8 X 15.16
41-5611-23	Right	11.6	13	29.5	4.04	23	11.9	G 1/4 X 18.72
41-5611-24	Left	11.6	13	29.5	4.04	23	11.9	G 1/4 X 18.72
41-5611-26	Straight	11.6	29.5	29.5	4.04	23	11.9	G 1/4 X 18.72

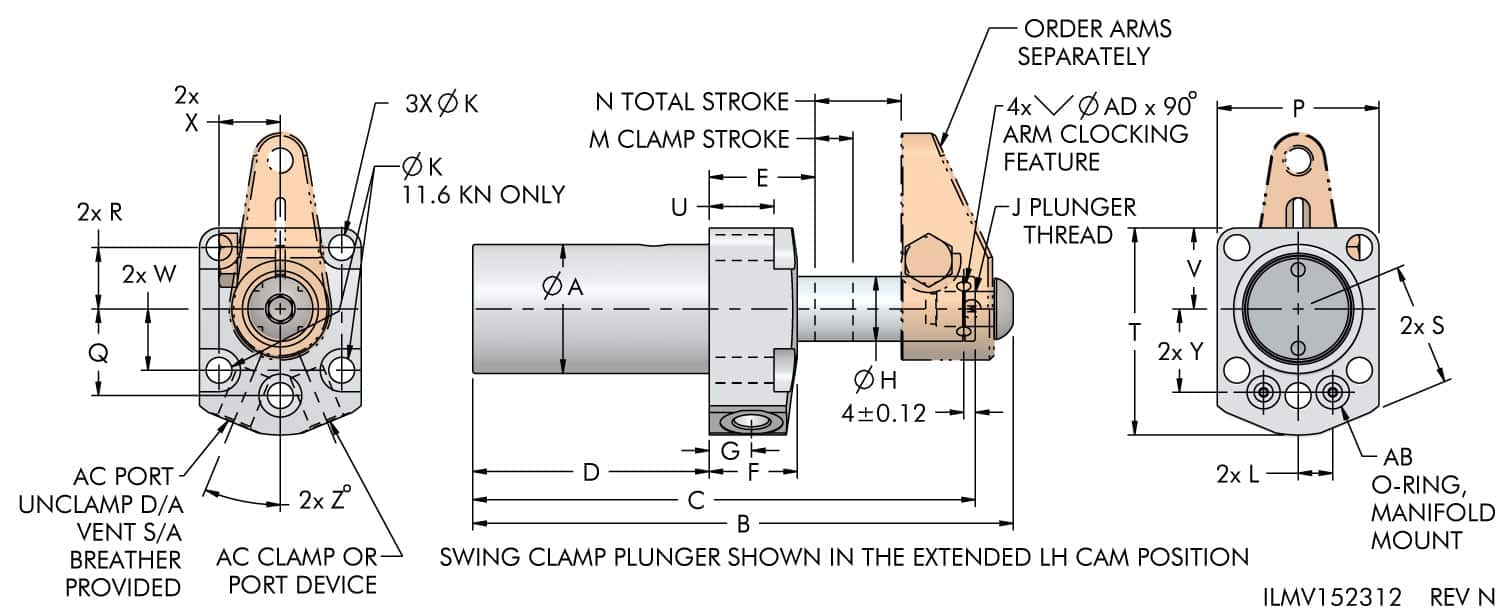

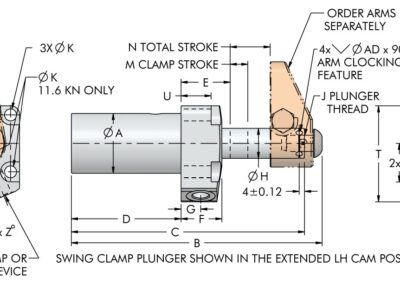

Model No.	Clamp Capacity (kN)	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	U	V	W	X	Y	Z	AB	AC	AD
41-5602-13	2	25.2	108	101.5	44	31	26	13	11.13	M6 X 1 X 7	6	10.5	6	14.5	45	20	10	31	47	18	15.5	N/A	17.3	18.2	30	Ø7.65 X 1.78	G1/8	3.2
41-5602-14	2	25.2	108	101.5	44	31	26	13	11.13	M6 X 1 X 7	6	10.5	6	14.5	45	20	10	31	47	18	15.5	N/A	17.3	18.2	30	Ø7.65 X 1.78	G1/8	3.2
41-5602-16	2	25.2	108	101.5	44	31	26	13	11.13	M6 X 1 X 7	6	10.5	14.5	14.5	45	20	10	31	47	18	15.5	N/A	17.3	18.2	30	Ø7.65 X 1.78	G1/8	3.2
41-5605-13	4.9	36.3	143	134	64.5	31.5	27	13	15.88	M10 X 1.5 X 12	7	20.5	8	20	57	25	12.5	33.5	54	19	19	N/A	21.7	14.4	30	Ø7.65 X 1.78	G1/8	4.8
41-5605-14	4.9	36.3	143	134	64.5	31.5	27	13	15.88	M10 X 1.5 X 12	7	20.5	8	20	57	25	12.5	33.5	54	19	19	N/A	21.7	14.4	30	Ø7.65 X 1.78	G1/8	4.8
41-5605-16	4.9	36.3	143	134	64.5	31.5	27	13	15.88	M10 X 1.5 X 12	7	20.5	20	20	57	25	12.5	33.5	54	19	19	N/A	21.7	14.4	30	Ø7.65 X 1.78	G1/8	4.8
41-5611-13	11.6	44.2	185	172	81	36	30	14.5	22.23	M12 X 1.75 X 13	9	11.8	13	29.5	55.5	29.7	21	42	71	22.1	27.5	21	21	28.6	22.5	Ø7.65 X 1.78	G1/4	4.8
41-5611-14	11.6	44.2	185	172	81	36	30	14.5	22.23	M12 X 1.75 X 13	9	11.8	13	29.5	55.5	29.7	21	42	71	22.1	27.5	21	21	28.6	22.5	Ø7.65 X 1.78	G1/4	4.8
41-5611-16	11.6	44.2	185	172	81	36	30	14.5	22.23	M12 X 1.75 X 13	9	11.8	29.5	29.5	55.5	29.7	21	42	71	22.1	27.5	21	21	28.6	22.5	Ø7.65 X 1.78	G1/4	4.8

Model No.	Clamp Capacity (kN)	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	S	T	U	V	W	X	Y	Z	AB	AC	AD
41-5602-23	2	25.2	108	101.5	44	31	26	13	11.13	M6 X 1 X 7	6	10.5	6	14.5	45	20	10	31	47	18	15.5	N/A	17.3	18.2	30	Ø7.65 X 1.78	G1/8	3.2
41-5602-24	2	25.2	108	101.5	44	31	26	13	11.13	M6 X 1 X 7	6	10.5	6	14.5	45	20	10	31	47	18	15.5	N/A	17.3	18.2	30	Ø7.65 X 1.78	G1/8	3.2
41-5602-26	2	25.2	108	101.5	44	31	26	13	11.13	M6 X 1 X 7	6	10.5	14.5	14.5	45	20	10	31	47	18	15.5	N/A	17.3	18.2	30	Ø7.65 X 1.78	G1/8	3.2
41-5605-23	4.9	36.3	143	134	64.5	31.5	27	13	15.88	M10 X 1.5 X 12	7	20.5	8	20	57	25	12.5	33.5	54	19	19	N/A	21.7	14.4	30	Ø7.65 X 1.78	G1/8	4.8
41-5605-24	4.9	36.3	143	134	64.5	31.5	27	13	15.88	M10 X 1.5 X 12	7	20.5	8	20	57	25	12.5	33.5	54	19	19	N/A	21.7	14.4	30	Ø7.65 X 1.78	G1/8	4.8
41-5605-26	4.9	36.3	143	134	64.5	31.5	27	13	15.88	M10 X 1.5 X 12	7	20.5	20	20	57	25	12.5	33.5	54	19	19	N/A	21.7	14.4	30	Ø7.65 X 1.78	G1/8	4.8
41-5611-23	11.6	44.2	185	172	81	36	30	14.5	22.23	M12 X 1.75 X 13	9	11.8	13	29.5	55.5	29.7	21	42	71	22.1	27.5	21	21	28.6	22.5	Ø7.65 X 1.78	G1/4	4.8
41-5611-24	11.6	44.2	185	172	81	36	30	14.5	22.23	M12 X 1.75 X 13	9	11.8	13	29.5	55.5	29.7	21	42	71	22.1	27.5	21	21	28.6	22.5	Ø7.65 X 1.78	G1/4	4.8
41-5611-26	11.6	44.2	185	172	81	36	30	14.5	22.23	M12 X 1.75 X 13	9	11.8	29.5	29.5	55.5	29.7	21	42	71	22.1	27.5	21	21	28.6	22.5	Ø7.65 X 1.78	G1/4	4.8

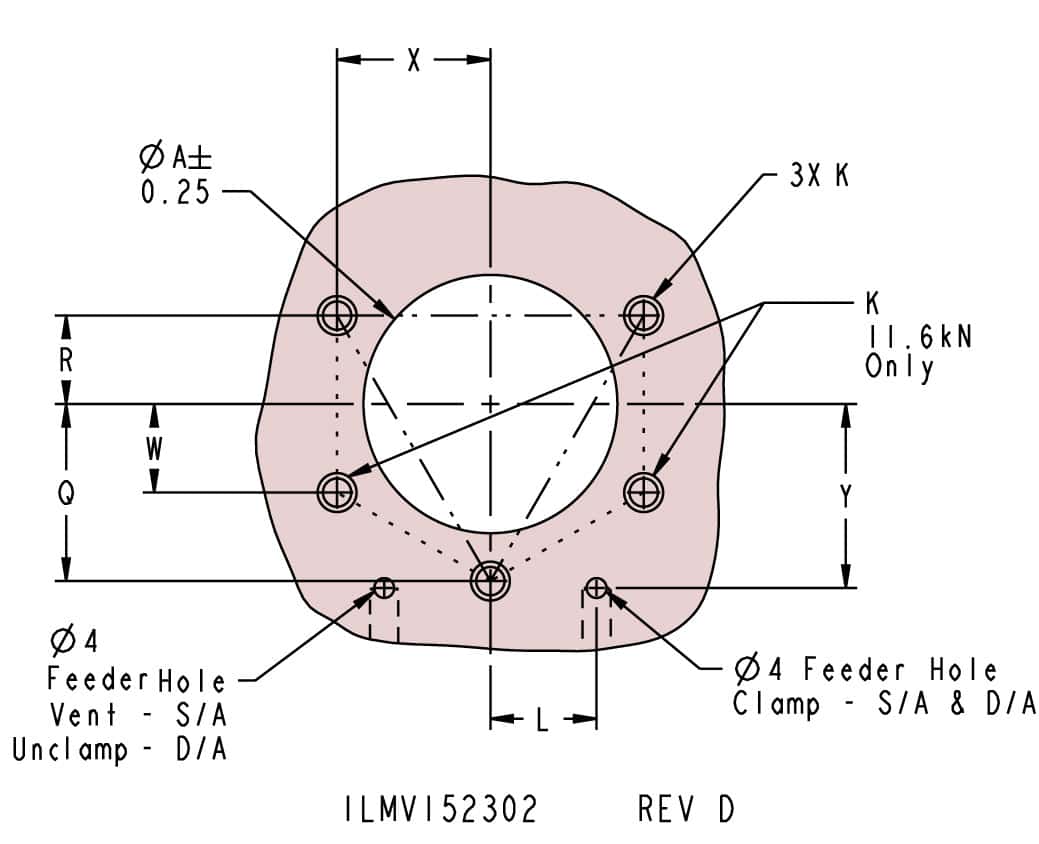

Model No.	A	K	L	Q	R	W	X	Y
41-5602-13	26	M5	10.5	20	10	N/A	17.3	18.2
41-5602-14	26	M5	10.5	20	10	N/A	17.3	18.2
41-5602-16	26	M5	10.5	20	10	N/A	17.3	18.2
41-5605-13	37	M6	20.5	25	12.5	N/A	21.7	14.4
41-5605-14	37	M6	20.5	25	12.5	N/A	21.7	14.4
41-5605-16	37	M6	20.5	25	12.5	N/A	21.7	14.4
41-5611-13	45	M8	11.8	29.7	21	21	21	28.6
41-5611-14	45	M8	11.8	29.7	21	21	21	28.6
41-5611-16	45	M8	11.8	29.7	21	21	21	28.6

Model No.	A	K	L	Q	R	W	X	Y
41-5602-23	26	M5	10.5	20	10	N/A	17.3	18.2
41-5602-24	26	M5	10.5	20	10	N/A	17.3	18.2
41-5602-26	26	M5	10.5	20	10	N/A	17.3	18.2
41-5605-23	37	M6	20.5	25	12.5	N/A	21.7	14.4
41-5605-24	37	M6	20.5	25	12.5	N/A	21.7	14.4
41-5605-26	37	M6	20.5	25	12.5	N/A	21.7	14.4
41-5611-23	45	M8	11.8	29.7	21	21	21	28.6
41-5611-24	45	M8	11.8	29.7	21	21	21	28.6
41-5611-26	45	M8	11.8	29.7	21	21	21	28.6
