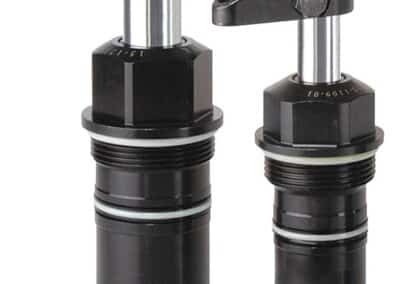

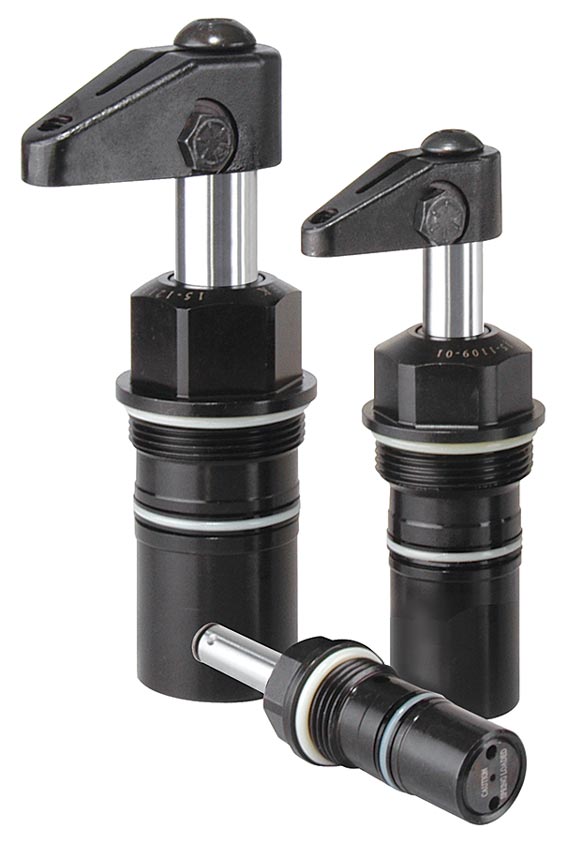

VersaCam Cartridge Mount Swing Clamps

Single and Double Acting

Simplified cavity design makes machining of pocket and installation easier
Eliminates the need for exposed plumbing, installs nicely in custom designed chip shedding fixtures.
Uses SAE O-ring mounting configuration.
Bury deeply in fixtures to reduce overall installed height and simplify design.
Arms sold separately.
Simplified pocket design with O-ring face seal on top allows use of some standard port tooling.
Only one O-ring must pass cross porting during installation, and only one (not two) ports must be passed (but should not touch), reducing the chance of O-ring damage during installation.

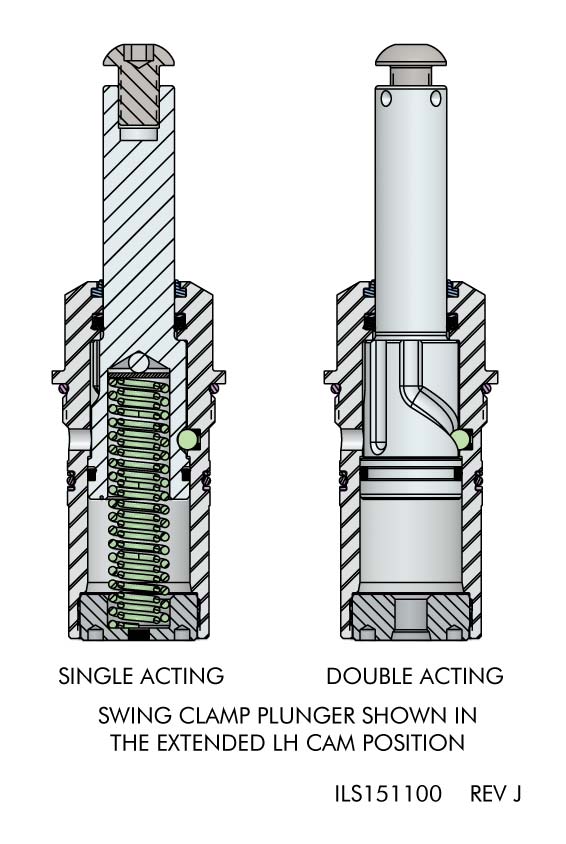

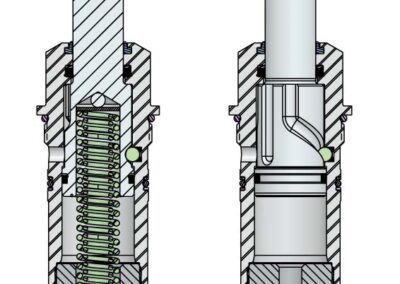

Hardened V-cam tracks resist damage and give you a built in extra cam (opposite swing direction) or straight line option should you accidentally damage one. Specify left, right or straight cam and we will preset the swing when you order.

WARNING: Never allow swing arm to contact workpiece or fixture during arm rotation.

Download our Swing Clamp Arm Installation and Adjustment Guide for clear, step-by-step instructions on correctly installing and adjusting swing clamp arms.

** Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 750 psi for single acting, 500 psi for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application divide the cylinder capacity shown above by 5,000, and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
*** To allow for piece part height variations, it is recommended that the vertical travel be set to about 50% of the vertical stroke.
**** To insure maximum service life and trouble-free operation, restrict fluid flow to the level indicated on the Clamp Time and Fluid Flow Rate Chart.

*Single Acting Swing Clamps must be vented. Do not install in a blind hole.

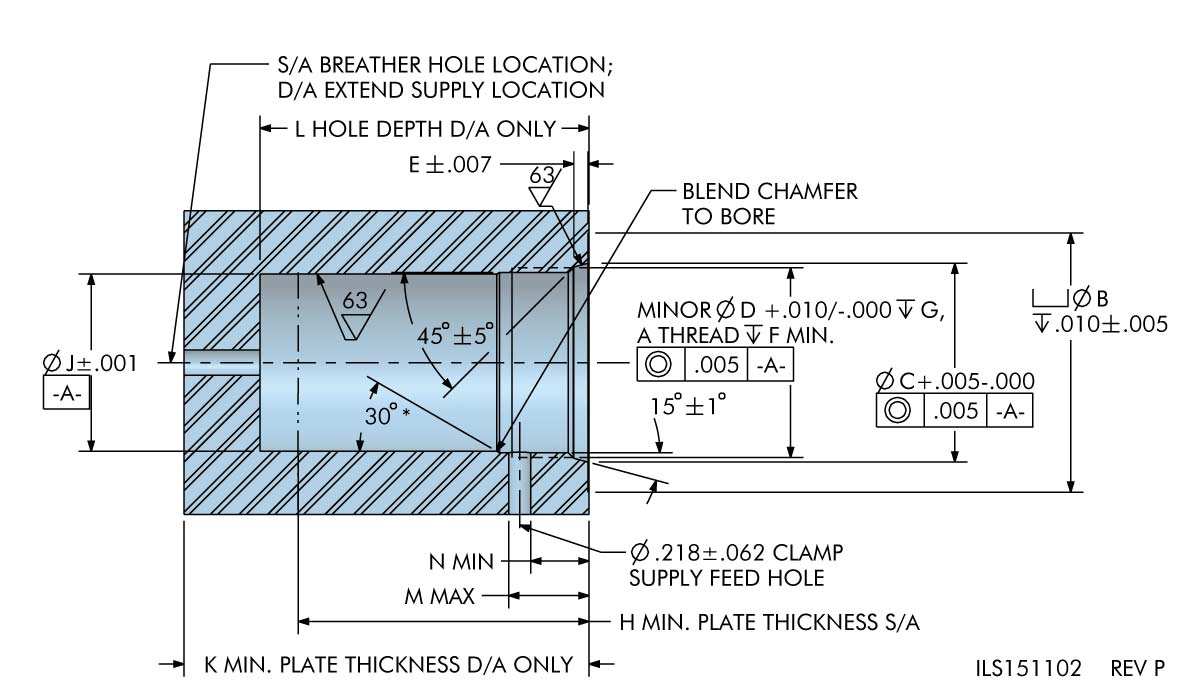

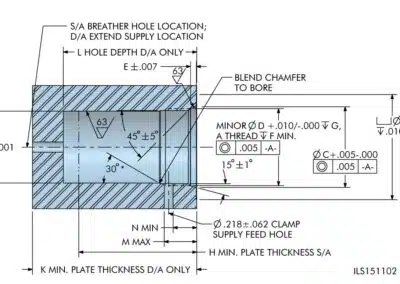

NOTE: Flexible honing of cavity is strongly recommended. Flex-Hone™ is a registered trademark of Brush Research Manufacturing Co. Inc., Los Angeles, CA, 323-261-2193. Please contact Brush Research for additional information.

Basic cavity can be formed with a standard (SAE J1926/1 Port Detail) O-ring Port Cutter.
*The 30° lead in angle is to ensure trouble-free seal installation

Model No.	Swing Direction	Clamp Capacity (lb.)	Vertical Clamp Stroke (in.)	Total Stroke (Swing + Vertical)	Body Thread	Standard Arm Length	Piston Area (sq. in.) Retract	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)
15-1105-02-L	Left	450	0.22	0.57	1 1/16-12	1.06	0.098	N/A	0.056
15-1105-02-R	Right	450	0.22	0.57	1 1/16-12	1.06	0.098	N/A	0.056
15-1105-02-S	Straight	450	0.57	0.57	1 1/16-12	1.06	0.098	N/A	0.056
15-1109-02-L	Left	1100	0.31	0.79	1 5/8-12	1.50	0.295	N/A	0.233
15-1109-02-R	Right	1100	0.31	0.79	1 5/8-12	1.50	0.295	N/A	0.233
15-1109-02-S	Straight	1100	0.79	0.79	1 5/8-12	1.50	0.295	N/A	0.233
15-1113-02-L	Left	2600	0.50	1.16	1 7/8-12	2.00	0.626	N/A	0.726
15-1113-02-R	Right	2600	0.50	1.16	1 7/8-12	2.00	0.626	N/A	0.726
15-1113-02-S	Straight	2600	1.16	1.16	1 7/8-12	2.00	0.626	N/A	0.726

Model No.	Swing Direction	Clamp Capacity (lb.)	Vertical Clamp Stroke (in.)	Total Stroke (Swing + Vertical)	Body Thread	Standard Arm Length	Piston Area (sq. in.) Retract	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)
15-1205-02-L	Left	450	0.22	0.57	1 1/16-12	1.06	0.098	0.142	0.056
15-1205-02-R	Right	450	0.22	0.57	1 1/16-12	1.06	0.098	0.142	0.056
15-1205-02-S	Straight	450	0.57	0.57	1 1/16-12	1.06	0.098	0.142	0.056
15-1209-02-L	Left	1100	0.31	0.79	1 5/8-12	1.50	0.295	0.475	0.233
15-1209-02-R	Right	1100	0.31	0.79	1 5/8-12	1.50	0.295	0.475	0.233
15-1209-02-S	Straight	1100	0.79	0.79	1 5/8-12	1.50	0.295	0.475	0.233
15-1213-02-L	Left	2600	0.50	1.16	1 7/8-12	2.00	0.626	1.423	0.726
15-1213-02-R	Right	2600	0.50	1.16	1 7/8-12	2.00	0.626	1.423	0.726
15-1213-02-S	Straight	2600	1.16	1.16	1 7/8-12	2.00	0.626	1.423	0.726

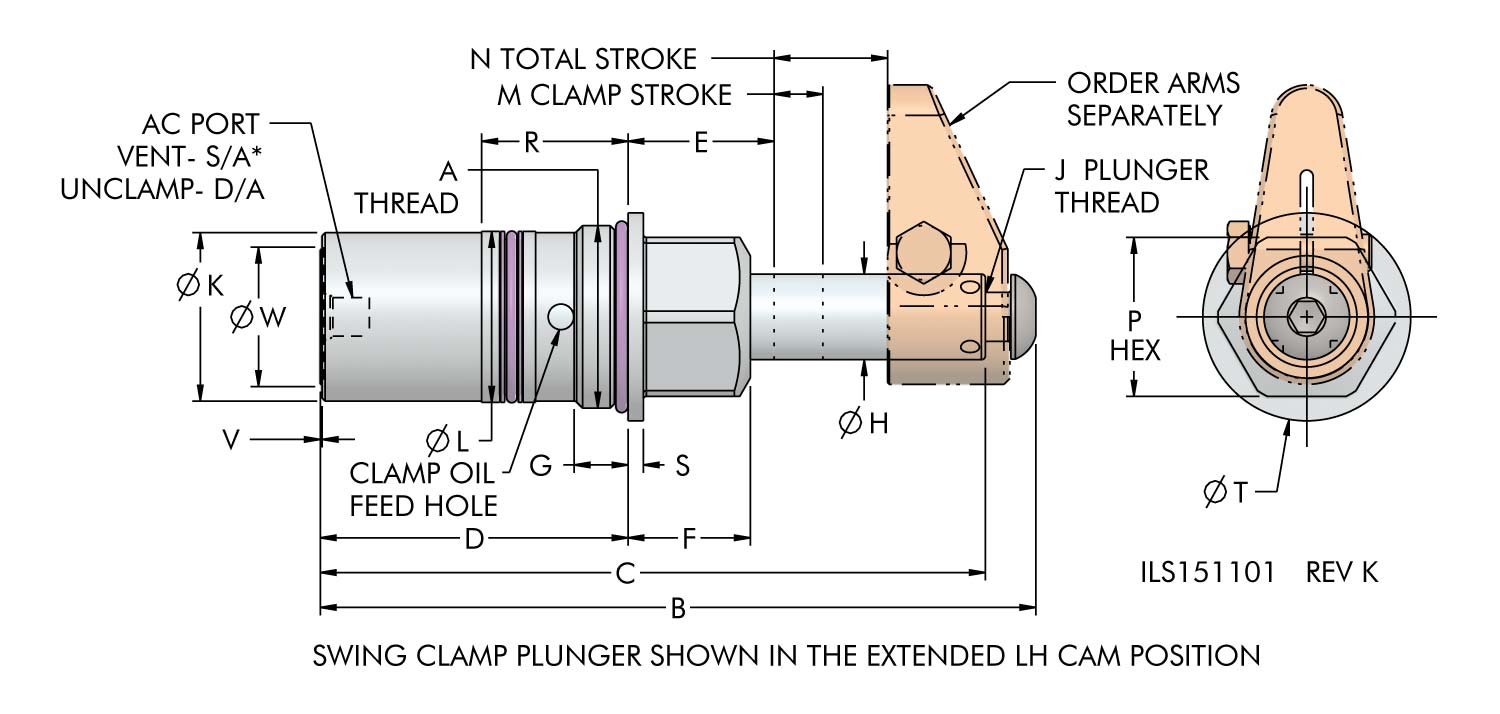

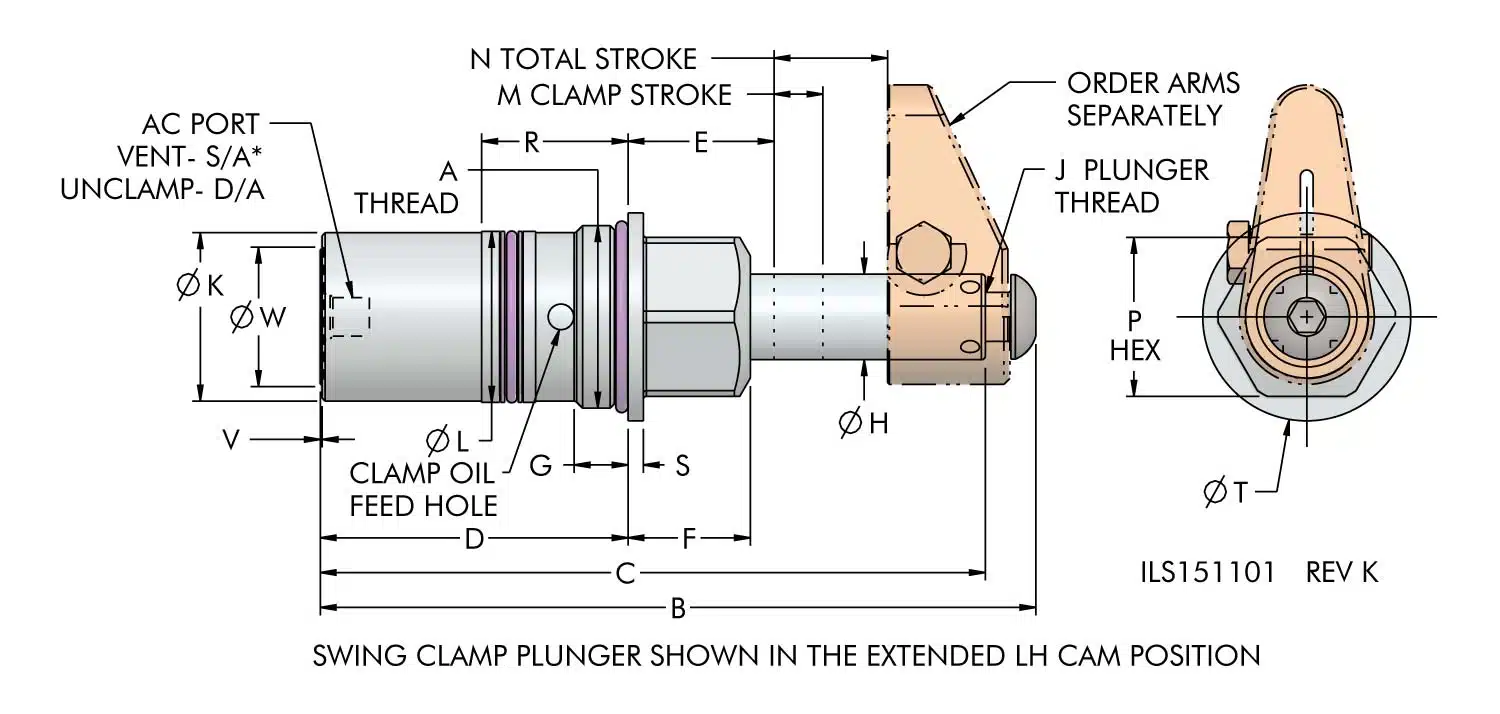

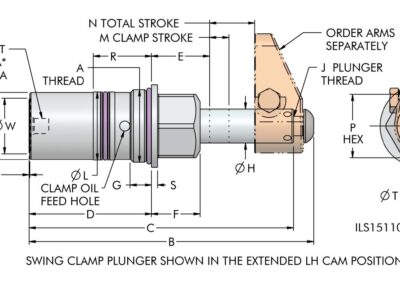

Model No.	Clamp Capacity (lb.)	A	B	C	D	E	F	G	H	J	K	L	M	N	P	R	S	T	V	W	AC
15-1105-02-L	450	1 1/16-12	4.25	4.00	2.12	0.83	0.63	0.49	0.438	1/4-28 x 0.28	0.92	0.935	0.22	0.57	1.00	1.32	0.13	1.25	N/A	N/A	Breather
15-1105-02-R	450	1 1/16-12	4.25	4.00	2.12	0.83	0.63	0.49	0.438	1/4-28 x 0.28	0.92	0.935	0.22	0.57	1.00	1.32	0.13	1.25	N/A	N/A	Breather
15-1105-02-S	450	1 1/16-12	4.25	4.00	2.12	0.83	0.63	0.49	0.438	1/4-28 x 0.28	0.92	0.935	0.22	0.57	1.00	1.32	0.13	1.25	N/A	N/A	Breather
15-1109-02-L	1100	1 5/8-12	5.66	5.31	2.68	1.13	0.94	0.65	0.625	3/8-24 x 0.47	1.34	1.372	0.31	0.79	1.50	1.50	0.13	1.88	0.02	1.03	Breather
15-1109-02-R	1100	1 5/8-12	5.66	5.31	2.68	1.13	0.94	0.65	0.625	3/8-24 x 0.47	1.34	1.372	0.31	0.79	1.50	1.50	0.13	1.88	0.02	1.03	Breather
15-1109-02-S	1100	1 5/8-12	5.66	5.31	2.68	1.13	0.94	0.65	0.625	3/8-24 x 0.47	1.34	1.372	0.31	0.79	1.50	1.50	0.13	1.88	0.02	1.03	Breather
15-1113-02-L	2600	1 7/8-12	7.32	6.80	3.15	1.49	1.25	0.55	0.875	1/2-20 x 0.52	1.72	1.747	0.50	1.16	1.63	1.50	0.16	2.13	0.02	1.40	Breather
15-1113-02-R	2600	1 7/8-12	7.32	6.80	3.15	1.49	1.25	0.55	0.875	1/2-20 x 0.52	1.72	1.747	0.50	1.16	1.63	1.50	0.16	2.13	0.02	1.40	Breather
15-1113-02-S	2600	1 7/8-12	7.32	6.80	3.15	1.49	1.25	0.55	0.875	1/2-20 x 0.52	1.72	1.747	0.50	1.16	1.63	1.50	0.16	2.13	0.02	1.40	Breather

Model No.	Clamp Capacity (lb.)	A	B	C	D	E	F	G	H	J	K	L	M	N	P	R	S	T	V	W	AC
15-1205-02-L	450	1 1/16-12	4.25	4.00	2.12	0.83	0.63	0.49	0.438	1/4-28 x 0.28	0.92	0.935	0.22	0.57	1.00	1.32	0.13	1.25	N/A	N/A	SAE 2
15-1205-02-R	450	1 1/16-12	4.25	4.00	2.12	0.83	0.63	0.49	0.438	1/4-28 x 0.28	0.92	0.935	0.22	0.57	1.00	1.32	0.13	1.25	N/A	N/A	SAE 2
15-1205-02-S	450	1 1/16-12	4.25	4.00	2.12	0.83	0.63	0.49	0.438	1/4-28 x 0.28	0.92	0.935	0.22	0.57	1.00	1.32	0.13	1.25	N/A	N/A	SAE 2
15-1209-02-L	1100	1 5/8-12	5.66	5.31	2.68	1.13	0.94	0.65	0.625	3/8-24 x 0.47	1.34	1.372	0.31	0.79	1.50	1.50	0.13	1.88	0.02	1.03	SAE 4
15-1209-02-R	1100	1 5/8-12	5.66	5.31	2.68	1.13	0.94	0.65	0.625	3/8-24 x 0.47	1.34	1.372	0.31	0.79	1.50	1.50	0.13	1.88	0.02	1.03	SAE 4
15-1209-02-S	1100	1 5/8-12	5.66	5.31	2.68	1.13	0.94	0.65	0.625	3/8-24 x 0.47	1.34	1.372	0.31	0.79	1.50	1.50	0.13	1.88	0.02	1.03	SAE 4
15-1213-02-L	2600	1 7/8-12	7.32	6.80	3.15	1.49	1.25	0.55	0.875	1/2-20 x 0.52	1.72	1.747	0.50	1.16	1.63	1.50	0.16	2.13	0.02	1.40	SAE 4
15-1213-02-R	2600	1 7/8-12	7.32	6.80	3.15	1.49	1.25	0.55	0.875	1/2-20 x 0.52	1.72	1.747	0.50	1.16	1.63	1.50	0.16	2.13	0.02	1.40	SAE 4
15-1213-02-S	2600	1 7/8-12	7.32	6.80	3.15	1.49	1.25	0.55	0.875	1/2-20 x 0.52	1.72	1.747	0.50	1.16	1.63	1.50	0.16	2.13	0.02	1.40	SAE 4

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N
15-1105-02-L	1 1/16-12	1.38	1.148	0.979	0.137	0.50	0.750 Min / 0.906 Max	1.25	0.938	N/A	N/A	0.750	0.417
15-1105-02-R	1 1/16-12	1.38	1.148	0.979	0.137	0.50	0.750 Min / 0.906 Max	1.25	0.938	N/A	N/A	0.750	0.417
15-1105-02-S	1 1/16-12	1.38	1.148	0.979	0.137	0.50	0.750 Min / 0.906 Max	1.25	0.938	N/A	N/A	0.750	0.417
15-1109-02-L	1 5/8-12	2.00	1.713	1.541	0.139	0.68	0.815 Min / 0.906 Max	1.50	1.376	N/A	N/A	0.815	0.525
15-1109-02-R	1 5/8-12	2.00	1.713	1.541	0.139	0.68	0.815 Min / 0.906 Max	1.50	1.376	N/A	N/A	0.815	0.525
15-1109-02-S	1 5/8-12	2.00	1.713	1.541	0.139	0.68	0.815 Min / 0.906 Max	1.50	1.376	N/A	N/A	0.815	0.525
15-1113-02-L	1 7/8-12	2.25	1.962	1.792	0.139	0.62	0.875 Min / 0.906 Max	1.50	1.751	N/A	N/A	0.875	0.403
15-1113-02-R	1 7/8-12	2.25	1.962	1.792	0.139	0.62	0.875 Min / 0.906 Max	1.50	1.751	N/A	N/A	0.875	0.403
15-1113-02-S	1 7/8-12	2.25	1.962	1.792	0.139	0.62	0.875 Min / 0.906 Max	1.50	1.751	N/A	N/A	0.875	0.403

Model No.	A	B	C	D	E	F	G	H	J	K	L	M	N
15-1205-02-L	1 1/16-12	1.38	1.148	0.979	0.137	0.50	0.750 Min / 0.906 Max	N/A	0.938	2.75	2.25	0.750	0.417
15-1205-02-R	1 1/16-12	1.38	1.148	0.979	0.137	0.50	0.750 Min / 0.906 Max	N/A	0.938	2.75	2.25	0.750	0.417
15-1205-02-S	1 1/16-12	1.38	1.148	0.979	0.137	0.50	0.750 Min / 0.906 Max	N/A	0.938	2.75	2.25	0.750	0.417
15-1209-02-L	1 5/8-12	2.00	1.713	1.541	0.139	0.68	0.815 Min / 0.906 Max	N/A	1.376	3.25	2.75	0.815	0.525
15-1209-02-R	1 5/8-12	2.00	1.713	1.541	0.139	0.68	0.815 Min / 0.906 Max	N/A	1.376	3.25	2.75	0.815	0.525
15-1209-02-S	1 5/8-12	2.00	1.713	1.541	0.139	0.68	0.815 Min / 0.906 Max	N/A	1.376	3.25	2.75	0.815	0.525
15-1213-02-L	1 7/8-12	2.25	1.962	1.792	0.139	0.62	0.875 Min / 0.906 Max	N/A	1.751	3.75	3.25	0.875	0.403
15-1213-02-R	1 7/8-12	2.25	1.962	1.792	0.139	0.62	0.875 Min / 0.906 Max	N/A	1.751	3.75	3.25	0.875	0.403
15-1213-02-S	1 7/8-12	2.25	1.962	1.792	0.139	0.62	0.875 Min / 0.906 Max	N/A	1.751	3.75	3.25	0.875	0.403
