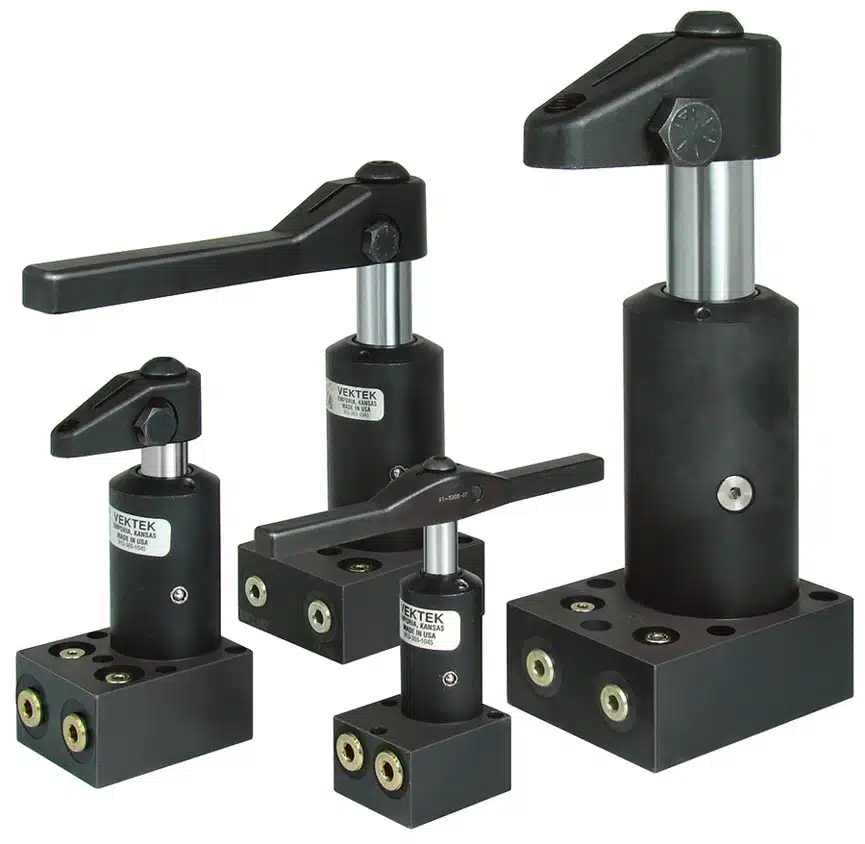

TuffCam Bottom Flange Inch Hydraulic Swing Clamps

Single and Double Acting

Available in four capacities 450, 1,100, 2,600 and 5,000 lb. with standard arm at 5,000 psi.
Three cams for accurate arm positioning, smoother rotation and lower per cam surface contact pressure.

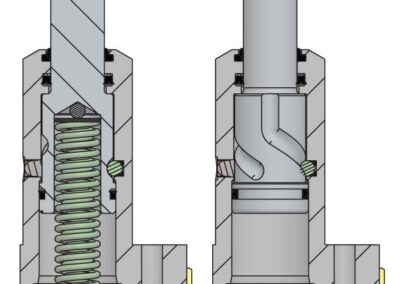

Patented ball seat for improved rotary function, cam follower contact and reduces both dynamic and static friction (Patent #7,032,897).
Fluorocarbon wipers are standard for improved coolant compatibility.
Tungsten carbide cam followers for improved strength and wear.
Same mounting envelope as standard Vektek swing clamps.
See Clamp Time and Fluid Flow Rate chart regarding flow rate limits and time calculations to be observed to avoid damage and preserve warranty.
TuffCam™ Arm Clocking feature is compatible with all standard Vektek arms.
Arms sold separately.
BHC™ (Black Hard Coating) on the cylinder bodies helps prevent scoring and scratching.
Bottom unclamp porting is available.
Vent port with bronze filter gives single acting swing clamps a place to “breathe” and helps keep contamination from entering breather port.
Optional In-Port Flow Control is a meter-in device with reverse free flow check valve.
Optional In-Port Sequence valve is a sequencing device with reverse free flow check valve.
Standard swing is 90° swing angles less than 90° require Swing Restrictors. Swings angles greater than 90° are special order products.
See Ultrasonic variant.

WARNING: Never allow swing arm to contact workpiece or fixture during arm rotation.

** Cylinder capacities are listed at 5,000 psi maximum operating pressure, with a standard length VektorFlo® arm installed. Minimum operating pressure is 750 psi for single acting, 500 psi for double acting. The clamping force is adjustable by varying the hydraulic system pressure. To determine the approximate output force for your application, divide the cylinder capacity shown above by 5,000, and multiply the resultant number by your system operating pressure to obtain the approximate clamping force for your application. (Actual force will vary slightly due to internal cantilever loading, friction loss and/or return springs.)
*** To allow for piece part height variations, it is recommended that the vertical travel be set at about 50% of the vertical stroke.
**** To insure maximum service life and trouble-free operation, restrict fluid flow to the level indicated in the TuffCam™ Clamp Time and Flow Rate Chart.
***** In-Port valves require the use of manifold mount ports.

Single Acting Cylinders, actuated hydraulically one direction, spring returned. Double Acting Cylinders, actuated hydraulically both directions.

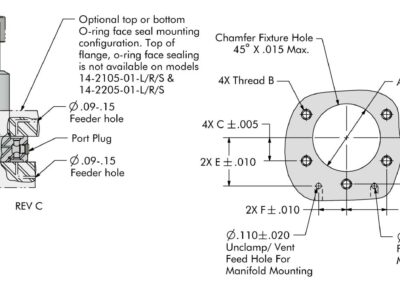

For proper sealing, mating surface must be flat within 0.003 in with a maximum 63 µ in R_a surface finish.

All models are shipped with removable steel plugs installed. O-ring face seals provided. (SAE 2 Ports)
* Models 14-2105-01 (L and R), 14-2205-01 (L and R) are manifold mountable from the bottom SAE 2 port only.
** All five mounting screws must be used when manifold mounting, to assure a leak free O-ring seal.

For proper sealing, mating surface must be flat within 0.003 in with a maximum 63 µ in R_a surface finish.

Model No.	Swing Direction	Clamp Capacity (lb.)	Vertical Clamp Stroke (in.)	Total Stroke (Swing + Vertical)	Standard Arm Length	Piston Area (sq. in.) Retract	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)	Port X For Optional In-Port Valves
14-2105-01-L	Left	450	0.22	0.57	1.06	0.098	N/A	0.056	SAE 4 X 0.58
14-2105-01-R	Right	450	0.22	0.57	1.06	0.098	N/A	0.056	SAE 4 X 0.58
14-2105-01-S	Straight	450	0.57	0.57	1.06	0.098	N/A	0.056	SAE 4 X 0.58
14-2109-01-L	Left	1100	0.31	0.79	1.50	0.295	N/A	0.233	SAE 4 X 0.75
14-2109-01-R	Right	1100	0.31	0.79	1.50	0.295	N/A	0.233	SAE 4 X 0.75
14-2109-01-S	Straight	1100	0.79	0.79	1.50	0.295	N/A	0.233	SAE 4 X 0.75
14-2113-01-L	Left	2600	0.50	1.16	2.00	0.626	N/A	0.726	SAE 4 X 0.75
14-2113-01-R	Right	2600	0.50	1.16	2.00	0.626	N/A	0.726	SAE 4 X 0.75
14-2113-01-S	Straight	2600	1.16	1.16	2.00	0.626	N/A	0.726	SAE 4 X 0.75
14-2118-03-L	Left	5000	0.62	1.65	2.50	1.178	N/A	1.955	SAE 4 X 0.75
14-2118-03-R	Right	5000	0.62	1.65	2.50	1.178	N/A	1.955	SAE 4 X 0.75
14-2118-03-S	Straight	5000	1.65	1.65	2.50	1.178	N/A	1.955	SAE 4 X 0.75

Model No.	Swing Direction	Clamp Capacity (lb.)	Vertical Clamp Stroke (in.)	Total Stroke (Swing + Vertical)	Standard Arm Length	Piston Area (sq. in.) Retract	Oil Capacity Extend (cu. in.)	Oil Capacity Retract (cu. in.)	Port X For Optional In-Port Valves
14-2205-01-L	Left	450	0.22	0.57	1.06	0.098	0.142	0.056	SAE 4 X 0.58
14-2205-01-R	Right	450	0.22	0.57	1.06	0.098	0.142	0.056	SAE 4 X 0.58
14-2205-01-S	Straight	450	0.57	0.57	1.06	0.098	0.142	0.056	SAE 4 X 0.58
14-2209-01-L	Left	1100	0.31	0.79	1.50	0.295	0.475	0.233	SAE 4 X 0.75
14-2209-01-R	Right	1100	0.31	0.79	1.50	0.295	0.475	0.233	SAE 4 X 0.75
14-2209-01-S	Straight	1100	0.79	0.79	1.50	0.295	0.475	0.233	SAE 4 X 0.75
14-2213-01-L	Left	2600	0.50	1.16	2.00	0.626	1.423	0.726	SAE 4 X 0.75
14-2213-01-R	Right	2600	0.50	1.16	2.00	0.626	1.423	0.726	SAE 4 X 0.75
14-2213-01-S	Straight	2600	1.16	1.16	2.00	0.626	1.423	0.726	SAE 4 X 0.75
14-2218-03-L	Left	5000	0.62	1.65	2.50	1.178	3.992	1.955	SAE 4 X 0.75
14-2218-03-R	Right	5000	0.62	1.65	2.50	1.178	3.992	1.955	SAE 4 X 0.75
14-2218-03-S	Straight	5000	1.65	1.65	2.50	1.178	3.992	1.955	SAE 4 X 0.75

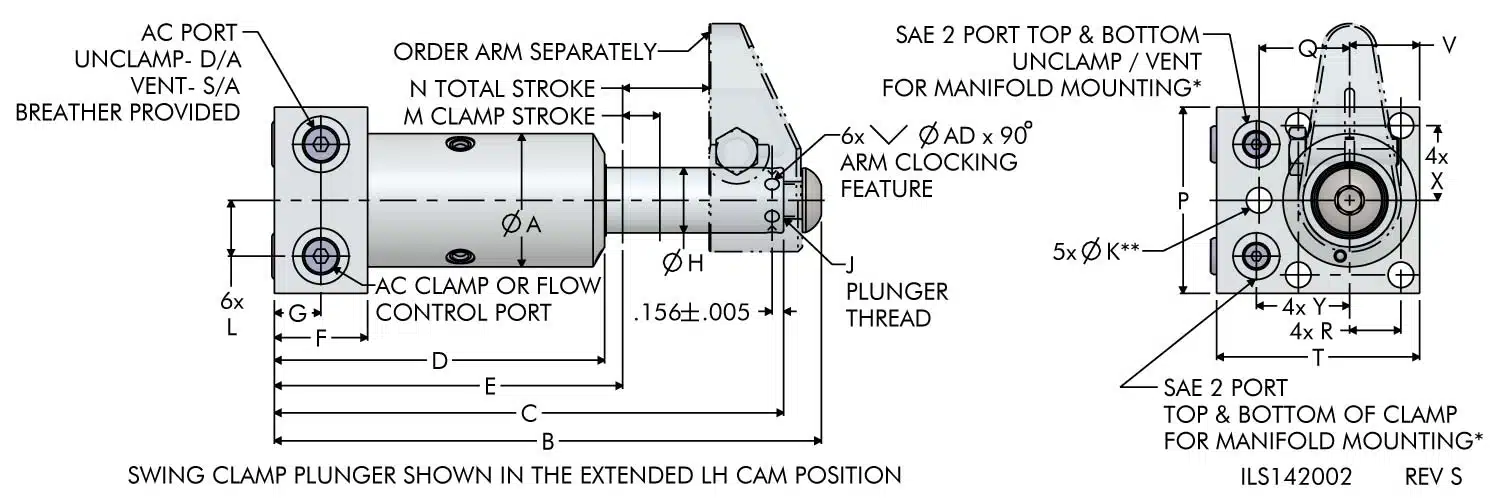

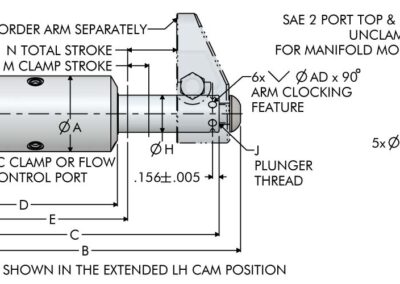

Model No.	Clamp Capacity (lb.)	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	T	V	X	Y	AC	AD
14-2105-01-L	450	1.05	4.32	4.06	2.80	2.99	1.00	0.66	0.438	1/4-28 X 0.28	0.22	0.38	0.22	0.57	1.50	1.06	0.38	1.73	0.53	0.59	0.81	SAE 4	0.13
14-2105-01-R	450	1.05	4.32	4.06	2.80	2.99	1.00	0.66	0.438	1/4-28 X 0.28	0.22	0.38	0.22	0.57	1.50	1.06	0.38	1.73	0.53	0.59	0.81	SAE 4	0.13
14-2105-01-S	450	1.05	4.32	4.06	2.80	2.99	1.00	0.66	0.438	1/4-28 X 0.28	0.22	0.38	0.57	0.57	1.50	1.06	0.38	1.73	0.53	0.59	0.81	SAE 4	0.13
14-2109-01-L	1100	1.49	5.70	5.33	3.65	3.83	1.25	0.63	0.625	3/8-24 X 0.47	0.28	0.56	0.31	0.79	2.00	0.99	0.56	2.41	0.75	0.81	1.13	SAE 4	0.19
14-2109-01-R	1100	1.49	5.70	5.33	3.65	3.83	1.25	0.63	0.625	3/8-24 X 0.47	0.28	0.56	0.31	0.79	2.00	0.99	0.56	2.41	0.75	0.81	1.13	SAE 4	0.19
14-2109-01-S	1100	1.49	5.70	5.33	3.65	3.83	1.25	0.63	0.625	3/8-24 X 0.47	0.28	0.56	0.79	0.79	2.00	0.99	0.56	2.41	0.75	0.81	1.13	SAE 4	0.19
14-2113-01-L	2600	1.79	7.35	6.83	4.43	4.67	1.25	0.63	0.875	1/2-20 X 0.52	0.34	0.75	0.50	1.16	2.50	1.21	0.69	2.72	0.94	1.00	1.25	SAE 4	0.19
14-2113-01-R	2600	1.79	7.35	6.83	4.43	4.67	1.25	0.63	0.875	1/2-20 X 0.52	0.34	0.75	0.50	1.16	2.50	1.21	0.69	2.72	0.94	1.00	1.25	SAE 4	0.19
14-2113-01-S	2600	1.79	7.35	6.83	4.43	4.67	1.25	0.63	0.875	1/2-20 X 0.52	0.34	0.75	1.16	1.16	2.50	1.21	0.69	2.72	0.94	1.00	1.25	SAE 4	0.19
14-2118-03-L	5000	2.49	9.92	9.29	5.88	6.20	1.50	0.75	1.250	5/8-18 X 0.75	0.41	0.75	0.62	1.65	3.00	1.59	1.06	3.69	1.38	1.19	1.81	SAE 4	0.19
14-2118-03-R	5000	2.49	9.92	9.29	5.88	6.20	1.50	0.75	1.250	5/8-18 X 0.75	0.41	0.75	0.62	1.65	3.00	1.59	1.06	3.69	1.38	1.19	1.81	SAE 4	0.19
14-2118-03-S	5000	2.49	9.92	9.29	5.88	6.20	1.50	0.75	1.250	5/8-18 X 0.75	0.41	0.75	1.65	1.65	3.00	1.59	1.06	3.69	1.38	1.19	1.81	SAE 4	0.19

Model No.	Clamp Capacity (lb.)	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	T	V	X	Y	AC	AD
14-2205-01-L	450	1.05	4.32	4.06	2.80	2.99	1.00	0.66	0.438	1/4-28 X 0.28	0.22	0.38	0.22	0.57	1.50	1.06	0.38	1.73	0.53	0.59	0.81	SAE 4	0.13
14-2205-01-R	450	1.05	4.32	4.06	2.80	2.99	1.00	0.66	0.438	1/4-28 X 0.28	0.22	0.38	0.22	0.57	1.50	1.06	0.38	1.73	0.53	0.59	0.81	SAE 4	0.13
14-2205-01-S	450	1.05	4.32	4.06	2.80	2.99	1.00	0.66	0.438	1/4-28 X 0.28	0.22	0.38	0.57	0.57	1.50	1.06	0.38	1.73	0.53	0.59	0.81	SAE 4	0.13
14-2209-01-L	1100	1.49	5.70	5.33	3.65	3.83	1.25	0.63	0.625	3/8-24 X 0.47	0.28	0.56	0.31	0.79	2.00	0.99	0.56	2.41	0.75	0.81	1.13	SAE 4	0.19
14-2209-01-R	1100	1.49	5.70	5.33	3.65	3.83	1.25	0.63	0.625	3/8-24 X 0.47	0.28	0.56	0.31	0.79	2.00	0.99	0.56	2.41	0.75	0.81	1.13	SAE 4	0.19
14-2209-01-S	1100	1.49	5.70	5.33	3.65	3.83	1.25	0.63	0.625	3/8-24 X 0.47	0.28	0.56	0.79	0.79	2.00	0.99	0.56	2.41	0.75	0.81	1.13	SAE 4	0.19
14-2213-01-L	2600	1.79	7.35	6.83	4.43	4.67	1.25	0.63	0.875	1/2-20 X 0.52	0.34	0.75	0.50	1.16	2.50	1.21	0.69	2.72	0.94	1.00	1.25	SAE 4	0.19
14-2213-01-R	2600	1.79	7.35	6.83	4.43	4.67	1.25	0.63	0.875	1/2-20 X 0.52	0.34	0.75	0.50	1.16	2.50	1.21	0.69	2.72	0.94	1.00	1.25	SAE 4	0.19
14-2213-01-S	2600	1.79	7.35	6.83	4.43	4.67	1.25	0.63	0.875	1/2-20 X 0.52	0.34	0.75	1.16	1.16	2.50	1.21	0.69	2.72	0.94	1.00	1.25	SAE 4	0.19
14-2218-03-L	5000	2.49	9.92	9.29	5.88	6.20	1.50	0.75	1.250	5/8-18 X 0.75	0.41	0.75	0.62	1.65	3.00	1.59	1.06	3.69	1.38	1.19	1.81	SAE 4	0.19
14-2218-03-R	5000	2.49	9.92	9.29	5.88	6.20	1.50	0.75	1.250	5/8-18 X 0.75	0.41	0.75	0.62	1.65	3.00	1.59	1.06	3.69	1.38	1.19	1.81	SAE 4	0.19
14-2218-03-S	5000	2.49	9.92	9.29	5.88	6.20	1.50	0.75	1.250	5/8-18 X 0.75	0.41	0.75	1.65	1.65	3.00	1.59	1.06	3.69	1.38	1.19	1.81	SAE 4	0.19

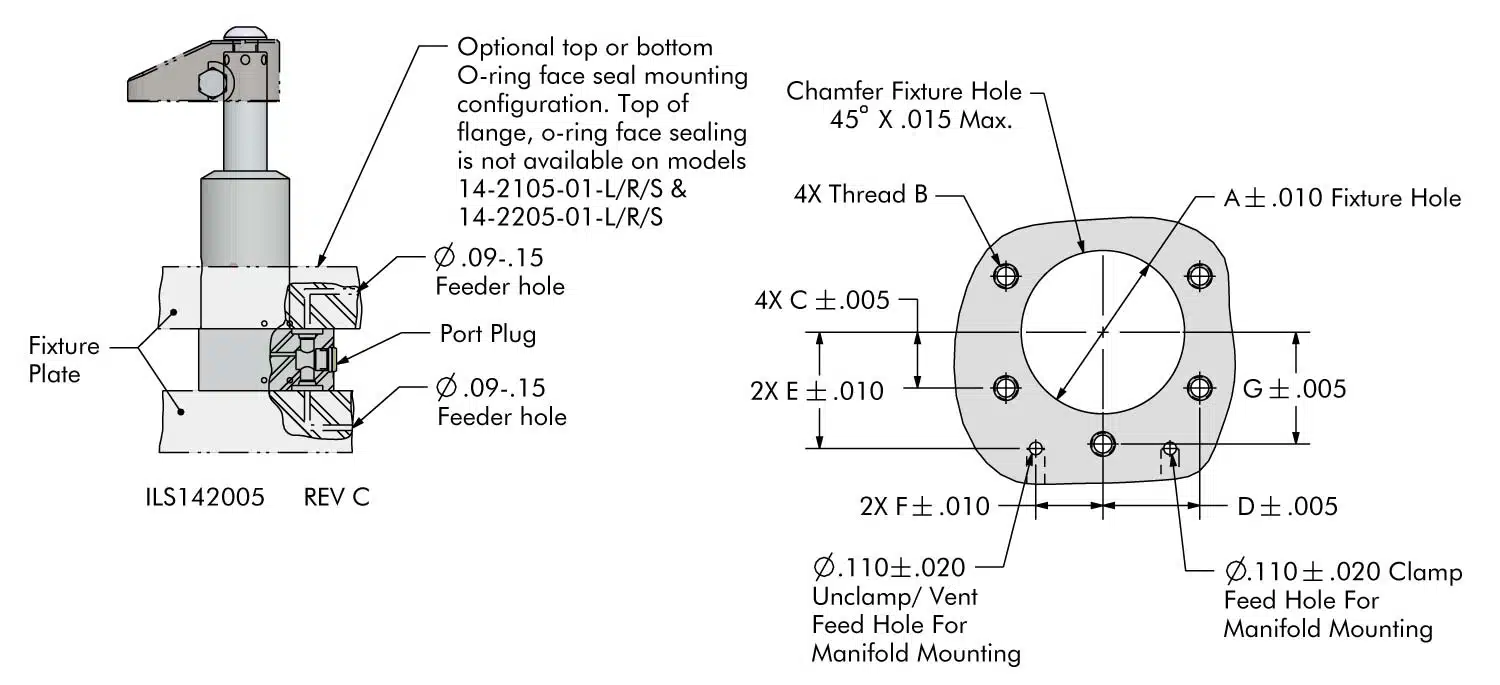

Model No.	A	B	C	D	E	F	G
14-2105-01-L	1.077	10-32	0.375	0.594	0.813	0.375	1.062
14-2105-01-R	1.077	10-32	0.375	0.594	0.813	0.375	1.062
14-2105-01-S	1.077	10-32	0.375	0.594	0.813	0.375	1.062
14-2109-01-L	1.515	1/4 - 20	0.562	0.812	1.125	0.562	0.988
14-2109-01-R	1.515	1/4 - 20	0.562	0.812	1.125	0.562	0.988
14-2109-01-S	1.515	1/4 - 20	0.562	0.812	1.125	0.562	0.988
14-2113-01-L	1.815	5/16 - 18	0.688	1.000	1.250	0.750	1.214
14-2113-01-R	1.815	5/16 - 18	0.688	1.000	1.250	0.750	1.214
14-2113-01-S	1.815	5/16 - 18	0.688	1.000	1.250	0.750	1.214
14-2118-03-L	2.515	3/8 - 16	1.062	1.187	1.812	0.750	1.594
14-2118-03-R	2.515	3/8 - 16	1.062	1.187	1.812	0.750	1.594
14-2118-03-S	2.515	3/8 - 16	1.062	1.187	1.812	0.750	1.594

Model No.	A	B	C	D	E	F	G
14-2205-01-L	1.077	10-32	0.375	0.594	0.813	0.375	1.062
14-2205-01-R	1.077	10-32	0.375	0.594	0.813	0.375	1.062
14-2205-01-S	1.077	10-32	0.375	0.594	0.813	0.375	1.062
14-2209-01-L	1.515	1/4 - 20	0.562	0.812	1.125	0.562	0.988
14-2209-01-R	1.515	1/4 - 20	0.562	0.812	1.125	0.562	0.988
14-2209-01-S	1.515	1/4 - 20	0.562	0.812	1.125	0.562	0.988
14-2213-01-L	1.815	5/16 - 18	0.688	1.000	1.250	0.750	1.214
14-2213-01-R	1.815	5/16 - 18	0.688	1.000	1.250	0.750	1.214
14-2213-01-S	1.815	5/16 - 18	0.688	1.000	1.250	0.750	1.214
14-2218-03-L	2.515	3/8 - 16	1.062	1.187	1.812	0.750	1.594
14-2218-03-R	2.515	3/8 - 16	1.062	1.187	1.812	0.750	1.594
14-2218-03-S	2.515	3/8 - 16	1.062	1.187	1.812	0.750	1.594
