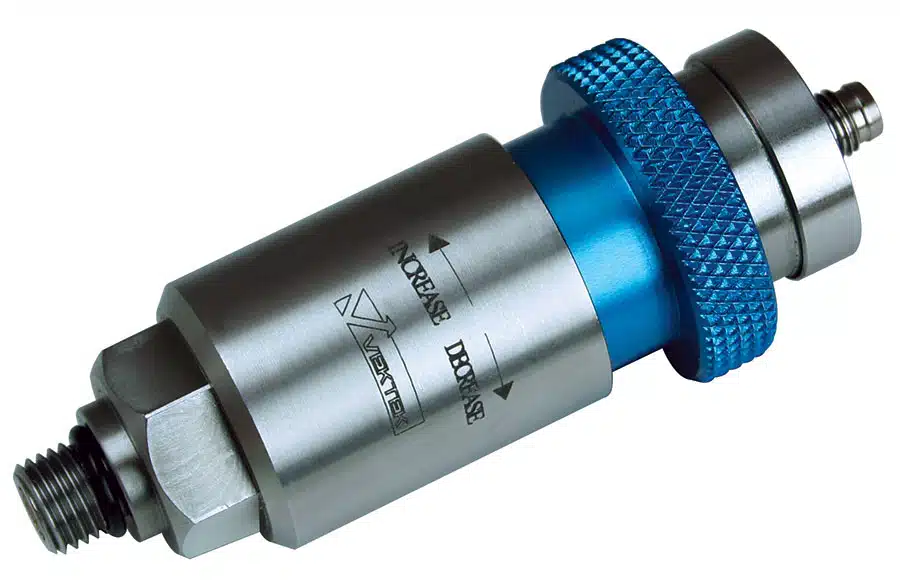

Mechanical Pressure Switch
Pressure Switches
- No power required.
- Ideal when you need to add a pressure switch to a remote location as on a machining pallet fixture.
- Switch tested to over 1,000,000 cycle lifetime.
- New sealed collar and micro-switch design guard against leaks; making this switch ideal for use in wet environments.
- Pressure adjustment 750 to 5,000 psi.
- Electrical Rating
– 1 amp @ 28 VDC resistive
– 5 amp @ 125/250 VAC - Reset deadband: approximately 5% of the set pressure.
- Sealed switch for operation in high moisture environments. (Complies with IP 67)
| Model Number | Cordsets |
| 70-7500-75 | Part No. 27-6424-03 |
| 70-7500-76 | Part No. 27-7424-00 |
| 70-7500-77 | Part No. 27-6424-00 |
| 70-7500-78 | Part No. 27-7424-01 |
NOTE: To assist in setting pressure on mechanical Pressure Switches, order battery operated Pressure Setter/ Checker, Model No. 33-0110-15.
| Model No. | Pressure Range (psi.) | Electrical Connection | Wiring Instructions | Deadband |
|---|---|---|---|---|

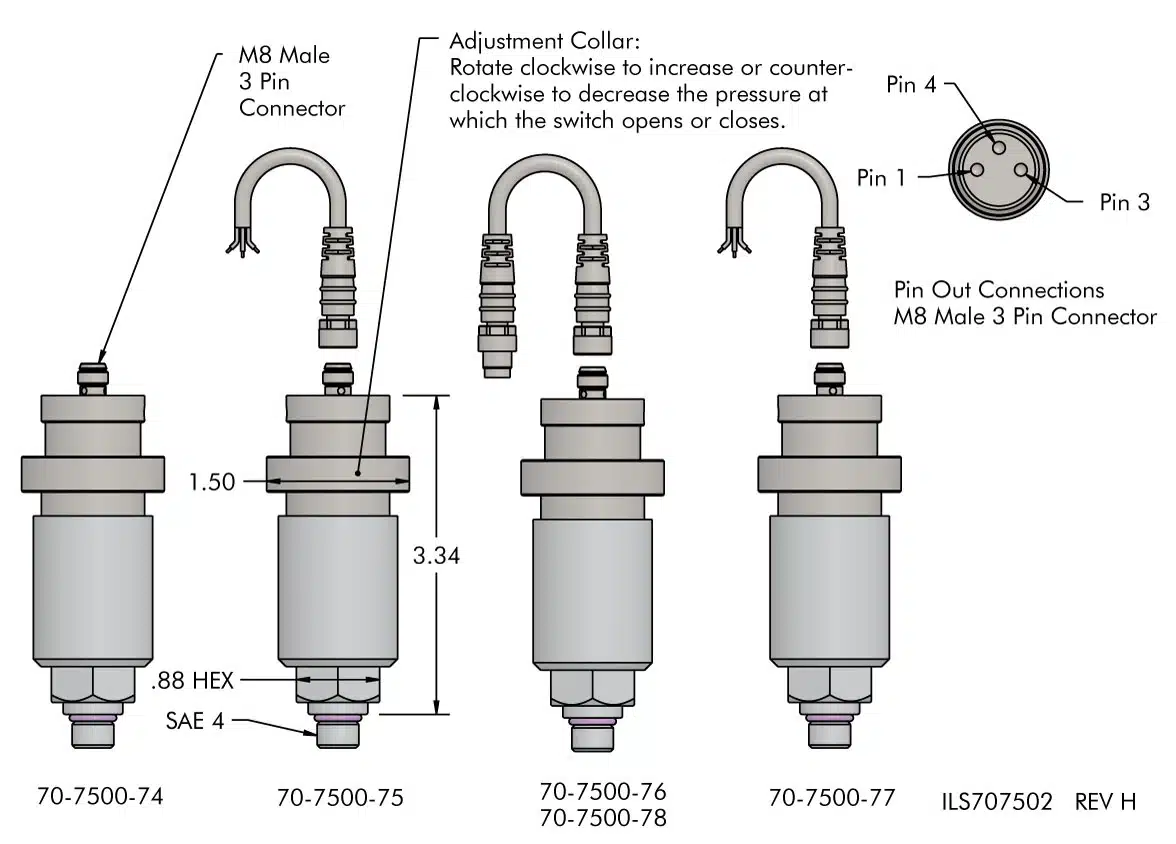

| 70-7500-74 | 750 - 5000 | 750-5000 PSI Pressure Switch - M8 Male Connection Only | "Pin 1 .. N/O Pin 4 .. N/C Pin 3 .. Common" | 5% |
| 70-7500-75 | 750 - 5000 | 39.3 in. long with female M8 connector and bare ends. | "Brown .. N/O Black .. N/C Blue .. Common" | 5% |
| 70-7500-76 | 750 - 5000 | 19.7 in. long with M8 male and female connections. | "Pin 1 .. N/O Pin 4 .. N/C Pin 3 .. Common" | 5% |
| 70-7500-77 | 750 - 5000 | 16.4 in. long with M8 female connector and bare ends. | "Brown .. N/O Black .. N/C Blue .. Common" | 5% |
| 70-7500-78 | 750 - 5000 | 750-5000 PSI Pressure Switch - 19.7 in. Cable with M8 male and female connections | "Pin 1 .. N/O Pin 4 .. N/C Pin 3 .. Common" | 5% |
